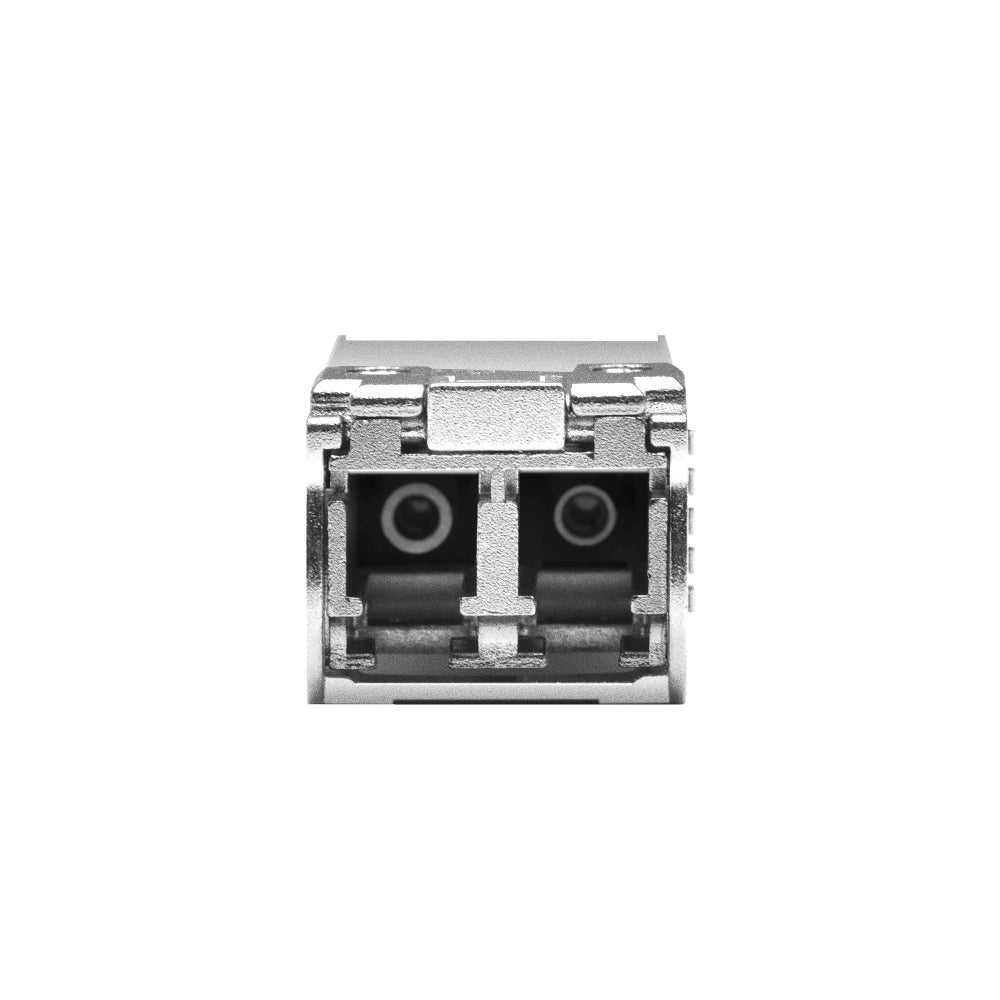

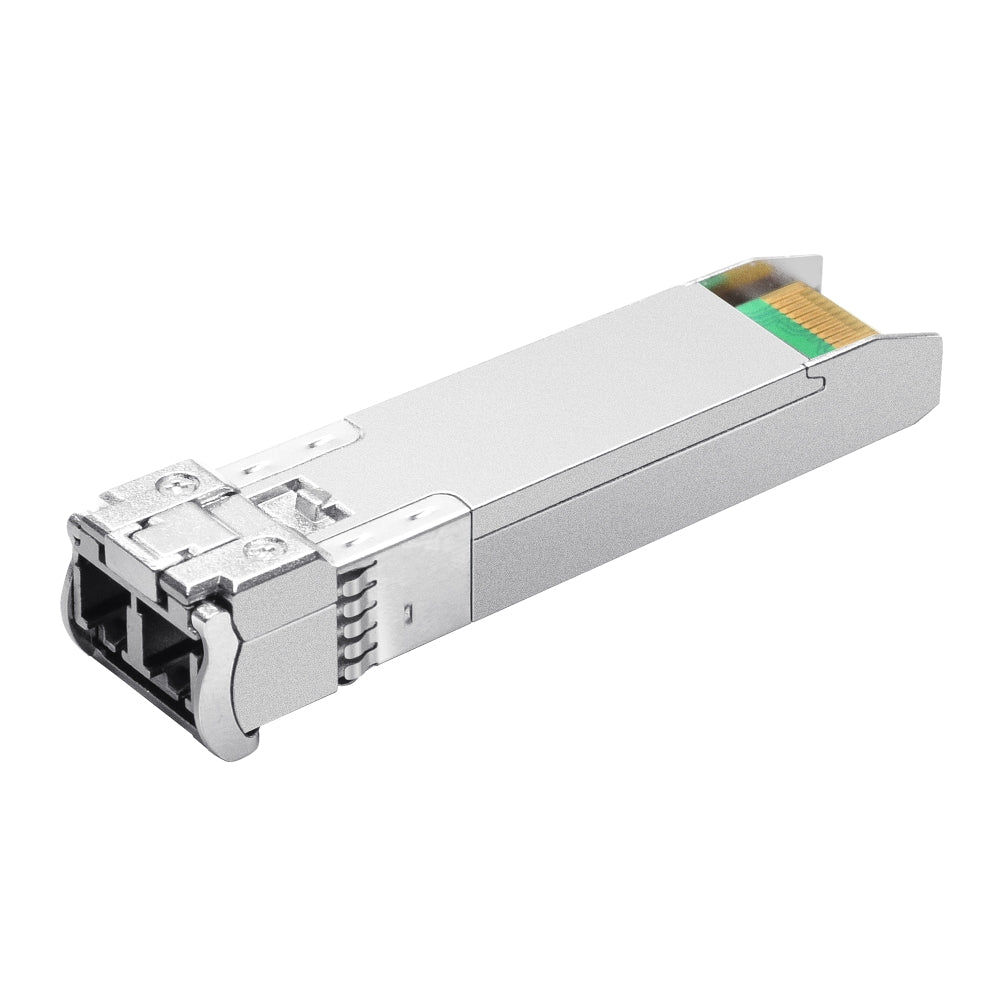

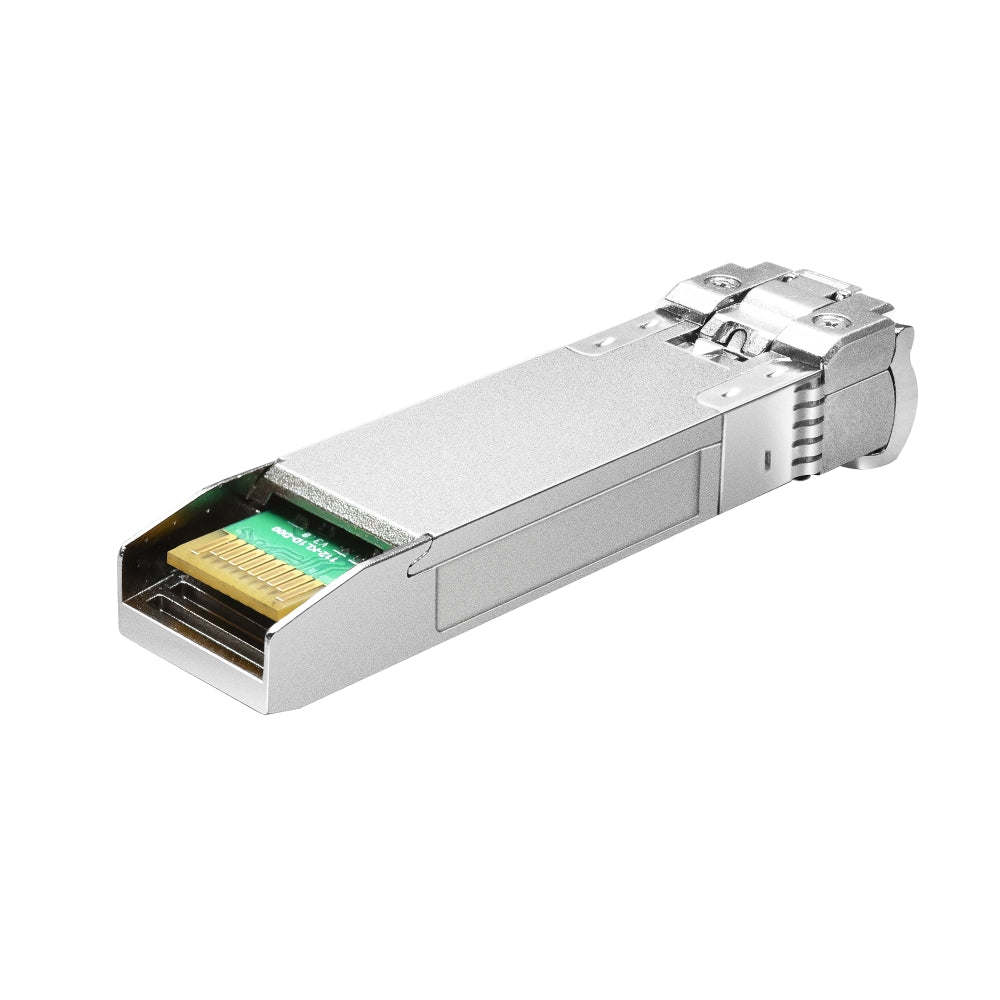

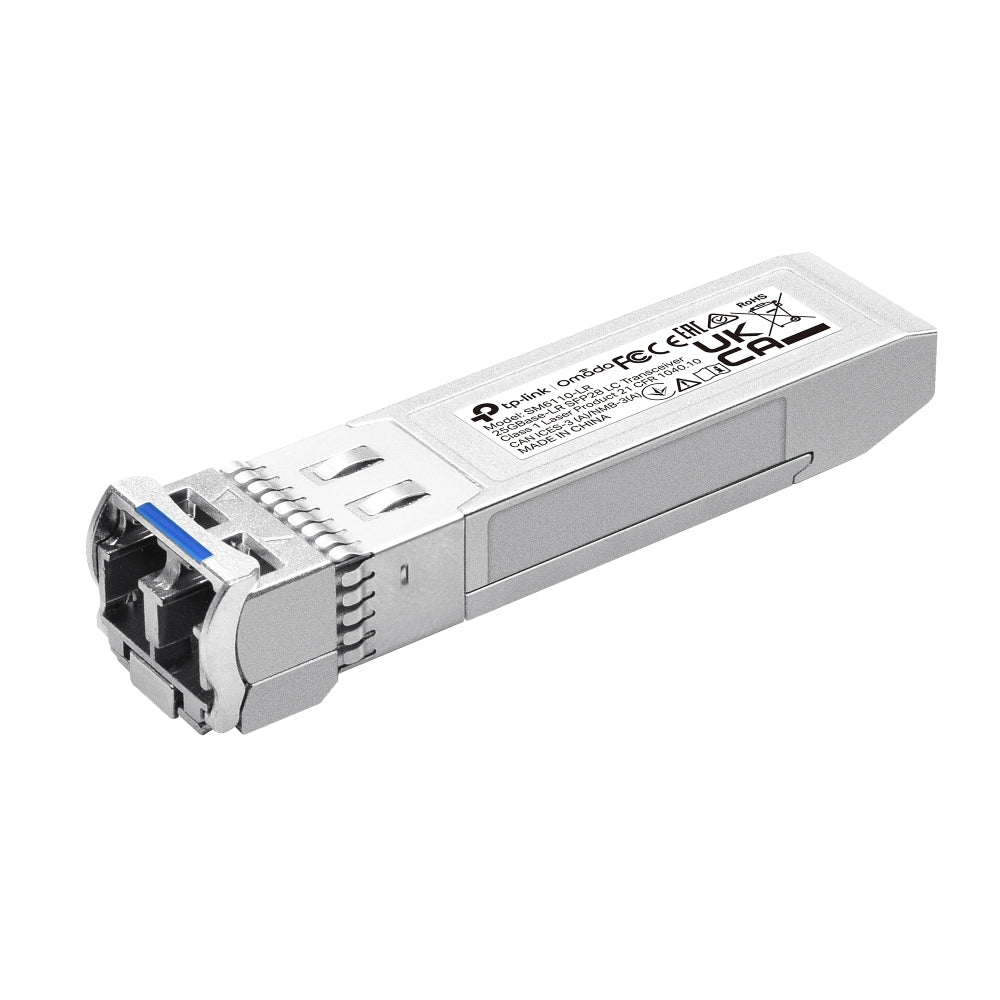

The TP-Link SM6110-LR is a high-speed, long-range 25GBASE-LR SFP28 LC transceiver, engineered for reliable, high-performance networking over single-mode fiber (SMF). Supporting dual-speed transmission of 25.78 Gbps and 10.31 Gbps, it’s ideal for core aggregation links and uplink scenarios in data centers, enterprise networks, and service provider environments.

This hot-swappable transceiver is fully compliant with SFP+/SFP28 MSA, IEEE 802.3ae, and 802.3cc, ensuring wide compatibility with TP-Link’s Omada switches such as SX6632YF, SG3428X, and SG3452X. With low power consumption under 1.2W and integrated Digital Diagnostic Monitoring (DDM), it’s built for efficient and reliable fiber networking across distances up to 10 km.

What's in the Box

• SM6110-LR SFP28 Transceiver

• Installation Guide

• SFP28 Cable

Main Features

✅ 25G and 10G Dual Speed Compatibility
✅ 10 km transmission range over single-mode fiber
✅ Hot-pluggable design for minimal network downtime
✅ Compliant with SFP+/SFP28 MSA, IEEE 802.3ae, and SFF standards
✅ Supports Digital Diagnostic Monitoring (DDM) for real-time diagnostics
✅ Low power draw (<1.2W) for optimized energy efficiency

Detailed Specifications

Form Factor

• SFP28

Standards & Protocols

• IEEE 802.3ae, IEEE 802.3cc

• SFF-8402, SFF-8431, SFF-8432, SFF-8472

• CPRI, eCPRI, TCP/IP

Wavelength

• 1310 nm

Connector Type

• Duplex LC/UPC

Data Rate

• Dual Rate: 25.78 Gbps and 10.31 Gbps

Fiber Type

• 9/125 µm Single-Mode Fiber

Max Cable Length

• 10 km (SMF)

Power Supply

• 3.3V

• Max Power Consumption: ≤ 1.2W

Digital Diagnostic Monitoring (DDM)

• Supported

Hot Swappable

• Yes

Dimensions

• 2.24 × 0.55 × 0.47 in (57 × 14 × 12 mm)

Certifications

• CE, FCC, RoHS

Warranty Information

Manufactures warrenty applied

Brand Description

TP-Link Omada is a leading brand in enterprise-grade networking, offering a wide range of transceivers, switches, and wireless infrastructure optimized for scalability, speed, and reliability. The SM6110-LR represents their commitment to high-performance fiber connectivity solutions.

SKU

SM6110-LR

Practical Use Scenarios

🏢 Enterprise Aggregation Uplinks – Seamlessly connect access switches to core 25G distribution switches
🌐 Data Center Spine-to-Leaf Architectures – Support short-to-mid-range fiber links up to 10 km
🏛 Campus and Metro Networks – Ideal for point-to-point long-haul fiber interconnects
🔄 Interoperability with 10G Switches – Backward compatible for migration flexibility

Datasheets / Downloadable Resources

📄Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link SM6110-LR meets rigorous CE, FCC, and RoHS certifications, aligning with Australian and New Zealand network deployment standards. This product is sourced exclusively through authorized ANZ channels, ensuring genuine parts, regional warranty support, and fast local assistance. Ideal for regulated deployments and mission-critical connectivity within government, education, and enterprise sectors.

FAQs

Q1. What devices are compatible with the SM6110-LR transceiver? (SM6110-LR)
The SM6110-LR is compatible with Omada switches such as SX6632YF (25G) and SG3428X / SG3452X (10G), as well as other SFP+/SFP28 MSA-compliant equipment.

Q2. What is the maximum distance supported by the SM6110-LR? (SM6110-LR)
This transceiver supports a maximum transmission distance of 10 km over 9/125 µm single-mode fiber.

Q3. Can the SM6110-LR operate at 10G speed? (SM6110-LR)
Yes, it supports dual-speed operation, making it backward-compatible with 10G networks.

Q4. Does the SM6110-LR include Digital Diagnostic Monitoring (DDM)? (SM6110-LR)
Yes, it supports DDM, allowing administrators to monitor optical power, temperature, and voltage in real time.

Q5. Is the SM6110-LR transceiver hot-swappable? (SM6110-LR)
Absolutely. The transceiver is hot-pluggable, enabling quick installation or replacement without powering down your device.
