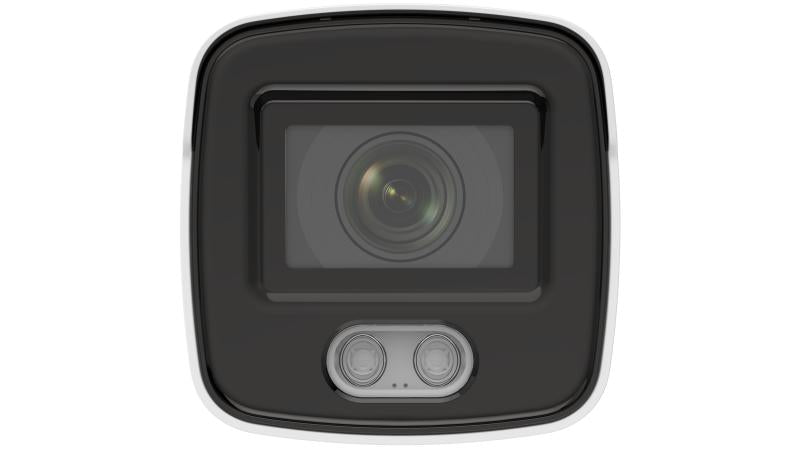

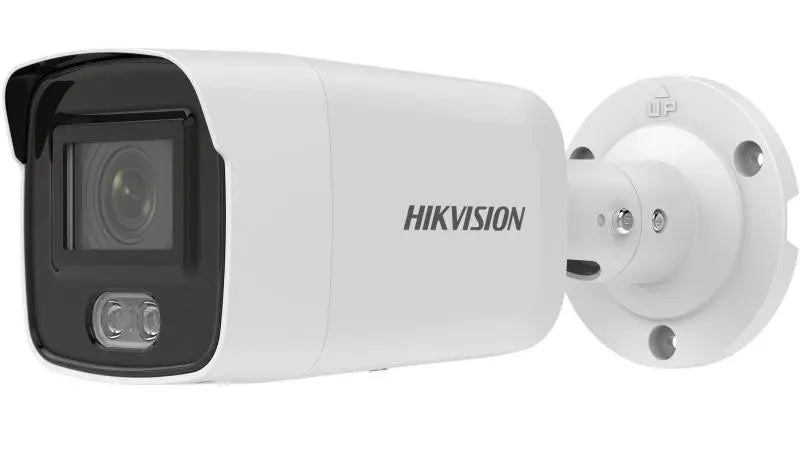

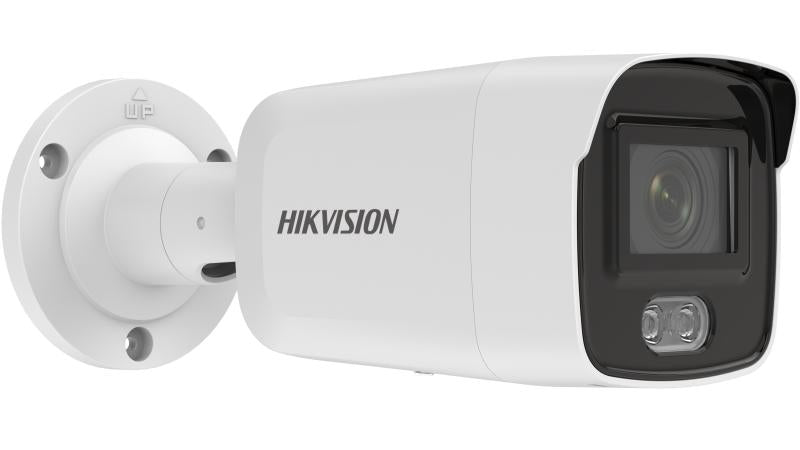

The Hikvision DS‑2CD2047G2‑L(U) ColorVu Fixed Bullet Network Camera delivers stunning 4 MP full-color imaging 24/7, thanks to its advanced F1.0 super-aperture lens and high-performance 1/1.8" progressive scan CMOS sensor. This state-of-the-art camera is equipped with deep learning technology that enables accurate classification of human and vehicle targets, while its 130 dB Wide Dynamic Range (WDR) ensures clarity in high-contrast lighting environments.

Engineered for high reliability, the DS‑2CD2047G2‑L(U) is fully IP67 weather-rated, making it ideal for both indoor and outdoor installations. With white light illumination up to 40 meters, built-in audio (in the "-U" model), and efficient H.265+ compression, this camera is a powerful and practical solution for professional-grade surveillance systems.

What’s Included in the Box

• 1 × Hikvision DS‑2CD2047G2‑L(U) 4MP ColorVu Bullet Camera

• Mounting hardware

• Waterproof connector

• Quick Start Guide

• Warranty card

Main Features

Detailed Specifications

Camera

• Sensor: 1/1.8" Progressive Scan CMOS

• Resolution: 2688 × 1520 (4 MP)

• Min. Illumination: 0.0005 Lux (F1.0, AGC ON), 0 Lux with white light

• Shutter Speed: 1/3 s to 1/100,000 s

• WDR: 130 dB

Lens

• Lens Options: 2.8 mm, 4 mm, 6 mm (fixed focal)

• FOV (Horizontal x Vertical x Diagonal):

  • 2.8 mm: 112° × 61° × 134°

  • 4 mm: 95° × 51° × 115°

  • 6 mm: 58° × 31° × 69°

• Depth of Field:

  • 2.8 mm: 2.5 m to ∞

  • 4 mm: 3.5 m to ∞

  • 6 mm: 7.5 m to ∞

DORI (Detect / Observe / Recognize / Identify)

• 2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 2 m

• 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m

• 6 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m

Video

• Compression: H.265/H.265+/H.264/H.264+/MJPEG

• Max Frame Rate:

  • Main stream: up to 30 fps (60 Hz)

  • Sub stream: up to 30 fps

  • Third stream: up to 10 fps

• Bitrate: 32 Kbps to 8 Mbps

• SVC: Supported for both H.264 and H.265

Audio (‑U Version Only)

• Built-in Microphone

• Compression: G.711u/a, G.722.1, G.726, MP2L2, MP3, PCM, AAC-LC

• Bitrate Range: 8 – 320 Kbps

• Sampling Rate: 8 to 48 kHz

• Noise Filtering: Yes

Network & Interface

• Ethernet: 1 × RJ45 10/100 Mbps

• Protocols: IPv4/IPv6, TCP/IP, HTTPS, FTP, NTP, RTSP, UPnP, etc.

• Users: Up to 32 users (admin/operator/user roles)

• Storage:

  • MicroSD up to 512 GB

  • NAS (NFS, SMB/CIFS)

  • ANR (Auto Network Replenishment)

• Software: Hik-Connect, iVMS-4200, Hik-Central

Smart Features

• Smart Events: Motion detection, video tampering, exception detection

• Perimeter Protection: Line crossing, intrusion, region entrance/exit

• Scene Change Detection

• Face Capture: Supported

Environmental & Physical

• Operating Temp: -30 °C to 60 °C

• Humidity: 95% or less (non-condensing)

• Power: 12 VDC ±25% or PoE (802.3af, Class 3)

• Power Consumption: Max 6 W (DC), 7.5 W (PoE)

• Dimensions: 215.2 × 78.8 × 78.6 mm

• Weight: 695 g (camera only); 1090 g (with packaging)

• Weather Protection: IP67

Warranty Information

• Backed by Hikvision’s standard manufacturer warranty (typically 3 years).

• Requires purchase through authorized distributor/reseller.

• Local support and warranty fulfillment available in Australia and New Zealand.

Brand Description

Hikvision is a global leader in innovative video surveillance products and solutions. Known for cutting-edge technologies such as ColorVu, AcuSense, and Deep Learning, Hikvision offers premium-grade cameras tailored for real-world reliability, clarity, and ease of integration into modern security systems.

SKU / Part Number

SKU: DS‑2CD2047G2‑L(U)

Practical Use Scenarios

1. Residential Security: Install at entrances, garages, or gardens for full-color surveillance with intelligent alerts.

2. Retail or Hospitality: Monitor indoor or outdoor customer areas with clear visual evidence, including audio where permitted.

3. Industrial & Warehouses: Cover long distances with 6 mm lens options and capture faces and vehicles with high clarity.

4. Public Infrastructure: Ideal for train stations, bus stops, and walkways where full-color detail enhances situational awareness.

Data Sheets / Downloadable Resources

• DS‑2CD2047G2‑L(U) Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• RCM Certified for EMC compliance in Australia and New Zealand.

• Meets AS/NZS standards for safety and performance.

• Exclusively sourced through authorized Hikvision channels within ANZ to guarantee authenticity and support.

• Product warranty and technical servicing handled locally via Hikvision ANZ partners.

• Perfectly suited for Australian environmental conditions, with wide temperature range and IP67 durability.

SEO Optimized FAQs

Q1: What makes the DS‑2CD2047G2‑L(U) ideal for night surveillance?
A1: The DS‑2CD2047G2‑L(U) uses ColorVu technology with a F1.0 super-aperture lens and white light illumination to deliver vivid full-color images even in total darkness, unlike traditional infrared cameras.

Q2: Can the DS‑2CD2047G2‑L(U) detect humans and vehicles separately?
A2: Yes, thanks to deep learning analytics, the DS‑2CD2047G2‑L(U) can classify humans and vehicles, drastically reducing false motion alerts.

Q3: Does the DS‑2CD2047G2‑L(U) support audio recording?
A3: The “-U” variant of the DS‑2CD2047G2‑L(U) includes a built-in microphone for real-time audio capture, making it suitable for scenarios requiring synchronized audio and video.

Q4: Is the DS‑2CD2047G2‑L(U) weatherproof for outdoor use?
A4: Absolutely. The camera features a robust IP67-rated enclosure, offering complete protection against dust and rain, making it ideal for harsh outdoor environments.

Q5: What lens options are available for the DS‑2CD2047G2‑L(U), and how do they affect viewing distance?
A5: Available in 2.8 mm, 4 mm, and 6 mm fixed focal lengths, each lens provides different fields of view and DORI ranges, enabling tailored installation depending on the surveillance area.
