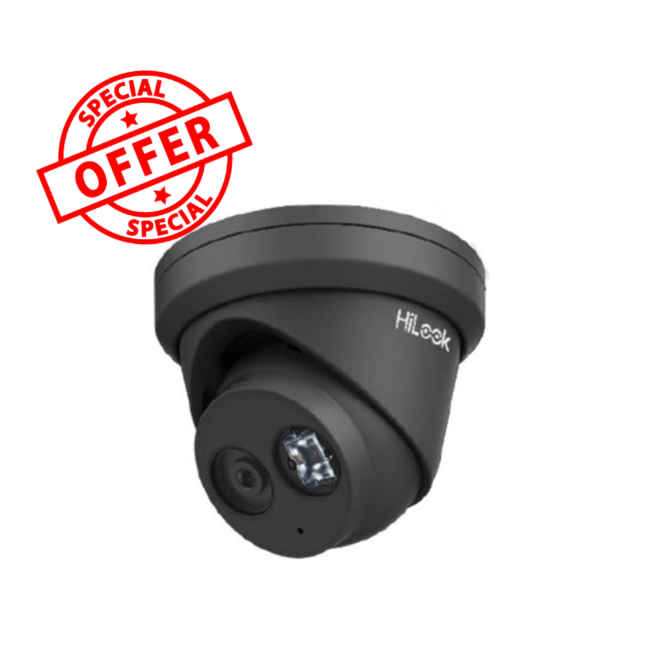

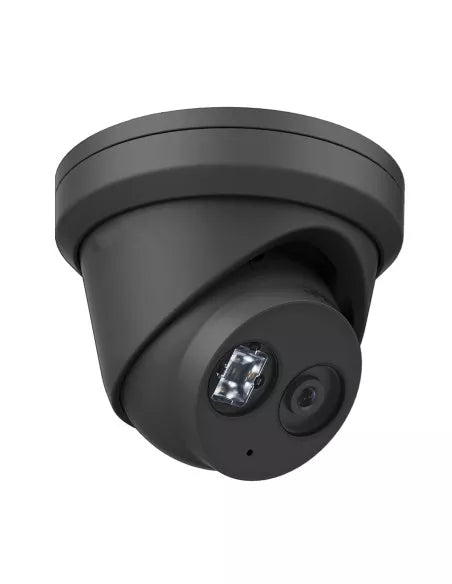

The IPC‑T261H‑MU is a premium 6 MP fixed turret network camera designed for high‑definition surveillance with intelligent analytics and robust environmental protection. It delivers crisp, clear video even in challenging lighting, thanks to 120 dB true WDR. Using efficient H.265+ compression, it minimises bandwidth and storage demands without compromising image quality. With built‑in deep‑learning algorithms, it can distinguish human and vehicle targets, enabling smarter intrusion detection. The turret form factor, rugged aluminium body, and IP67 rating make it suitable for indoor and outdoor deployments. Power over Ethernet (PoE) streamlines installation, while the “‑U” variant includes a built‑in microphone for real‑time audio monitoring.

What’s in the Box

• 1 × IPC‑T261H‑MU Camera (2.8 mm or 4 mm lens version)

• Installation template and screw set

• Quick start guide / user manual

• Protective cap / cover

• Warranty card

Main Features

Detailed Specifications

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS

• Minimum Illumination:
   • Color: 0.005 Lux @ (F1.6, AGC ON)
   • B/W: 0 Lux with IR

• Shutter Speed: 1/3 s to 1/100,000 s

• Slow Shutter: Supported

• Wide Dynamic Range (WDR): 120 dB

• Day/Night: IR cut filter

Lens

• Types: Fixed – selectable 2.8 mm or 4 mm

• Angle of View (FOV):
   • 2.8 mm: Horizontal 107°, Vertical 57°, Diagonal 128°
   • 4 mm: Horizontal 87°, Vertical 46°, Diagonal 105°

• Aperture: F1.6

• Mount: M12

DORI (Detect / Observe / Recognize / Identify)

• 2.8 mm: D: 73 m / O: 29 m / R: 15 m / I: 7 m

• 4 mm: D: 90 m / O: 35 m / R: 18 m / I: 9 m

Illumination / IR

• IR Wavelength: 850 nm

• Range: Up to 30 m

• Smart Supplement Light: Supported

Video Streams & Compression

• Max Resolution: 3200 × 1800

• Frame Rates:
   • Main Stream: up to 20 fps @ full resolution, up to 30 fps at lower res
   • Sub Stream & Third Stream (various lower resolutions)

• Compression: H.265 / H.264 / H.265+ / H.264+

• Bit Rate Range: 32 kbps to 16 Mbps

• Bitrate Control: CBR / VBR

• Scalable Video Coding (SVC) supported

• Region of Interest (ROI): 1 fixed region

Audio (‑U variant)

• Compression: G.711μ / G.711A / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC

• Bit Rates: Varied (from 16 kbps up to 320 kbps, depending on codec)

• Sampling Rates: 8 kHz to 48 kHz

• Noise Filtering: Yes

Network & Security

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

• Simultaneous Live Views: Up to 6 channels

• APIs / SDKs: Support for ONVIF Profile S / G, ISAPI

• Users: Up to 32 user accounts (admin, operator, user)

• Security: HTTPS, TLS 1.1/1.2, IP filtering, password enforcement, audit log

Storage & Access

• Onboard: microSD slot (up to 256 GB)

• Network: NAS via NFS, SMB/CIFS (with ANR support)

• Clients: iVMS‑4200, Hik‑Connect, Hik‑Central

Image Processing

• Adjustments: Rotate, mirror, privacy mask, brightness, contrast, saturation, sharpness, gain, white balance

• Modes: Day / Night / Auto / Schedule

• Enhancements: BLC, HLC, 3D DNR

• Signal‑to‑Noise Ratio (SNR): ≥ 52 dB

Mechanical & Environmental

• Material: Aluminum alloy body

• Dimensions: Ø127.3 mm × 95.9 mm

• Weight: Approx. 600 g (camera only)

• Operating Temperature: –30 °C to 60 °C

• Storage: –30 °C to 60 °C, humidity ≤ 95% non‑condensing

• Approvals & Standards: FCC, CE‑EMC, RCM, IC, KC, UL, CB, CE‑LVD, RoHS, WEEE

Power & Consumption

• Power: 12 V DC ±25% or PoE (802.3af, Class 3)

• Consumption: Max. ~6 W (DC) / 7.5 W (PoE)

• Reverse polarity protection on 12 V

Mounting / Accessories

• Compatible optional mounts: DS‑1271ZJ‑130‑TRL (pendant), DS‑1276ZJ‑SUS (corner), DS‑1281ZJ‑M (inclined ceiling), DS‑1275ZJ‑SUS (vertical pole), DS‑1280ZJ‑DM8 (junction box), DS‑1273ZJ‑130B‑TRL (wall) etc.

Warranty & Support

• Standard manufacturer warranty (e.g. 2 years) — verify with local distributor

• Technical support: via authorized dealer or directly via brand

• Firmware updates: periodic enhancements and fixes

• RMA / replacement process handled through authorized channels

Brand Description

[Insert your brand here, e.g. “Hikvision / OEM Manufacturer”] is a globally recognised leader in surveillance solutions, committed to delivering cutting-edge, high-reliability imaging products. With decades of R&D in security optics, algorithm processing, and network integration, the brand ensures rigorous quality control and advanced functionality in all its offerings.

SKU / Model Code

SKU: IPC‑T261H‑MU

Practical Use Scenarios

• Perimeter Surveillance — ideal for gates, fences, walkways

• Parking Lots & Driveways — human/vehicle classification helps reduce false alarms

• Office / Facility Entrances — 6 MP clarity for identification

• Outdoor Building Corners — turret form factor with IP67 protection

• Small Campus / Retail Sites — cost‑effective, high resolution at lower bitrates

• Integration with NVR / VMS — ONVIF / ISAPI compatibility

Datasheets / Downloadable Resources

• official product datasheet / PDF

Excellence for the Australian and New Zealand Market

This listing is tailored for the Australia and New Zealand region. The IPC‑T261H‑MU conforms to required certifications such as RCM (AS/NZS CISPR 32) for electromagnetic compatibility, UL / CB / CE‑LVD safety approvals, and is rostered for RoHS / WEEE / EMC compliance in Australia. The product is sourced through authorised distributors, ensuring your warranty is valid locally. Support, warranty claims, and firmware updates are handled with direct access to the brand’s regional channels.

SEO‑Friendly FAQs

Q1: What is the resolution of IPC‑T261H‑MU?
A1: The IPC‑T261H‑MU supports up to 6 MP resolution (3200 × 1800), delivering crisp and high‑detail images.

Q2: Does IPC‑T261H‑MU support PoE (Power over Ethernet)?
A2: Yes — IPC‑T261H‑MU supports 802.3af PoE, enabling single‑cable power and data connection.

Q3: Can IPC‑T261H‑MU operate outdoors?
A3: Yes — IPC‑T261H‑MU has an IP67 rating (dust and water resistant) with an aluminium body, making it suitable for outdoor usage.

Q4: Is there audio support in IPC‑T261H‑MU?
A4: The ‑U variant of IPC‑T261H‑MU includes a built‑in microphone and supports multiple audio codecs (e.g. G.711, AAC, MP3) for real‑time audio monitoring.

Q5: What smart analytics does IPC‑T261H‑MU include?
A5: IPC‑T261H‑MU features deep learning for human and vehicle classification, along with perimeter protection such as line crossing and intrusion detection.

Q6: What kind of compression does IPC‑T261H‑MU use?
A6: It supports H.265, H.264, H.265+ and H.264+ encoding, offering efficient storage and bandwidth usage.

Q7: Does IPC‑T261H‑MU handle extreme lighting conditions?
A7: Yes — IPC‑T261H‑MU includes 120 dB true WDR for handling scenes with strong backlight, ensuring balanced and clear imaging.

Q8: What storage options are available with IPC‑T261H‑MU?
A8: IPC‑T261H‑MU supports onboard microSD card (up to 256 GB), plus network storage via NAS (NFS / SMB) with ANR for redundancy.
