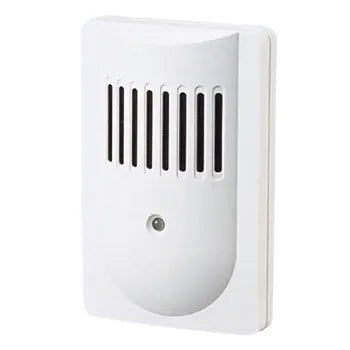

The TAKEX GS-1100E Glass Break Detector is a professional indoor ultrasonic security sensor designed to detect the sound of breaking plate glass in windows, doors and display showcases. Featuring up to 8m horizontal and 7m vertical coverage, adjustable detection sensitivity, a directional microphone, background noise diagnostics and 9–20V DC operation, the GS-1100E provides effective glass-break monitoring for residential, retail, commercial and industrial security alarm installations across Australia and New Zealand.
The TAKEX GS-1100E uses ultrasonic microphone technology to detect the characteristic sound produced when plate glass breaks following an impact. Its non-contact design eliminates the need to attach individual sensors directly to the glass, making it a practical solution for monitoring one or more windows and glass panels within the specified coverage area.
A distinctive adjustable microphone allows the detection area to be directed horizontally by up to ±40°, providing an overall 80° adjustment range. This flexibility helps installers optimise detection for different window arrangements, glass doors and commercial display areas.
The GS-1100E also incorporates adjustable sensitivity and a dedicated environmental diagnostic indicator, enabling technicians to identify potentially problematic background noise conditions during installation. A red alarm LED provides visual confirmation of detection, while an alarm memory function helps identify previously activated detectors.
Its compact white housing measures just 32mm deep, enabling discreet indoor wall mounting in retail environments, offices, reception areas, commercial premises and residential properties.
Designed for integration into professional security alarm systems, the detector operates from a non-polarity 9–20V DC supply, consumes 30mA or less and includes a normally closed dry contact alarm relay and tamper output.
Main Features
1. Ultrasonic Glass Break Detection
Detects ultrasonic sound associated with impact-related plate glass breakage to provide an additional layer of intrusion detection for glass windows, doors and display panels.
2. Wide Glass Protection Coverage
Offers detection coverage of up to 8m horizontally and 7m vertically, allowing appropriately positioned sensors to monitor multiple glass surfaces.
3. Adjustable Directional Microphone
Features a horizontally adjustable microphone with ±40° aiming, helping installers accurately direct the sensing area towards the protected glass.
4. Adjustable Detection Sensitivity
A built-in sensitivity adjustment control enables fine-tuning for glass location, detection distance and surrounding environmental conditions.
5. Background Noise Diagnostic Function
Includes an environmental LED to indicate unsuitable ultrasonic noise conditions during checking and commissioning, helping improve installation reliability.
6. Alarm Memory Function
The red alarm LED flashes for approximately three minutes after activation, remains illuminated for approximately 47 minutes, and then automatically resets.
7. Convenient Operation Testing
Integrated visual indicators allow installers to check operation and environmental conditions without requiring extensive additional monitoring equipment.
8. Non-Contact Glass Protection
The detector monitors glass-breaking sounds without requiring any sensor or cable to be attached directly to the glass surface.
9. Multiple Glass Panel Coverage
One detector can monitor more than one suitable plate-glass window or display panel, depending on installation geometry, sound transmission and coverage requirements.
10. Alarm and Tamper Relay Outputs
Normally closed dry contact outputs support connection to compatible intrusion alarm control panels.
11. Low-Power DC Operation
Operates from a 9–20V DC non-polarity supply with current consumption of 30mA or less.
12. Slim, Discreet Housing
Features a white resin case measuring approximately 110 × 70 × 32mm, suitable for discreet indoor wall-mounted security installations.
13. Optional Glass Break Testing Accessory
The TAKEX EG-1000 glass break checker is available separately for compatible operational testing and commissioning.
Detailed Technical Specifications
| Specification |
Details |
| Brand |
TAKEX |
| Model / Part Number |
GS-1100E |
| Product Type |
Ultrasonic Glass Break Detector |
| Detection Method |
Ultrasonic Microphone |
| Detection Application |
Impact-Related Plate Glass Breakage |
| Maximum Horizontal Coverage |
8m |
| Maximum Vertical Coverage |
7m |
| Horizontal Adjustment |
±40° |
| Total Aiming Adjustment |
80° |
| Reference Glass Size |
400cm² Minimum, One Side at Least 20cm |
| Detection Sensitivity |
Adjustable |
| Background Noise Diagnostics |
Environmental LED / Check Mode |
| Alarm Indicator |
Red LED |
| Environmental Indicator |
Orange LED |
| Alarm Memory |
Built-In, Automatic Reset |
| Alarm Memory Duration |
3 Minutes Flashing + 47 Minutes Steady |
| Supply Voltage |
9–20V DC |
| Power Input |
Non-Polarity |
| Current Consumption |
30mA or Less |
| Alarm Output |
Normally Closed Dry Contact Relay |
| Alarm Contact Rating |
30V AC/DC, 0.1A Maximum |
| Alarm Reset Time |
Approximately 2 Seconds |
| Tamper Output |
Normally Closed Dry Contact |
| Operating Temperature |
-10°C to +50°C |
| Mounting Position |
Indoor Wall |
| Wiring Connection |
Terminals |
| Dimensions (H × W × D) |
110 × 70 × 32mm |
| Weight |
Approximately 120g |
| Housing Material |
White Resin |
| Optional Testing Accessory |
TAKEX EG-1000 Glass Checker |
What's Included in the Box?
Mounting screws, installation documentation and any additional packaging accessories should be confirmed with the supplying distributor.
Please note: The optional TAKEX EG-1000 glass break checker is not assumed to be included and may be purchased separately.
Practical Use Scenarios
Retail Storefront Glass Protection
Monitor glass shopfronts, display windows and retail entrances as part of a compatible intruder alarm system. The non-contact sensing method helps preserve the appearance of customer-facing glass installations.
Commercial Office Security
Protect office glass doors, external windows and reception-area glazing against impact-related glass breakage.
Jewellery Stores and Display Showcases
Provide an additional security detection layer for suitable plate-glass showcases and display areas containing valuable merchandise.
Residential Window and Glass Door Monitoring
Use the detector in homes, apartments and other indoor environments where glass windows or doors require supplementary intrusion detection.
Showrooms and Commercial Display Areas
Monitor multiple suitable glass panels in vehicle showrooms, product display areas and commercial premises.
Warehouse Office and Administration Areas
Integrate glass-break detection into an existing security alarm system to monitor glazed office sections, entrances and reception areas within industrial facilities.
Installation and Mounting Guidelines
The TAKEX GS-1100E is designed for indoor wall mounting.
For effective operation:
-
Position the detector within the specified horizontal and vertical coverage limits.
-
Aim the adjustable microphone towards the glass surfaces requiring protection.
-
Adjust sensitivity according to the installation environment and glass position.
-
Use the environmental diagnostic function to identify potential background ultrasonic noise interference.
-
Avoid mounting close to ultrasonic devices, bells or equipment producing strong electrical or acoustic interference.
-
Connect the alarm and tamper outputs to compatible security control panel inputs.
-
Follow the manufacturer's installation instructions for mounting and wiring.
-
Test the detector using an appropriate manufacturer-compatible glass break testing device.
-
Verify reliable operation before commissioning the security system.
The GS-1100E is designed to detect the acoustic signature of impact-related plate-glass breakage. Glass failure caused by structural stress or other mechanisms without a characteristic impact sound may not trigger the detector.
Warranty Information
The TAKEX GS-1100E manufacturer's instruction manual specifies a 12-month limited warranty from the original date of shipment against defects in materials and workmanship, subject to the manufacturer's conditions and exclusions.
Additional warranty coverage may be available from individual authorised Australian distributors.
Australian Consumer Law and applicable New Zealand consumer guarantees may provide additional rights beyond the manufacturer's limited warranty.
Contact the supplying distributor for current warranty terms, claims assistance and technical support.
About TAKEX
TAKEX, associated with Japan's Takenaka Engineering, is an established manufacturer of electronic detection and security sensing equipment.
Its product range includes ultrasonic glass break detectors, passive infrared sensors, outdoor intrusion detectors, photoelectric beam sensors and specialised security detection systems.
TAKEX products are designed for professional security applications requiring dependable detection, practical installation and integration with compatible alarm monitoring systems.
SKU and Product Information
SKU: GS-1100E
Manufacturer: TAKEX
Manufacturer Part Number: GS-1100E
Product Category: Glass Break Detectors / Intrusion Detection Sensors
Datasheets and Downloadable Resources
-
TAKEX GS-1100E Manufacturer Datasheet
-
TAKEX GS-1100E Installation and Operating Manual
-
TAKEX GS-1100E Detection Coverage Diagrams
-
TAKEX GS-1100E Alarm and Tamper Wiring Information
-
TAKEX GS-1100E Environmental Testing Instructions
Official manufacturer documentation provides the technical specifications, mounting information and installation procedures required for professional installation.
Excellence for the Australian and New Zealand Market
Professional Glass Break Security for Australia and New Zealand
The TAKEX GS-1100E provides ultrasonic glass-break detection for suitable residential, commercial and retail security installations throughout Australia and New Zealand.
Its adjustable microphone, wide detection coverage and background noise diagnostic function make it a practical choice for professional security installations involving glass doors, windows and display cases.
Quality and Regulatory Requirements
TAKEX manufactures specialist electronic security sensing products for professional applications. Installation should comply with applicable Australian and New Zealand electrical and security requirements.
Product-specific regulatory certifications and approvals should be confirmed with the manufacturer or authorised distributor before procurement where applicable.
Authorised TAKEX Product Sourcing
Purchasing through authorised TAKEX representatives supports product authenticity, access to genuine accessories and reliable technical assistance.
Manufacturer Warranty Support
Warranty enquiries and technical support can be coordinated through the supplying distributor and TAKEX representatives, subject to the applicable warranty arrangements.
Compatible with Professional Security Systems
With its 9–20V DC supply, low current consumption, adjustable ultrasonic detection and normally closed alarm contact, the GS-1100E supports integration with compatible alarm control panels commonly used in Australian and New Zealand security installations.
