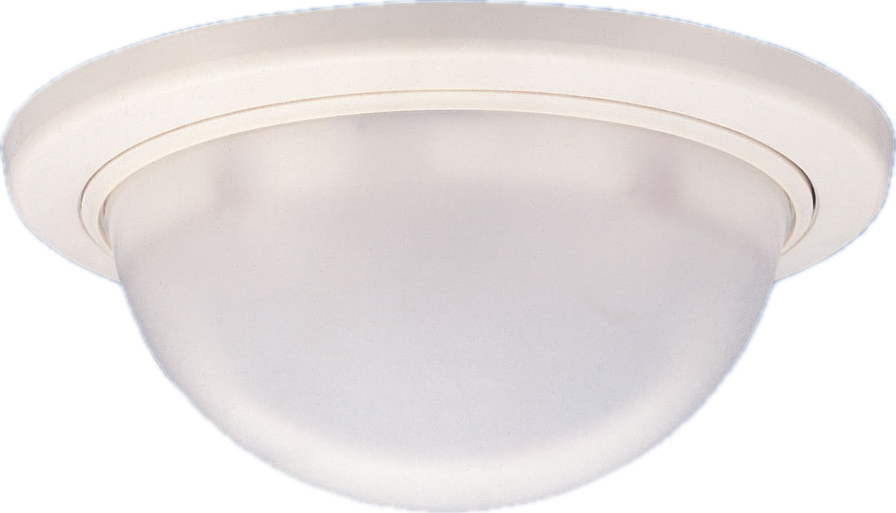

The TAKEX PA‑6812E is a compact, professional-grade Passive Infrared Sensor (PIR) designed for indoor security applications. With a wide-angle detection pattern up to 12 metres, this sensor integrates seamlessly into modern alarm systems, offering adjustable pulse count, selectable relay output (N.C./N.O.), and remote LED control.
Its ultra-slim housing is 30% smaller than previous TAKEX models, making it ideal for discreet installations in commercial or residential interiors. The sensor supports both ceiling and wall mounting, and its snap-in base unit ensures quick and hassle-free installation and servicing, even at height.
What’s Included in the Box
Main Features
-
12m Wide-Angle Coverage: Suitable for open-plan indoor environments.
-
Compact Form Factor: Only 120mm diameter × 47mm height – 30% smaller than PA‑6700 series.
-
Pulse Count Selection: Adjustable to 1, 2, 3, or 4 triggers for enhanced false-alarm immunity.
-
Selectable Alarm Contacts: Configurable dry contact output – N.C. or N.O. selectable.
-
Sensitivity Adjustment: 4 levels – 60%, 80%, 100%, and 120%.
-
Mirror Optics: Advanced mirror design ensures consistent detection zones across the coverage area.
-
Silent Alarm Output: Utilises Photo-MOS FET switch for noiseless activation.
-
LED Indicators: Red for active alarm; Yellow for memory indication.
-
Remote LED Control: Alarm LED can be disabled via external contact.
-
Auto Alarm Memory: Memory LED flashes for 3 minutes and lights for 47 minutes after an alarm.
Detailed Specifications
| Specification |
Details |
| Model |
PA‑6812E |
| Detection Method |
Passive Infrared (Wide-Angle) |
| Coverage Area |
Up to 12m (40 ft) |
| Detection Zones |
17 pairs |
| Mounting Height |
Up to 2.6m (Ceiling); wall mount with optional bracket BCW‑401 |
| Power Supply |
10.5–28V DC (non-polarity) |
| Current Consumption |
25mA max. (+2mA with LED control) |
| Output Type |
SPST dry contact (N.C./N.O. selectable) |
| Contact Rating |
24V AC/DC, 0.25A (resistive load), with 3.3Ω protective resistor |
| Reset Time |
Approx. 2 seconds |
| LED Indicators |
Red (alarm), Yellow (memory) |
| Alarm Memory Duration |
3 minutes flashing + 47 minutes lighting |
| Pulse Count Selection |
1, 2, 3, or 4 trigger options |
| Sensitivity Adjustment |
60%, 80%, 100%, 120% |
| Tamper Switch |
Dry contact N.C., 30V AC/DC 0.25A |
| Operating Temperature |
–15°C to +55°C (+5°F to +131°F) |
| Installation Position |
Indoor ceiling or optional wall mount (BCW‑401) |
| Housing Material |
ABS resin (body), PE resin (cover) |
| Weight |
110g (3.85oz) |
Warranty Information
5-Year Limited Warranty – Covers manufacturing defects under normal use and installation conditions. Does not cover damage due to misuse, power surges, lightning, or improper installation.
Brand Description
TAKEX, part of Takenaka Engineering Co. Ltd. (Japan), is a globally respected manufacturer of advanced security sensors. Their products are widely used in intrusion detection systems, known for precision performance, durable builds, and seamless system integration.
SKU Field
SKU: PA‑6812E‑TAKEX
Practical Use Scenarios
-
Office Buildings & Commercial Facilities: Wide-angle coverage for entryways, hallways, and open-plan areas.
-
Retail Stores: Monitor customer movement and detect unauthorised access during off-hours.
-
Schools & Government Buildings: Discreet yet reliable monitoring in public spaces.
-
Residential Applications: Ideal for living areas, garages, and corridors in smart home systems.
-
Ceiling-Mounted Installations: Perfect for security upgrades where wall mounting is impractical.
Datasheets / Downloads
Datasheet
Excellence for the Australian and New Zealand Market
-
Meets all applicable Australian and New Zealand indoor electrical and safety standards.
-
Sourced directly from TAKEX-authorized distributors in Australia.
-
Installation-ready with compatible mounting accessories for ANZ infrastructure.
-
Warranty service is handled locally, ensuring prompt support.
-
A trusted solution among professional installers and system integrators across the region.
Frequently Asked Questions (FAQs)
Q1: What is the maximum detection range of the PA‑6812E?
A1: The PA‑6812E detects motion up to 12 metres (40 feet) in a wide-angle coverage pattern.
Q2: Can the PA‑6812E be wall-mounted?
A2: Yes. While it is designed primarily for ceiling installation, it can be wall-mounted using the optional BCW‑401 bracket.
Q3: How do I adjust the sensitivity on the PA‑6812E?
A3: Sensitivity is selectable between 60%, 80%, 100%, and 120% using internal dip switches.
Q4: Is the output contact normally closed or open?
A4: The SPST dry contact is selectable—you can choose either Normally Open (N.O.) or Normally Closed (N.C.) depending on your system setup.
Q5: What kind of LED indicators does the PA‑6812E have?
A5: A red LED indicates current alarm activity, while a yellow LED shows alarm memory status.
Q6: What voltage does the PA‑6812E operate on?
A6: It operates within a range of 10.5 to 28 VDC, making it compatible with most security system power supplies.
