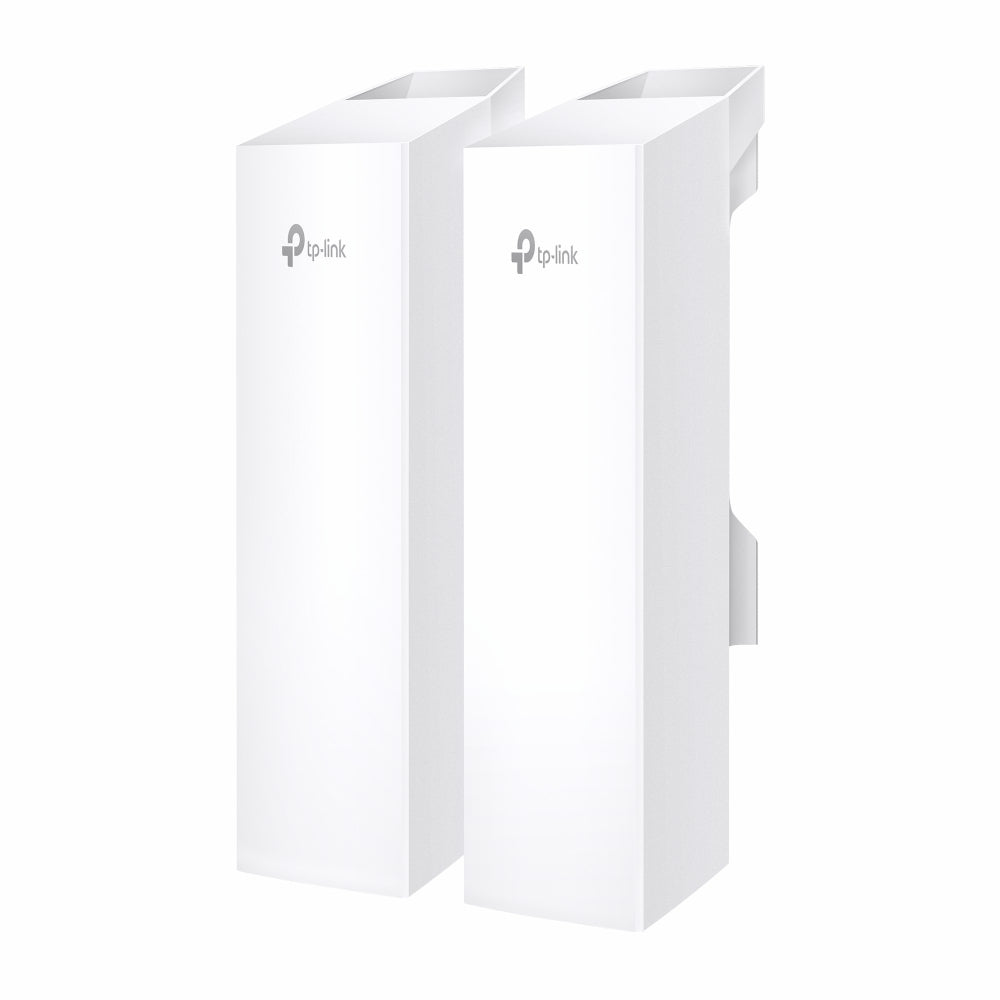

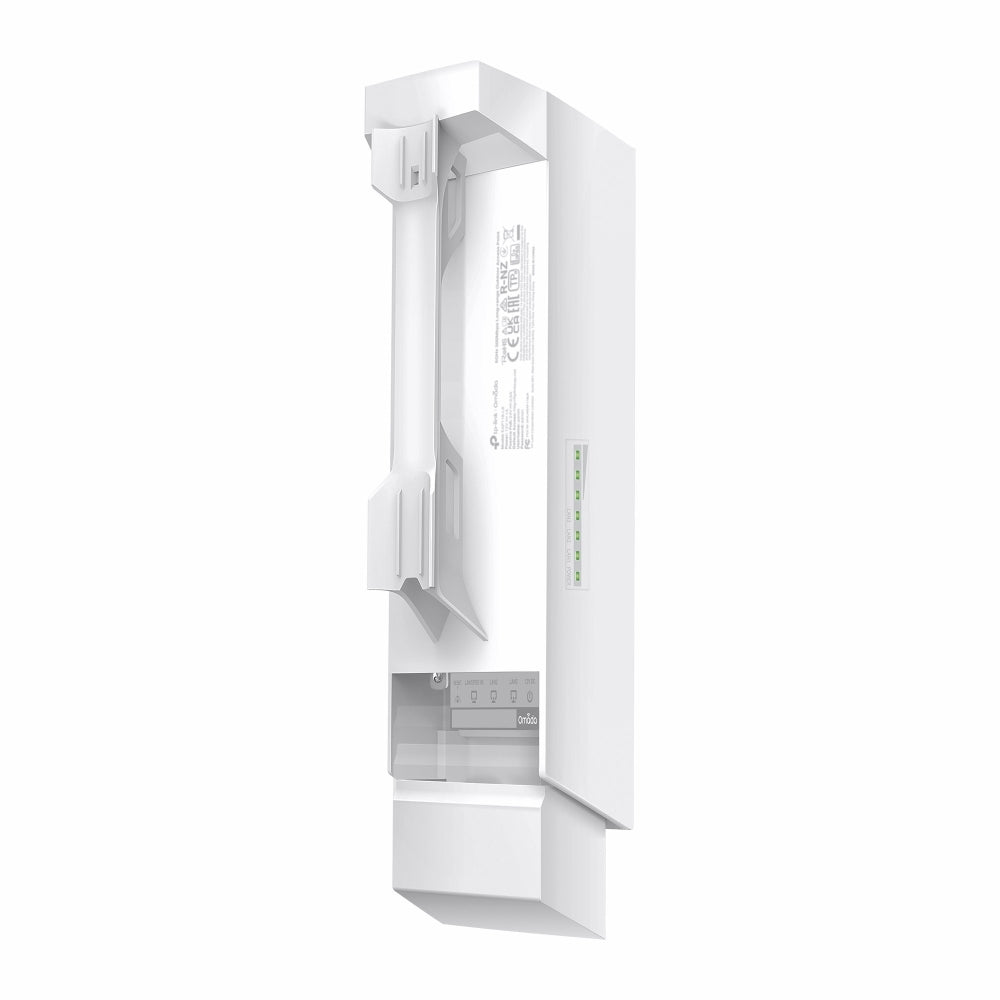

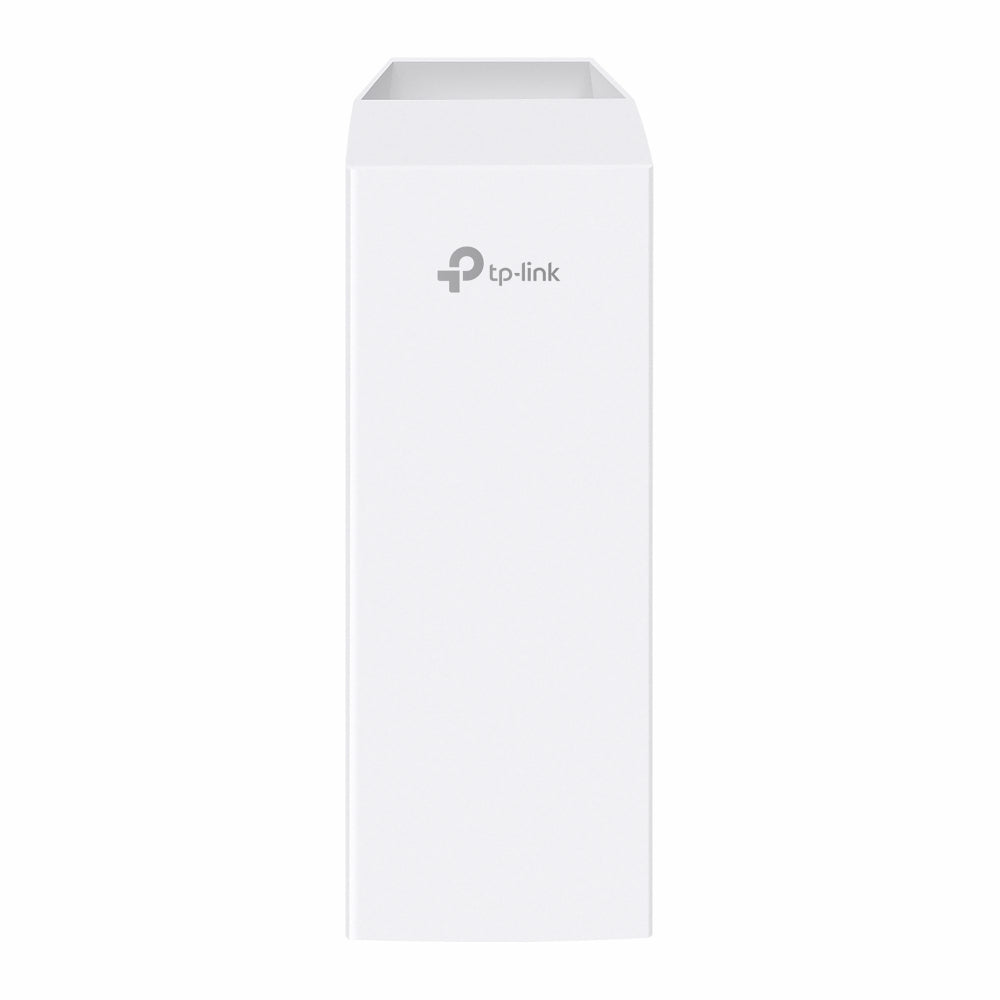

Connect distant locations with high-speed, reliable wireless links using the TP-Link EAP215-Bridge KIT, an advanced 5GHz Wireless Bridge engineered for long-range performance in indoor and outdoor environments. Perfect for extending networks across campuses, industrial parks, surveillance installations, or rural areas, this powerful bridge delivers professional-grade connectivity without the complexity and cost of laying fiber or copper cables.
Featuring 802.11ac Wave 2 technology, the EAP215-Bridge KIT achieves wireless speeds up to 867 Mbps on the 5GHz band, leveraging 2×2 MU-MIMO and beamforming for optimal data throughput and reduced latency. Thanks to its high-gain dual-polarized directional antennas (11 dBi), it’s capable of maintaining stable connections over distances up to 5 km*, making it ideal for point-to-point or point-to-multipoint deployments.
Omada SDN integration provides centralized cloud management, Zero-Touch Provisioning (ZTP), and advanced monitoring through the Omada app or web interface. Auto-pairing and agile LED indicators simplify deployment, allowing installers to align devices quickly and verify signal strength for optimal link quality.
Equipped with three Gigabit Ethernet ports, the EAP215-Bridge KIT offers flexible connections for IP cameras, network switches, or local devices, providing excellent backhaul for demanding applications. The rugged IP65-rated housing and 6kV lightning protection ensure durability in harsh outdoor environments, from freezing winters to scorching summers.
With passive PoE support and included PoE adapters, installation is flexible and streamlined, requiring only a single cable run for both power and data. Robust security features—including WPA/WPA2-Enterprise, rogue AP detection, VLAN support, and captive portal—safeguard sensitive data and maintain secure connections.
The TP-Link EAP215-Bridge KIT delivers enterprise-grade wireless bridging in a cost-effective, easy-to-deploy solution, perfect for businesses, municipalities, and organizations looking to expand connectivity across wide areas.
What’s Included in the Box
Main Features
-
Long-Range Wireless Transmission: Supports wireless links up to 5 km* with stable performance and low latency.
-
High-Speed 5GHz Wireless: Delivers up to 867 Mbps using 802.11ac Wave 2 technology for fast, reliable data transfer.
-
Dual-Polarized Directional Antennas: 11 dBi antennas provide focused, long-distance coverage with minimal interference.
-

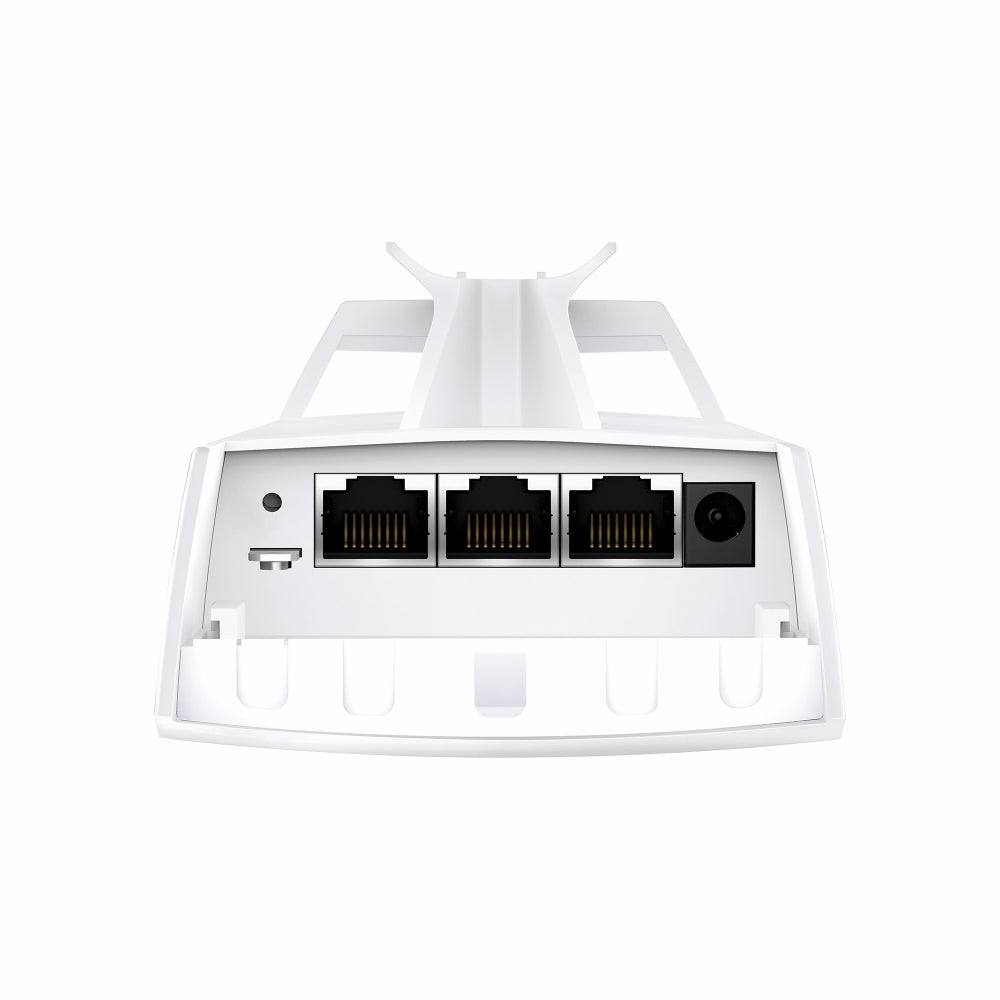

3× Gigabit Ethernet Ports: Connect multiple devices such as IP cameras or switches for flexible wired networking.
-
Omada SDN Integration: Centralized cloud management, intelligent monitoring, and Zero-Touch Provisioning.
-
IP65 Weatherproof Design: Rugged enclosure and 6kV lightning protection ensure reliable outdoor operation in all weather conditions.
-
Auto-Pairing & Agile LEDs: Simplifies deployment with easy alignment and real-time signal feedback.
-
Flexible Power Options: Supports 12V DC or 24V Passive PoE for versatile installation scenarios.
-
Enterprise-Grade Security: Includes WPA/WPA2-Enterprise, VLAN support, MAC filtering, captive portal, and rogue AP detection.
Detailed Specifications
| Category |
Details |
| Wireless Standards |
IEEE 802.11 a/b/g/n/ac |
| Frequency Band |
5 GHz |
| Max Wireless Speed |
Up to 867 Mbps |
| Antenna Type |
Internal 2×2 dual-polarized directional antennas (11 dBi gain)
Horizontal: 35°, Vertical: 35° |
| Transmission Power |
CE: <23 dBm (bands 1/2), <30 dBm (band 3)
FCC: <22 dBm (bands 1/4) |
| Ethernet Ports |
3× Gigabit Ethernet ports |
| Power Consumption |
Max. 11.5W |
| Power Options |
12V DC or 24V Passive PoE (PoE adapter included) |
| Weatherproof Rating |
IP65 |
| Lightning Protection |
Air discharge: ±8kV
Contact discharge: ±4kV
Common mode 10/700: ±6kV |
| Mounting Options |
Pole mounting (kit included) |
| Coverage Range |
Up to 5 km* |
| Wireless Functions |
Mesh support*, MU-MIMO, Load Balancing, Beamforming, Seamless Roaming (802.11r), Airtime Fairness, Multiple SSIDs (up to 8), Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static/Dynamic IP support |
| Wireless Security |
VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication*, WPA/WPA2-Personal/Enterprise, MAC Filter (up to 4,000 entries) |
| Management Features |
Omada App, Centralized Management via OC300, OC200, Software Controller, or Cloud-Based Controller, SNMP v1/v2c/v3, SSH, HTTP/HTTPS, Zero-Touch Provisioning, LED ON/OFF Control, Restore & Backup, Firmware Upgrade via Web |
| Operating Temperature |
-40°C ~ 70°C (-40°F ~ 158°F) |
| Storage Temperature |
-40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity |
10% ~ 90% RH, non-condensing |
| Storage Humidity |
5% ~ 90% RH, non-condensing |
| Certifications |
CE, FCC, RoHS |
| Dimensions |
79 × 60 × 224 mm (3.1 × 2.4 × 8.8 in) |
Warranty Information
TP-Link provides a limited warranty covering defects in materials and workmanship for the EAP215-Bridge KIT. Warranty terms vary by region. Customers in Australia and New Zealand enjoy comprehensive local support through authorized partners for hassle-free warranty claims and technical assistance.
Brand Description
TP-Link is a trusted global leader in networking technology, renowned for delivering high-quality, innovative solutions for businesses and consumers. From advanced enterprise Wi-Fi systems to cost-effective wireless bridges, TP-Link products empower organizations to build scalable, secure, and high-performance networks worldwide.
SKU
EAP215-Bridge KIT
Practical Use Scenarios
✅ Perfect for connecting two buildings wirelessly over distances up to 5 km, eliminating costly trenching for fiber or copper cabling.
✅ Ideal for surveillance systems, allowing high-bandwidth links for multiple IP cameras across long distances.
✅ Excellent for rural broadband, linking remote locations back to the main network infrastructure.
✅ Suitable for outdoor industrial sites, agricultural operations, or large campuses needing robust, high-speed wireless links.
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The TP-Link EAP215-Bridge KIT complies with strict Australian and New Zealand standards, delivering reliable long-distance connectivity in diverse outdoor conditions. Sourced through official distribution channels, all units are fully certified for ANZ use, ensuring regulatory compliance, genuine products, and comprehensive local warranty support. Businesses and communities across Australia and New Zealand can confidently deploy the EAP215-Bridge KIT for cost-effective, high-performance wireless bridging.
FAQs
Q1: What is the maximum wireless speed of the TP-Link EAP215-Bridge KIT (SKU: EAP215-Bridge KIT)?
A1: The EAP215-Bridge KIT offers wireless speeds up to 867 Mbps on the 5GHz band.
Q2: How far can the TP-Link EAP215-Bridge KIT (SKU: EAP215-Bridge KIT) transmit wirelessly?
A2: Under ideal conditions, it can provide wireless links up to 5 km, making it excellent for long-distance deployments.
Q3: Does the TP-Link EAP215-Bridge KIT (SKU: EAP215-Bridge KIT) support Omada Mesh technology?
A3: Yes! The device supports Omada Mesh, allowing flexible, wireless interconnection with other Omada devices.
Q4: Is the TP-Link EAP215-Bridge KIT (SKU: EAP215-Bridge KIT) suitable for outdoor use?
A4: Absolutely. It features an IP65-rated weatherproof enclosure and lightning protection, making it ideal for harsh outdoor environments.
Q5: What power options does the TP-Link EAP215-Bridge KIT (SKU: EAP215-Bridge KIT) offer?
A5: It supports both 12V DC and 24V Passive PoE, with a PoE adapter included for flexible installation scenarios.
