Advanced Wi-Fi 6 Performance for High-Density Business Environments

Elevate your enterprise wireless network with the TP-Link EAP620 HD, an AX1800 Wi-Fi 6 ceiling-mount access point designed to deliver superior speed, capacity, and efficiency. With dual-band throughput reaching up to 1.8 Gbps (574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz), this high-performance AP ensures smooth streaming, rapid downloads, and robust connectivity for modern business applications.

Engineered for high-density environments, the EAP620 HD utilizes Wi-Fi 6 technologies such as OFDMA, MU-MIMO, 1024-QAM, and longer OFDM symbols to increase network capacity and reduce latency—even in the busiest offices, campuses, or public venues. Integrated into the Omada SDN platform, it enables centralized cloud management, zero-touch provisioning, and intelligent monitoring via a user-friendly web interface or Omada mobile app.

The device’s sleek, ultra-slim design allows discreet ceiling or wall mounting. Power over Ethernet (802.3at PoE) simplifies deployment, while advanced security features—including WPA3, captive portals, and rogue AP detection—ensure enterprise-grade protection.

Whether you’re upgrading a single site or scaling a multi-site enterprise, the EAP620 HD is the perfect choice for reliable, high-performance wireless connectivity.

What's Included in the Box

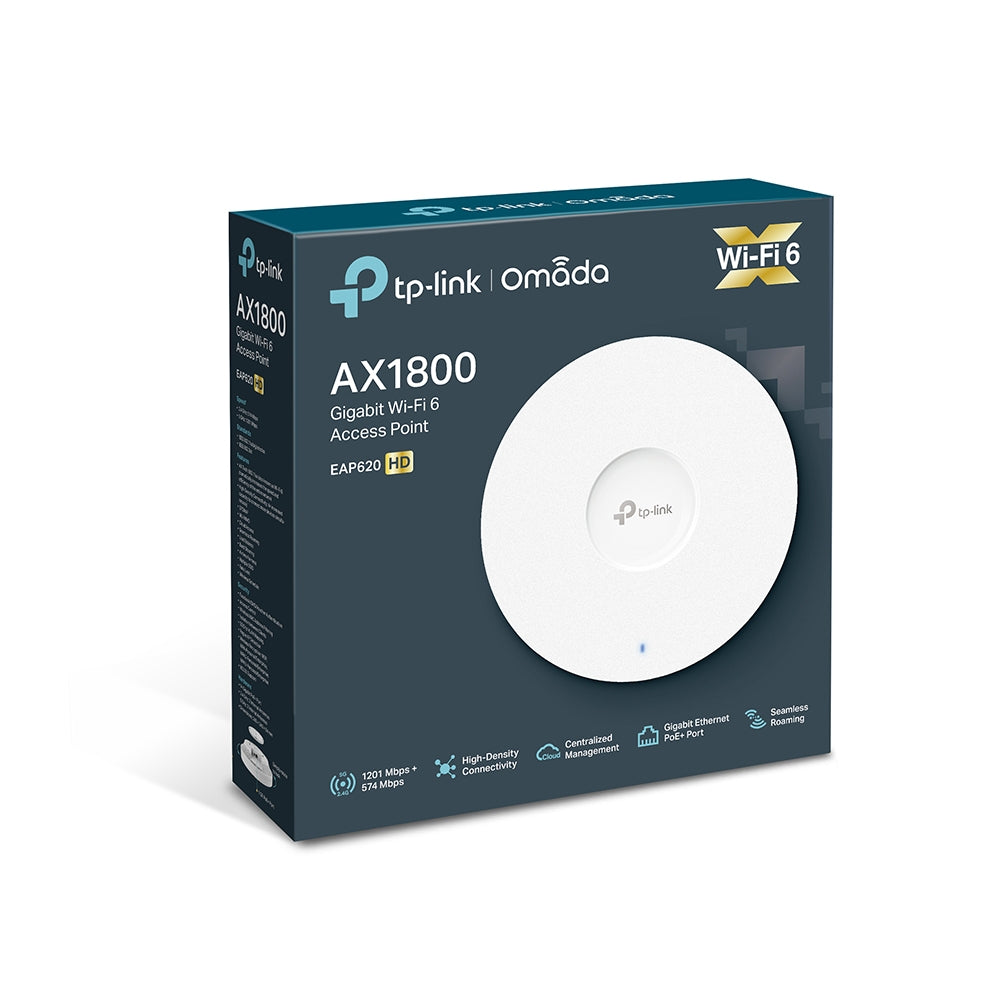

• TP-Link EAP620 HD AX1800 Access Point

• Power Adapter

• Ceiling/Wall Mounting Kits

• Installation Guide

Main Features

✅ AX1800 Wi-Fi 6 Performance — Achieve combined speeds up to 1.8 Gbps with 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.

✅ High-Density Connectivity — Handles over 1,000+ simultaneous clients, ideal for busy enterprise networks.

✅ Omada SDN Integration — Centralized cloud management, monitoring, and zero-touch provisioning for streamlined IT operations.

✅ PoE+ Support — Supports 802.3at PoE for flexible, simplified installation.

✅ Seamless Roaming — Ensures uninterrupted voice and video as users move across the network.

✅ Enterprise Security — Advanced protection including WPA3, captive portals, and rogue AP detection.

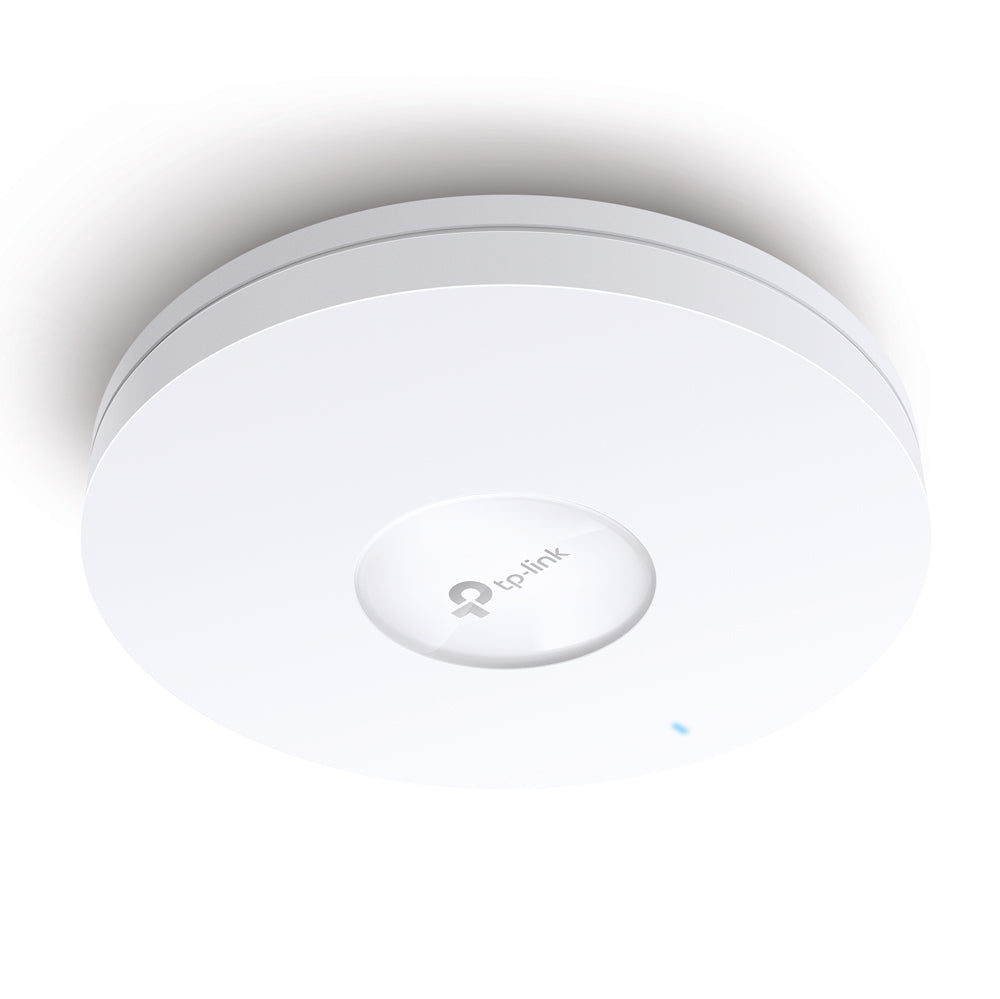

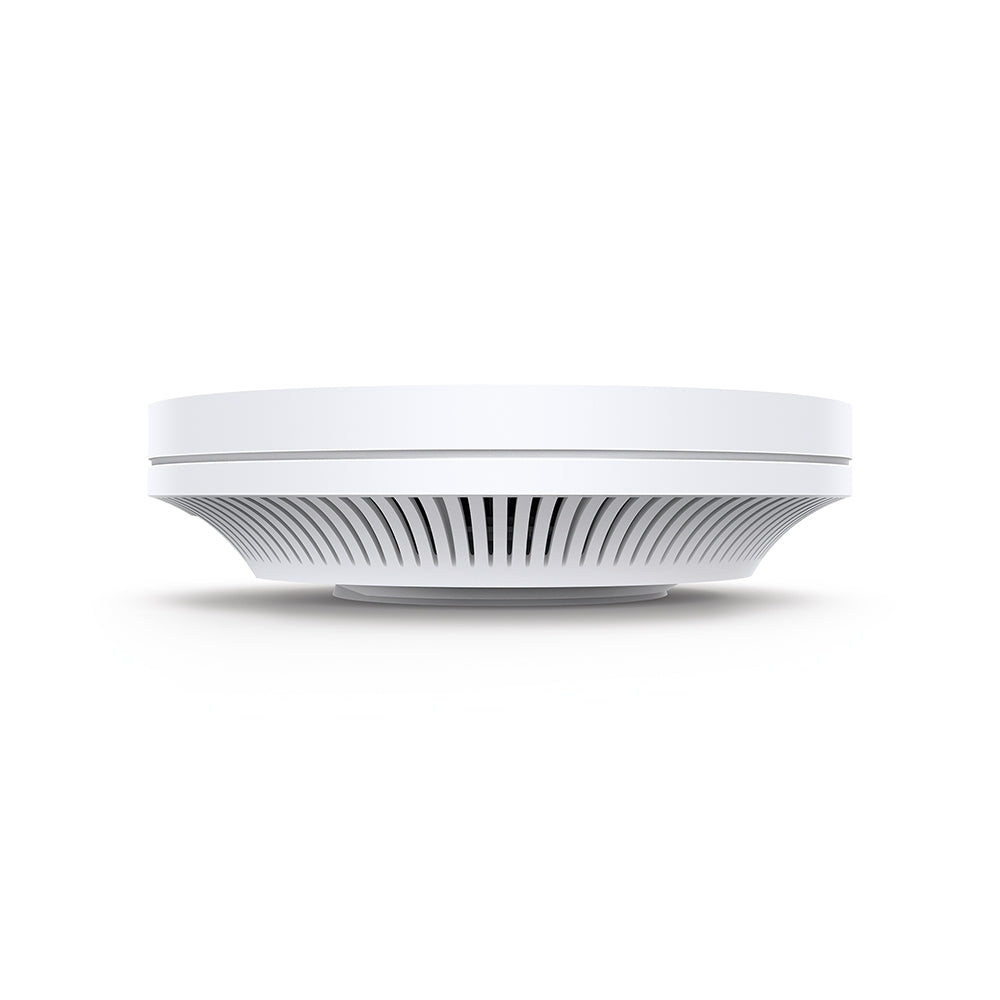

✅ Ultra-Slim Design — Elegant, low-profile housing (only 33.6 mm high) blends into modern environments.

Detailed Specifications

Wireless Performance

• Wireless Standard: Wi-Fi 6 (802.11ax)

• Dual Band:

  • 2.4 GHz: Up to 574 Mbps

  • 5 GHz: Up to 1201 Mbps

• Technologies:

  • OFDMA

  • MU-MIMO

  • 1024-QAM

  • 4× Longer OFDM Symbol

• Concurrent Clients: 1,020+**

Hardware

• Interface:

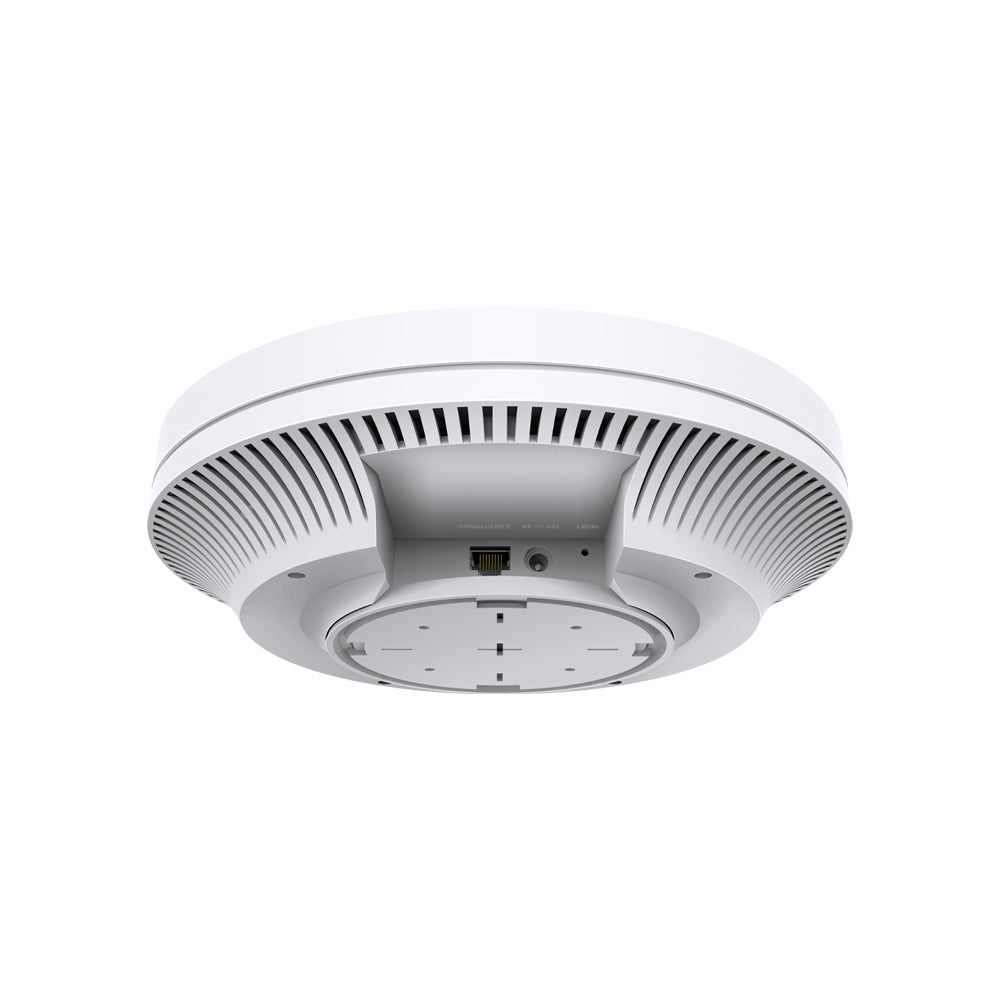

  • 1× Gigabit Ethernet Port (RJ-45, supports 802.3at PoE and Passive PoE)

• Power Options:

  • 48V Passive PoE

  • 802.3at PoE

  • 12V/1.5A DC

• Max Power Consumption:

  • EU: 14.4 W (PoE), 13.1 W (DC)

  • US: 14.9 W (PoE), 13.4 W (DC)

• Antennas:

  • Internal Omni Antennas

    • 2.4 GHz: 2× 4 dBi

    • 5 GHz: 2× 5 dBi

• Dimensions: 160 × 160 × 33.6 mm (6.3 × 6.3 × 1.3 in)

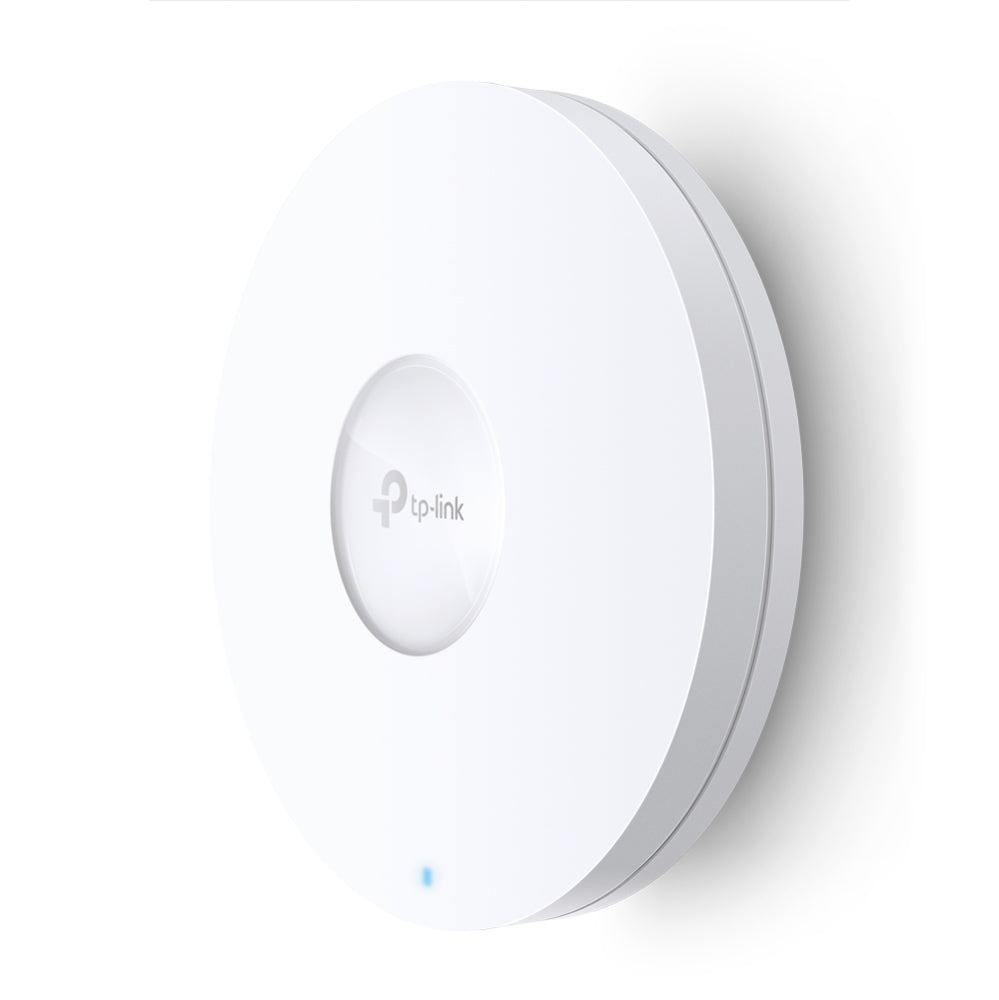

• Mounting: Ceiling / Wall / Junction Box (kits included)

Wireless Features

• Up to 16 SSIDs (8 per band)

• Omada Mesh△

• Seamless Roaming△

• Automatic Channel Assignment

• Load Balancing

• Band Steering

• Beamforming

• Airtime Fairness

• Rate Limiting

• Wireless Scheduling

• Reboot Scheduling

• Wireless Statistics based on SSID/AP/Client

• RADIUS Accounting

• MAC Authentication

• Static/Dynamic IP

Security

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• Captive Portal Authentication△

• 802.1X Support

• Wireless MAC Address Filtering

• Wireless Client Isolation

• Rogue AP Detection

• SSID to VLAN Mapping

• VLAN

• Access Control

• Up to 4,000 MAC Filters

Management

• Omada SDN Integration:

  • Omada Hardware Controllers (OC300, OC200)

  • Omada Software Controller

  • Omada Cloud-Based Controller (supported on EAP620 HD v2.0 and above)

• Cloud Access

• Omada App Support

• SNMP v1/v2c/v3

• SSH

• Web Management (HTTP/HTTPS)

• Local/Remote Syslog

• Email Alerts

• Zero-Touch Provisioning (Omada Cloud-Based Controller required)

Environmental

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Warranty Information

manufactures warranty applied

Brand Description

TP-Link Omada offers enterprise-grade networking solutions renowned for powerful wireless performance, robust security, and cloud-enabled management, trusted by businesses worldwide.

Practical Use Scenarios

• Office spaces with high-density client devices

• Hospitality environments ensuring seamless guest experiences

• Educational campuses requiring reliable Wi-Fi coverage

• Retail stores and shopping malls

• Healthcare facilities demanding secure, high-capacity wireless networks

Datasheets / Downloadable Resources

• TP-Link EAP620 HD Product Page


Excellence for the Australian and New Zealand Market

The EAP620 HD fully complies with Australian and New Zealand standards, ensuring compatibility and regulatory adherence. Sourced exclusively from authorised channels, it guarantees local warranty support and tailored service for enterprises across the ANZ region.

FAQs (Including Product Code EAP620 HD)

Q1: What Wi-Fi speeds does the EAP620 HD (SKU: EAP620 HD) provide?
A1: The EAP620 HD delivers up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, totaling 1.8 Gbps.

Q2: Is the EAP620 HD (SKU: EAP620 HD) suitable for high-density environments?
A2: Yes, it’s designed for high-density deployments, supporting over 1,020 concurrent clients.

Q3: Does the EAP620 HD (SKU: EAP620 HD) support Omada Mesh networking?
A3: Yes, it integrates with Omada Mesh for flexible wireless deployment.

Q4: What power options are available for the EAP620 HD (SKU: EAP620 HD)?
A4: It supports 802.3at PoE, 48V Passive PoE, and 12V DC power inputs.

Q5: Can I manage the EAP620 HD (SKU: EAP620 HD) through the cloud?
A5: Absolutely! The EAP620 HD supports Omada Cloud-Based Controller (from v2.0 and above) for centralized cloud management.
