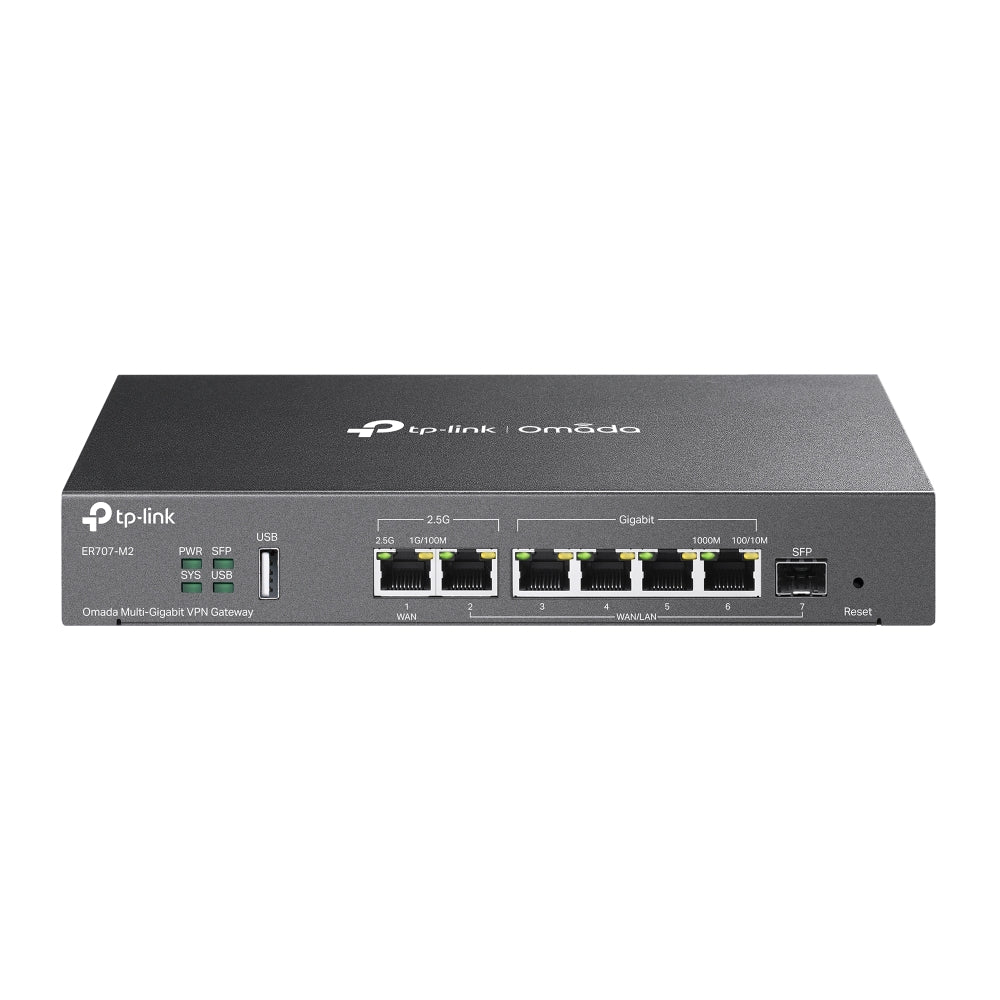

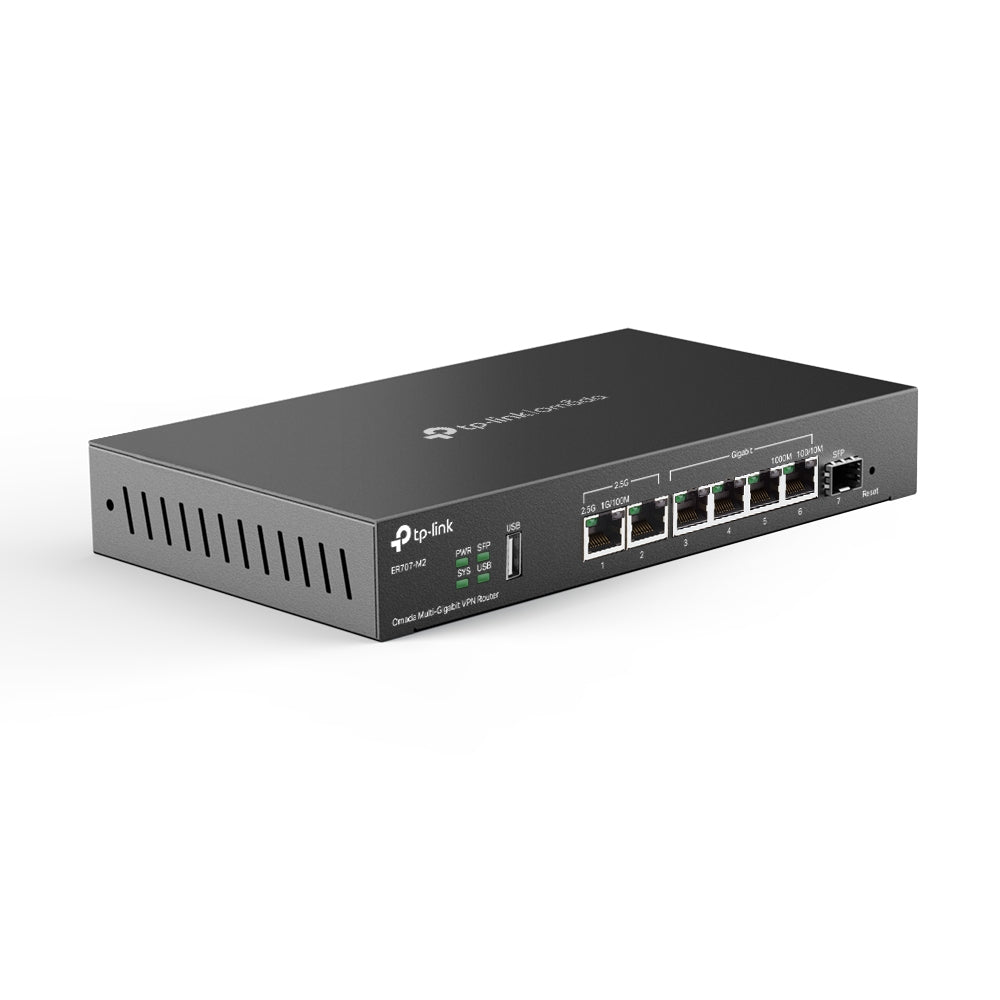

Supercharge your business network with the TP-Link ER707-M2 Omada Multi-Gigabit VPN Router, a cutting-edge, enterprise-class router built to deliver blazing speeds, robust security, and seamless centralized management. Powered by two multi-gigabit 2.5G ports and a flexible mix of gigabit SFP and RJ45 interfaces, the ER707-M2 is perfect for organizations needing high throughput, advanced VPN functionality, and reliable load balancing across multiple WAN connections.
Whether you’re managing remote offices, retail stores, or large distributed networks, the ER707-M2 ensures rock-solid performance and security with support for up to 6 WAN ports, high-capacity VPN throughput, and advanced firewall protections. Integration with the Omada SDN platform means hassle-free cloud management, zero-touch provisioning, and intelligent network monitoring—all accessible through the Omada app or web interface.
Compact, fanless, and energy-efficient, the ER707-M2 is engineered for professional environments where both performance and reliability are critical.
What’s Included in the Box
Main Features
-
High-Speed Multi-Gigabit Ports: Two 2.5G ports (1× WAN and 1× WAN/LAN) plus additional gigabit SFP and RJ45 ports for versatile, high-bandwidth connectivity.
-
Up to 6 WAN Connections: Supports multi-WAN load balancing for maximum bandwidth utilization and reliable internet access.
-
Enterprise-Grade VPN: Provides secure remote connectivity via IPsec, OpenVPN, WireGuard, GRE, PPTP, and L2TP VPN protocols.
-
Advanced Security: Protects your network with DPI, IPS/IDS, DoS/DDoS defense, ARP inspection, and IP/MAC/URL filtering.
-
Omada SDN Integration: Enables centralized cloud management, zero-touch provisioning, and intelligent network monitoring via the Omada platform.
-
Silent Operation: Fanless design ensures quiet performance, ideal for office environments.
-
Compact Design: Desktop or wall-mountable steel enclosure with 4 kV surge protection for reliable professional deployments.
-
USB Backup Connectivity: USB 2.0 port supports LTE dongles for WAN failover and USB storage for added flexibility.
Detailed Specifications
| Hardware Features |
|
| Interfaces |
1 × 2.5G RJ45 WAN Port
1 × 2.5G RJ45 WAN/LAN Port
1 × Gigabit SFP WAN/LAN Port
4 × Gigabit RJ45 WAN/LAN Ports
1 × USB 2.0 Port (for LTE dongle or storage) |
| Network Media |
10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T (max 100 m, various cable types) |
| Flash |
128 MB NAND |
| DRAM |
1 GB DDR4 |
| Fan Quantity |
Fanless |
| LEDs |
PWR, SYS, SFP, USB, WAN, LAN indicators |
| Dimensions |
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Power Supply |
12V / 1.5A adapter |
| Max Power Consumption |
14.2 W (with USB connected), 7.1 W (without USB connected) |
| Protection |
4 kV surge protection |
| Enclosure |
Steel, desktop or wall-mountable |
| Performance |
|
| IPS Throughput |
TCP: 208 Mbps; UDP: 161 Mbps |
| DPI Throughput |
TCP: 1823 Mbps; UDP: 1272 Mbps |
| WireGuard VPN Throughput |
343.8 Mbps |
| Concurrent Sessions |
500,000 |
| New Sessions/sec |
6,000 |
| NAT Throughput (Static IP) |
Upload: 2365.17 Mbps; Download: 2364.45 Mbps |
| IPSec VPN Throughput |
Up to 673.3 Mbps (ESP-SHA1-AES256) |
| L2TP VPN Throughput |
Unencrypted: 1243.7 Mbps; Encrypted: 561.0 Mbps |
| PPTP VPN Throughput |
Unencrypted: 1236.27 Mbps; Encrypted: 1280.99 Mbps |
| SSL VPN Throughput |
132.24 Mbps |
| Packet Forwarding Rate |
66-byte: up to 1832.69 Mbps; 1518-byte: up to 2461.18 Mbps |
| VPN & Security |
|
| VPN Types |
IPsec, PPTP, L2TP, OpenVPN, GRE, WireGuard |
| VPN Capacity |
100 IPsec tunnels, 66 OpenVPN tunnels, 20 WireGuard tunnels, 60 PPTP/L2TP tunnels |
| Security Features |
DPI, IPS/IDS, DoS/DDoS protection, ARP inspection, ACLs, IP/MAC/URL filtering, SPI firewall, ALG support |
| Management & Cloud |
|
| Centralized Management |
Omada Cloud-Based Controller, Hardware Controller (OC200, OC300), Software Controller |
| Omada App |
Supported (requires controller) |
| Zero-Touch Provisioning |
Supported |
| Additional Features |
Automatic device discovery, intelligent monitoring, abnormal event warnings, unified configuration, captive portal management |
| Certifications & Environment |
|
| Certifications |
CE, FCC, RoHS |
| Operating Temp. |
0–40 ℃ (32–104 ℉) |
| Storage Temp. |
-40–70 ℃ (-40–158 ℉) |
| Operating Humidity |
10–90% RH non-condensing |
| Storage Humidity |
5–90% RH non-condensing |
| System Requirements |
Windows 98SE onward, macOS, NetWare, UNIX, Linux |
Warranty Information
The TP-Link ER707-M2 Omada Multi-Gigabit VPN Router is backed by TP-Link’s standard manufacturer warranty, offering reliable support and peace of mind for your business network. For warranty details specific to Australia and New Zealand, please check with TP-Link’s official regional channels or authorized distributors.
About TP-Link
TP-Link is a global leader in networking solutions, known for delivering innovative, high-quality products that empower businesses and consumers alike. Trusted worldwide for reliability and performance, TP-Link products help organizations build secure, scalable networks that keep pace with modern demands.
SKU
ER707-M2
Practical Use Scenarios
-
Branch Office Connectivity: Securely link remote sites with high-speed VPN performance and flexible multi-WAN capabilities.
-
Retail & Hospitality Networks: Centrally manage multiple sites with cloud-based control and advanced security.
-
MSPs & ISPs: Provide high-capacity VPN services and multi-gigabit routing with seamless integration into client networks.
-
Enterprise Environments: Deploy robust security, bandwidth control, and advanced routing to support diverse enterprise applications.
-
Educational Campuses: Ensure fast, secure, and centralized network management across school facilities.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The TP-Link ER707-M2 Omada Multi-Gigabit VPN Router meets stringent quality and safety standards required in Australia and New Zealand, with certifications including CE, FCC, and RoHS. Sourced through authorized distributors, all hardware is guaranteed genuine and backed by local support. Warranty claims and technical assistance are managed directly via TP-Link’s official ANZ channels, providing reliable service and peace of mind for businesses throughout the region.
FAQs
Q1: How many VPN tunnels can the TP-Link ER707-M2 Omada VPN Router (ER707-M2) support?
The ER707-M2 supports up to 100 IPsec tunnels, 66 OpenVPN tunnels, 20 WireGuard tunnels, and 60 PPTP/L2TP tunnels for secure enterprise connectivity.
Q2: Does the TP-Link ER707-M2 Omada VPN Router (ER707-M2) support centralized cloud management?
Yes! The ER707-M2 integrates seamlessly with Omada controllers, enabling centralized cloud management and zero-touch provisioning for streamlined network operations.
Q3: What is the maximum NAT throughput of the TP-Link ER707-M2 Omada VPN Router (ER707-M2)?
The ER707-M2 delivers NAT throughput up to 2365.17 Mbps upload and 2364.45 Mbps download, ensuring high-speed data processing for business networks.
Q4: Can the TP-Link ER707-M2 Omada VPN Router (ER707-M2) be wall-mounted?
Absolutely! The ER707-M2 features a compact steel enclosure suitable for both desktop and wall-mount deployments, offering flexibility in installation.
Q5: What are the physical dimensions of the TP-Link ER707-M2 Omada VPN Router (ER707-M2)?
The ER707-M2 measures 8.9 × 5.2 × 1.4 inches (226 × 131 × 35 mm), making it ideal for professional network environments where space efficiency is important.
