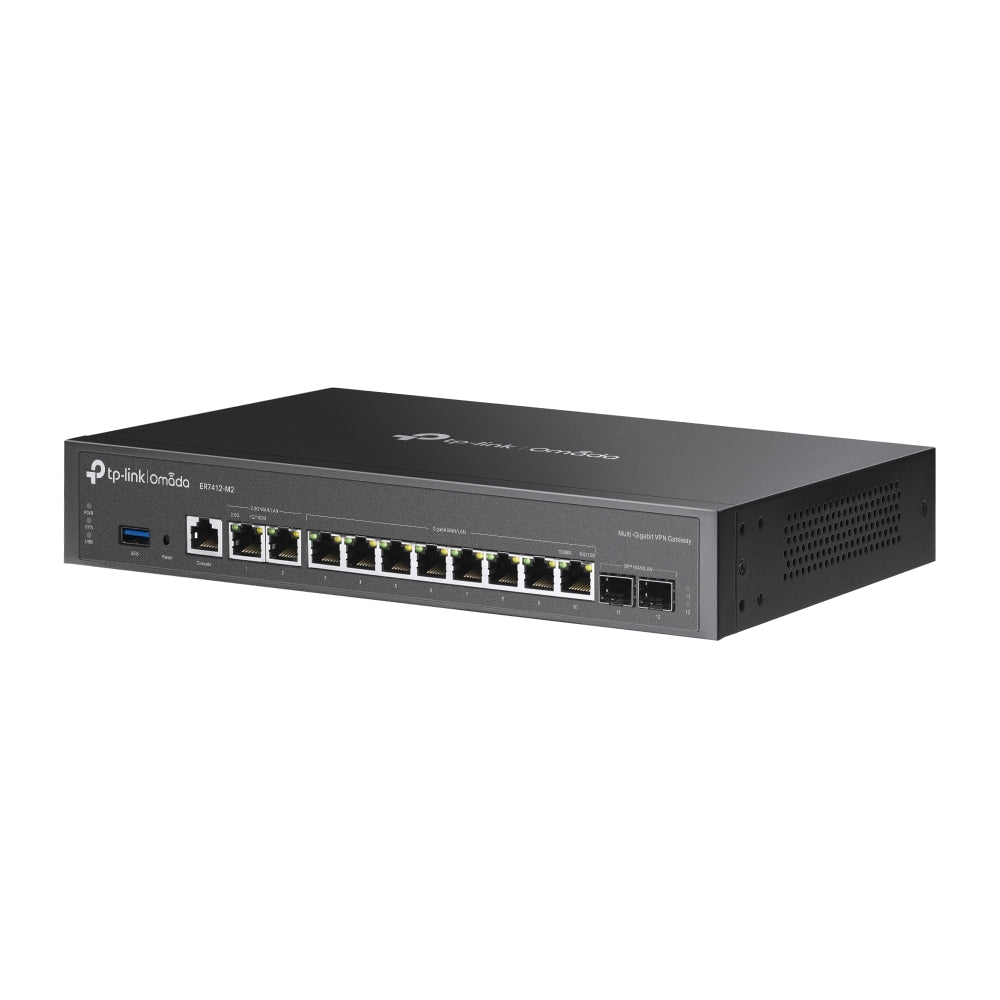

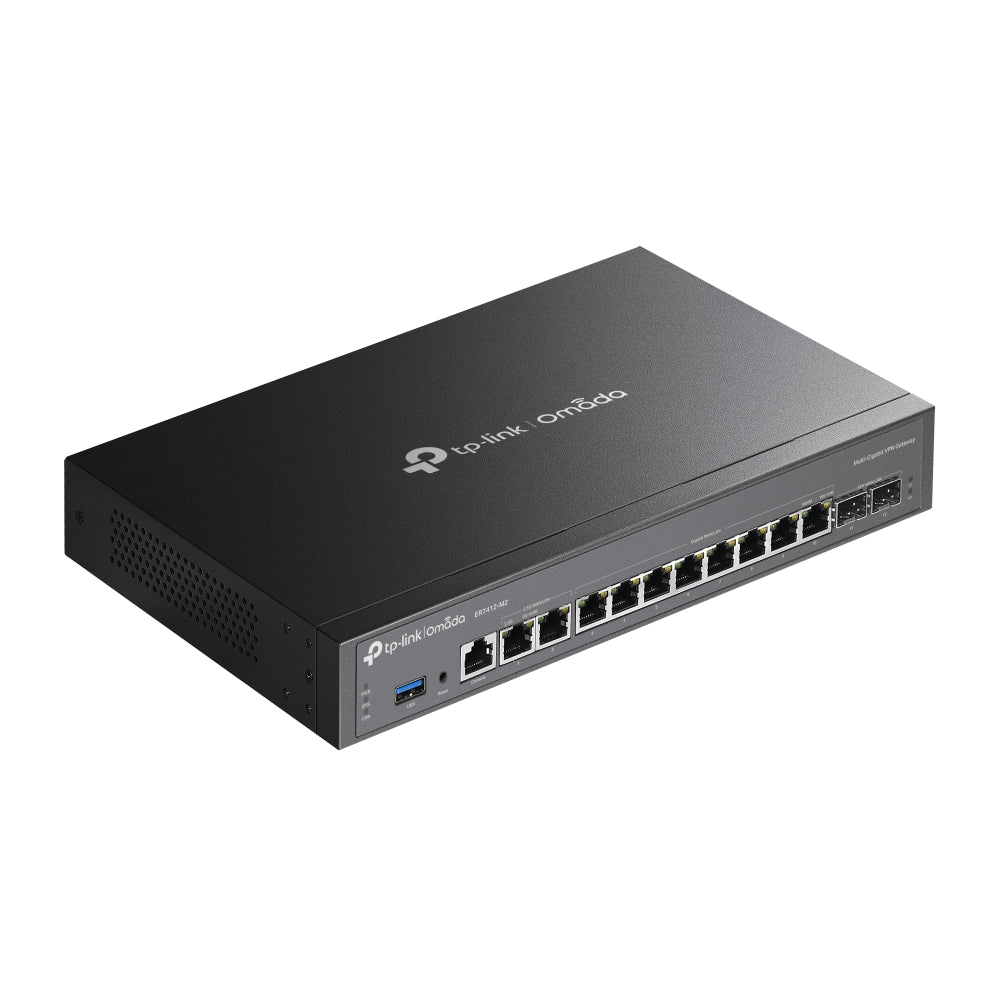

Elevate your business network to new heights with the TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router—an enterprise-class router engineered to deliver blazing-fast performance, robust security, and effortless centralized management. Designed with a powerful quad-core 2.0GHz CPU and equipped with multi-gigabit ports, this high-capacity router is ideal for organizations requiring seamless connectivity across multiple WAN lines, secure VPN services, and intelligent network management.
With support for up to 11 WAN connections, advanced VPN protocols including WireGuard, IPSec, and OpenVPN, and deep packet inspection (DPI), the ER7412-M2 ensures comprehensive protection and performance for businesses of all sizes. It seamlessly integrates into the Omada SDN ecosystem, offering cloud-based management, zero-touch provisioning, and real-time monitoring—all accessible via the intuitive Omada app.
Whether deployed in enterprise branches, retail environments, managed service provider networks, or educational institutions, the ER7412-M2 delivers a versatile and powerful solution that keeps modern networks secure, agile, and ready for growth.
What’s Included in the Box
Main Features
-
Quad-Core 2.0GHz CPU for exceptional routing performance and high data throughput.
-

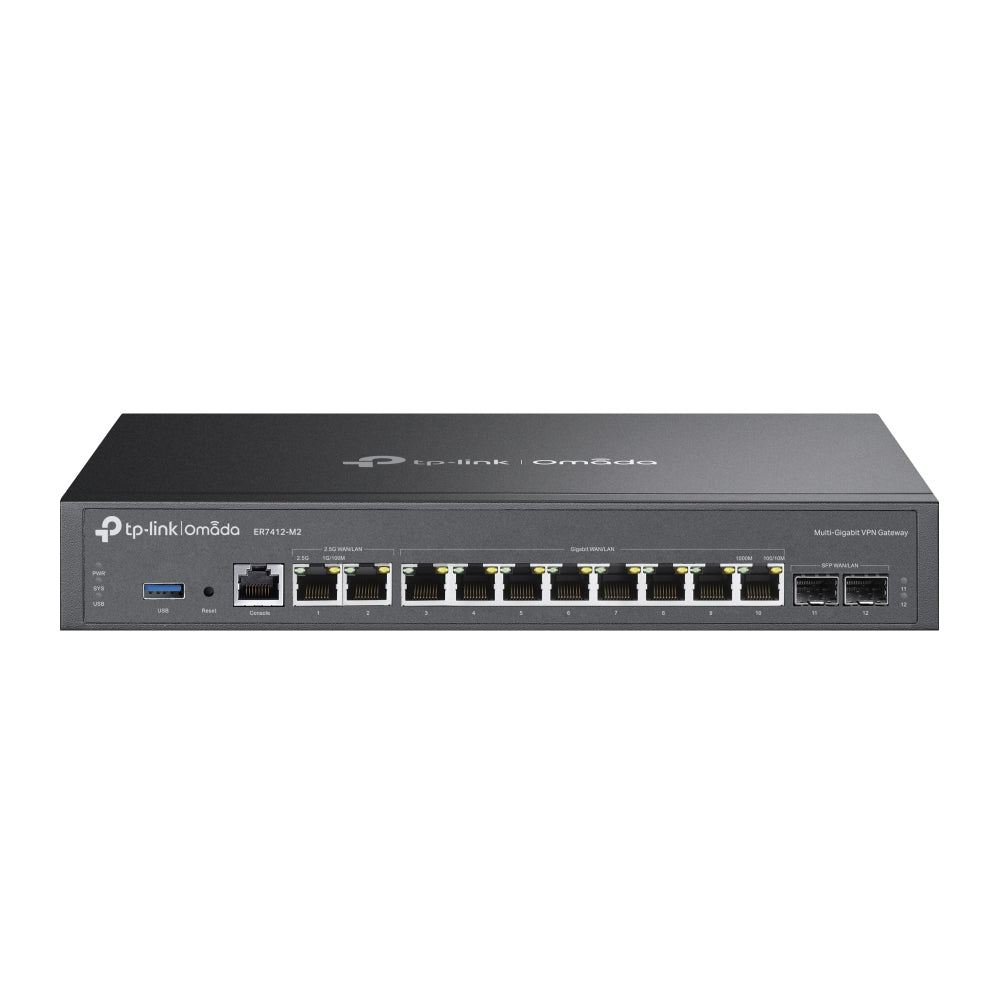

Multi-Gigabit Interfaces: Includes 2× 2.5G RJ45 ports, 2× Gigabit SFP ports, and 8× Gigabit RJ45 ports for versatile network deployment.
-
Supports Up to 11 WAN Connections with load balancing to optimize multi-line broadband utilization and network reliability.
-
Enterprise-Class VPN Support: Features robust VPN protocols including SSL, IPSec, GRE, WireGuard, PPTP, L2TP, and OpenVPN for secure branch connections and remote access.
-
Advanced Security Protection: Includes DPI, IPS/IDS, DoS/DDoS defense, IP/MAC/URL filtering, and ARP inspection for comprehensive network defense.
-
Omada SDN Integration: Centralized cloud management, intelligent monitoring, and zero-touch provisioning simplify network operations.
-
Flexible Deployment: Rackmount or desktop installation with rugged steel construction and 4 kV surge protection for professional environments.
-
USB 3.0 Port: Supports USB storage devices and LTE backup connectivity with compatible LTE dongles.
Detailed Specifications
| Hardware Features |
|
| Processor |
Quad-Core @ 2.0GHz |
| Interfaces |
2 × 2.5G RJ45 WAN/LAN Ports
2 × Gigabit SFP WAN/LAN Ports
8 × Gigabit RJ45 WAN/LAN Ports
1 × RJ45 Console Port
1 × USB 3.0 Port (for storage or LTE backup) |
| Network Media |
10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T (up to 100m depending on cable type) |
| Flash |
128 MB NAND |
| DRAM |
1 GB DDR4 |
| Dimensions |
11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| Power Supply |
100–240 VAC, 50/60 Hz |
| Max Power Consumption |
18.5 W (with USB 3.0 connected) |
| Protection |
4 kV surge protection |
| Enclosure |
Steel, desktop or rackmountable |
| Performance |
|
| DPI Throughput |
2.2 Gbps |
| Concurrent Sessions |
1,000,000 |
| New Sessions/sec |
7,000 |
| NAT Throughput (Static IP) |
Upload: 2345.71 Mbps; Download: 2351.22 Mbps |
| IPSec VPN Throughput |
Up to 1133.1 Mbps (ESP-SHA256-AES256) |
| WireGuard VPN Throughput |
771.6 Mbps |
| OpenVPN Throughput |
UDP: 266.2 Mbps |
| L2TP VPN Throughput |
Unencrypted: 2724.5 Mbps; Encrypted: 1018.4 Mbps |
| PPTP VPN Throughput |
Unencrypted: 3035 Mbps; Encrypted: 534.6 Mbps |
| SSL VPN Throughput |
263.1 Mbps |
| Packet Forwarding Rate |
66-byte: 1833/1835 Mbps
1518-byte: 2461 Mbps (upload/download) |
| VPN & Security |
|
| VPN Types |
GRE, SSL, IPSec, PPTP, L2TP, OpenVPN, WireGuard |
| VPN Capacity |
150 IPSec tunnels, 121 OpenVPN tunnels, 20 WireGuard tunnels, 80 SSL VPN tunnels |
| Security Features |
DPI, IPS/IDS, DoS/DDoS Defense, ARP inspection, ACLs, IP/MAC/URL filtering, SPI firewall, session limits, ALG support |
| Management & Cloud |
|
| Centralized Management |
Omada Cloud-Based Controller, Hardware Controller, Software Controller |
| Omada App |
Supported (requires controller) |
| Zero-Touch Provisioning |
Supported |
| Additional Features |
Automatic device discovery, batch configuration, firmware upgrades, intelligent monitoring, abnormal event warnings, unified configuration |
| Certifications & Environment |
|
| Certifications |
CE, FCC |
| Operating Temp. |
0–45 ℃ (32–113 ℉) |
| Storage Temp. |
-40–70 ℃ (-40–158 ℉) |
| Operating Humidity |
10–90% RH non-condensing |
| Storage Humidity |
5–90% RH non-condensing |
| System Requirements |
Windows 98SE onward, macOS, NetWare, UNIX, Linux |
Warranty Information
The TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router comes with TP-Link’s standard manufacturer warranty, ensuring high-quality support and service. For specific warranty terms in Australia and New Zealand, please consult TP-Link’s regional support channels or authorized distributors.
About TP-Link
TP-Link is a global leader in networking and security solutions, renowned for delivering reliable, high-performance products to businesses and consumers alike. With a focus on quality, innovation, and customer satisfaction, TP-Link provides professional solutions trusted by millions worldwide.
SKU
ER7412-M2
Practical Use Scenarios
-
Business Branch Connectivity: Securely connect multiple office locations with advanced VPN support and high throughput.
-
Retail & Hospitality Chains: Manage distributed network infrastructures with centralized cloud control and advanced security.
-
Managed Service Providers (MSPs): Deploy multi-WAN networks for clients with scalable, zero-touch solutions and strong security.
-
Educational Institutions: Ensure safe, reliable internet for campus-wide networks with high concurrent session support and advanced monitoring.
-
Data Centers & Enterprise Core Networks: Integrate high-performance multi-gigabit routing and VPN solutions into mission-critical environments.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router is engineered to comply with Australian and New Zealand regulatory standards, including CE and FCC certifications, ensuring safe and reliable operation in local environments. All products are sourced through authorized TP-Link distributors, guaranteeing genuine hardware and robust local support. Warranty claims and technical assistance are handled directly via TP-Link’s official ANZ channels, ensuring peace of mind for businesses across the region.
FAQs
Q1: How many VPN tunnels can the TP-Link ER7412-M2 Omada VPN Router (ER7412-M2) support?
The ER7412-M2 supports up to 150 IPSec tunnels, 121 OpenVPN tunnels, 80 SSL VPN tunnels, and 20 WireGuard tunnels for flexible and secure connectivity across enterprise networks.
Q2: Does the TP-Link ER7412-M2 Omada VPN Router (ER7412-M2) support cloud-based management?
Yes! The ER7412-M2 integrates seamlessly with the Omada Cloud-Based Controller, Hardware Controller, or Software Controller, enabling centralized management and zero-touch provisioning.
Q3: What throughput does the TP-Link ER7412-M2 Omada VPN Router (ER7412-M2) deliver?
The ER7412-M2 achieves DPI throughput of up to 2.2 Gbps and NAT throughput exceeding 2.3 Gbps, making it ideal for high-traffic business environments.
Q4: Can the TP-Link ER7412-M2 Omada VPN Router (ER7412-M2) be mounted in a rack?
Absolutely! The ER7412-M2 is designed for both desktop and rackmount installations, offering flexibility for diverse network environments.
Q5: What are the physical dimensions of the TP-Link ER7412-M2 Omada VPN Router (ER7412-M2)?
The ER7412-M2 measures 11.6 × 7.1 × 1.7 inches (294 × 180 × 44 mm), featuring a robust steel enclosure for reliable deployment in professional installations.
