Experience unparalleled surveillance with the TP-Link InSight S455 VIGI 5MP Full-Colour Turret Network Camera. Designed to deliver superior clarity and intelligent analytics, this camera captures 5MP super-high-definition video with true full-colour visibility 24/7. Equipped with People & Vehicle Analytics, Human & Vehicle Classification, and Smart Detection, it ensures precise event notifications and faster post-event searches. Advanced features like Smart Video Enhancement, Active Defense with Two-Way Audio, and industry-leading H.265+ compression technology redefine security efficiency and image quality.

Built with IP67 weatherproof protection, the VIGI S455 thrives in challenging outdoor environments. With flexible focal lengths (2.8mm and 4mm options) and a host of intelligent enhancements, the InSight S455 delivers sharper vision and smarter protection for homes, businesses, and critical infrastructure.

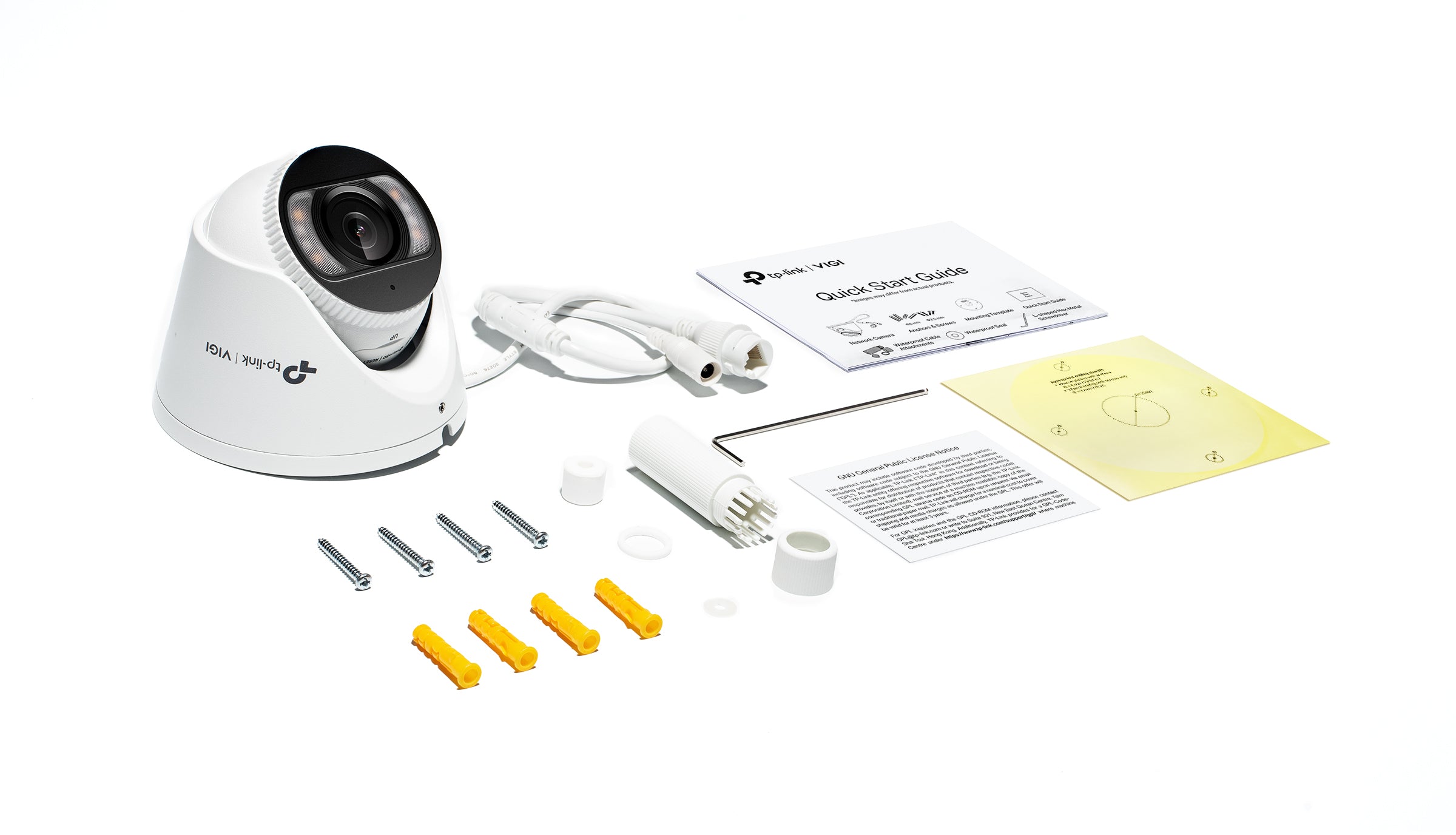

What's Included in the Box

• VIGI S455 Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories

Main Features

• 5MP Super-High Definition: Capture every detail in 2880x1620 resolution.

• 24h Full-Colour Imaging: Enhanced low-light performance with Smart IR and integrated White LEDs.

• People & Vehicle Analytics: Attribute-based search and filtering.

• Human & Vehicle Classification: Reduced false alarms and smarter notifications.

• Smart Detection: Intrusion, line-crossing, region entering/exiting, abandoned objects, and more.

• Smart Video Enhancement: True WDR (120dB), 3D DNR, Smart IR, and advanced white balance.

• Active Defense: Audible warning and flashing white light deter intruders.

• Two-Way Audio: Built-in microphone and speaker for real-time communication.

• IP67 Waterproof Design: Reliable performance in extreme weather.

• Efficient H.265+ Compression: Saves up to 57.5% more storage space compared to H.264.

Detailed Specifications

Camera

• Image Sensor: 1/2.7” Progressive Scan CMOS

• Shutter Speed: 1/3 to 1/10000s

• Min. Illumination: 0.005 Lux; 0 Lux with IR/White light

• Day/Night Switch: Unified/Scheduled/Auto

• Wide Dynamic Range: 120 dB (DWDR when analytics enabled)

Lens

• Type: Fixed focal lens (M12*P 0.5 mount)

• Options: 2.8mm (111.4° HFOV) or 4mm (88° HFOV)

• Aperture: F1.6

• DORI Distance:

  • 2.8mm: Detect 64m, Recognize 13m, Identify 6m

  • 4mm: Detect 80m, Recognize 16m, Identify 8m

Video

• Max Resolution: 2880 x 1620

• Main Stream Frame Rates: Up to 30fps

• Compression: H.265+, H.265, H.264+, H.264

• Bitrate: 256 Kbps to 6 Mbps

Audio

• Communication: Two-Way Audio

• Noise Filtering: Yes

• Compression: G.711 alaw, 64 Kbps

Network

• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, NTP, FTP/SFTP, RTP, IPv4/IPv6, and more.

• Interfaces: RJ45 10/100M Ethernet (PoE Supported)

• ONVIF Profiles: S, T, G

Storage

• MicroSD Support: Up to 512GB

Build & Environment

• Material: Metal

• Ingress Protection: IP67

• Operating Temperature: -30°C to 60°C

• Power: 12V DC ±5%, Max. 11W or PoE (802.3af/at, Max. 12W)

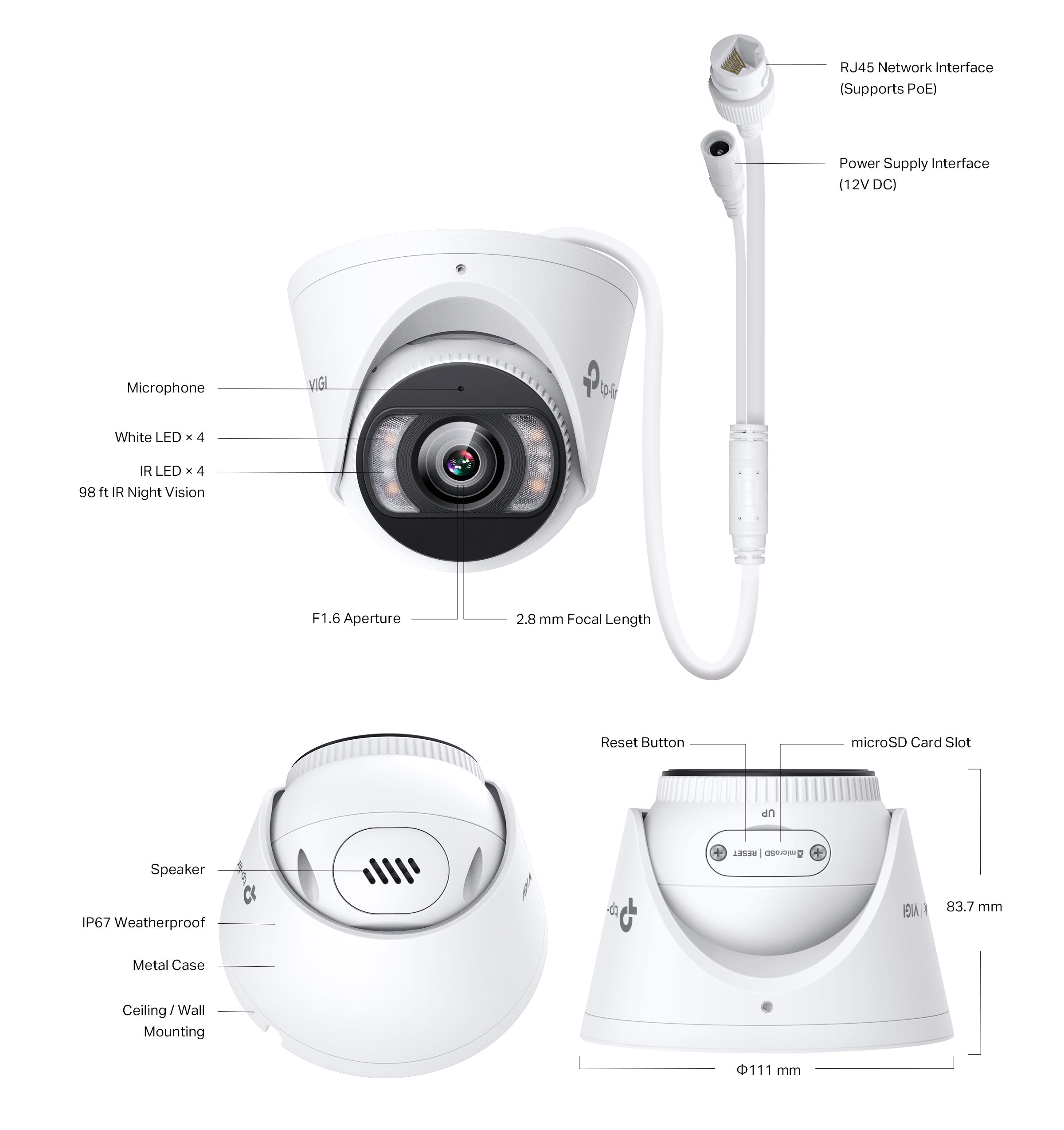

• Dimensions: 111 × 111 × 83.7 mm

• Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IC

Warranty Information

The TP-Link InSight S455 VIGI Network Camera is backed by a 3-year limited warranty. Warranty services include direct communication with TP-Link and authorized representatives in Australia and New Zealand.

Brand Information

TP-Link is a globally recognized leader in networking and surveillance technology, trusted by millions of users worldwide. Their VIGI surveillance line represents the cutting edge of security innovation, blending reliability, advanced AI features, and intuitive design for every professional and personal need.

SKU

SKU: INSIGHT-S455

Practical Use Scenarios

• Commercial Security: Ideal for retail shops, offices, warehouses, and restaurants seeking 24/7 smart surveillance.

• Home Protection: Provides peace of mind with full-colour night vision and instant intrusion alerts.

• Public Spaces: Monitors parks, schools, and municipal buildings effectively with advanced people and vehicle analytics.

• Critical Infrastructure: Secures transportation hubs, industrial sites, and sensitive areas with IP67 durability and AI-based detection.

Datasheets or Downloadable Resources

• Download the TP-Link InSight S455 Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The TP-Link InSight S455 VIGI 5MP Full-Colour Turret Network Camera is engineered to meet the highest Australian and New Zealand quality standards. It boasts IP67 certification for outdoor resilience, NDSS approval compliance, and is optimized for local network environments. All units are exclusively sourced from authorized Australian and New Zealand brand representatives, ensuring genuine products and streamlined local warranty services.

FAQs

Q1: What is the maximum resolution of the TP-Link InSight S455 (INSIGHT-S455)?

A1: The TP-Link InSight S455 (INSIGHT-S455) captures video at an impressive 2880x1620 resolution, delivering sharp, detailed surveillance footage.

Q2: Does the TP-Link InSight S455 (INSIGHT-S455) support MicroSD card storage?

A2: Yes, the TP-Link InSight S455 (INSIGHT-S455) features a built-in MicroSD card slot supporting up to 512GB of storage.

Q3: Can the TP-Link InSight S455 (INSIGHT-S455) operate in extreme weather conditions?

A3: Absolutely. The TP-Link InSight S455 (INSIGHT-S455) is IP67 certified, making it fully waterproof and operational in temperatures from -30°C to 60°C.

Q4: Is the TP-Link InSight S455 (INSIGHT-S455) compatible with third-party VMS systems?

A4: Yes, the TP-Link InSight S455 (INSIGHT-S455) is ONVIF Profile S/T/G compliant, ensuring compatibility with most third-party VMS platforms.

Q5: What smart features are included in the TP-Link InSight S455 (INSIGHT-S455)?

A5: The TP-Link InSight S455 (INSIGHT-S455) features People & Vehicle Analytics, Human & Vehicle Classification, Smart Detection, True WDR, and Active Defense with Two-Way Audio.
