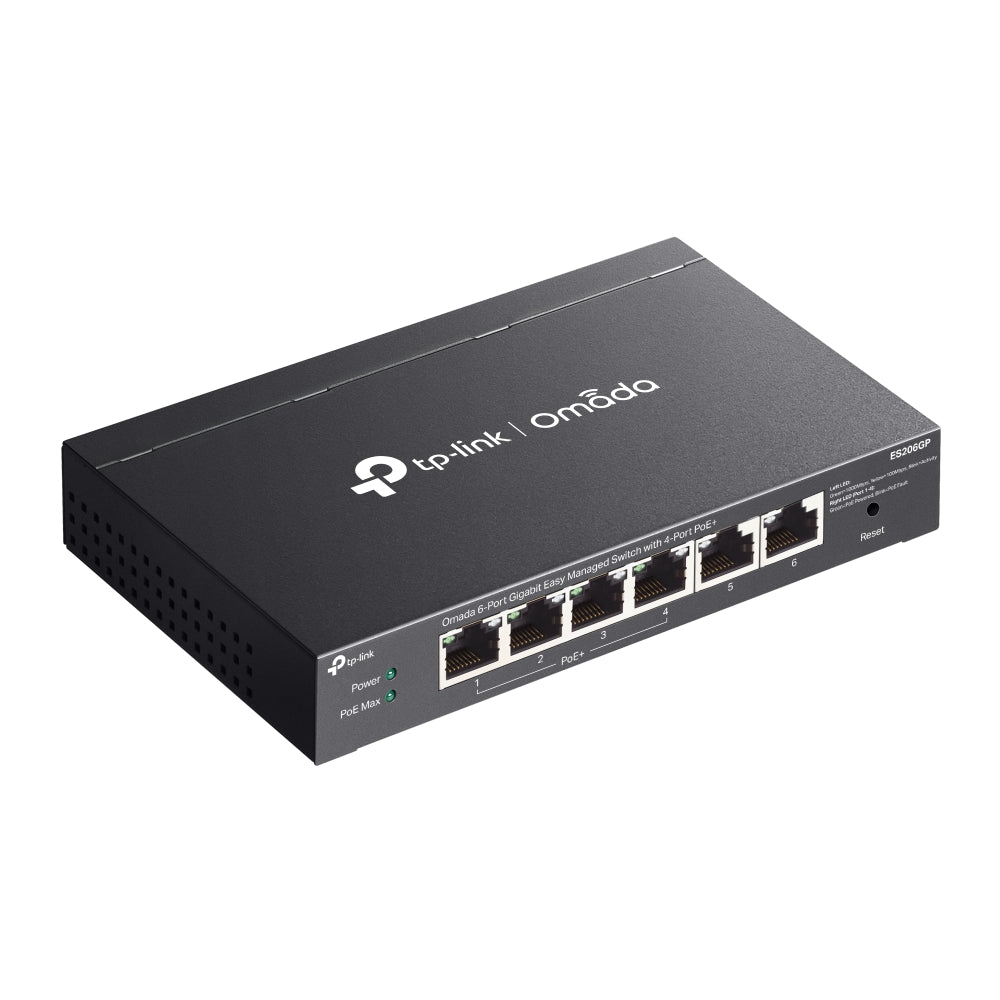

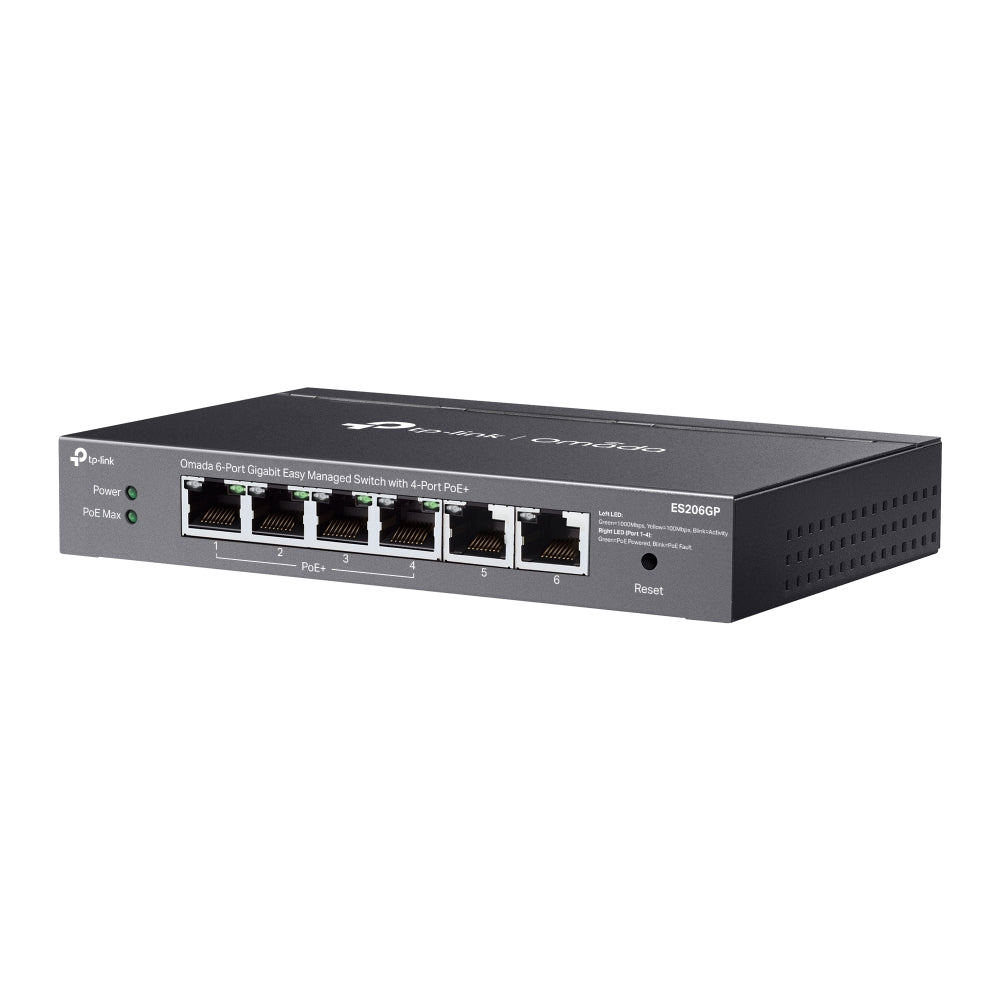

Designed for small businesses, offices, retail shops, and surveillance installations, the TP-Link Omada ES206GP delivers high-performance networking in a compact, silent, and versatile form factor. Equipped with 4 PoE+ ports offering a total 65W power budget, the ES206GP efficiently powers devices like IP cameras, wireless access points, and VoIP phones directly through Ethernet cables, streamlining installations and reducing costs.
Despite its small size, the ES206GP packs advanced features like PoE Auto Recovery, extended PoE transmission up to 250 meters, VLAN support, IGMP Snooping, and robust QoS for smooth handling of voice and video applications. Fanless operation ensures silent performance, perfect for noise-sensitive environments.
Fully compatible with TP-Link’s Omada Software Defined Networking (SDN) platform, the ES206GP offers cloud-based centralised management, zero-touch provisioning, and unified monitoring through the Omada app or web-based interface. It’s the ideal choice for professionals seeking reliable networking with enterprise features in a compact footprint.
What's in the Box
Main Features
✅ 4 PoE+ Gigabit Ports with 65W Budget – Power IP cameras, APs, and other devices with up to 30W per port, eliminating extra power injectors.
✅ Compact & Silent Fanless Design – Perfect for noise-sensitive environments, offering silent operation in a discreet form factor.
✅ Extended PoE Reach – Supports PoE transmission distances of up to 250 meters for flexible placement of connected devices.
✅ Omada Cloud Management – Enables unified cloud-based management, monitoring, and zero-touch provisioning via the Omada SDN platform.
✅ Advanced Security & QoS – Features VLANs, port isolation, storm control, and prioritised traffic handling for secure and smooth networking.

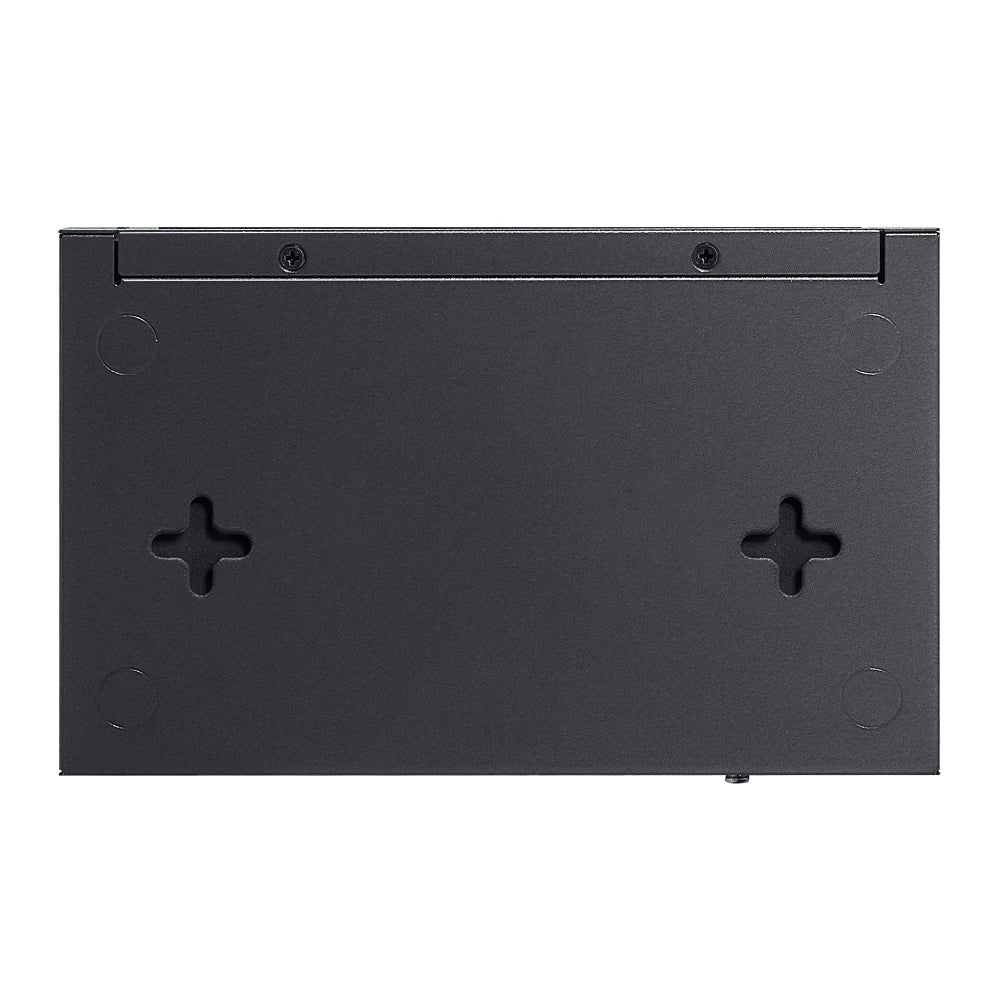

✅ Flexible Deployment – Desktop or wall-mountable to suit various installation needs.
✅ Robust Surge Protection – ±6kV surge protection ensures safe operation and network longevity.
Detailed Specifications
Interfaces:
PoE Budget:
-
Total: 65W
-
Per Port: Up to 30W
-
Features: Fast PoE, Perpetual PoE, PoE Auto Recovery
-
Max Transmission Distance: 250m
Switching Capacity: 12 Gbps
Forwarding Rate: 7.4 Mpps
MAC Address Table: 8K entries
Packet Buffer Memory: 4 Mbit
Jumbo Frame Support: Up to 15 KB
Management Features:
-
Centralised Omada Cloud management
-
Web-based GUI
-
DHCP client
-
Cable diagnostics
-
Automatic device discovery
-
Batch configuration and firmware upgrading
-
Unified configuration across devices
Quality of Service (QoS):
-
Port-based, 802.1p, and DSCP prioritisation
-
8 priority queues
-
Weighted Round Robin scheduling
-
Bandwidth control per port
-
Storm control for traffic management
Layer 2 Features:
L2 Multicast:
-
IGMP Snooping (v1/v2/v3)
-
Fast Leave
VLAN:
Transmission Method: Store-and-Forward
Physical:

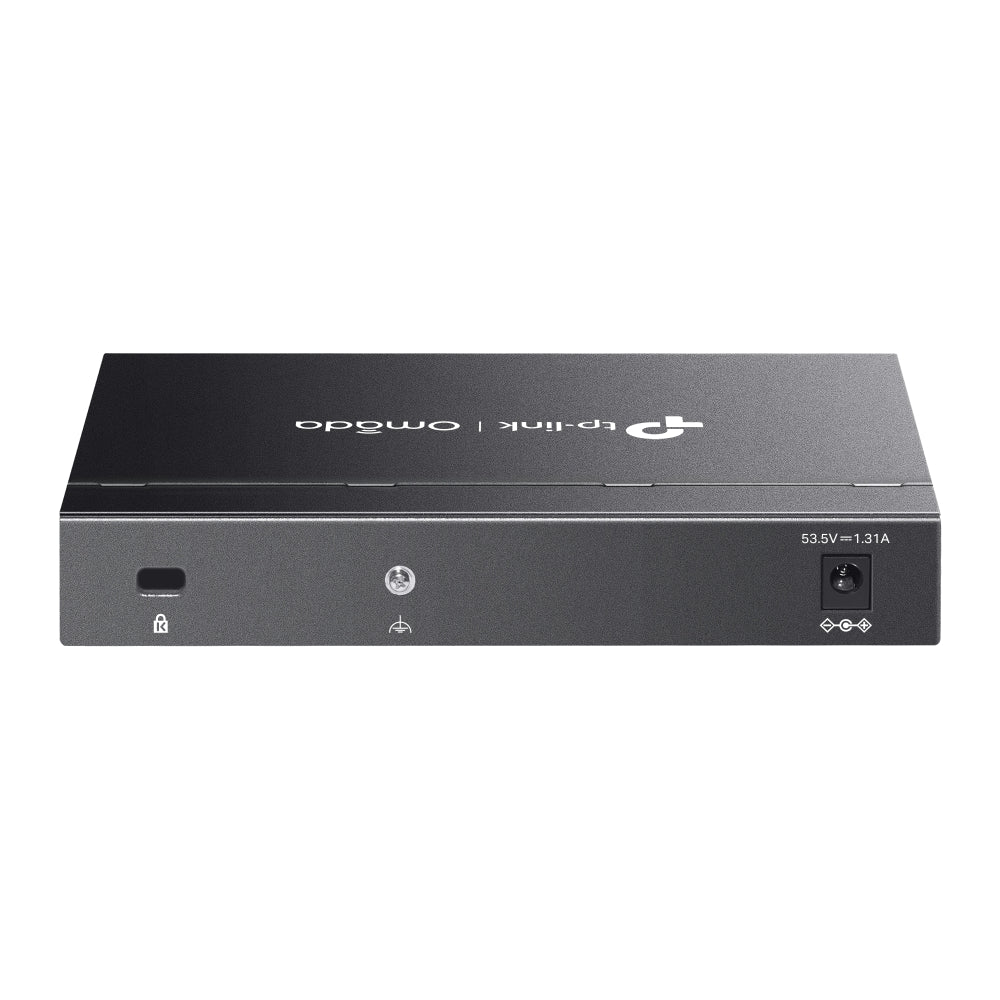

Power Supply: DC Power Adapter (53.5V DC / 1.31A)
Certifications: FCC, CE, RoHS
Environmental Specifications:
-
Operating Temperature: -5°C ~ 40°C (23°F ~ 104°F)
-
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
-
Operating Humidity: 10% ~ 90% RH non-condensing
-
Storage Humidity: 5% ~ 90% RH non-condensing
System Requirements: Compatible with Windows®, macOS®, Linux®, NetWare®, UNIX®
Warranty Information
The TP-Link Omada ES206GP is covered by a limited manufacturer warranty. Customers in Australia and New Zealand enjoy full support and warranty handling through authorised TP-Link channels for quick and reliable service.
Brand Description
TP-Link is an industry-leading provider of networking solutions trusted worldwide for performance, reliability, and innovation. The Omada range exemplifies TP-Link’s dedication to enterprise-grade networking, combining powerful hardware with intuitive cloud management for scalable, secure networks in modern business environments.
SKU
ES206GP
Practical Use Scenarios
-
Small Surveillance Systems – Perfect for powering and connecting up to 4 IP cameras, especially over longer distances with extended PoE reach.
-
Small Office Networks – Connect computers, VoIP phones, and network printers in compact, quiet workspaces.
-
Retail & Hospitality – Power APs and security cameras for stores or guest networks with simple cabling and minimal noise.
-
Home Office & Studios – Professional-grade networking in a silent, space-saving device ideal for creative or work-from-home environments.
-
Remote or Wall-Mounted Installations – Perfect for deployments where space is limited, requiring quiet and flexible mounting options.
Datasheets / Downloadable Resources
Download TP-Link Omada ES206GP Datasheet
Excellence for the Australian and New Zealand Market
The TP-Link Omada ES206GP fully complies with Australian and New Zealand regulatory standards, boasting certifications like FCC, CE, and RoHS. Sourced exclusively through authorised channels, the switch guarantees genuine hardware and complete warranty coverage locally. Engineered for performance and reliability in diverse conditions, the ES206GP is an excellent choice for business and professional deployments across Australia and New Zealand.
FAQs
Q1. How many PoE devices can the ES206GP power at once? (ES206GP)
The ES206GP can power up to 4 PoE/PoE+ devices simultaneously, offering a total PoE power budget of 65W with up to 30W per port.
Q2. Does the ES206GP support long-distance PoE connections? (ES206GP)
Yes! The ES206GP supports PoE transmission distances up to 250 metres, making it excellent for remote device installations.
Q3. Can the ES206GP be managed through the Omada Cloud Controller? (ES206GP)
Absolutely. The ES206GP integrates fully with TP-Link’s Omada SDN platform for centralised cloud management and zero-touch provisioning.
Q4. Is the ES206GP suitable for silent environments? (ES206GP)
Yes! The ES206GP’s fanless design ensures completely silent operation, ideal for offices, clinics, and quiet workspaces.
Q5. Does the ES206GP support VLAN configurations? (ES206GP)
Yes. The ES206GP offers robust VLAN capabilities, including MTU VLAN, port-based VLAN, and 802.1Q tag VLAN for secure and organised networks.
