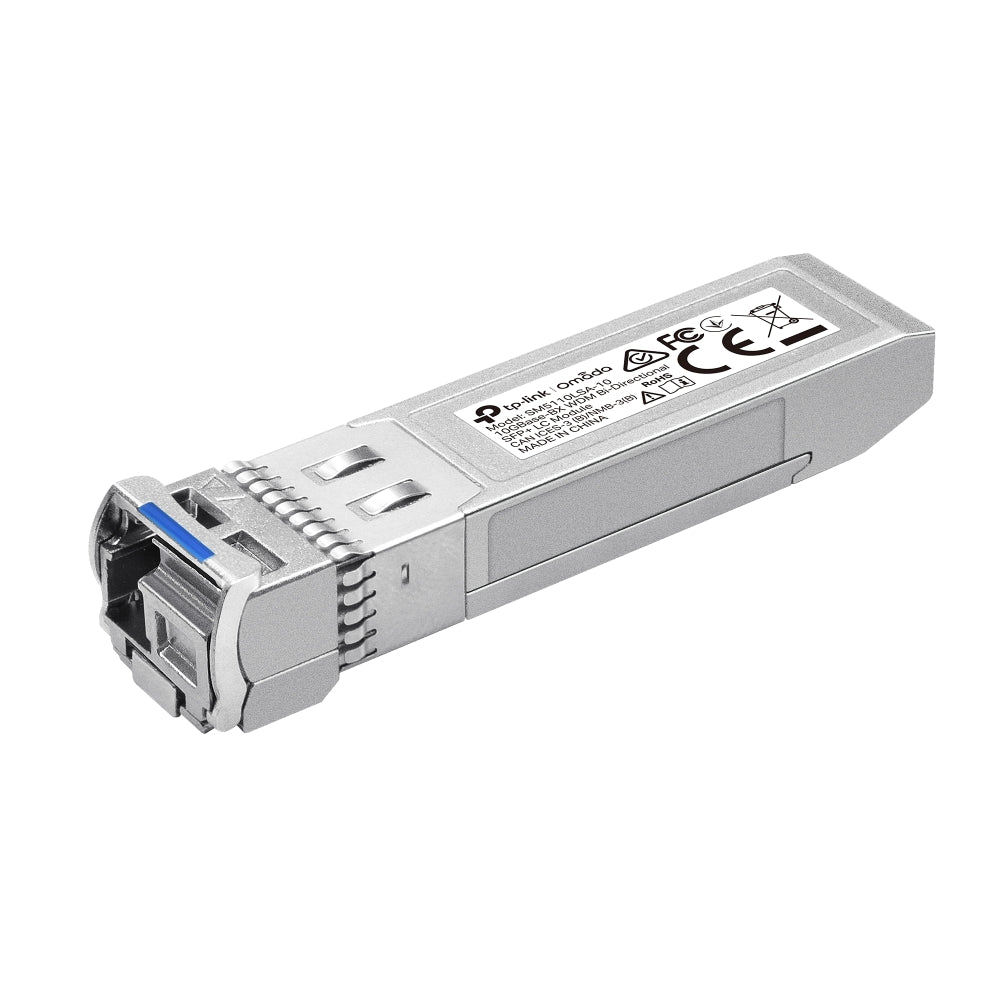

Upgrade your high-speed fiber connectivity with the TP-Link Omada SM5110LSA-10, a high-performance 10GBase-BX WDM Bi-Directional SFP+ LC module. Designed for enterprise-grade networks, this transceiver supports single-strand fiber transmission using Wavelength Division Multiplexing (WDM), reducing fiber cabling costs while maintaining superior performance.
Built with compliance to IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472 standards, the SM5110LSA-10 ensures compatibility with a wide range of 10G switches and routers, including TP-Link models such as SG3428X and SG3452X. With support for Digital Diagnostic Monitoring (DDM), users can monitor key parameters in real time for enhanced troubleshooting and maintenance.
Ideal for long-distance, single-mode fiber deployments, the transceiver provides up to 10km transmission distance with data rates of 10.3125 Gbps, operating reliably in a wide temperature and humidity range.
What’s in the Box:
Main Features:
-
10GBase-BX WDM Bi-Directional Transmission – Transmit and receive over a single fiber strand (TX: 1330nm / RX: 1270nm)
-
Supports Digital Diagnostic Monitoring (DDM) – Monitor real-time optical parameters
-
10km Long-Distance Transmission – Ideal for large-scale network setups
-
Hot-Pluggable Design – Ensures easy installation and upgrade flexibility
-
Compatible with 10G SFP+ Switch Ports – Including SG3428X, SG3452X
-
Compact Form Factor – Designed for space-constrained environments
-
Energy Efficient – Operates at 3.3V with low power consumption
-
High Regulatory Compliance – Certified CE, FCC, and RoHS
Detailed Specifications:
| Specification |
Detail |
| Model |
SM5110LSA-10 |
| Transceiver Type |
Bi-Directional SFP+ (WDM) |
| Standards |
IEEE 802.3ae, SFF-8431/8432/8472 |
| Wavelength |
TX: 1330nm / RX: 1270nm |
| Connector |
LC/UPC |
| Fiber Type |
Single-mode (9μm/125μm) |
| Data Rate |
10.3125 Gbps |
| Max Cable Length |
10km |
| Power Supply |
3.3V |
| Hot Swappable |
Yes |
| DDM Support |
Yes |
| Dimensions |
57 × 14 × 12 mm (2.24 × 0.55 × 0.47 in) |
| Operating Temperature |
0°C to 70°C (32°F–158°F) |
| Storage Temperature |
-40°C to 85°C (-40°F–185°F) |
| Operating Humidity |
10% to 90% RH (non-condensing) |
| Storage Humidity |
5% to 90% RH (non-condensing) |
| Certifications |
CE, FCC, RoHS |
Warranty Information:
Manufactures warrenty applied
Brand Description:
TP-Link is a global leader in reliable networking devices and accessories. With a commitment to performance, innovation, and value, TP-Link’s Omada series is specifically designed for scalable business networking, offering flexible deployment and centralized management.
SKU: SM5110LSA-10
Practical Use Scenarios:
-
Enterprise Networks: Extend 10G links between data centers, server rooms, or wiring closets
-
Campus Environments: Deploy cost-efficient high-speed backbones over single fiber
-
ISPs & Service Providers: Ideal for delivering high-speed internet over fiber networks
-
Government and Healthcare: Ensure secure, long-range 10G connectivity with minimal cabling
Datasheets / Resources:
Excellence for the Australian and New Zealand Market:
The TP-Link SM5110LSA-10 is specially tailored for reliability and compliance in the ANZ region. It adheres to Australian quality standards and carries CE, FCC, and RoHS certifications, ensuring safe and reliable operation. It is exclusively sourced via authorized TP-Link partners in Australia and New Zealand, ensuring genuine product supply. Warranty and support services are handled directly by TP-Link or its certified distributors, providing peace of mind and seamless after-sales assistance.
FAQs – TP-Link SM5110LSA-10
Q1: Is the SM5110LSA-10 compatible with third-party 10G SFP+ ports?
A1: Yes, the SM5110LSA-10 is built to SFP+ MSA standards and is compatible with many third-party switches that support 10G SFP+ ports. However, performance is guaranteed when used with TP-Link devices like the SG3428X or SG3452X.
Q2: Can the SM5110LSA-10 be used for duplex communication over a single fiber?
A2: Yes, the SM5110LSA-10 uses WDM technology for bi-directional communication over a single fiber strand, helping reduce cabling infrastructure.
Q3: What is the maximum transmission distance of the SM5110LSA-10?
A3: The module supports a maximum range of 10km over single-mode fiber (9μm/125μm).
Q4: Does the SM5110LSA-10 support DDM for real-time diagnostics?
A4: Yes, it features full Digital Diagnostic Monitoring (DDM) support, enabling administrators to track optical signal performance.
Q5: What operating environments are supported by the SM5110LSA-10?
A5: The module operates between 0°C to 70°C and can be stored at temperatures from -40°C to 85°C, making it suitable for a wide range of environments.
Q6: Is the SM5110LSA-10 certified for use in Australia and New Zealand?
A6: Yes, the SM5110LSA-10 is fully compliant with CE, FCC, and RoHS, and is distributed through authorized TP-Link partners in the region to meet ANZ standards.
