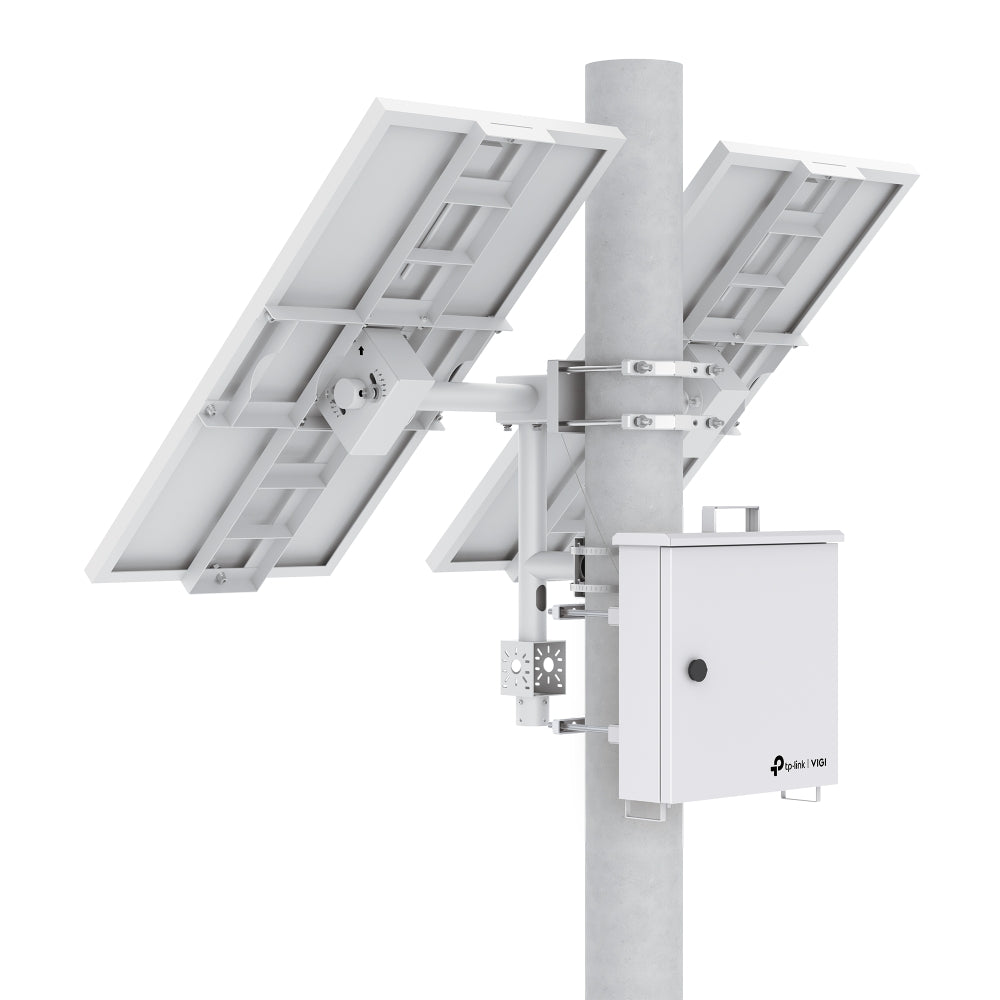

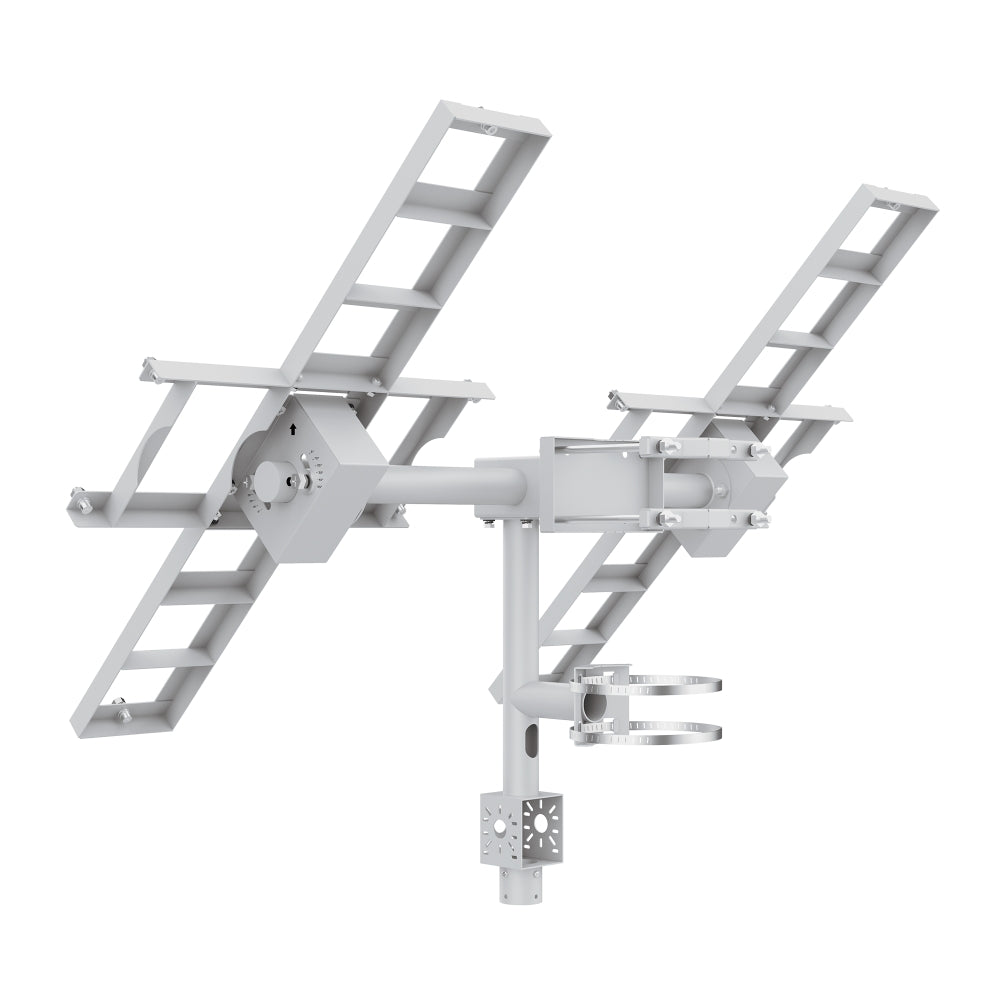

The TP‑Link VIGI 180W Solar Mount is a robust, adjustable bracket designed to securely hold 180 W solar panels in outdoor surveillance and IoT deployments. Constructed from SGCC galvanized steel with CO₂-welded integrated supports and 8.8-grade high-strength screws, this mount ensures exceptional stability and corrosion resistance—even in harsh environments.
What’s in the Box
Main Features
-
SGCC Galvanized Steel: Corrosion-resistant construction suitable for long-term outdoor use
-
Highly Stable Pole Clamp: Compatible with multiple pole diameters (80–160 mm) using dual mounting holes
-
CO₂-Welded Integrated Bracket: One-piece construction for increased structural strength
-
8.8-Grade High-Strength Screws: ISO 898-1 standard fasteners for enhanced durability
-
Anti-Loosening Spring Pads: Maintain tension and reduce risk of loosening over time
-

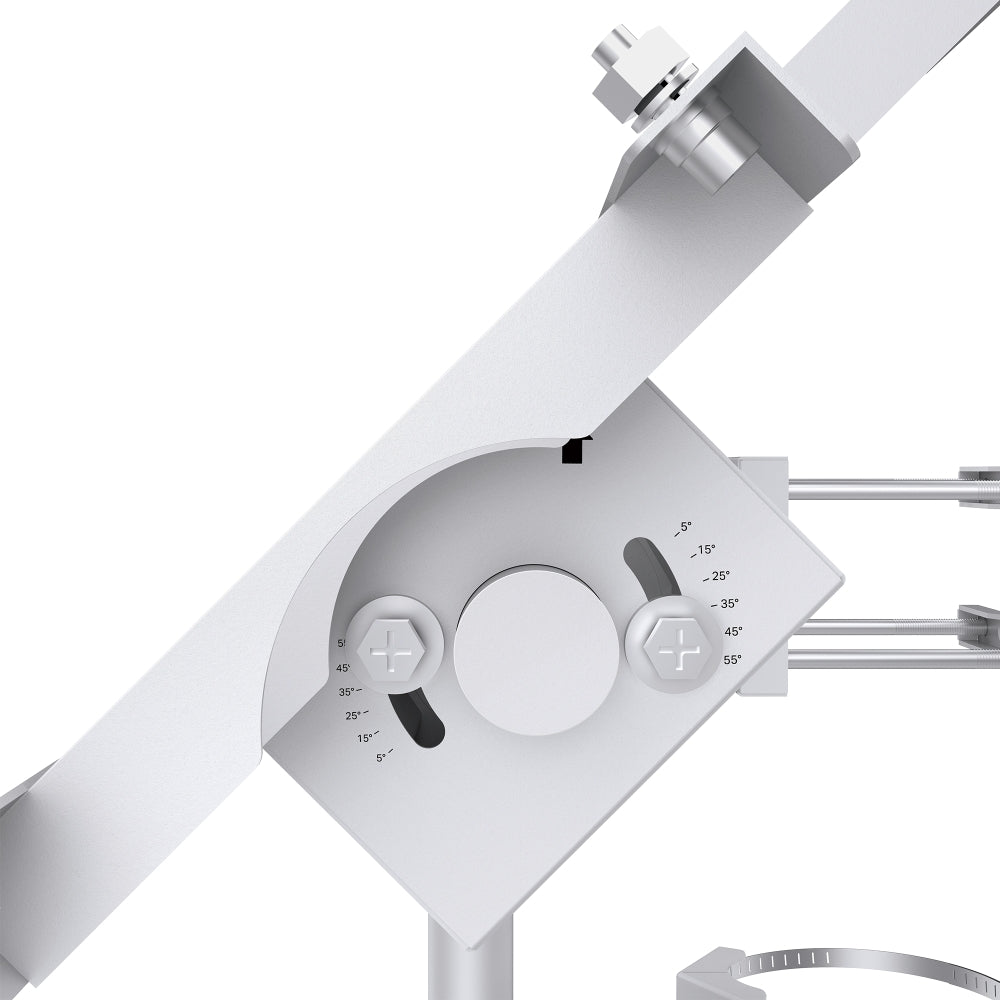

Reinforced Angle-Adjustable Bracket: Manual tilt from 5° to 55° for optimal solar alignment
Detailed Specifications
| Specification |
Details |
| Mount Material |
SGCC galvanized steel |
| Pole Compatibility |
Use hole 1 for 80–100 mm poles; hole 2 for 100–160 mm poles |
| Fasteners |
8.8-grade screws per ISO 898-1 |
| Angle Adjustment |
Manual, 5° to 55° |
| Product Dimensions |
900 × 580 × 208 mm (35.4 × 22.8 × 8.2 in) |
| Weight |
20 kg (product); 24 kg (packed) |
| Package Dimensions |
975 × 625 × 195 mm (38.4 × 24.6 × 7.7 in) |
| Environment |
Operating temperature: –30 °C to +60 °C; humidity: 5–90% RH non‑condensing |
Warranty & Certification
Brand Description
VIGI by TP‑Link offers integrated solar power and mounting solutions for surveillance and IoT systems. The VIGI product line is designed for resilience, ease of deployment, and remote management in demanding outdoor settings.
SKU
VIGI 180W Solar Mount
Ideal Use Scenarios
-
Remote Surveillance Sites: Perfect for pole-mounting solar panels that power cameras in remote areas
-
IoT & Environmental Sensors: Supports reliable off-grid power solutions
-
Temporary Installations: Quick to deploy with adjustable tilt angles for diverse environments
-
Harsh Climate Environments: Resistant to corrosion and extreme temperatures
Datasheets & Downloads
Excellence for the Australian and New Zealand Market
-
Ideal for local conditions—withstands –30 °C to +60 °C and up to 90% humidity
-
Compatible with locally sourced poles (80–160 mm) and standard rack hardware
-
Designed for corrosion resistance to meet AU/NZ outdoor application standards
FAQs
Q: What is the SKU of this mount? – VIGI 180W Solar Mount
A: The SKU is VIGI 180W Solar Mount, designed to pair with TP-Link VIGI solar panels and power systems.
Q: What materials are used in the construction? – VIGI 180W Solar Mount
A: It is made from SGCC galvanized steel, ensuring excellent corrosion resistance and durability.
Q: Can I adjust the angle of the solar panel? – VIGI 180W Solar Mount
A: Yes, the mount supports manual angle adjustment between 5° and 55°.
Q: What size poles are compatible with the clamp? – VIGI 180W Solar Mount
A: It fits poles ranging from 80 mm to 160 mm in diameter using dual mounting holes.
Q: Is this mount suitable for extreme weather conditions? – VIGI 180W Solar Mount
A: Absolutely. It is rated for operation in temperatures from –30°C to +60°C and up to 90% RH humidity.
