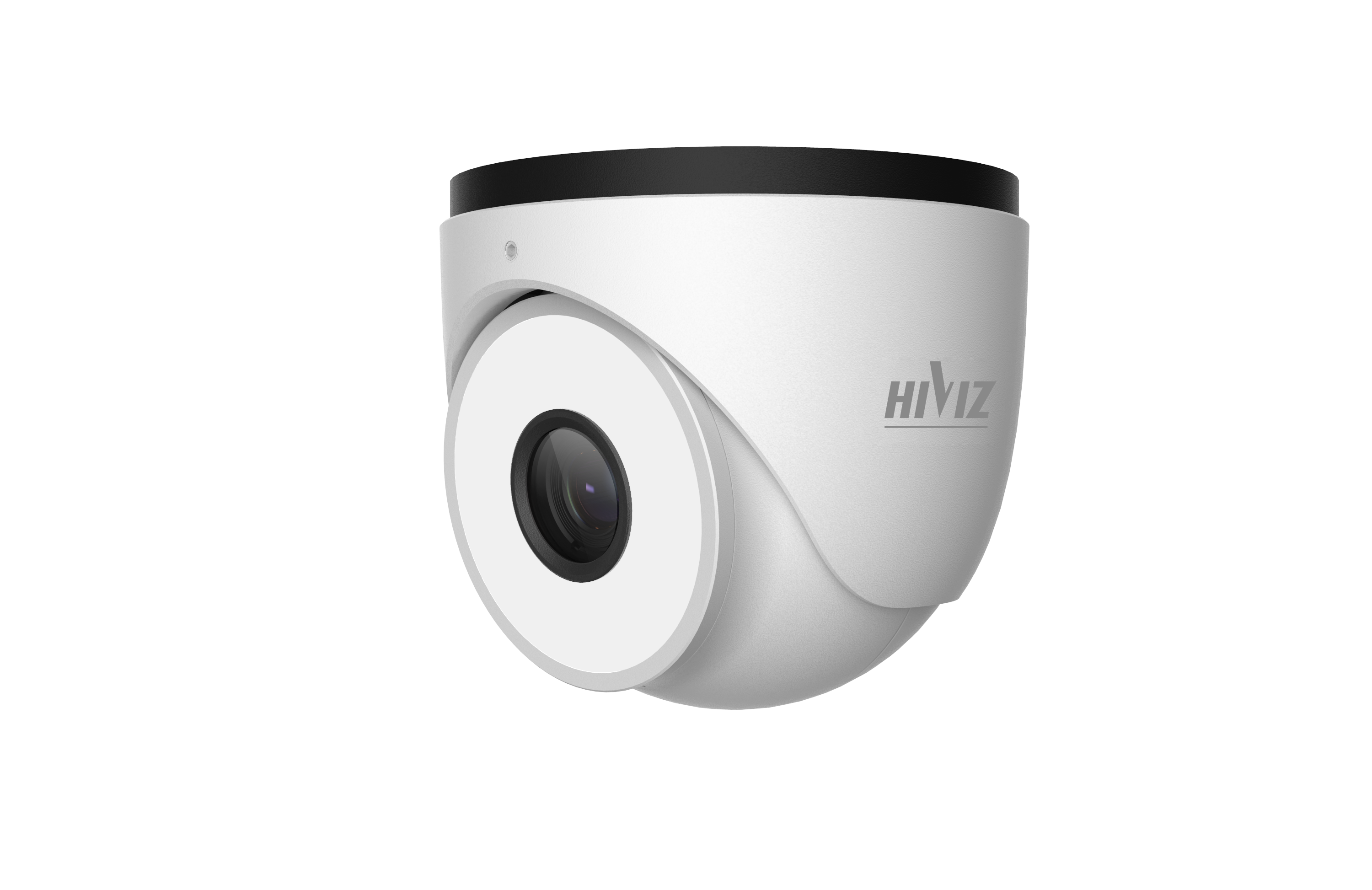

The TVT TD-9525A3-FR is a state-of-the-art 2MP face recognition AI turret camera designed to deliver high-quality surveillance with advanced face detection and intelligent analytics. Equipped with a 7-22mm motorized zoom lens, 10m white light view distance, and starlight technology, this camera ensures superior image quality even in low-light conditions. It’s ideal for both indoor and outdoor applications, offering precise face detection, capture, and match functionality. The camera also supports multiple streams, SMART H.265/H.264 compression, and IP67-rated protection for rugged environments.
Key Specifications:
-
Resolution: 2MP (1080P, 1920 × 1080) at 30fps
-
Lens: Motorized zoom lens (7-22mm)
-
View Distance: 10m white light view distance
-
Image Sensor: Starlight sensor for superior low-light performance
-
Video Compression: SMART H.265/H.264 for efficient video streaming and storage
-
Audio: 1-channel audio input with built-in microphone
-
Storage: Built-in microSD card slot, supporting up to 256GB
-
Power Supply: DC12V/PoE (Power over Ethernet)
-
Operating Temperature: -30°C to 60°C
-
Ingress Protection: IP67-rated for outdoor durability
-
Dimensions: Ø111.6mm × 99.6mm
-
Weight: Approx. 0.64kg
-
Power Consumption: <11W
Features:
-
Face Recognition & Detection: Advanced AI-driven face detection, capture, and matching capabilities with precise pupil distance detection (over 20 pixels).
-
Image Enhancement: True WDR (Wide Dynamic Range), 3D DNR (Digital Noise Reduction), BLC (Backlight Compensation), and HLC (Highlight Compensation) ensure clear video in challenging lighting conditions.
-
Multiple Streams: Supports three video streams, offering flexibility for network configurations and storage management.
-
Panorama Capturing: Allows panorama capturing with customizable overlays (such as device ID and time) for enhanced monitoring.
-
Remote Monitoring: Accessible via smartphones or tablets on iOS and Android platforms, ensuring mobile surveillance at your fingertips.
-
Intelligent Video Analytics: Built-in smart analytics detect scene changes, video blur, color cast, and provide face exposure adjustments.
-
PoE Support: Power over Ethernet simplifies the installation process by providing data and power over a single cable.
-
ROI Coding: Optimizes bandwidth and storage by focusing on key areas of interest.
-
MicroSD Storage: Supports up to 256GB microSD cards for local storage, reducing the need for extensive external storage solutions.
Intelligent Light Compensation:
The built-in high-efficiency white light LEDs ensure optimal image clarity during low-light conditions. Intelligent light management automatically adjusts the LEDs as needed, providing reliable visibility within a 10m range.
In the Box:
- TVT 2MP Face Recognition Turret Camera (TD-9525A3-FR)
- Mounting hardware and kit
- Quick Start Guide
- Warranty information
Warranty:
The TVT TD-9525A3-FR comes with a 1-year limited warranty, covering manufacturing defects and offering peace of mind for your surveillance needs.
This advanced AI-powered camera is perfect for residential, commercial, and public security settings, offering high-precision face recognition and versatile monitoring options. The combination of intelligent analytics, starlight technology, and robust construction ensures the camera performs reliably in various environments and scenarios.
