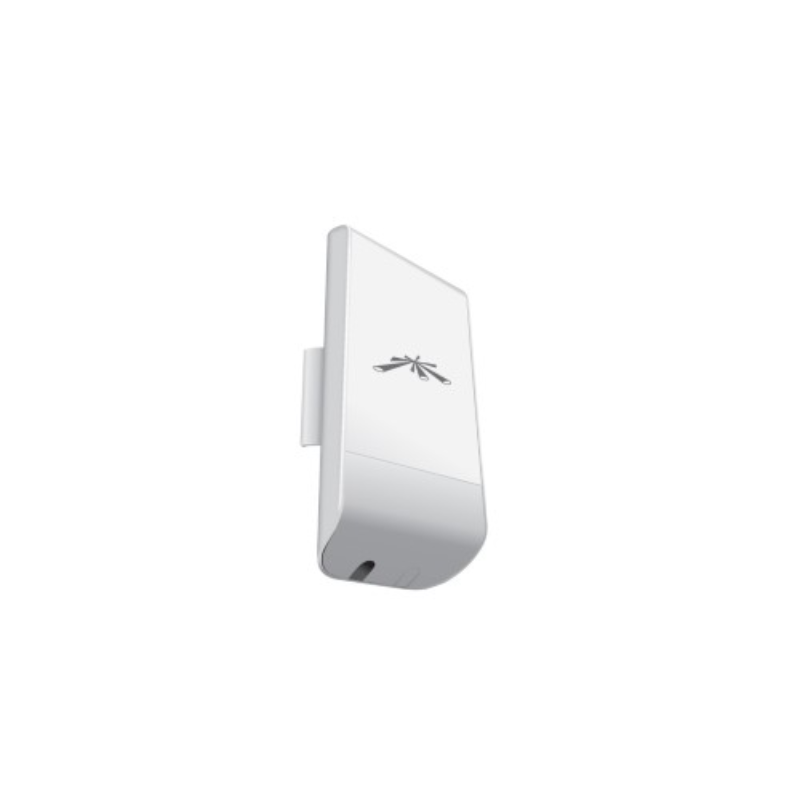

The Ubiquiti airMAX NanoStation loco M2 (LocoM2) is a compact, high-performance 2.4GHz wireless point-to-point (PtP) bridge and outdoor access point featuring an integrated 8dBi MIMO antenna, airMAX TDMA technology and 24V passive PoE. Designed for reliable outdoor wireless connectivity, the LocoM2 delivers an economical networking solution for extending broadband connections, linking buildings and deploying wireless Customer Premises Equipment (CPE).
Combining Ubiquiti's advanced wireless technology with a compact, weather-resistant design, the NanoStation loco M2 offers a practical solution for residential, commercial and industrial wireless networking applications.
Compact Design with Powerful Wireless Performance
The NanoStation loco M2 incorporates an integrated 2x2 MIMO directional antenna to provide focused wireless coverage without requiring an external antenna. Its lightweight, compact enclosure simplifies installation in locations where space and mounting flexibility are important.
Operating in the 2.4GHz frequency band, the device is designed for wireless connectivity across outdoor environments, subject to suitable alignment, interference conditions and line of sight.
Advanced airMAX TDMA Technology
Ubiquiti's proprietary airMAX Time Division Multiple Access (TDMA) technology improves wireless network efficiency by coordinating communication between compatible airMAX devices.
This technology helps reduce transmission contention, improve latency consistency and support more predictable wireless performance in compatible point-to-multipoint deployments.
Flexible Point-to-Point and Point-to-Multipoint Connectivity
The NanoStation loco M2 supports applications including wireless point-to-point bridging, point-to-multipoint client connectivity and compatible access point configurations.
Whether connecting nearby buildings, extending an existing network or deploying customer premises connectivity, the LocoM2 provides a cost-effective alternative to installing additional Ethernet cabling between locations.
Efficient Passive PoE Power
Featuring 24V passive Power over Ethernet (PoE), the LocoM2 receives both power and network connectivity through its Ethernet connection.
The included 24V, 0.5A PoE adapter simplifies deployment, while the low maximum power consumption of just 5.5W supports efficient continuous operation.
What's Included in the Box?
Main Features
-
2.4GHz Wireless Operation: Designed for outdoor wireless broadband connectivity using the 2412–2462MHz frequency range.
-
Integrated 8dBi Directional MIMO Antenna: Supports focused wireless transmission without requiring an external antenna.
-
2x2 MIMO Technology: Uses multiple antenna streams to support efficient wireless communication.
-
airMAX TDMA Protocol: Provides coordinated wireless access for improved efficiency in compatible airMAX networks.
-
Point-to-Point Bridging: Suitable for connecting separate buildings or remote network locations.
-
Point-to-Multipoint Applications: Supports compatible airMAX wireless distribution networks.
-
Compact Outdoor Enclosure: Features UV-stabilised construction designed for outdoor installations.
-
24V Passive PoE: Simplifies powering the device through its Ethernet connection.
-
Low Power Consumption: Maximum power requirement of 5.5W.
-
Fast Ethernet Connectivity: Includes one 10/100Mbps RJ45 Ethernet port.
-
Pole-Mount Installation: Included mounting hardware helps simplify outdoor deployment.
Technical Specifications
| Specification |
Details |
| Brand |
Ubiquiti Networks |
| Product Series |
NanoStation loco M |
| Model / Product Code |
LocoM2 |
| Device Type |
Wireless CPE / PtP Bridge / AP |
| Wireless Frequency |
2.4GHz |
| Operating Frequency |
2412–2462MHz |
| Antenna Gain |
8dBi (original model documentation) |
| Antenna Type |
Integrated directional 2x2 MIMO |
| Antenna Polarisation |
Dual Linear |
| Antenna Beamwidth |
60° horizontal / 60° vertical |
| Wireless Technology |
airMAX MIMO TDMA |
| Network Interface |
1 × 10/100BASE-TX RJ45 Ethernet port |
| Power Supply |
24V, 0.5A passive PoE adapter (included) |
| Power Method |
Passive PoE, pins 4/5 (+), 7/8 (return) |
| Maximum Power Consumption |
5.5W |
| Supported Input Voltage |
22–27V DC |
| Dimensions (Original Documentation) |
163 × 31 × 80mm |
| Weight |
180g |
| Enclosure |
Outdoor UV-stabilised plastic |
| Mounting |
Pole-mount kit included |
| Operating Temperature |
-30°C to +75°C (current manufacturer specification) |
| Operating Humidity |
5–95%, non-condensing |
| Manufacturer-Listed Certifications |
FCC, IC, CE, RoHS |
Important: The LocoM2 uses 24V passive PoE and should not be connected directly to an incompatible 802.3af/at PoE output. Wireless channels and transmit power must be configured according to applicable regional regulations.
Practical Applications and Use Scenarios
1. Building-to-Building Wireless Bridging
Establish a wireless network connection between offices, workshops, warehouses or separate buildings without running a physical Ethernet cable across the site.
2. Rural and Regional Broadband Connectivity
Deploy the NanoStation loco M2 as customer premises equipment for compatible wireless internet service provider (WISP) networks in rural and regional environments.
3. Outdoor Network Extension
Extend an existing wired network to compatible remote outdoor locations where installing additional cabling may be difficult or expensive.
4. Commercial and Industrial Networking
Support wireless links between nearby commercial buildings, storage facilities and industrial sites where directional wireless connectivity is required.
5. Point-to-Multipoint Wireless Networks
Use compatible NanoStation loco M2 devices as wireless clients connecting to an appropriately configured airMAX access point, allowing multiple remote locations to participate in a network.
6. Remote Camera Network Connectivity
Create a wireless Ethernet bridge for compatible IP camera network infrastructure, subject to bandwidth requirements, power arrangements and network configuration.
Warranty Information
Manufacturer: Ubiquiti Networks
Warranty coverage, duration and claim procedures depend on the authorised sales channel, purchase documentation and applicable regional terms.
Australian customers may also have rights under Australian Consumer Law in addition to applicable manufacturer warranty coverage.
About Ubiquiti Networks
Ubiquiti Networks is a global networking technology company known for developing wireless connectivity, network infrastructure and management solutions.
Its airMAX product family is designed for wireless broadband distribution, outdoor network bridging and ISP connectivity applications, offering scalable wireless infrastructure for professional networking environments.
SKU / Product Code
Manufacturer Product Code: LocoM2
SKU: LocoM2
Datasheets and Downloadable Resources
Official Ubiquiti documentation is available for product specifications, installation and deployment guidance.
Excellence for the Australian and New Zealand Market
The Ubiquiti NanoStation loco M2 (LocoM2) provides a practical networking solution for Australian and New Zealand customers seeking compact, cost-effective outdoor wireless connectivity.
Australian and New Zealand Applications: The 2.4GHz wireless platform is suitable for consideration in residential, commercial, agricultural and regional networking applications, subject to local radio-frequency requirements.
Quality and Regulatory Considerations: Ubiquiti lists FCC, IC, CE and RoHS certifications for this model. These certifications do not, by themselves, establish Australian RCM or New Zealand regulatory compliance. Any applicable local approval, labelling or supplier obligations should be confirmed before sale or deployment.
Authorised Supply: Globlelink customers should confirm the product's authorised distribution status and local supply arrangements at purchase.
Manufacturer Warranty Coordination: Where supported by the applicable supply agreement, warranty enquiries can be coordinated with the brand or its authorised representatives, subject to manufacturer terms and Australian or New Zealand consumer protections.
Outdoor Deployment Considerations: Installations should account for local weather, mounting requirements, wireless interference, available line of sight and applicable regional spectrum regulations.
FAQs
1. What is the Ubiquiti LocoM2 NanoStation loco M2 used for?
The Ubiquiti LocoM2 is a 2.4GHz outdoor wireless networking device used for point-to-point bridging, compatible point-to-multipoint wireless connectivity and customer premises equipment deployments. It is commonly used to extend networks between separate buildings or remote locations.
2. Does the Ubiquiti LocoM2 support point-to-point wireless bridging?
Yes. The Ubiquiti LocoM2 can be configured as part of a point-to-point wireless Ethernet bridge using another compatible wireless device. Proper alignment, configuration and suitable line of sight are important for reliable performance.
3. What is the antenna gain of the Ubiquiti LocoM2?
The Ubiquiti LocoM2 is specified with an integrated 8dBi directional MIMO antenna in its original documentation. Current Ubiquiti technical specifications list 8.5dBi.
4. Does the Ubiquiti LocoM2 support 5GHz Wi-Fi?
No. The Ubiquiti LocoM2 operates in the 2.4GHz frequency band. Customers requiring a 5GHz solution should consider a compatible 5GHz wireless bridge, such as a model from the NanoStation loco M5 family.
5. Can the Ubiquiti LocoM2 be installed outdoors?
Yes. The Ubiquiti LocoM2 features an outdoor UV-stabilised enclosure and a pole-mounting arrangement, making it suitable for outdoor wireless network installations when installed according to manufacturer guidance.
6. Does the Ubiquiti LocoM2 include a PoE power supply?
Yes. The Ubiquiti LocoM2 includes a 24V, 0.5A passive PoE adapter, allowing the device to receive power through its Ethernet connection.
7. Is the Ubiquiti LocoM2 compatible with standard 802.3af/at PoE switches?
The Ubiquiti LocoM2 requires compatible 24V passive PoE power. Standard 802.3af/at PoE outputs should not be assumed compatible without an appropriate adapter or converter.
8. Can the Ubiquiti LocoM2 be used as an access point?
Yes. The Ubiquiti LocoM2 supports compatible wireless access point configurations. However, it is primarily designed for directional wireless bridging and CPE deployments rather than general-purpose indoor Wi-Fi coverage.
9. How far can the Ubiquiti LocoM2 transmit a wireless signal?
The achievable wireless range of the Ubiquiti LocoM2 depends on line of sight, antenna alignment, interference, installation height, transmit power limits and the equipment at the other end of the connection. A guaranteed range cannot be determined from the antenna gain alone.
10. What is the maximum power consumption of the Ubiquiti LocoM2?
The Ubiquiti LocoM2 has a maximum rated power consumption of 5.5W, making it an energy-efficient choice for continuous wireless networking applications.
11. Is the Ubiquiti LocoM2 suitable for rural Australian network installations?
The Ubiquiti LocoM2 can be suitable for rural and regional Australian networking applications where compatible 2.4GHz wireless connectivity is required. Deployment must comply with applicable Australian radio-frequency regulations and local installation requirements.
12. What Ethernet connectivity does the Ubiquiti LocoM2 provide?
The Ubiquiti LocoM2 features one 10/100Mbps RJ45 Ethernet port for network connectivity and compatible passive PoE input.
13. Does the Ubiquiti LocoM2 support airMAX technology?
Yes. The Ubiquiti LocoM2 incorporates Ubiquiti's proprietary airMAX TDMA technology, which coordinates transmissions to improve efficiency across compatible wireless deployments.
14. Is the Ubiquiti LocoM2 suitable for connecting remote security cameras?
Yes. The Ubiquiti LocoM2 may be used as part of a wireless Ethernet bridge connecting remote IP camera infrastructure. Suitability depends on total camera traffic, link quality, network configuration and separate power provision for the cameras.
15. Where can I find the Ubiquiti LocoM2 installation guide and datasheet?
The Ubiquiti LocoM2 installation guide, technical specifications and NanoStation loco M series datasheet are available from Ubiquiti's official documentation resources.
