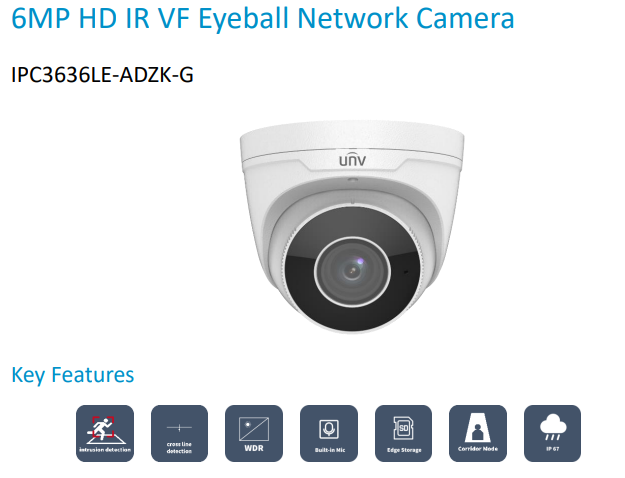

Unlock unparalleled surveillance clarity and intelligent monitoring with the Uniview IPC3636LE-ADZK-G 6MP Eyeball Network Camera, purpose-built for demanding security environments. Delivering ultra-high-definition 6MP resolution at up to 25fps and equipped with advanced 120dB true WDR, Smart IR up to 40 metres, and H.265 compression, this camera is ideal for both indoor and outdoor installations. Its motorized 2.8–12mm varifocal lens with auto-focus ensures seamless area coverage and sharp image precision across wide and narrow fields of view.

This camera supports Corridor Mode (9:16), has built-in audio with a microphone, and is fully weather-protected with IP67-rated housing. Whether you’re upgrading enterprise surveillance or implementing a smart residential setup, the IPC3636LE-ADZK-G guarantees robust, intelligent, and efficient performance around the clock.

What’s Included in the Box

• 1 × Uniview IPC3636LE-ADZK-G Eyeball Network Camera

• Mounting accessories

• Quick installation guide

• Waterproof connector kit


Main Features

• 6MP high-resolution CMOS sensor (3072×2048 @ 25fps)

• Motorized 2.8–12mm AF varifocal lens

• Smart IR up to 40m (131ft) for enhanced night vision

• 120dB True WDR for balanced lighting in challenging scenes

• Built-in microphone for real-time audio capture

• Corridor Mode (9:16) for vertical monitoring

• MicroSD card support up to 256GB for local storage

• IP67-rated weather resistance

• PoE (IEEE 802.3af) for simplified power and connectivity

• Compliant with ONVIF Profile S/G/T for integration flexibility

Detailed Specifications

Camera

• Sensor: 1/2.7” CMOS, progressive scan, 6.0MP

• Lens: 2.8–12mm motorized varifocal, auto-focus

• IR Distance: Up to 40m (131ft), 850nm wavelength

• Day/Night: IR-cut filter with auto switch

• Minimum Illumination: 0.003Lux (F1.6, AGC ON), 0Lux with IR

Video & Imaging

• Resolution: 6MP, 5MP, 4MP, 3MP, 2MP

• Compression: Ultra 265, H.265, H.264, MJPEG

• WDR: 120dB True WDR

• DNR: 2D/3D Digital Noise Reduction

• Frame Rate: Up to 30fps (depending on resolution)

• Smart IR, BLC, HLC, Flip (multiple angles), ROI, OSD (up to 4)

Audio

• Compression: G.711

• Built-in Microphone: Yes

• Audio Detection & Suppression: Supported

Network

• Interface: 10/100M Ethernet

• Protocols: IPv4, TCP/IP, HTTP/HTTPS, RTP/RTSP, SNMP, ONVIF S/G/T

• Remote Access: EZStation, EZView, EZLive

Storage

• MicroSD Card: Up to 256GB

• NAS & ANR support

Physical & Electrical

• Power: 12V DC ±25% / PoE (802.3af), Max 8W

• Dimensions: Ø129 × 110 mm

• Weight: 0.67kg

• Housing: Metal

• Ingress Protection: IP67

• Working Temp: -30°C to 60°C

• Reset Button: Supported

• Surge Protection: 6KV

Warranty Information

All Uniview products come with a 3-year limited warranty covering manufacturing defects. Support and service can be directly coordinated through Uniview or its authorized distributors in Australia and New Zealand.

Brand Overview

Uniview (UNV) is a global leader in video surveillance solutions, recognized for its innovation in IP-based security technologies. With a focus on cutting-edge R&D, Uniview delivers high-quality, scalable, and intelligent video solutions trusted in over 145 countries.

SKU

IPC3636LE-ADZK-G

Practical Use Scenarios

• Commercial Properties: Ideal for retail outlets, shopping centres, and business lobbies needing high-definition video and audio surveillance

• Industrial Facilities: Monitor outdoor yards, perimeters, and factory floors with robust weather protection and night vision

• Residential Estates: Perfect for driveways, gardens, and entrances where intelligent detection and audio recording enhance security

• Schools & Campuses: Leverages 120dB WDR to maintain clarity in high-contrast lighting areas like hallways or entrances

• Warehouses & Logistics: Ensure detailed observation over large areas thanks to motorized zoom and up to 40m IR

Datasheets or Downloadable Resources

• Datasheet of IPC3636LE-ADZK-G

  Network Cameras User Manual-V3.00

Excellence for the Australian and New Zealand Market

The Uniview IPC3636LE-ADZK-G is specially selected and certified for optimal performance in Australian and New Zealand environments. It adheres to strict CE, UL, and FCC certifications, is rated IP67 for tough weather resistance, and supports power standards including IEEE 802.3af PoE. Distributed through authorized channels, this ensures genuine hardware, proper warranty support, and full compliance with regional network and safety regulations. Warranty claims and technical support are handled efficiently through local representatives, ensuring reliability and peace of mind.

Frequently Asked Questions (FAQs) – Product Code: IPC3636LE-ADZK-G

Q1: What resolution does the IPC3636LE-ADZK-G camera support?
A1: The IPC3636LE-ADZK-G supports up to 6MP resolution (3072×2048) at 25fps, providing ultra-clear imaging ideal for professional-grade surveillance.

Q2: Is the IPC3636LE-ADZK-G weatherproof?
A2: Yes, the IPC3636LE-ADZK-G is IP67-rated, offering full protection against dust and powerful water jets, making it suitable for outdoor use.

Q3: Does the IPC3636LE-ADZK-G support night vision?
A3: Absolutely. The IPC3636LE-ADZK-G features Smart IR technology with up to 40 metres of infrared night vision.

Q4: Can I use a microSD card for local storage with the IPC3636LE-ADZK-G?
A4: Yes, the IPC3636LE-ADZK-G supports microSD cards up to 256GB for onboard storage.

Q5: What lens type is included in the IPC3636LE-ADZK-G?
A5: The IPC3636LE-ADZK-G is equipped with a 2.8–12mm motorized varifocal lens with auto-focus, ideal for flexible viewing angles.

Q6: Is the IPC3636LE-ADZK-G compatible with third-party NVRs?
A6: Yes, the IPC3636LE-ADZK-G is ONVIF (Profiles S, G, T) compliant, allowing for integration with a wide range of NVRs and VMS platforms.

Q7: Does the IPC3636LE-ADZK-G include audio features?
A7: Yes, it includes a built-in microphone and supports audio detection, making it ideal for environments where audio monitoring is important.
