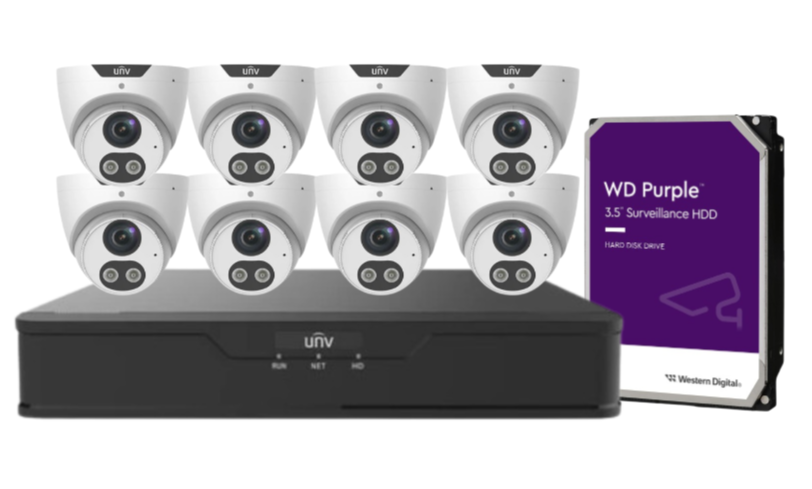

Elevate your security infrastructure with the Uniview 8MP Tri-Guard CCTV Kit, a comprehensive surveillance solution designed for both residential and commercial applications. This kit combines eight Uniview IPC3618SB-ADF28KMC-I0 'Tri-Guard' 8MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Cameras with the robust Uniview NVR301-08B-P8-IQ 8-Channel Network Video Recorder, ensuring high-definition monitoring and intelligent analytics. The included HDD provides ample storage, making this kit a turnkey solution for advanced security needs.

What's Included in the Box

• 8 × Uniview IPC3618SB-ADF28KMC-I0 8MP Tri-Guard Eyeball Cameras

• 1 × Uniview NVR301-08B-P8-IQ 8-Channel Network Video Recorder

• 1 × Hard Disk Drive (HDD)

• 1 × Power Adapter

• 1 × USB Mouse

• 1 × Quick Start Guide

• 1 × Warranty Card

Main Features

Cameras: Uniview IPC3618SB-ADF28KMC-I0

• 8MP resolution (3840×2160) with 1/2.8" CMOS sensor

• Smart intrusion prevention with false alarm filtering (Cross Line, Intrusion, Enter/Leave Area detection)

• Integrated sound and light alarm linkage upon detection

• People counting and crowd density monitoring

• 120dB true WDR for clear images in varying lighting conditions

• Built-in microphone and speaker for two-way audio

• Smart IR with up to 30m (98ft) IR distance

• Supports up to 256GB Micro SD card

• IP67 weatherproof rating for outdoor use

Network Video Recorder: Uniview NVR301-08B-P8-IQ

• Supports Ultra 265, H.265, H.264 video formats

• 8-channel input with 8 independent PoE ports

• Supports up to 12MP resolution recording

• Simultaneous HDMI and VGA outputs

• ANR technology for enhanced storage reliability during network interruptions

• Supports cloud upgrade for firmware updates

Detailed Specifications

Camera Specifications:

• Sensor: 1/2.8" 8MP progressive scan CMOS

• Minimum Illumination: Color: 0.0025 lux (F1.6, AGC ON); 0 lux with IR on

• Lens: 2.8mm @ F1.6; Field of View: H: 106.7°, V: 57.1°, D: 115.7°

• Shutter: Auto/Manual, 1 ~ 1/100000s

• WDR: 120dB

• IR Range: Up to 30m (98ft)

• Audio: Built-in microphone and speaker; supports two-way audio

• Storage: Supports Micro SD card up to 256GB

• Protection: IP67

NVR Specifications:

• Decoding Capability: Smart Off: 2 × 12MP@30fps, 2 × 4K@30fps, 4 × 4MP@30fps, 8 × 1080P@30fps; Smart On: 2 × 4K@30fps, 4 × 4MP@30fps, 8 × 1080P@30fps

• Audio Compression: G.711A, G.711U

• Network Bandwidth: Incoming: 80Mbps; Outgoing: 80Mbps

• Remote Users: Supports up to 128 simultaneous users

• Protocols: TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4

• Video Output: HDMI: Up to 4K (3840×2160)@30Hz; VGA: Up to 1920×1080@60Hz

• Storage: Supports 1 SATA HDD up to 10TB

• Two-Way Audio: 1 channel, RCA

Warranty Information

• Cameras: 3-Year Manufacturer Warranty

• NVR: 2-Year Manufacturer Warranty

• Support: Warranty claims handled through authorized service centers

Brand Overview: Uniview

Uniview is a leading provider of professional video surveillance products and solutions. With a focus on innovation and quality, Uniview offers a comprehensive range of IP cameras, NVRs, and related accessories designed to meet the diverse needs of security professionals worldwide.

Practical Use Scenarios

• Residential Security: Monitor entrances, driveways, and perimeters with high-definition clarity.

• Retail Stores: Enhance loss prevention and customer safety with intelligent analytics.

• Office Buildings: Secure premises with real-time monitoring and intrusion detection.

• Warehouses: Oversee large areas and inventory with wide-angle coverage and night vision.

• Parking Lots: Ensure vehicle and pedestrian safety with comprehensive surveillance

Datasheets & Resources

• IPC3618SB-ADF28KMC-I0 Camera Datasheet

• NVR301-08B-P8-IQ NVR Datasheet

Excellence for the Australian and New Zealand Market

• Compliance with Standards: Fully meets Australian and New Zealand regulatory requirements.

• NDSS Approval: Ensures reliability and safety for use in commercial and residential settings.

• Optimized for Local Infrastructure: Seamlessly integrates with Australian and New Zealand ISPs and network providers.

• Authorized Sourcing: Products sourced from authorized Uniview distributors, ensuring authenticity and manufacturer support.

• Local Warranty Support: Warranty services handled directly through authorized service centers in Australia and New Zealand.

FAQs

Q: Does the Uniview IPC3618SB-ADF28KMC-I0SED camera support remote access?

A: Yes, the camera can be accessed remotely via Uniview's EZView app or through a web browser, allowing real-time monitoring from anywhere.

Q: What is the maximum storage capacity supported by the NVR301-08B-P8-IQ-SED?

A: The NVR supports a single SATA hard drive with a capacity of up to 10TB.

Q: Can the IPC3618SB-ADF28KMC-I0SED camera be used outdoors?

A: Absolutely. The camera has an IP67 weatherproof rating, making it suitable for outdoor installations.

Q: Does the NVR301-08B-P8-IQ-SED support third-party IP cameras?

A: Yes, it supports ONVIF-compliant IP cameras, ensuring compatibility with a wide range of third-party brands.

Q: What kind of warranty is provided with the IPC3618SB-ADF28KMC-I0SED camera?

A: The camera comes with a 3-year manufacturer's warranty, covering defects and hardware failures under normal usage.
