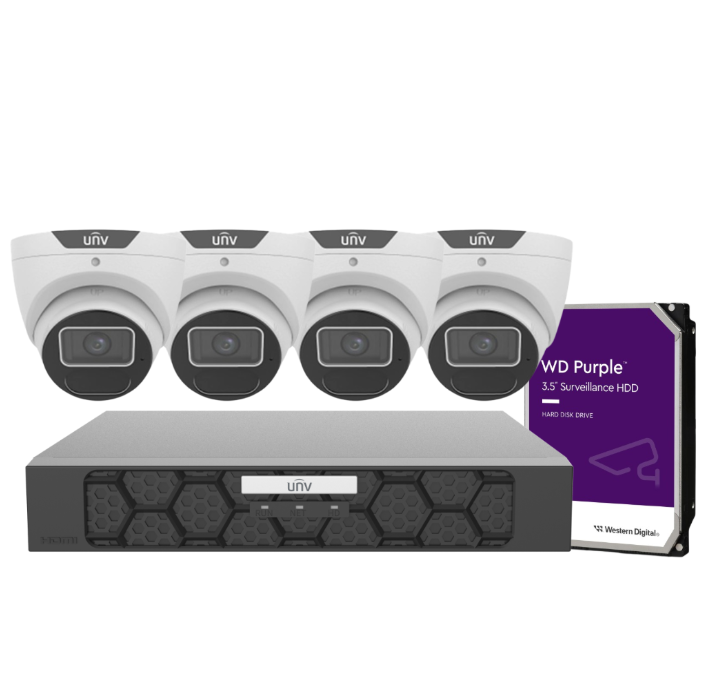

High-performance surveillance solution featuring four 8 MP LightHunter turret cameras (model IPC3618SS‑ADF28K‑I1) paired with a Uniview NVR501‑04B‑P4‑IQ PoE recorder (no HDD included). Enjoy vivid 4K imaging, ultra-efficient compression, and smart analytics—from perimeter protection to people counting. Ideal for homes, offices, and small enterprises seeking reliable, intelligent monitoring.
✔️ What’s in the Box
-
4× Uniview IPC3618SS‑ADF28K‑I1 cameras
-
1× Uniview NVR501‑04B‑P4‑IQ PoE NVR with HDD
-
Power adapter, PoE injectors, network and mounting accessories
-
Quick Setup Guide & Datasheet
-
Warranty & compliance documentation
🔧 Main Features

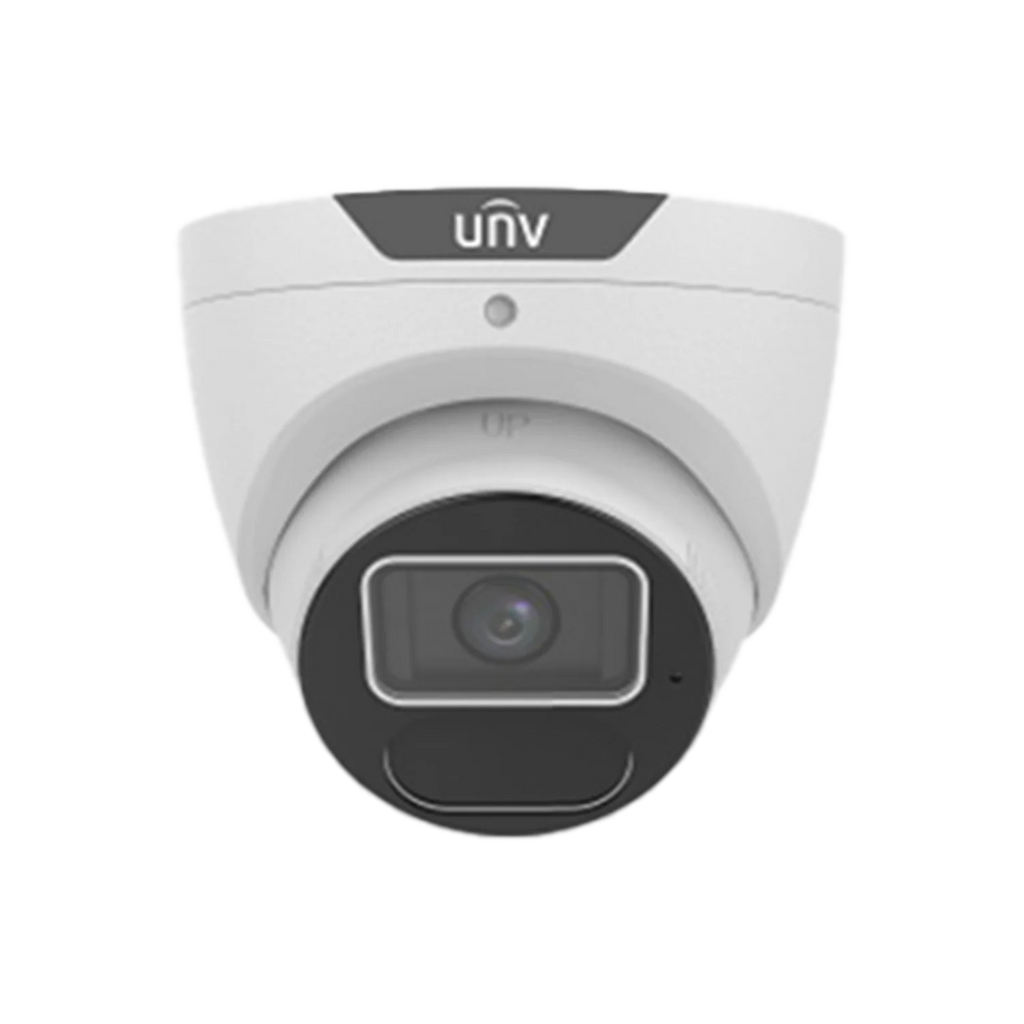

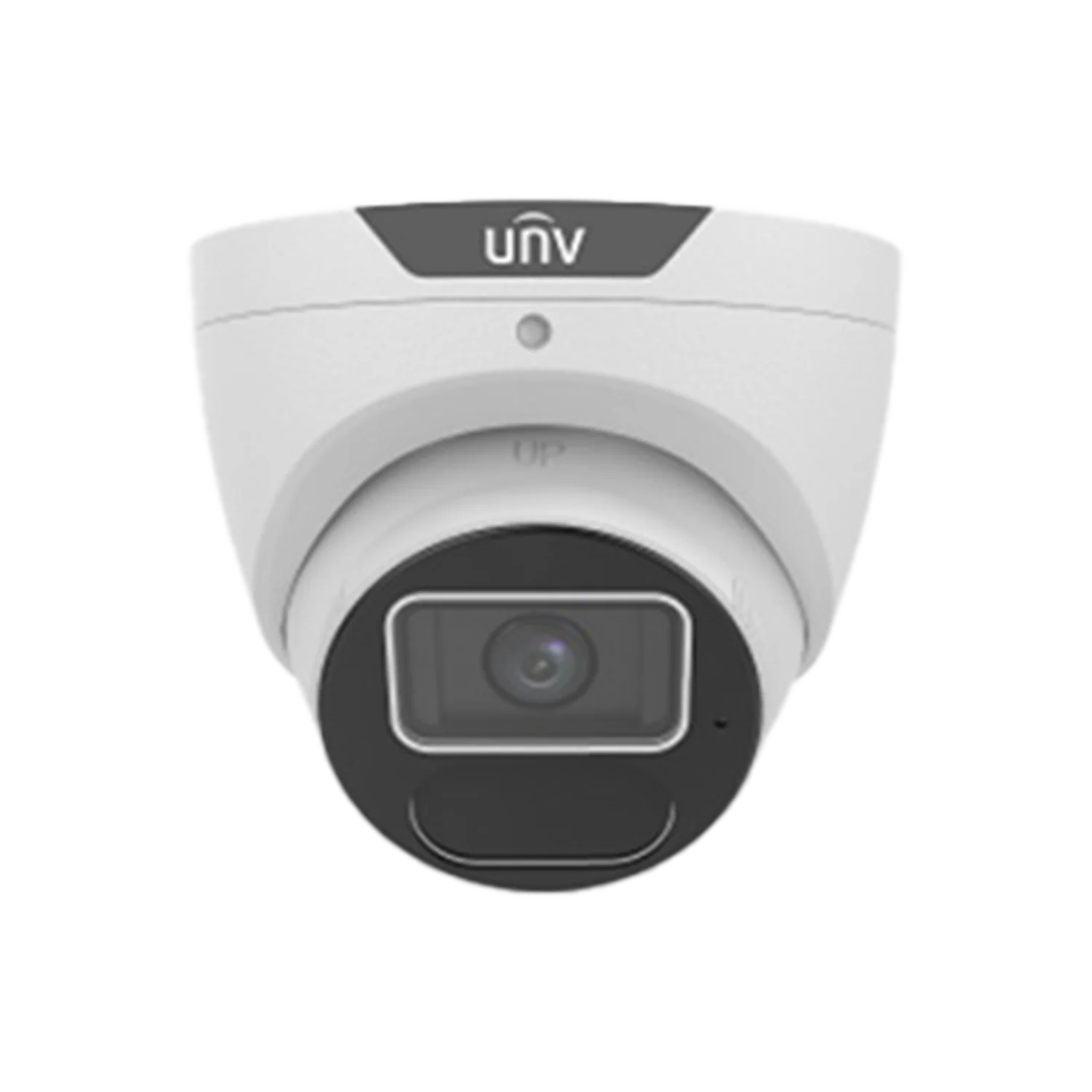

Cameras (IPC3618SS‑ADF28K‑I1)
-
8 MP CMOS sensor; up to 3840×2160 @ 30fps
-
Ultra 265/H.265/H.264/MJPEG compression
-
Intelligent perimeter protection: cross-line, intrusion, area entry/exit detection
-
Target classification reduces false alerts
-
People flow counting & crowd density monitoring
-
LightHunter low‑light tech + 130 dB WDR for challenging environments
-
Smart IR up to 40 m, built-in mic, IP67-rated weatherproofing

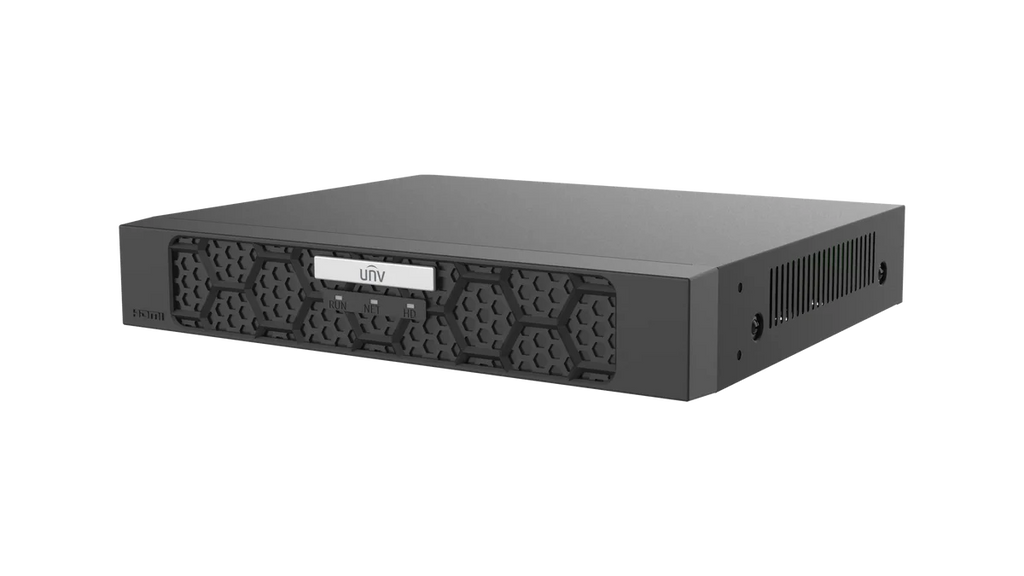

NVR (NVR501‑04B‑P4‑IQ)
-
4 independent PoE ports (IEEE 802.3af/at) for plug‑and‑play setup
-
Records up to 16 MP; HDMI output up to 4K & VGA simultaneously
-
Ultra 265/H.265/H.264 compression with ANR for storage resilience
-
Smart features: face/vehicle detection, intrusion alarms, people counting, metadata
-
Supports 1× SATA HDD up to 8 TB (incl. in this kit)
📊 Detailed Specifications
| Feature |
IPC3618SS‑ADF28K‑I1 Camera |
NVR501‑04B‑P4‑IQ NVR |
| Sensor |
1/2.8″ 8 MP CMOS |
— |
| Resolution |
8/5/4/2 MP streams; 30 fps max |
Supports up to 16 MP recording |
| Video Compression |
Ultra 265/H.265/H.264/MJPEG |
Ultra 265/H.265/H.264 |
| Lens |
2.8 mm fixed, 97° HFOV |
— |
| IR Range |
40 m; wavelength 850 nm |
— |
| Key Features |
WDR 130 dB, ASM, 9:16 corridor, IP67, mic |
PoE ports, HDMI 4K, smart AI, ANR |
| Storage |
Micro SD (up to 512 GB); edge recording |
1× SATA HDD up to 8 TB |
| Ports |
1× RJ45 10/100 Mbps |
4× PoE ports, HDMI, VGA, USB 2.0 & 3.0 |
| Power |
PoE or 12 V DC, ≤7 W/camera |
48 V DC adapter; ≤8 W (no HDD) |
| Operating Temp |
–30 °C to 60 °C |
–10 °C to 50 °C, ≤90% RH |
| Certifications |
CE, FCC, UL, RoHS, WEEE |
CE, FCC, UL, RoHS, WEEE |
🛡️ Warranty Information
🏷️ Brand Description
Uniview, a leading AIoT video surveillance provider, specializes in intelligent NVRs and IP cameras delivering enterprise-grade performance—trusted worldwide for reliability and innovation.
🔖 SKU
IPC3618SS‑ADF28K‑I1 + NVR501‑04B‑P4‑IQ Kit
🎯 Practical Use Scenarios
-
Home Security: Cover entryways, driveways, and gardens with clear alerts and playback.
-
Retail Locations: Monitor customer flow and inventory zones, detect intrusions after hours.
-
Office Settings: Oversee common areas, corridors, and entrances with smart notifications.
-
Small Businesses: Track visitor numbers in cafés, salons, or reception zones with analytics.
📄 Datasheets & Resources
🇦🇺🇳🇿 Excellence for the Australian and New Zealand Market
-
Complies with Australian/NZ regulatory standards
-
Compatible with NDSS-approved surveillance systems
-
Sourced via authorized regional distributors
-
Aus/NZ warranty serviced directly by Uniview/local partners
-
Designed for continental climate resilience (–10 °C to +50 °C)
❓ FAQs
Q1: What is the product code for the camera?
A1: The camera model code is IPC3618SS‑ADF28K‑I1.
Q2: What is the product code for the NVR?
A2: The NVR model code is NVR501‑04B‑P4‑IQ.
Q3: Does the camera support smart intrusion alerts?
A3: Yes, the IPC3618SS‑ADF28K‑I1 features intelligent intrusion prevention with cross-line, intrusion, area entry/exit detection, greatly reducing false alarms.
Q4: What is the maximum HDD capacity supported?
A4: The NVR501‑04B‑P4‑IQ supports up to an 8 TB SATA HDD.
Q5: Are the cameras suitable for low-light/IR use?
A5: Yes. The IPC3618SS‑ADF28K‑I1 includes LightHunter tech, 130 dB WDR, and 40 m smart IR for quality night vision.
Q6: Can this kit work with non‑Uniview cameras?
A6: Yes. The NVR501‑04B‑P4‑IQ supports ONVIF Profiles S/G/T and RTSP, enabling compatibility with third-party cameras.
