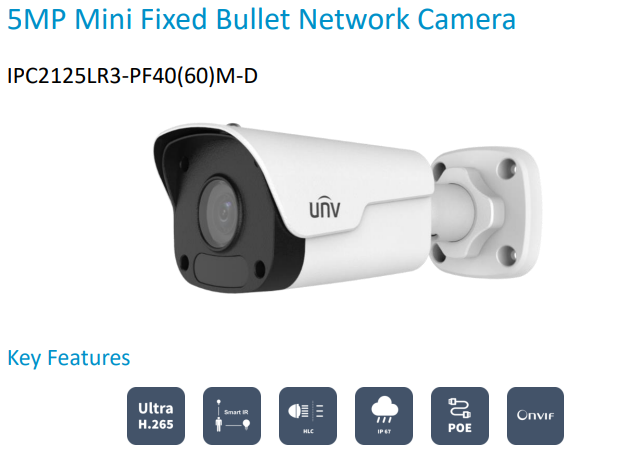

Experience compact performance with professional-grade clarity in the Uniview IPC2125LR3-PF40(60)M-D 5MP Mini Fixed Bullet Network Camera, a robust solution for streamlined outdoor surveillance. Delivering 5MP high-resolution video and equipped with Smart IR up to 30 metres, this camera ensures optimal visibility even in total darkness. Designed with an optical anti-reflection window and DWDR (Digital Wide Dynamic Range), it captures clear footage in challenging lighting conditions.

Available in 4.0mm or 6.0mm fixed lens options, the IPC2125LR3-PF40(60)M-D offers flexible deployment for short- or long-range monitoring needs. Its IP67-rated metal housing, PoE support, and wide temperature resistance make it an ideal choice for small to medium commercial and residential security projects in Australia and New Zealand.

What’s Included in the Box

• 1 × Uniview IPC2125LR3-PF40M-D or IPC2125LR3-PF60M-D Network Camera

• Mounting bracket and screws

• Waterproof cable connector

• Quick installation guide

• Reset tool

Main Features

• 5MP 1/2.7" CMOS sensor for crisp, high-definition imaging

• Smart IR up to 30m (98ft) with anti-reflection optical glass window

• Choice of 4.0mm or 6.0mm lens for tailored field of view

• Ultra 265, H.265, H.264, and MJPEG compression for efficient streaming

• DWDR and 2D/3D DNR for enhanced image clarity in varying lighting

• Digital Defog, BLC, and HLC support for advanced scene optimization

• PoE and 12VDC power options

• Compact bullet form factor with 3-axis adjustment

• IP67-rated housing for outdoor weather resistance

• ONVIF Profile S/T compatibility

Detailed Specifications

Camera & Optics

• Sensor: 1/2.7", 5MP CMOS, progressive scan

• Resolution: 2592 × 1944 @ 20fps

• Lens Options:

  • 4.0mm @ F2.0: H: 79.7°, V: 51.8°, D: 98.0°

  • 6.0mm @ F2.0: H: 50.5°, V: 35.9°, D: 62.1°

• DORI Distance (4.0mm): Detect – 60m, Identify – 6m

• DORI Distance (6.0mm): Detect – 90m, Identify – 9m

• Day/Night: ICR cut filter

• IR Range: Up to 30m (850nm)

• Smart IR: Yes

• WDR: DWDR

• Defog: Digital

Video

• Compression: Ultra 265, H.265, H.264, MJPEG

• Frame Rate:

  • Main Stream: 5MP @ 20fps

  • Sub Stream: 720p @ 20fps

• Bit Rate: 128 Kbps to 16 Mbps

• ROI: Up to 2 areas

• OSD: Up to 4

• Motion Detection & Privacy Mask: Up to 4 zones

Network & Integration

• Protocols: IPv4, HTTPS, FTP, RTSP, SNMP, and more

• ONVIF: Profiles S & T

• Clients: EZStation, EZView, EZLive

• Browser Support: Plug-in and plug-in-free access

• Interface: 1 × 10/100M Ethernet (RJ45)

General

• Power: 12VDC ±25% or PoE (IEEE 802.3af), Max 4W

• Dimensions: 167.3 × 62.9 × 62.7 mm

• Material: Metal housing

• Weight: 0.45 kg

• Operating Temp: -30°C to 60°C

• Surge Protection: 2KV

• Ingress Protection: IP67

• Reset Button: Yes

Warranty Information

The Uniview IPC2125LR3-PF40(60)M-D includes a 3-year warranty, covering manufacturing defects and hardware faults under standard operating conditions. Warranty support is handled through authorized channels within Australia and New Zealand.

Brand Overview

Uniview is a globally recognized brand in the video surveillance industry, offering innovative and reliable IP-based security products. Known for its quality build and efficient compression technologies, Uniview supports security solutions for enterprises, SMEs, and public infrastructure across more than 145 countries.

SKU

IPC2125LR3-PF40M-D / IPC2125LR3-PF60M-D

Practical Use Scenarios

• Retail Shops & Cafes: Ideal for fixed-point outdoor coverage of entrances and walkways

• Residential Homes: Compact size fits well in driveways, garages, and backyard surveillance

• Warehouses & Storage Yards: Smart IR ensures clarity at night while DWDR manages outdoor light extremes

• Office Exteriors: Weather-resistant and discreet design for side and rear building coverage

• Parking Areas: Long-range 6mm version ideal for vehicle monitoring at distance

Datasheets or Downloadable Resources

• Datasheet of IP-IPC2125LR3-PF40M-D

Excellence for the Australian and New Zealand Market

The IPC2125LR3-PF40M-D and IPC2125LR3-PF60M-D are tested and qualified for rugged Australian and New Zealand conditions. Certified to IP67 standards with DWDR and PoE, these cameras provide strong visual performance in diverse lighting and temperature extremes. Supplied through authorized distributors, they include full warranty support and align with all relevant compliance certifications including CE, FCC, and UL. End-users benefit from local technical support and reliable product servicing via official Uniview channels.

Frequently Asked Questions (FAQs) – Product Code: IPC2125LR3-PF40(60)M-D

Q1: What is the resolution and frame rate of the IPC2125LR3-PF40(60)M-D?
A1: The IPC2125LR3-PF40(60)M-D supports 5MP resolution (2592 × 1944) at up to 20 frames per second.

Q2: How far can the IR function see in the IPC2125LR3-PF40(60)M-D?
A2: The Smart IR on the IPC2125LR3-PF40(60)M-D provides night vision up to 30 metres (98 feet).

Q3: What is the main difference between the PF40 and PF60 versions of IPC2125LR3-PF40(60)M-D?
A3: The PF40 model has a 4.0mm lens for a wider field of view, while the PF60 has a 6.0mm lens for longer-distance monitoring.

Q4: Is the IPC2125LR3-PF40(60)M-D waterproof?
A4: Yes, the IPC2125LR3-PF40(60)M-D is IP67-rated, making it fully weatherproof for outdoor installations.

Q5: Does the IPC2125LR3-PF40(60)M-D support PoE?
A5: Yes, it supports IEEE 802.3af PoE for streamlined installation and power delivery.

Q6: Can I access the IPC2125LR3-PF40(60)M-D remotely via a browser or app?
A6: Yes, remote viewing is supported via EZView, EZStation, and browser-based access with plug-in or plug-in-free options.

Q7: What is the storage capacity of the IPC2125LR3-PF40(60)M-D?
A7: This camera does not have internal SD storage; recording is done via NVR or network storage (NAS, ANR).
