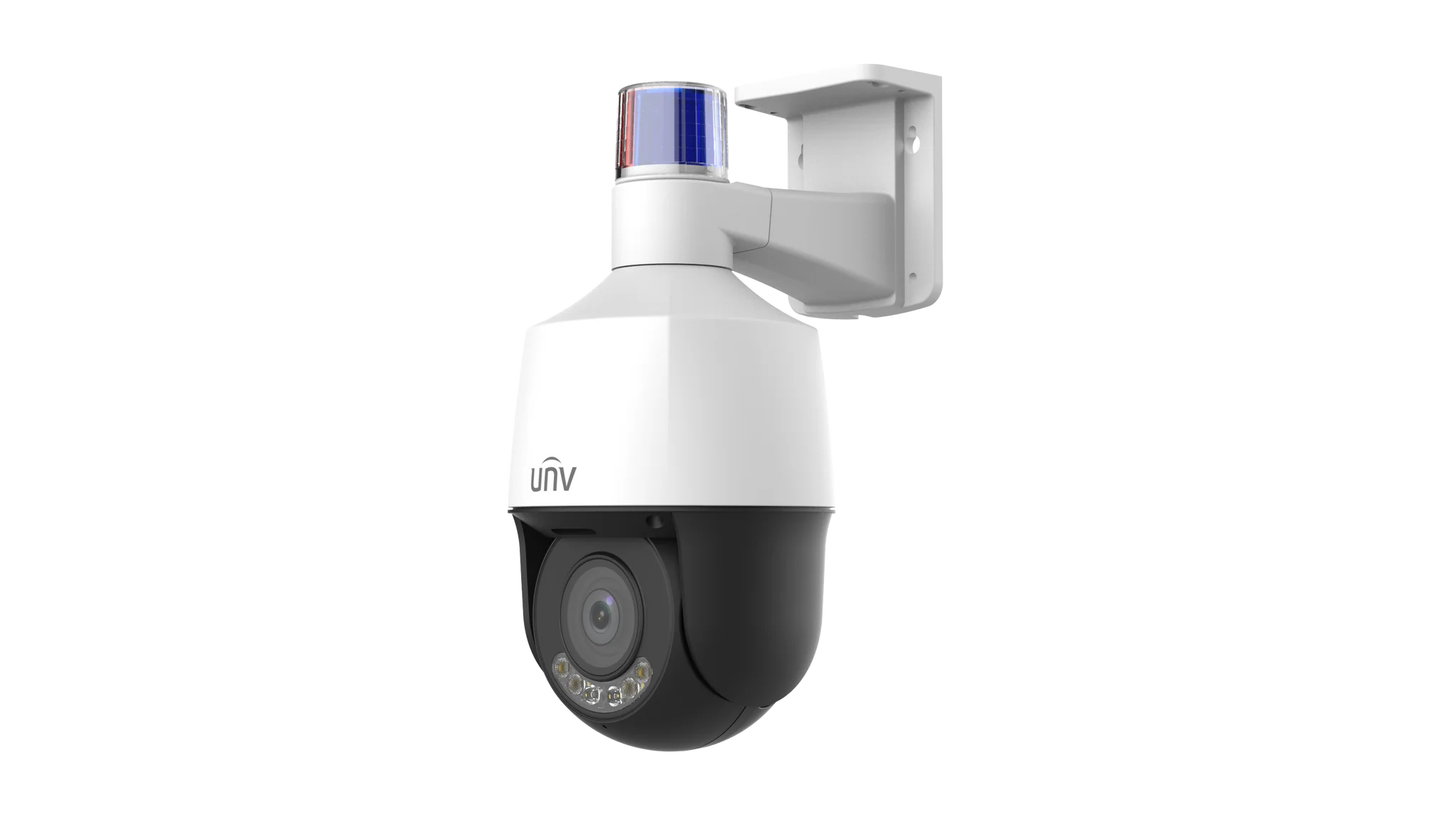

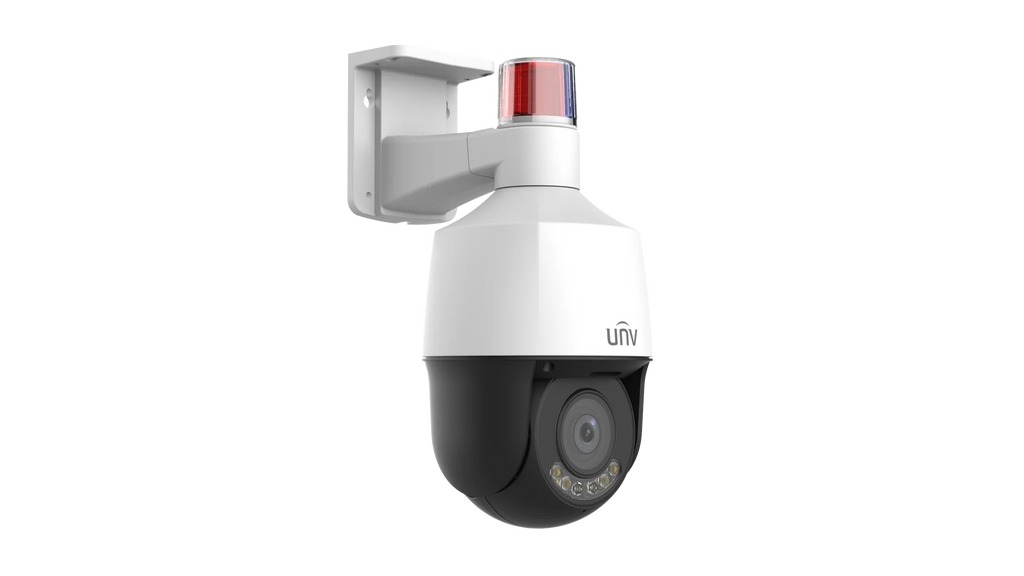

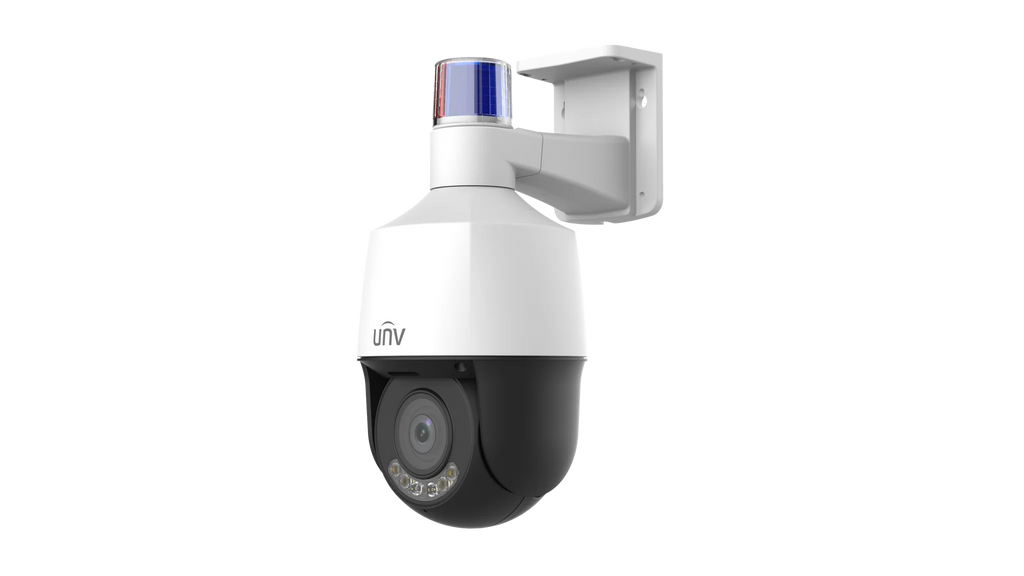

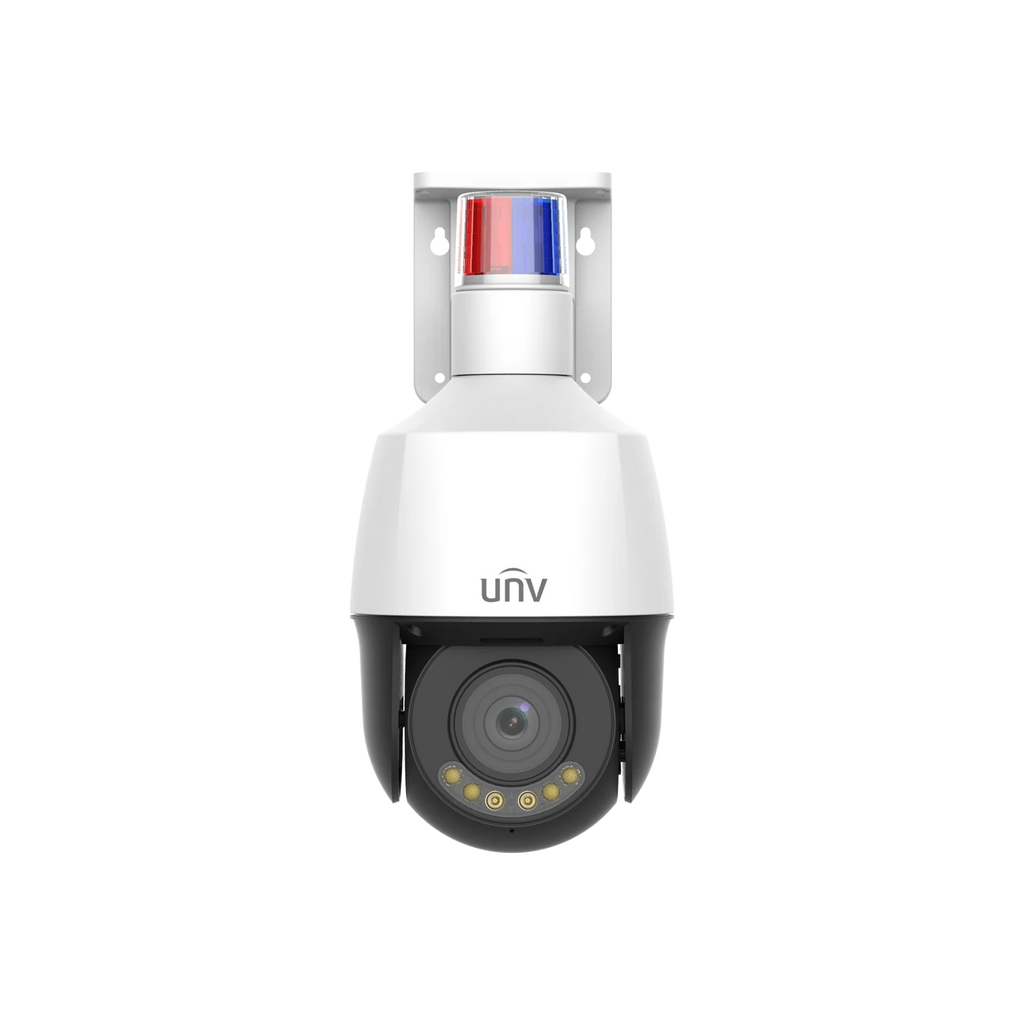

The Uniview IPC6324LWH-AX5C-VG2 is a compact and intelligent 4MP Tri-Guard PTZ network camera that blends powerful pan-tilt-zoom functionality with Uniview’s ColorHunter and Wise-ISP technology, enabling clear, full-colour images even in extreme low-light conditions. With a 5X motorized zoom lens (2.7–13.5 mm), smart tracking, and a 40 m warm light range, this camera delivers unmatched flexibility and coverage in both indoor and outdoor surveillance environments.
This camera also features smart intrusion prevention based on human and vehicle detection, auto-tracking, and two-way audio with a built-in microphone and speaker. Its metal IP66-rated housing and operating range of -30°C to 60°C make it ideal for commercial and industrial applications where reliable and intelligent video security is essential.
What’s Included in the Box
-
1 × Uniview IPC6324LWH-AX5C-VG2 PTZ Network Camera
-
Waterproof Cable Gland (TR-A01-IN)
-
Mounting Screws and Installation Kit
-
Quick Start Guide
-
Allen Key for Camera Adjustment
Key Features
-
4MP High Definition Video (2688 × 1520) at 30 fps
-
5X Optical Zoom (2.7–13.5 mm) with motorized focus
-
ColorHunter + Wise-ISP for vivid full-colour imaging in low light
-
Smart Intrusion Prevention with human/vehicle classification
-
Auto-Tracking Functionality for dynamic subject following
-
Built-in Microphone and Speaker for two-way audio
-
40 m Warm Light Range with auto/manual control
-
Triple Video Streams with Ultra 265, H.265, H.264, and MJPEG support
-
Edge Storage Support up to 512 GB Micro SD
-
IP66 Weatherproof Metal Housing
-
Pan Range 0°–345°, Tilt Range -10° to 100°
-
Supports 1024 Presets and 16 Patrol Routes
-
ONVIF Profiles S, G, T Compliant
Detailed Specifications
Model: IPC6324LWH-AX5C-VG2
Sensor: 1/1.8” CMOS
Resolution: 4MP (2688 × 1520 @ 30 fps)
Zoom: 5X Optical Zoom (2.7–13.5 mm)
FOV (H/V/D): 113.69° to 50.29° / 59.46° to 28.45° / 156.23° to 59.34°
IR/Warm Light Range: Up to 40 m
Smart Features:
-
Intrusion Detection
-
Cross Line Detection
-
Auto Tracking (Human Only)
DORI (2.7–13.5 mm):
-
Detect: 98.6 to 209.9 m
-
Recognize: 19.7 to 137.7 m
-
Identify: 9.9 to 21 m
WDR: 120 dB
Audio: Built-in Mic and Speaker, 1 In / 1 Out
Alarm I/O: 1 In / 1 Out
Compression: Ultra 265, H.265, H.264, MJPEG
Edge Storage: Micro SD, up to 512 GB
Power Supply: DC 12V ±25% / PoE (IEEE 802.3at)
Protection: IP66
Operating Temperature: -30°C to 60°C
Material: Metal
Surge Protection: 2KV
Certifications: CE, FCC, UL, RoHS
Warranty Information
This camera includes a 3-year Uniview warranty, with all warranty and technical service provided locally in Australia and New Zealand through authorized Uniview partners.
Brand Description
Uniview (UNV) is a global security solutions provider known for advanced IP surveillance technologies that combine AI analytics, robust hardware, and user-centric software. With a strong commitment to innovation and international compliance, Uniview serves a wide range of industries globally, including critical infrastructure, retail, and urban surveillance sectors.
SKU
IPC6324LWH-AX5C-VG2
Practical Use Scenarios
-
Retail Carparks: Use auto-tracking to monitor human or vehicle movement across large parking areas.
-
Industrial Warehouses: Pan, tilt, and zoom for broad coverage and detailed inspection of zones.
-
Campus Security: Track students or staff across open areas, walkways, and courtyards.
-
City Surveillance: Combine auto-tracking and smart detection for event-driven urban monitoring.
-
Public Transport Terminals: Identify crowd build-up and suspicious behavior with real-time alerts.
-
Hospital Grounds: Enable two-way audio for live communication and enhanced emergency response.
Compatible Accessories for IPC6324LWH-AX5C-VG2
| Accessory Model |
Description |
| TR-JB07-D-IN |
Bullet Junction Box – Supports rear wiring for weather-sealed installations. |
| TR-CM06-D |
Alarm Ball Machine Hoisting Bracket – Ideal for ceiling or pendant mounting of PTZ cameras. |
| TR-UC08-C |
Bullet & Dome Corner Mounting Bracket – Allows mounting in 90° corner areas. |
| TR-A01-IN |
NPT 3/4'' Waterproof Cable Gland – Seals cable entry for outdoor environments. |
| TR-UP06-B-IN |
Bullet Pole Mounting Bracket – Provides solid support on vertical poles. |
| TR-UP06-C-IN |
Pole Mounting Bracket for Bullet Junction Box – Enables junction box use on poles. |
Accessories are sold separately and certified for use with the IPC6324LWH-AX5C-VG2 PTZ camera.
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The IPC6324LWH-AX5C-VG2 PTZ camera is tailored for Australian and New Zealand standards with:
-
Compliance with RCM, CE, FCC, UL, and RoHS certifications
-
Optimized for ANZ climates, operating between -30°C to 60°C with IP66 protection
-
Locally available accessories and warranty servicing through authorized Uniview channels
-
Smart features aligned with NDSS guidelines for public safety and commercial installations
-
Supports multiple UI languages including English, Traditional Chinese, and Arabic to serve diverse end-users
FAQs
Q1: What is the zoom capability of the IPC6324LWH-AX5C-VG2 camera?
A1: The Uniview IPC6324LWH-AX5C-VG2 offers 5X optical zoom (2.7–13.5 mm), allowing for clear viewing of distant subjects.
Q2: Can the IPC6324LWH-AX5C-VG2 perform auto-tracking?
A2: Yes, the IPC6324LWH-AX5C-VG2 supports auto-tracking, specifically targeting human motion for intelligent monitoring.
Q3: Is the IPC6324LWH-AX5C-VG2 weatherproof?
A3: Absolutely. It features a metal IP66-rated housing, designed for outdoor and all-weather applications.
Q4: What type of storage does the IPC6324LWH-AX5C-VG2 support?
A4: The camera supports Micro SD cards up to 512 GB, ideal for local edge storage.
Q5: Does the IPC6324LWH-AX5C-VG2 support two-way audio?
A5: Yes, it includes both a built-in microphone and speaker, enabling real-time two-way communication.
Q6: Is the IPC6324LWH-AX5C-VG2 compatible with ONVIF systems?
A6: Yes, it supports ONVIF Profiles S, G, and T, ensuring broad compatibility with NVRs and VMS platforms.
