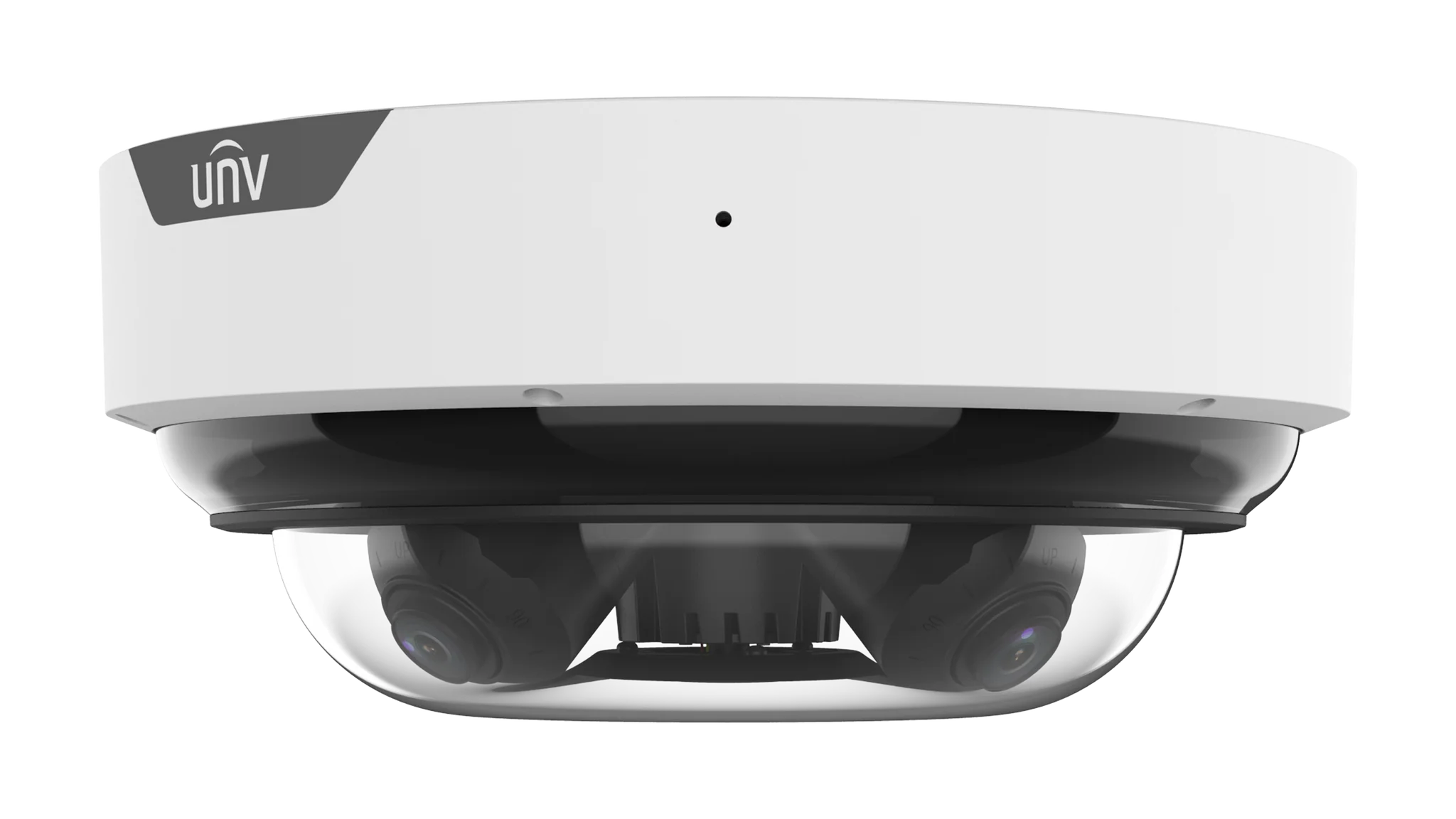

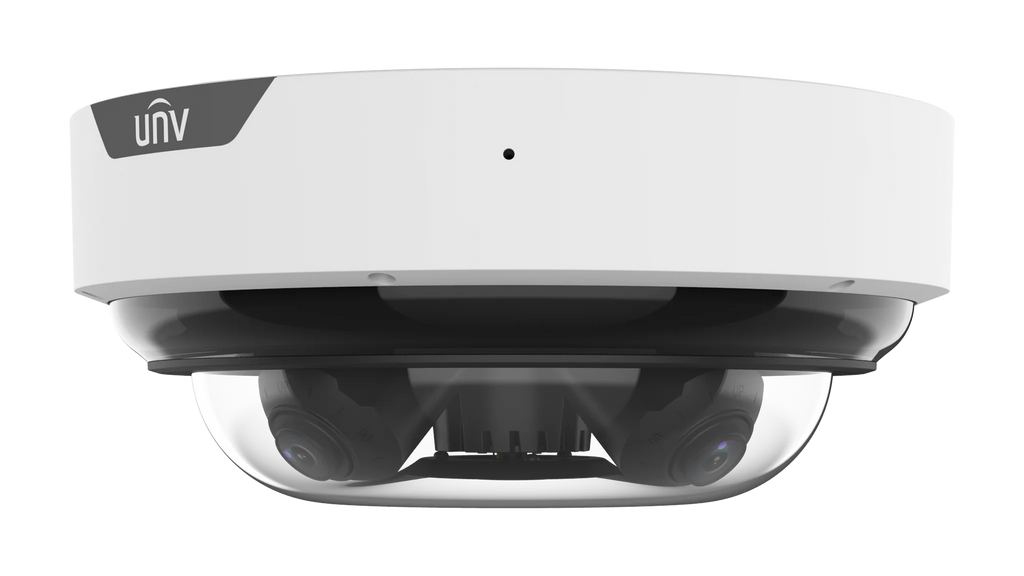

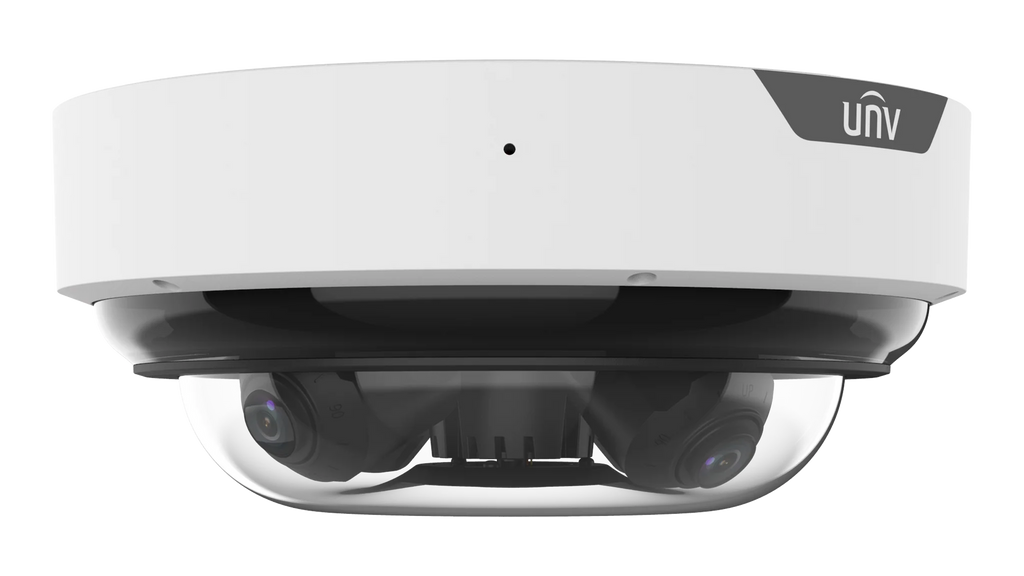

Experience comprehensive multi-directional surveillance with the Uniview IPC8645EA-ADZKM-I1, a 4-lens, 5MP per channel dome network camera that delivers unparalleled coverage with intelligent analytics, Wise-ISP image quality, and independent lens positioning. This high-performance solution supports people counting, smart intrusion prevention, and 4-channel 30fps recording, making it ideal for complex environments.
Product Description
The Uniview IPC8645EA-ADZKM-I1 redefines advanced surveillance with four independent 5MP lenses within a single dome housing. Each lens supports individual pan, tilt, and rotation, enabling tailored monitoring of multiple angles simultaneously—all from a single IP address.
Built for flexibility and power, this model supports Smart Intrusion Prevention, people flow counting, and crowd density monitoring, while maintaining crisp, ultra-low-light images via LightHunter technology and 130 dB optical WDR. With up to 50m IR, PoE power, and rugged IP67 & IK10 protection, it excels in both indoor and outdoor scenarios.
What's in the Box
-
1 × Uniview IPC8645EA-ADZKM-I1 MultiView Dome Camera
-
Dome Ceiling Mount Bracket
-
Mounting Hardware & Template
-
Quick Installation Guide
-
Optional accessories sold separately
Main Features
-
Four independently adjustable 5MP lenses with one IP address
-
4-channel video streams, each supporting 2880 × 1620 @30fps
-
Intelligent analytics: intrusion detection, people counting, and object removal
-
Smart false alarm filtering for accurate target classification
-
Panoramic coverage in a compact, vandal-resistant dome
-
50m IR range, LightHunter ultra-low-light imaging
-
Up to 512 GB MicroSD edge storage
-
Ultra 265 / H.265 / H.264 compression
-
Triple-stream video per channel
Detailed Specifications
| Camera |
Details |
| Sensor |
1/2.7" CMOS x4 |
| Resolution |
5MP (2880 × 1620) per channel |
| Lenses |
2.7–13.5mm varifocal, motorized zoom (5x) |
| IR Range |
Up to 50m |
| Low Light Sensitivity |
0.002 Lux (F1.2, AGC ON), 0 Lux with IR |
| WDR |
130 dB Optical |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Smart Features |
Cross line detection, people counting, crowd monitoring, object left/removed |
| Audio I/O |
1 in / 1 out, 2-way audio supported |
| Alarm I/O |
3 in / 2 out |
| Power |
PoE (IEEE802.3bt), DC24V, AC24V |
| Protection |
IP67, IK10 |
| Storage |
MicroSD up to 512 GB |

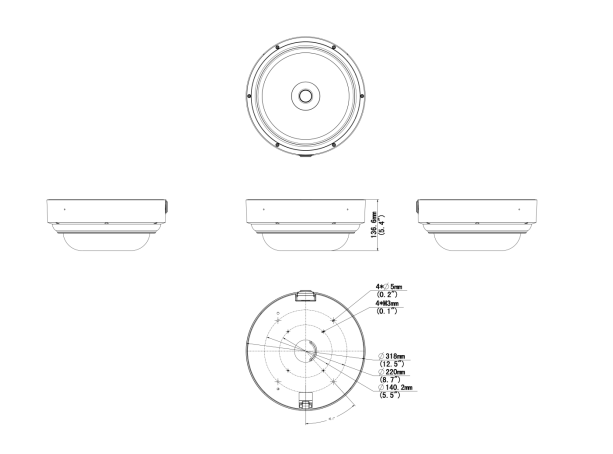

| Dimensions |
Φ318 × 136.6 mm |
| Weight |
4.77 kg (10.52 lbs) |
Warranty Information
The IPC8645EA-ADZKM-I1 is covered by a 3-year warranty via official Australian and New Zealand Uniview distributors. Warranty claims are processed locally for fast resolution and technical assistance.
Brand Description
Uniview is a trusted global leader in intelligent surveillance solutions. Renowned for LightHunter imaging, innovative multi-lens camera design, and advanced analytics, Uniview ensures cutting-edge performance and reliability across a wide range of industries.
SKU
IPC8645EA-ADZKM-I1
Practical Use Scenarios
-
Shopping Centres: Cover entrances, exits, and aisles using independently aimed lenses
-
Campus Security: Monitor multiple access points with one device
-
Stadiums & Arenas: Wide-area coverage with intelligent people counting
-
Public Transit Hubs: Manage crowd flow and detect unusual behavior
-
Parking Structures: Oversee multiple lanes, entrances, and stairwells
Datasheets & Downloads
Excellence for the Australian and New Zealand Market
The IPC8645EA-ADZKM-I1 is optimized for the demands of the Australian and New Zealand security markets. Certified to CE, FCC, RoHS, and compliant with NDSS quality standards, it’s supplied through authorized ANZ distribution partners and supported by local warranty handling. Ideal for both metropolitan and remote installations, it meets the region's high standards for durability, performance, and smart analytics.
FAQs (Product Code: IPC8645EA-ADZKM-I1)
Q1: How many video streams can the IPC8645EA-ADZKM-I1 handle?
A1: It supports four independent video streams—one for each 5MP lens—providing full 360° surveillance.
Q2: Can each lens on the IPC8645EA-ADZKM-I1 be adjusted independently?
A2: Yes, each lens allows independent pan, tilt, and rotation for customized field-of-view setup.
Q3: Is smart intrusion detection supported on all four channels of IPC8645EA-ADZKM-I1?
A3: Yes, each channel supports intelligent functions like intrusion detection and false alarm filtering.
Q4: What power options are available for IPC8645EA-ADZKM-I1?
A4: The camera supports DC24V, AC24V, and PoE (IEEE802.3bt) for flexible installation.
Q5: How does LightHunter enhance IPC8645EA-ADZKM-I1 image quality?
A5: It provides superior low-light performance, producing bright, detailed images even in dim conditions.
Q6: Is the IPC8645EA-ADZKM-I1 suitable for outdoor use?
A6: Yes, it's rated IP67 waterproof and IK10 vandal resistant, making it ideal for demanding outdoor environments.
