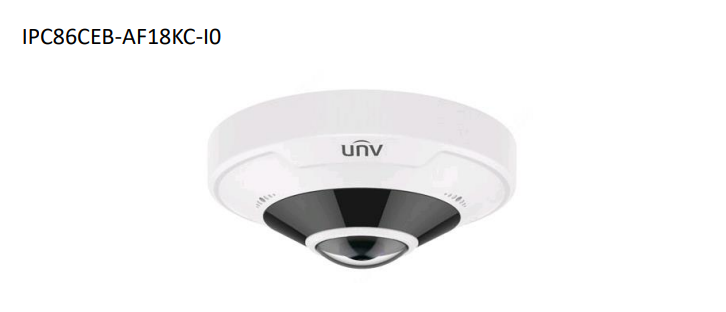

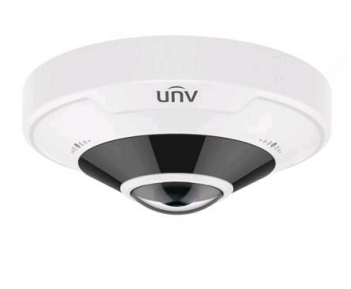

The Uniview IPC86CEB-AF18KC-I0 12MP Ultra HD Fisheye Dome Camera delivers exceptional 360° panoramic surveillance with ultra-high-definition imaging and advanced intelligent analytics. Equipped with a powerful 12MP 1/1.7" CMOS sensor, this professional-grade security camera captures crystal-clear images at resolutions up to 4000 × 3000, eliminating blind spots while providing comprehensive situational awareness. Featuring built-in infrared illumination, heat mapping technology, intelligent intrusion detection, two-way audio, and advanced fisheye dewarping display modes, the IPC86CEB-AF18KC-I0 is an ideal solution for retail environments, commercial buildings, educational facilities, warehouses, transport hubs, and public spaces requiring wide-area surveillance.
Designed for demanding indoor and outdoor installations, this robust fisheye camera combines IP67 weatherproof protection with IK10 vandal resistance, ensuring reliable operation in harsh environments. Support for Ultra265 compression, edge recording up to 256GB MicroSD, ONVIF compatibility, and flexible ceiling, wall, or table mounting options make it a versatile addition to modern security and video management systems.
What's Included in the Box
- 1 x Uniview IPC86CEB-AF18KC-I0 Fisheye Dome Camera
- Mounting Hardware
- Installation Guide
- Waterproof Connector Components
- Drill Template

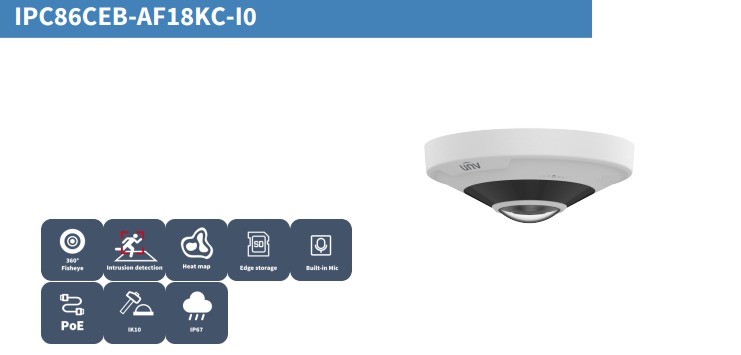

Main Features
- 12MP Ultra HD image quality
- 1/1.7" Progressive Scan CMOS sensor
- Maximum resolution of 4000 × 3000
- 360° panoramic fisheye coverage
- 1.8mm ultra-wide-angle lens
- Up to 15m infrared night vision
- Ultra265, H.265, H.264 and MJPEG compression
- Heat Map analytics for people movement analysis
- Smart intrusion prevention
- Cross-line detection
- Intrusion detection
- Built-in dual microphones
- Built-in speaker with two-way audio
- Triple video streams
- Support for up to 256GB MicroSD storage
- ONVIF Profile S, G and T compliant
- IP67 weatherproof protection
- IK10 vandal-resistant housing
- PoE (IEEE 802.3af) support
- Multiple fisheye and PTZ viewing modes
- Alarm inputs and outputs
- RS485 interface
- Smart IR technology
- Digital Defog functionality
Detailed Specifications
| Specification |
Details |
| Brand |
Uniview |
| Model |
IPC86CEB-AF18KC-I0 |
| Camera Type |
Fisheye Fixed Dome IP Camera |
| Image Sensor |
1/1.7" 12MP Progressive Scan CMOS |
| Maximum Resolution |
4000 × 3000 |
| Lens |
1.8mm Fixed Lens |
| Viewing Angle |
360° Panoramic |
| Minimum Illumination |
0.03 Lux Colour, 0 Lux with IR |
| Infrared Range |
Up to 15m |
| IR Wavelength |
850nm |
| Video Compression |
Ultra265, H.265, H.264, MJPEG |
| Video Streams |
Triple Stream |
| Audio |
Built-in Dual Microphones & Speaker |
| Two-Way Audio |
Yes |
| Heat Map Analytics |
Yes |
| Cross Line Detection |
Yes |
| Intrusion Detection |
Yes |
| Motion Detection |
Yes |
| Audio Detection |
Yes |
| Tampering Alarm |
Yes |
| Edge Storage |
MicroSD up to 256GB |
| Network Storage |
NAS (NFS), ANR |
| Ethernet Interface |
RJ45 10/100Mbps |
| Alarm Inputs |
2 |
| Alarm Outputs |
1 |
| Serial Interface |
RS485 |
| Video Output |
1 x BNC |
| Supported Protocols |
IPv4, IPv6, RTSP, HTTPS, SNMP, FTP and more |
| ONVIF Support |
Profile S, G, T |
| Users Supported |
Up to 32 Users |
| Power Supply |
DC 12V ±25%, PoE (802.3af) |
| Maximum Power Consumption |
12W |
| Protection Rating |
IP67 |
| Impact Rating |
IK10 |
| Surge Protection |
4kV |
| Operating Temperature |
-30°C to +60°C |

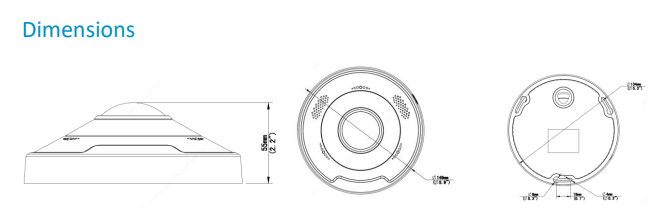

| Dimensions |
Ø149 × 55mm |
| Weight |
524g |
| Material |
Metal + Plastic |
Warranty Information
3-Year Manufacturer Warranty
Uniview professional surveillance products are backed by a manufacturer's warranty covering defects in materials and workmanship under normal operating conditions.
Brand Description
Uniview (UNV) is one of the world's leading manufacturers of professional IP video surveillance solutions. Known for innovative imaging technologies, advanced AI analytics, and enterprise-grade security systems, Uniview products are deployed globally across commercial, industrial, government, education, healthcare, and critical infrastructure environments.
SKU
IPC86CEB-AF18KC-I0
Practical Use Scenarios
- Retail stores and shopping centres
- Commercial office buildings
- Schools and universities
- Hospitals and healthcare facilities
- Airports and transportation hubs
- Warehouses and logistics facilities
- Hotels and hospitality venues
- Manufacturing facilities
- Public buildings and government sites
- Large open indoor surveillance areas
- Reception and lobby monitoring
- Security command centres
Compatible Accessories
Junction Box
Waterproof Joint
Pendant Mounts
Ceiling Mount
Combination Mounting Solutions
- TR-JB04-D-IN + TR-A01-IN
- TR-JB04-D-IN + TR-A01-IN + TR-SE24-IN + TR-CM24-IN
- TR-JB04-D-IN + TR-A01-IN + TR-SE24-A-IN + TR-CM24-IN
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Uniview IPC86CEB-AF18KC-I0 is ideally suited to Australian and New Zealand commercial surveillance environments where wide-area coverage, reliability, and advanced analytics are essential. Featuring IP67 weatherproof protection, IK10 vandal resistance, and operation from -30°C to +60°C, this camera is designed to perform in challenging environmental conditions commonly encountered throughout Australia and New Zealand. Products supplied through authorised Uniview distribution channels ensure genuine manufacturer support, firmware integrity, and warranty coverage. Compliance with international EMC, safety, environmental, and protection standards provides confidence for professional security installations across commercial, government, education, healthcare, and industrial sectors.
FAQs
What resolution does the Uniview IPC86CEB-AF18KC-I0 support?
The Uniview IPC86CEB-AF18KC-I0 supports ultra-high-definition video recording with a maximum resolution of 4000 × 3000 (12MP).
Does the Uniview IPC86CEB-AF18KC-I0 provide 360-degree coverage?
Yes, the Uniview IPC86CEB-AF18KC-I0 features a fisheye lens that delivers 360° panoramic surveillance, helping eliminate blind spots.
What is the infrared range of the Uniview IPC86CEB-AF18KC-I0?
The Uniview IPC86CEB-AF18KC-I0 includes built-in infrared illumination with an effective range of up to 15 metres.
Does the Uniview IPC86CEB-AF18KC-I0 support two-way audio?
Yes, the Uniview IPC86CEB-AF18KC-I0 includes built-in microphones and a speaker, allowing full two-way audio communication.
Can the Uniview IPC86CEB-AF18KC-I0 record to a memory card?
Yes, the Uniview IPC86CEB-AF18KC-I0 supports MicroSD cards with capacities of up to 256GB for edge recording.
Is the Uniview IPC86CEB-AF18KC-I0 suitable for outdoor use?
Yes, the Uniview IPC86CEB-AF18KC-I0 features an IP67 weatherproof rating, making it suitable for outdoor installations.
What analytics are included with the Uniview IPC86CEB-AF18KC-I0?
The Uniview IPC86CEB-AF18KC-I0 supports heat mapping, intrusion detection, cross-line detection, motion detection, audio detection, and tampering alarms.
Does the Uniview IPC86CEB-AF18KC-I0 support Power over Ethernet?
Yes, the Uniview IPC86CEB-AF18KC-I0 supports PoE (IEEE 802.3af) for simplified installation.
Is the Uniview IPC86CEB-AF18KC-I0 vandal resistant?
Yes, the Uniview IPC86CEB-AF18KC-I0 carries an IK10 vandal resistance rating, providing protection against physical impact.
Which video management platforms are compatible with the Uniview IPC86CEB-AF18KC-I0?
The Uniview IPC86CEB-AF18KC-I0 supports ONVIF Profile S, G and T, making it compatible with many leading VMS and NVR platforms.
