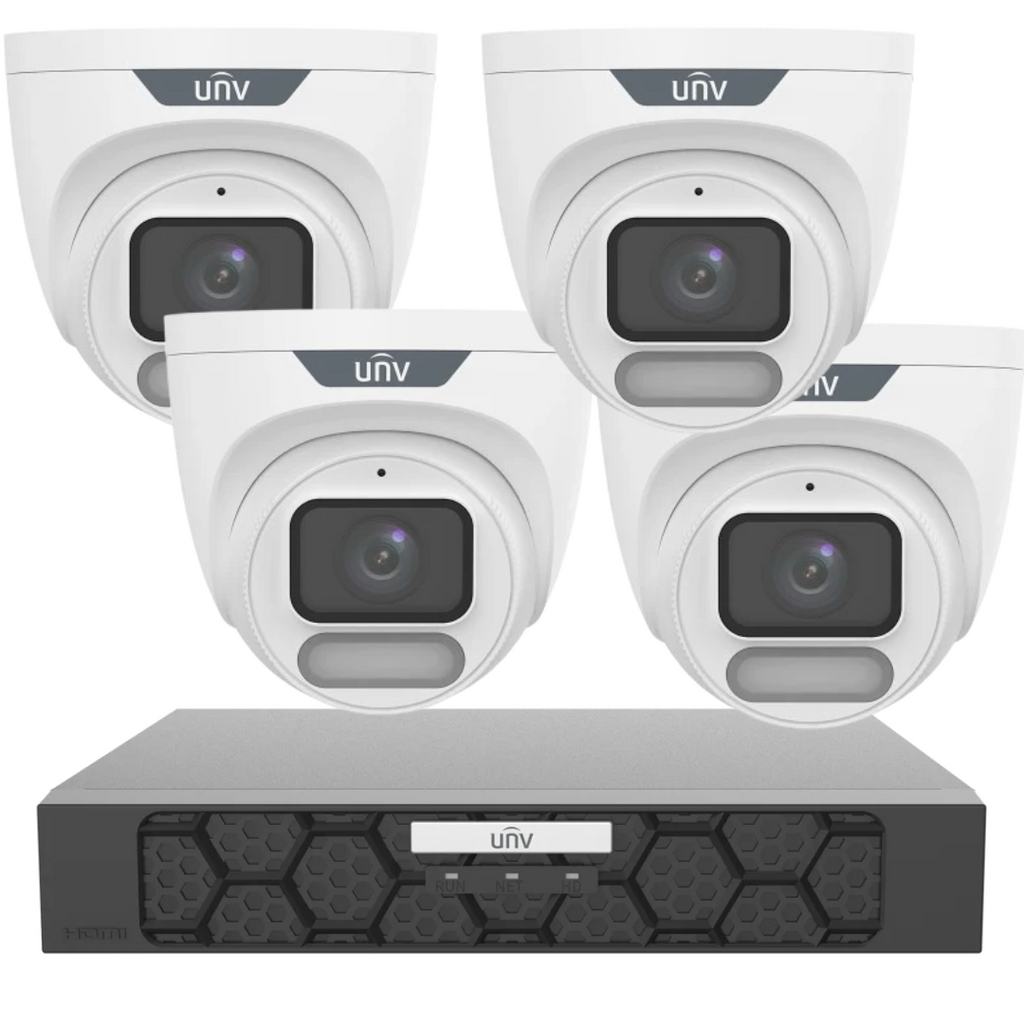

Upgrade your security with this Uniview 4-camera 6MP ColorHunter CCTV system, combining four IPC3626LE-ADF28K-WP 6MP OwlView ColorHunter turret cameras with the NVR501-04B-P4-IQ 4-channel PoE Network Video Recorder. Featuring Wise-ISP low-light imaging, F1.0 large-aperture lenses, up to 30m warm-light illumination, built-in microphones, 120dB WDR, Ultra 265 compression and 4K NVR display output, this kit is designed for high-quality residential and small-business IP surveillance.
Each IPC3626LE-ADF28K-WP camera uses a 1/1.8" CMOS sensor and fixed 2.8mm F1.0 lens, delivering up to 3072 × 2048 6MP video. Uniview's ColorHunter with Wise-ISP technology is designed to improve colour, detail and image clarity in extremely low-light scenes, while the integrated warm light provides illumination at distances of up to 30 metres.
The NVR501-04B-P4-IQ provides four independent PoE interfaces for direct plug-and-play camera connection. It supports Ultra 265, H.265 and H.264 recording formats, up to 16MP recording resolution, HDMI output up to 4K, ANR recording-reliability technology and a range of intelligent functions depending on the connected cameras and configuration.
Select your preferred surveillance HDD capacity from the available options to tailor recording retention to your installation.
SKU / Product Codes
Camera Product Code: IPC3626LE-ADF28K-WP
NVR Product Code: NVR501-04B-P4-IQ
Kit Configuration: up to 4 × IPC3626LE-ADF28K-WP + 1 × NVR501-04B-P4-IQ
1 × Uniview NVR501-04B-P4-IQ-SEC 4-channel PoE Network Video Recorder
NVR DC 48V power adapter
NVR installation screws
NVR quick-start documentation
Camera installation hardware, screws, and supplied documentation
Choose your HDD below (HDD not included with the kit)
3-year Uniview manufacturer warranty as supplied for this kit
🔍 Main Features
IPC3626LE-ADF28K-WP 6MP ColorHunter Cameras
6MP maximum resolution up to 3072 × 2048
1/1.8" CMOS sensor
2.8mm fixed F1.0 large-aperture lens
110.4° horizontal field of view
ColorHunter with Wise-ISP for enhanced colour and detail in extremely low-light scenes
30m warm-light illumination for colour-focused night surveillance
120dB True WDR for scenes containing bright and dark areas
Ultra 265, H.265, H.264 and MJPEG video compression
Built-in microphone for synchronized audio capture
MicroSD edge storage up to 512GB
Ultra Motion Detection
Motion detection and tampering detection
Human-body-based cross-line detection
Human-body-based intrusion detection
Privacy masking and ROI configuration
Digital defog, BLC and HLC
IP67 environmental protection
PoE IEEE 802.3af or 12V DC power
Operating temperature from -30°C to 60°C
3-axis adjustment for flexible positioning
NVR501-04B-P4-IQ 4-Channel PoE NVR
4-channel IP video input
4 independent PoE ports
IEEE 802.3af / 802.3at PoE support
Up to 30W per PoE port, with up to 50W total PoE budget for the 4-port model
Ultra 265, H.265 and H.264 decoding
Recording resolution support up to 16MP
HDMI output up to 4K 3840 × 2160
HDMI and VGA simultaneous output
80Mbps incoming / 80Mbps outgoing bandwidth
Up to 128 remote users
ANR technology to improve recording reliability during temporary network interruption
Smart features including Face Detection, Smart Intrusion Prevention and Ultra Motion Detection, subject to camera compatibility and selected operating mode
VCA search functions can include human, vehicle, people-counting and other supported search categories depending on the connected cameras
ONVIF integration support and RTSP connectivity
IPv4, IPv6, HTTPS, P2P, NTP, DHCP, SNMP and other network protocols
1 × SATA HDD interface
Front USB 2.0 and rear USB 3.0
Compact 1U chassis
Operating temperature from -10°C to 50°C
NVR power consumption ≤8W without HDD
✅ Detailed Technical Specifications
Camera – IPC3626LE-ADF28K-WP-SEC
Specification
Details
Maximum Resolution
6MP
Maximum 6MP Resolution
3072 × 2048
Sensor
1/1.8" CMOS
Minimum Illumination
Colour: 0.0003 lux, F1.0, AGC On
Lens
Fixed 2.8mm
Aperture
F1.0
Horizontal FOV
110.4°
Vertical FOV
60.5°
Diagonal FOV
115.2°
WDR
120dB
Warm-Light Distance
Up to 30m
Video Compression
Ultra 265 / H.265 / H.264 / MJPEG
Video Streams
Dual stream
Audio
Built-in microphone
Audio Compression
G.711U / G.711A
Edge Storage
microSD up to 512GB
Network
1 × RJ45 10/100M Ethernet
ONVIF
Profile S / G / T
Protection
IP67
Power
12V DC ±25% / PoE IEEE 802.3af
Maximum Power Consumption
2.8W
Dimensions
Ø118 × 106mm
Weight
Approx. 0.48kg
Construction
Metal + plastic
Operating Temperature
-30°C to 60°C
Camera specifications are taken from the supplied Uniview product datasheet.
DORI Distance – 2.8mm Lens
DORI Level
Distance
Detect
43.4m
Observe
17.4m
Recognise
8.7m
Identify
4.3m
NVR – NVR501-04B-P4-IQ-SEC
Specification
Details
IP Camera Inputs
4 channels
PoE Ports
4
PoE Standard
IEEE 802.3af / 802.3at
Incoming Bandwidth
80Mbps
Outgoing Bandwidth
80Mbps
Recording Resolution
Up to 16MP
Compression
Ultra 265 / H.265 / H.264
HDMI Output
Up to 3840 × 2160 / 30Hz
VGA Output
Up to 1920 × 1080
Remote Users
Up to 128
HDD Interface
1 × SATA
Network Interface
1 × RJ45 10/100M
USB
1 × USB 2.0 front, 1 × USB 3.0 rear
Power Supply
DC 48V / 1.35A
NVR Consumption
≤8W without HDD
Dimensions
260 × 215 × 46.6mm
Chassis
1U
Weight
≤1kg without HDD
Operating Temperature
-10°C to 50°C
Uniview's current product page confirms the 4-channel model, four PoE interfaces, 16MP recording support, 4K HDMI, ANR and current NVR specifications.
HDD note: Uniview documentation has changed over time regarding maximum supported HDD capacity. Rather than stating a fixed maximum, select a compatible surveillance HDD from the options offered with this kit. Current supported capacity may depend on HDD model and operating conditions.
🛠️ Warranty & Support
3-Year Limited Uniview Manufacturer Warranty as specified for this package
Warranty applies to the supplied cameras and NVR under applicable warranty terms and conditions
Technical support is available through the supplying channel and authorised Uniview distribution network
Warranty claims are subject to product condition, installation, usage and manufacturer warranty requirements
🏢 About Uniview
Uniview (UNV) is a manufacturer of professional IP video-surveillance equipment and solutions, including network cameras, NVRs, storage products and intelligent video-security technologies. Its surveillance platform supports technologies including Ultra 265 compression, IP networking, smart analytics and integrated video-management solutions.
🔧 Practical Use Scenarios
Application
Example
Residential Security
Cover driveways, yards, entry points and outdoor areas with 6MP imaging and colour-focused warm-light surveillance
Retail Stores
Monitor entrances, stock areas, counters and customer-facing spaces using high-resolution video and compatible intelligent events
Offices
Protect entryways, reception areas, corridors and external access points
Small Businesses
Build a compact four-camera PoE surveillance system with centralized NVR recording
Warehouses & Workshops
Monitor loading areas, exterior walls and work zones using IP67 cameras
Hospitality & Commercial Sites
Monitor entrances, car parks and shared external spaces
Low-Light Locations
Use ColorHunter, Wise-ISP and the F1.0 lens to improve usable colour information in difficult lighting conditions
🌏 Excellence for the Australian and New Zealand Market
This Uniview security kit combines an IP67-rated outdoor camera design, wide operating-temperature range, PoE connectivity and professional IP surveillance features suitable for many Australian and New Zealand residential and commercial installations. The camera is specified for operation from -30°C to 60°C, while the NVR is rated from -10°C to 50°C.
The supplied manufacturer documentation lists certifications and compliance references including CE, FCC, UL/cUL, RoHS and WEEE, with IP67 protection to IEC 60529 specified for the camera. These certifications should not be represented as Australian or New Zealand certification in themselves; any project requiring RCM, AS/NZS or other jurisdiction-specific compliance documentation should be checked against the exact supplied hardware and installation requirements before purchase.
Products in this listing are stated as being sourced through authorised Uniview distribution channels, helping maintain access to genuine equipment, manufacturer-backed documentation and the stated warranty process.
NDSS approval is not claimed for this product, as no relevant surveillance-system NDSS certification has been supplied or verified. This avoids presenting an unrelated or unsupported compliance designation as a product certification.
❓Frequently Asked Questions
1. Does the IPC3626LE-ADF28K-WP + NVR501-04B-P4-IQ CCTV kit include four 6MP security cameras?
Yes. The package contains four IPC3626LE-ADF28K-WP-SEC 6MP ColorHunter turret cameras and one NVR501-04B-P4-IQ-SEC 4-channel PoE NVR.
2. What resolution does the IPC3626LE-ADF28K-WP-SEC Uniview security camera record at?
The IPC3626LE-ADF28K-WP-SEC supports a maximum resolution of 6MP, 3072 × 2048, providing detailed video for residential and commercial surveillance.
3. Does the IPC3626LE-ADF28K-WP-SEC provide full-colour night surveillance?
The IPC3626LE-ADF28K-WP-SEC uses ColorHunter with Wise-ISP, an F1.0 lens and warm-light illumination reaching up to 30 metres to support detailed colour imaging in low-light scenes.
4. Does the IPC3626LE-ADF28K-WP-SEC include a built-in microphone?
Yes. The IPC3626LE-ADF28K-WP-SEC has an integrated microphone and supports G.711U/G.711A audio compression for synchronized audio recording.
5. Is the IPC3626LE-ADF28K-WP-SEC suitable for outdoor installation?
Yes. The IPC3626LE-ADF28K-WP-SEC is rated IP67 and has a specified working-temperature range of -30°C to 60°C, making it suitable for many protected and exposed surveillance installations when installed correctly.
6. Does the NVR501-04B-P4-IQ-SEC power all four cameras through PoE?
Yes. The NVR501-04B-P4-IQ-SEC provides four independent PoE network interfaces supporting IEEE 802.3af/at, allowing the four cameras to receive network connectivity and power through compatible Ethernet cabling.
7. Does the NVR501-04B-P4-IQ-SEC support 4K monitor output?
Yes. The NVR501-04B-P4-IQ-SEC supports HDMI output up to 3840 × 2160, as well as VGA output and simultaneous HDMI/VGA operation.
8. What smart surveillance functions are available with the IPC3626LE-ADF28K-WP-SEC + NVR501-04B-P4-IQ-SEC system?
The IPC3626LE-ADF28K-WP-SEC supports events including Ultra Motion Detection, intrusion and cross-line detection based on human-body detection. The NVR501-04B-P4-IQ-SEC additionally supports compatible NVR and IPC smart functions such as Face Detection, SIP, UMD and supported VCA searches. Availability depends on camera compatibility and NVR configuration.
9. Is an HDD included with the NVR501-04B-P4-IQ-SEC CCTV kit?
The NVR501-04B-P4-IQ-SEC package is offered with a selectable HDD option – choose your HDD below. The selected drive is installed/configured according to the kit option purchased.
10. Does the IPC3626LE-ADF28K-WP-SEC + NVR501-04B-P4-IQ-SEC kit support Ultra 265 video compression?
Yes. Both the IPC3626LE-ADF28K-WP-SEC camera and NVR501-04B-P4-IQ-SEC recorder support Uniview Ultra 265, alongside H.265 and H.264 formats.
11. Can the IPC3626LE-ADF28K-WP-SEC record to a microSD card as well as the NVR?
Yes. The IPC3626LE-ADF28K-WP-SEC supports local microSD edge storage of up to 512GB, providing an additional storage option alongside centralized recording to the NVR.
12. What warranty is supplied with the IPC3626LE-ADF28K-WP-SEC + NVR501-04B-P4-IQ-SEC CCTV kit?
The IPC3626LE-ADF28K-WP-SEC + NVR501-04B-P4-IQ-SEC package is supplied with the stated 3-year Uniview manufacturer warranty, subject to the applicable manufacturer and seller warranty terms.
