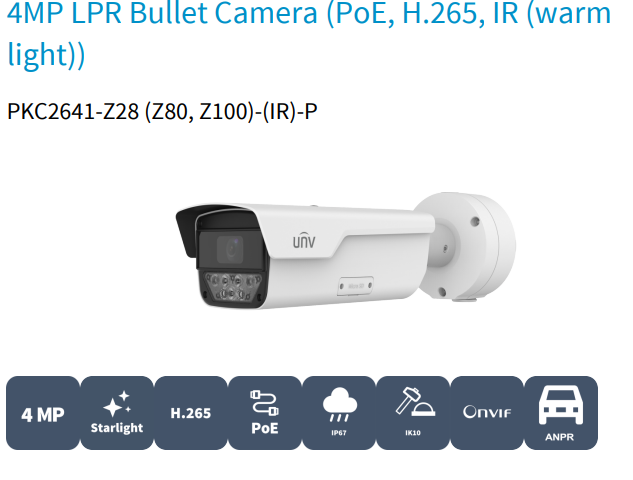

The Uniview PKC2641-Z80-IR-P is a high-performance 4MP LPR (License Plate Recognition) bullet camera, purpose-built for roadway monitoring, vehicle access control, and perimeter protection. With its powerful 1/1.8" progressive scan CMOS sensor and Wise-ISP image enhancement, the camera captures ultra-clear 2688 × 1520 resolution video at up to 60 frames per second. The integrated 8–32 mm motorised vari-focal lens and 5 IR LEDs provide up to 50 m of infrared illumination for round-the-clock visibility, even in complete darkness.
This model features an onboard license plate recognition algorithm that supports multiple countries' standards and recognises plates at speeds up to 80 km/h. With full support for allowlists/blocklists and multiple open-barrier logic options, it enables automated access control for high-security environments. Engineered with an IK10 vandal-resistant casing and IP67 weather protection, the PKC2641-Z80-IR-P is ideal for demanding outdoor installations across Australia and New Zealand.
What’s Included in the Box
-
Uniview PKC2641-Z80-IR-P LPR Bullet IP Camera
-
Integrated 5-LED IR illumination module
-
3-axis mounting bracket with built-in junction box
-
Quick install accessories and waterproof fittings
-
Setup documentation and installation guide
Main Features
-
4MP 1/1.8" CMOS sensor with real-time 60 fps video
-
Motorised 8–32 mm vari-focal lens with wide detection range
-
Integrated 5 IR LEDs, 50 m infrared distance, auto on/off
-
License plate recognition for speeds up to 80 km/h
-
Dual-lane monitoring and support for simultaneous road/entry scenarios
-
Smart image functions: WDR (120 dB), 3D DNR, HLC, BLC, digital defog
-
Video compression: H.265 / H.264; triple-stream output
-
Onboard plate number database with allowlist/blocklist (20,000 entries)
-
Supports ANR and MicroSD card recording (up to 512GB)
-
Built-in alarm I/O, RS485, Wiegand output, and audio I/O
-
ONVIF compliant (Profiles S, G, T) for broad VMS compatibility
-
Vandal-proof (IK10) and waterproof (IP67); PoE 802.3at support
Detailed Specifications
| Specification | Details |
|---|---|
| Model | PKC2641-Z80-IR-P |
| Image Sensor | 1/1.8" 4MP Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Frame Rate | Up to 60 fps |
| Lens | Motorised 8–32 mm, F1.7 aperture |
| Field of View (H/V/D) | H: 42°–15.5°, V: 23.1°–8.8°, D: 48.5°–18.3° |
| Minimum Illumination | 0.002 lux (F1.7) |
| Illumination Range | Up to 50 m IR (5 IR LEDs, automatic control) |
| WDR | 120 dB |
| Image Enhancement | 3D DNR, BLC, HLC, Defog |
| Compression Formats | H.264 (default), H.265 |
| Storage | 1 × MicroSD card (max. 512GB), supports ANR |
| Plate Recognition Speed | ≤ 80 km/h for regular roadways |
| Plate Recognition Functions | Multinational LPR, allowlist/blocklist (20,000 entries), barrier logic |
| Audio Interface | 1 audio input, 1 audio output |
| Alarm I/O | 2 inputs, 2 relay outputs |
| Network Interface | 1 × RJ45 (10/100M) |
| Serial Ports | 2 × RS485 |
| Wiegand Output | Supported |
| Power Supply | DC12V ±25%, PoE (802.3at, Class 4) |
| Max. Power Consumption | 20W |
| Operating Temperature | –40 °C to +60 °C |
| Weather/Impact Resistance | IP67 weatherproof, IK10 vandal-proof |
| Dimensions (L × W × H) | 406 mm × 126 mm × 130 mm |
| Weight | Approx. 1.91 kg |
| Compliance | NDAA compliant, ONVIF Profiles S/G/T |
Warranty Information
The Uniview PKC2641-Z80-IR-P is covered by manufacturer warranty when supplied through authorised Australian distribution partners. Local warranty support, firmware upgrades, and servicing are available, ensuring fast and reliable after-sales assistance within the ANZ region.
Brand Description
Uniview (UNV) is a globally respected video surveillance brand with a strong focus on AI-powered analytics, LPR technology, and innovative hardware. Its LPR solutions are widely used in smart traffic systems, gated communities, logistics centres, and other environments that demand high accuracy, reliability, and scalability.
Practical Use Scenarios
-
Commercial Site Entry Points – Control access via recognised license plates and integrate with boom gates.
-
Industrial Yards & Logistic Depots – Track all vehicle entries and exits, even in complete darkness.
-
Private Estates & Gated Residences – Secure entry for known vehicles using allowlist access.
-
Shopping Centre Car Parks – Enhance user convenience and safety through seamless LPR monitoring.
-
Public Road Surveillance – Capture vehicle data at speeds up to 80 km/h for analytics or enforcement use.
Downloads / Datasheets
Excellence for the Australian and New Zealand Market
The Uniview PKC2641-Z80-IR-P is tailored for the environmental demands and technical expectations of the Australian and New Zealand markets. Compliant with NDAA and sourced from authorised local distribution, this model guarantees full compatibility with regional infrastructure and standards. Its IP67-rated housing, vandal-resistant IK10 build, and operation from –40 °C to +60 °C ensure unmatched resilience in harsh outdoor conditions. Warranty claims and servicing are handled within the region for reduced downtime and higher customer satisfaction.
FAQs (Model Code: PKC2641-Z80-IR-P)
Q1: What speed limits can the PKC2641-Z80-IR-P handle for LPR?
A1: It can accurately capture plates at speeds of up to 80 km/h, ideal for most roadways and commercial entrances.
Q2: Can the PKC2641-Z80-IR-P work in total darkness?
A2: Yes, it features 5 built-in IR LEDs with a 50 m range, ensuring clear nighttime imaging and LPR.
Q3: What is the storage capacity of the PKC2641-Z80-IR-P?
A3: It supports MicroSD cards up to 512GB and can function with ANR for failover recording.
Q4: Is the PKC2641-Z80-IR-P compatible with third-party VMS platforms?
A4: Yes, it supports ONVIF Profiles S, G, and T, and integrates easily via API and SDK.
Q5: How is the PKC2641-Z80-IR-P powered?
A5: The camera supports both DC12V and PoE (802.3at, Class 4) power sources.
