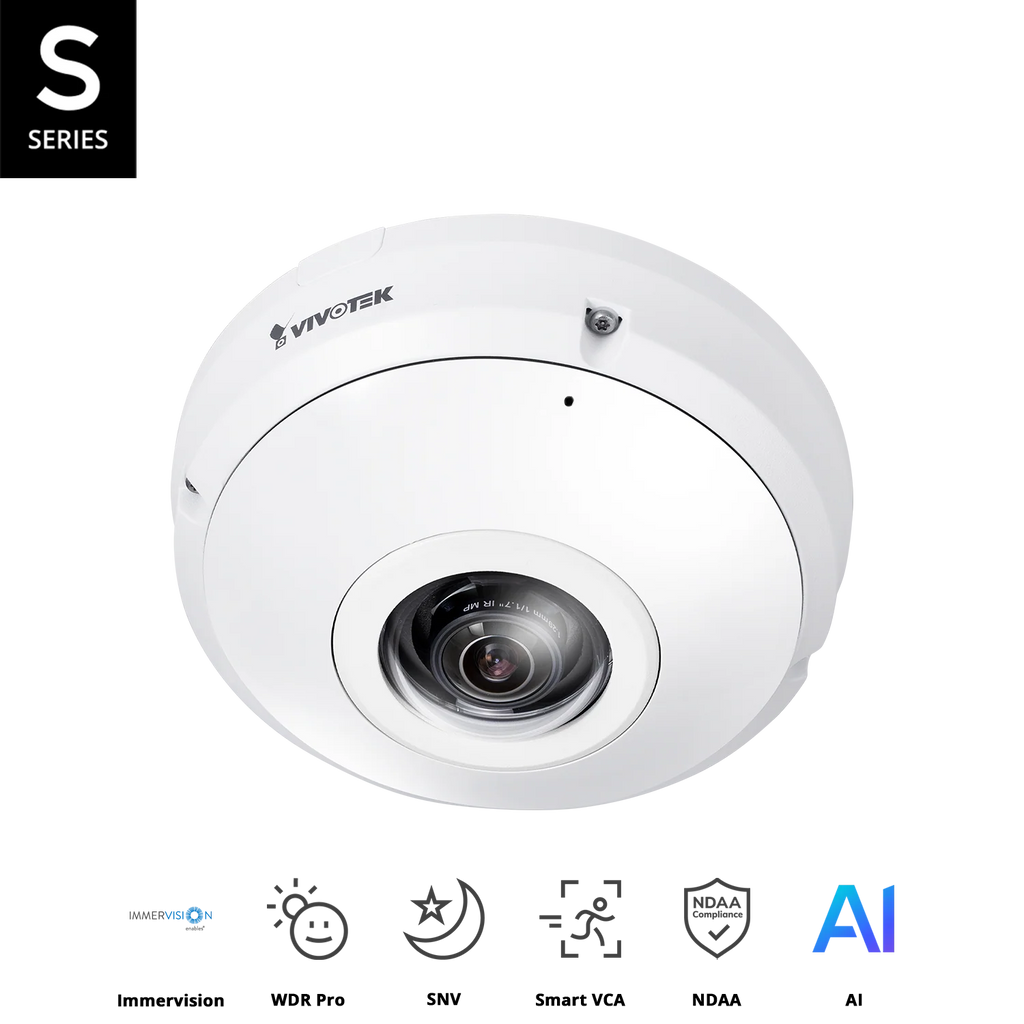

The VIVOTEK FE9191-H-v2 is a high-performance 360-degree fisheye network camera designed to provide complete panoramic surveillance in a single device. Equipped with a 12MP 1/2.3" CMOS sensor, this ultra-wide camera captures 2944x2944 resolution video with WDR Pro and Smart Stream III, making it ideal for monitoring large indoor or semi-covered areas such as retail floors, airports, lobbies, and warehouses.

With advanced client-side and local dewarping modes, the camera delivers flexible viewing angles including 1O, 1P, 4R, 1O3R, and 1O8R. The AI-powered analytics suite provides robust people and vehicle detection, behavioral alerts, and attribute recognition, while Smart VCA enables proactive threat detection with real-time alerts. Featuring IK10 vandal resistance, PoE support, and seamless integration with VIVOTEK’s AI-powered software and VMS platforms, the FE9191-H-v2 is a smart and scalable surveillance solution for modern security infrastructure.

What's Included in the Box:

• 1 × VIVOTEK FE9191-H-v2 Fisheye Network Camera

• Quick Installation Guide

• Alignment Sticker

• Screw Pack

• Mounting Bracket

Key Features:

• 12MP Fisheye Sensor with 2944x2944 Resolution

• 360° Panoramic View with 180° horizontal/vertical/diagonal coverage

• Smart Stream III & WDR Pro (120 dB) for bandwidth and image optimization

• Built-in AI Vision Object Analytics: People, vehicle detection, attribute analysis

• Smart VCA & Deep Learning Motion Detection

• Client and Local Dewarping for flexible viewing modes

• ePTZ with 12x Digital Zoom

• Two-Way Audio with Built-in Microphone

• Seamless Edge Storage via microSD/NAS

• ONVIF G/S/T Profile Support

• IK10-Rated Metal Housing for Vandal Resistance

Detailed Specifications:

Camera:

• Image Sensor: 1/2.3" Progressive CMOS (4056x3040)

• Max. Resolution: 2944x2944

• Lens Type: Fixed focal (f = 1.22 mm), F2.0

• FOV: 180° Horizontal / Vertical / Diagonal

• Min. Illumination: 0.1 lux (Color), <0.005 lux (B/W), 0 lux with IR

• Shutter Time: 1/5 sec to 1/32,000 sec

• WDR Pro: Yes (120 dB)

• IR-Cut Filter: Removable

• ePTZ: 12x Digital Zoom

Video:

• Video Compression: H.265, H.264, MJPEG

• Max Frame Rate:

  • 30 fps @ 2944x2944 (WDR off)

  • 20 fps @ 2944x2944 (WDR on)

• Streaming: 3 simultaneous streams, Smart Stream III

• Dynamic Range: 120 dB

• S/N Ratio: 56.9 dB

• Image Settings: Defog, 3DNR, Privacy Mask, Scene Modes, AE, Exposure Control

Dewarping Display Modes:

• Client Dewarping:

  • Ceiling: 1O, 1P, 2P, 1R, 4R, 1O3R, 1O8R

  • Wall: 1O, 1P, 1R, 4R, 1P2R, 1P3R

• Local Dewarping:

  • Ceiling: 1O, 1P, 2P, 1R, 4R

  • Wall: 1O, 1P, 1R, 4R

Audio:

• Audio Capability: Two-way Audio (Full Duplex)

• Built-in Microphone

• Compression: G.711, G.726, MPEG-2 AAC-LC

• Effective Range: 5 meters

Network & Security:

• Live View Clients: Up to 10

• Protocols: IPv4/6, HTTPS, FTP, SNMP, RTSP, TLS 1.2, etc.

• Security Features:

  • Trend Micro IoT Security (3-year trial)

  • Secure Boot, Signed Firmware, Digest Auth, Audit Log

  • HTTPS, CSRF, IEEE 802.1x

AI Video Analytics (VCA):

• Object Detection: People, Vehicles

• Attribute Recognition: Gender, clothing color, bag, hat, vehicle type, color

• Behavior Analysis:

  • Intrusion, Loitering, Line Crossing, Unattended Object

  • Missing Object, Face Detection, Crowd Detection

  • Parking Violation, Running Detection, Restricted Zone

• Smart Motion Detection with Time Filters

• More AI tools available at: vivotek.com/video-analytics

Storage & Interface:

• Storage: microSD/SDHC/SDXC slot + NAS recording

• Interface:

  • RJ-45 (10/100 Mbps Ethernet)

  • Power over Ethernet (IEEE 802.3af Class 0)

  • LED Indicator for power/status

Power & Environmental:

• Power Input: IEEE 802.3af PoE

• Max Power Consumption: 9W

• Dimensions: Ø 150 x 68.2 mm

• Weight: 701g

• Operating Temperature:

  • Starting: 0°C ~ 50°C

  • Working: -10°C ~ 50°C

• Humidity: 90% RH (non-condensing)

Certifications:

• EMC: CE, FCC, RCM, VCCI, ICES, UKCA

• Safety: UL, CB, BSMI, BIS

• IK Rating: IK10 (Metal Housing)

DORI (EN 62676-4 Standard):

• Detect (25PPM): 31.5 m

• Observe (63PPM): 12.5 m

• Recognize (125PPM): 6.3 m

• Identify (250PPM): 3.1 m

Warranty Information:

manufactures warranty applied

Brand Description:

VIVOTEK is a leading global manufacturer of IP surveillance solutions, known for cutting-edge camera design, AI-based analytics, and robust cybersecurity integration. With a strong presence in the Asia-Pacific market, VIVOTEK delivers trusted video surveillance systems for government, transport, retail, and commercial sectors.

SKU: FE9191-H-v2

Practical Use Scenarios:

• Retail & Shopping Centres: Overhead 360° coverage of aisles and checkout zones

• Airports & Transport Hubs: Monitor foot traffic, loitering, and crowd behavior

• Public Spaces & Lobbies: One-camera monitoring of wide areas with minimal blind spots

• Warehouses & Logistics: Track employee movement, vehicle flow, and object detection

• Schools & Campuses: Ensure safety and event tracing in common areas

Datasheets & Downloadable Resources:

• FE9191-H-v2 Product Page

Excellence for the Australian and New Zealand Market:

• Fully RCM certified for Australia and New Zealand compliance

• Operates in a wide temperature range suitable for local indoor/outdoor environments

• Built with IK10 vandal-resistant housing to protect against tampering

• Full PoE compatibility simplifies deployment across commercial networks

• Access to local support, integration tools, and authorized distribution partners

• ONVIF G/S/T compliance for seamless integration into ANZ security systems

 FAQs – VIVOTEK FE9191-H-v2

Q1: What is the resolution of the VIVOTEK FE9191-H-v2 camera?
A1: The FE9191-H-v2 captures high-resolution 360° video at 2944x2944 using a 12MP fisheye sensor.

Q2: Does the FE9191-H-v2 support dewarping modes?
A2: Yes, it supports both client-side and local dewarping for ceiling and wall mounts, including 1O, 1P, 4R, and multi-region display modes.

Q3: Can the FE9191-H-v2 be used in Australian and New Zealand retail environments?
A3: Absolutely. It is RCM certified, PoE-powered, and features AI analytics ideal for customer flow and loss prevention in ANZ retail spaces.

Q4: What AI analytics are available on the FE9191-H-v2?
A4: The camera includes object detection (people, vehicles), attribute extraction, and behavioral analysis like intrusion, loitering, and face detection.

Q5: Is the FE9191-H-v2 vandal resistant?
A5: Yes, the FE9191-H-v2 features IK10-rated metal housing, making it suitable for installation in vulnerable or high-traffic areas.
