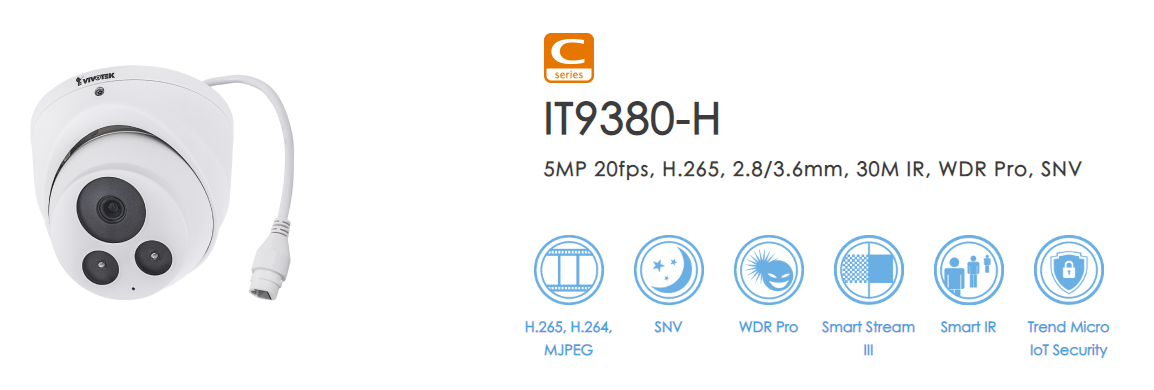

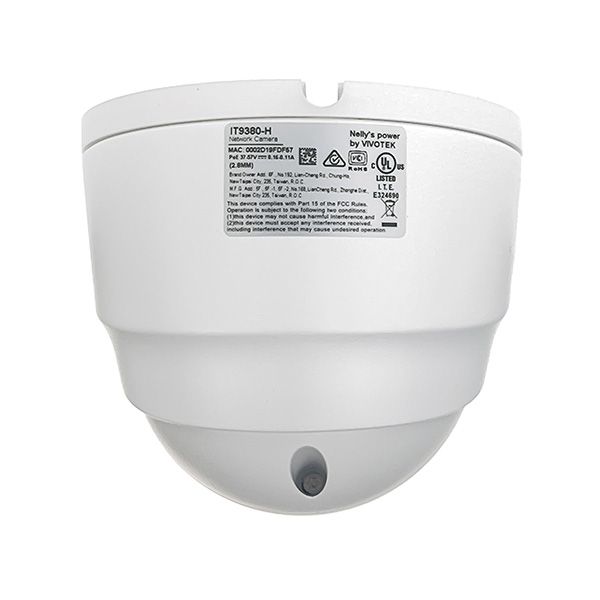

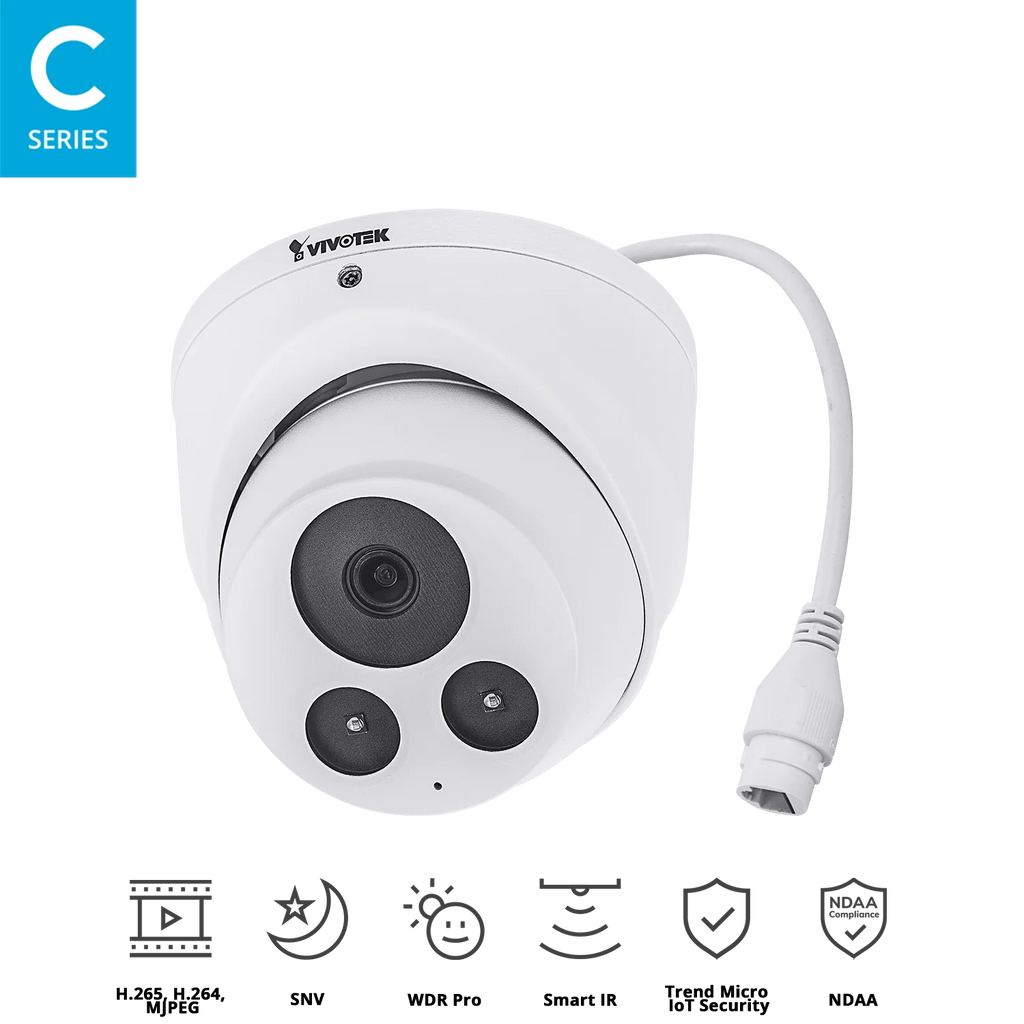

The VIVOTEK IT9380-H 2.8mm 5MP Fixed Turret Dome Network Camera is an advanced surveillance solution designed for high-performance video monitoring in both indoor and outdoor environments. Equipped with a 5MP CMOS sensor, Supreme Night Visibility (SNV), and Wide Dynamic Range Pro (WDR Pro), this camera delivers superior clarity in varying lighting conditions. The integrated H.265 compression and Smart Stream III technology optimize bandwidth efficiency without compromising image quality.
With a wide 134° diagonal field of view, built-in IR illuminators effective up to 30 meters, vandal-resistant IK10-rated housing, and IP66 weatherproof protection, the IT9380-H is ideal for demanding environments. Additional security is provided by built-in Trend Micro IoT protection and one-way audio through a built-in microphone. Designed with seamless storage options and ONVIF support, it offers full integration flexibility and dependable performance for professional surveillance applications.
What's Included in the Box
Main Features
-
5MP (2560x1920) resolution with 20fps performance
-
Supreme Night Visibility (SNV) for enhanced low-light performance
-
WDR Pro for improved detail in challenging lighting
-
H.265 compression with Smart Stream III for bandwidth optimization
-
Built-in IR LEDs with up to 30m range and Smart IR control
-
IP66-rated weatherproof and IK10-rated vandal-proof housing
-
Built-in microphone for one-way audio recording
-
MicroSD/SDHC/SDXC slot for local storage
-
Trend Micro IoT Security integration
-
ONVIF Profile G, S, T compliant for seamless integration
Technical Specifications
-
Model: IT9380-H (2.8mm)
-
Image Sensor: 1/2.7" Progressive CMOS
-
Max Resolution: 2560x1920 (5MP)
-
Lens: Fixed-focal f=2.8mm, F2.0
-
Field of View: 103° (H) / 76° (V) / 134° (D)
-
IR Distance: Up to 30 meters
-
WDR: WDR Pro (120 dB)
-
Minimum Illumination: 0.03 lux (Color), <0.005 lux (B/W), 0 lux with IR
-
Pan/Tilt/Zoom: ePTZ with 48x digital zoom
-
Audio: Built-in microphone, one-way audio, G.711/G.726
-
Compression: H.265, H.264, MJPEG
-
Network Interface: RJ-45 10/100 Mbps Ethernet (PoE)
-
On-board Storage: MicroSD/SDHC/SDXC card slot
-
Operating Temp: -20°C ~ 60°C
-
Dimensions: Ø 105 x 82.5 mm
-
Weight: 475g
-
Certifications: CE, FCC, RCM, UL, IK10, IP66, BIS
Warranty Information
The VIVOTEK IT9380-H is backed by a standard manufacturer's warranty, ensuring product reliability and customer peace of mind. All warranty claims are processed through authorized VIVOTEK service channels.
Brand Description
VIVOTEK Inc. is a globally recognized provider of intelligent IP surveillance solutions. With a strong commitment to innovation, cybersecurity, and quality, VIVOTEK delivers cutting-edge products designed to meet the evolving needs of modern security applications worldwide.
SKU: IT9380-H-2.8MM
Practical Use Scenarios
-
Retail Stores: Monitor entrances, aisles, and cashier areas for theft prevention and customer safety.
-
Commercial Buildings: Oversee lobbies, parking lots, and hallways with high-resolution coverage.
-
Public Spaces: Deploy in parks, streets, and transit terminals for enhanced community safety.
-
Industrial Facilities: Protect warehouses and loading docks with durable, weather-resistant surveillance.
-
Educational Institutions: Secure school perimeters and corridors with wide-angle visibility and clear night imaging.
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The VIVOTEK IT9380-H 2.8mm is tailored to meet the specific demands of the Australian and New Zealand security sector. Fully RCM certified, this model adheres to all AS/NZS standards for EMC compliance and is crafted to withstand extreme regional weather conditions with its IP66 weatherproofing and IK10 vandal resistance. Sourced exclusively through authorized local distributors, it ensures reliable warranty service and direct brand support. Its cybersecurity features are particularly aligned with increasing regulatory focus on IoT device safety in Oceania.
Frequently Asked Questions (FAQs) – IT9380-H-2.8MM
Q1: Does the IT9380-H-2.8MM support Power over Ethernet (PoE)?
Yes, the IT9380-H-2.8MM supports IEEE 802.3af PoE (Class 2), eliminating the need for separate power cables.
Q2: How far can the IT9380-H-2.8MM's IR illumination reach?
The built-in IR LEDs on the IT9380-H-2.8MM are effective up to 30 meters, ideal for outdoor and low-light environments.
Q3: Is the IT9380-H-2.8MM compliant with ONVIF standards?
Yes, the IT9380-H-2.8MM supports ONVIF Profiles G, S, and T for seamless integration with other systems.
Q4: Can the IT9380-H-2.8MM store footage locally?
Yes, the IT9380-H-2.8MM has a MicroSD/SDHC/SDXC card slot for onboard storage and supports NAS recording.
Q5: Is the IT9380-H-2.8MM suitable for outdoor use in harsh environments?
Absolutely. The IT9380-H-2.8MM is IP66 weather-rated and IK10 vandal-resistant, ensuring durability in extreme Australian and New Zealand climates.
