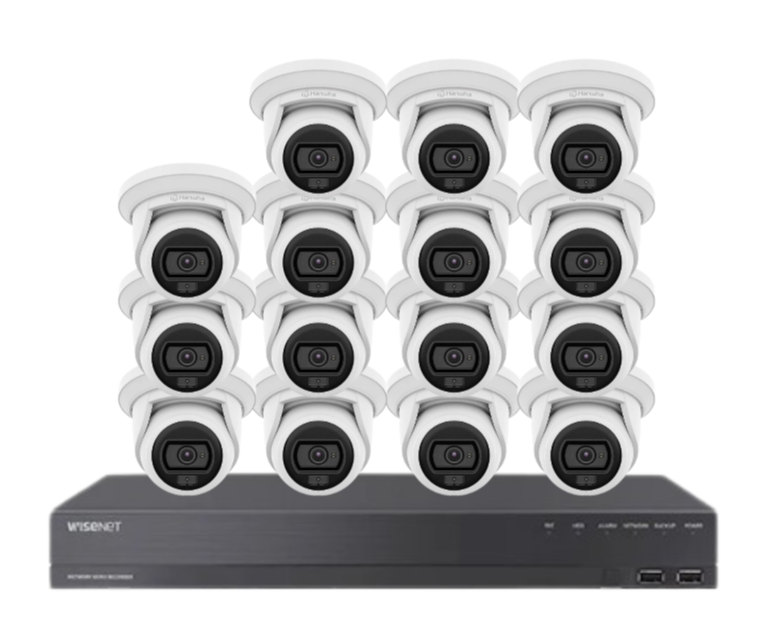

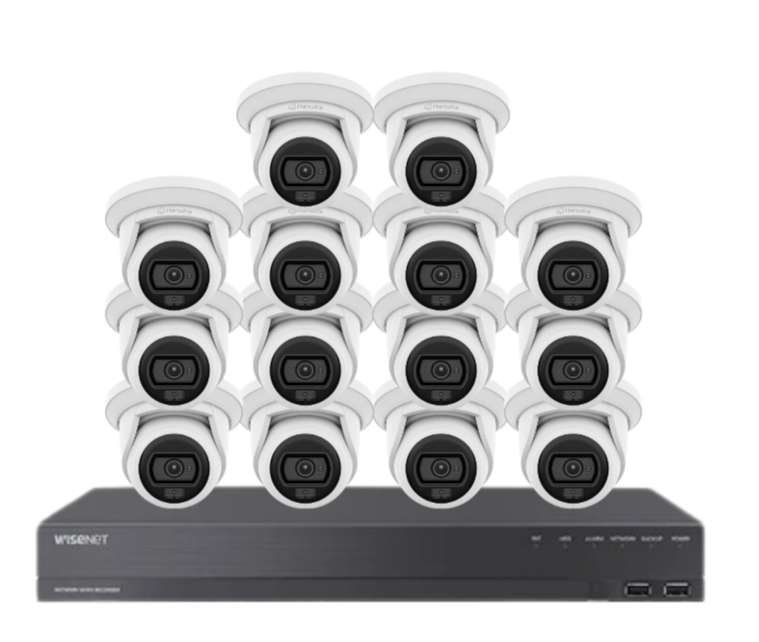

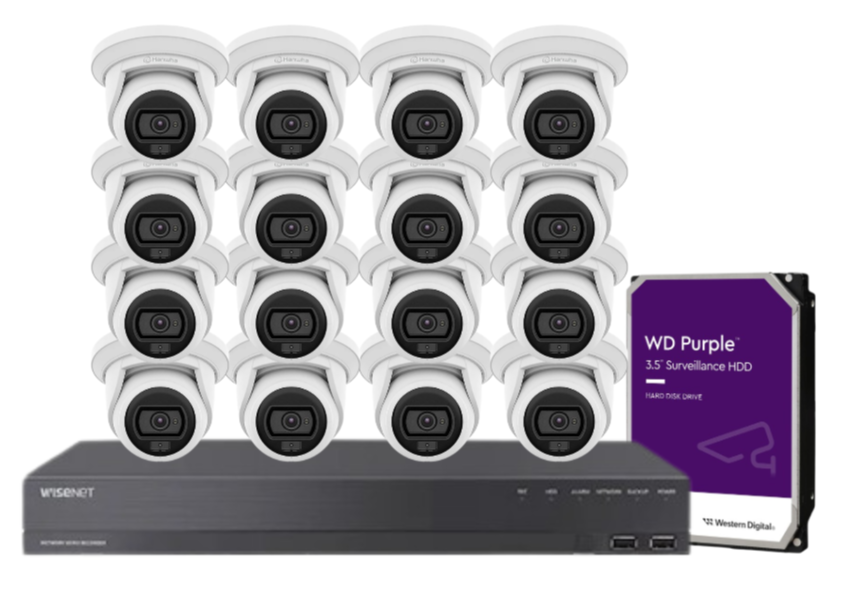

Upgrade to professional-grade security coverage with the Wisenet Hanwha 16-Camera CCTV Kit, combining 16 high-performance CT-ANE-L7012L 4MP Flateye Cameras with the robust CT-ARN-1610S 16-Channel 8MP AI NVR. This comprehensive surveillance package is designed for large-scale residential, retail, or commercial properties where 24/7 clarity, reliability, and remote accessibility are paramount. With PoE simplicity, intelligent video analytics, and expandable storage, this kit delivers a scalable and dependable security solution.

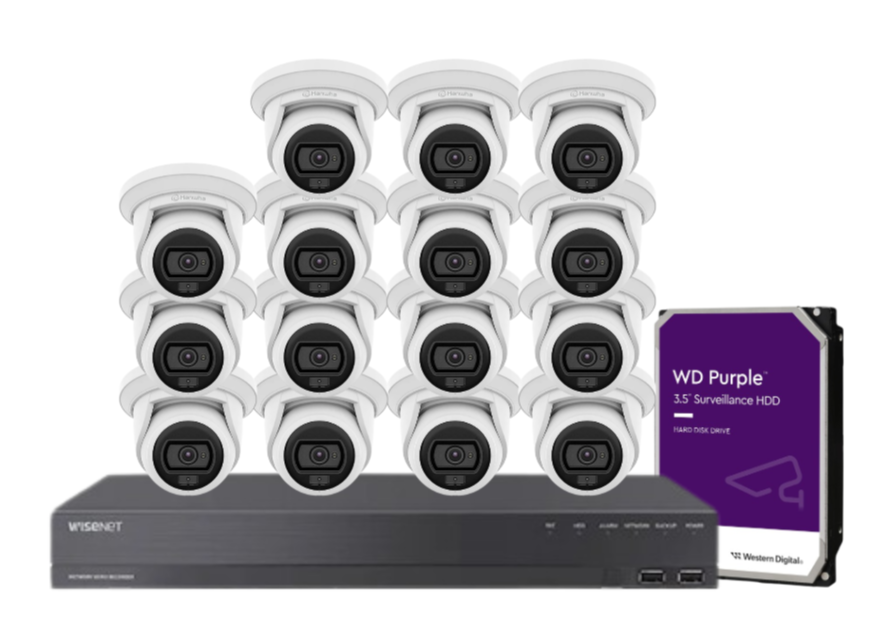

What’s Included in the Box

• 16 x Wisenet Hanwha CT-ANE-L7012L 4MP Flateye Cameras

• 1 x Wisenet Hanwha CT-ARN-1610S 16CH 8MP AI NVR with PoE Switch

• 1 x  HDD

• 1 x Power Adapter & Cable

• 1 x USB Mouse

• 1 x Quick Installation Guide

• Mounting Hardware for Cameras

Main Features

CT-ANE-L7012L Flat Eye Cameras (x16)

• 4MP Resolution (2560 x 1440) for exceptional detail

• 3mm Fixed Lens with 98.3° horizontal FoV

• 120dB WDR for superior dynamic range and contrast

• White Light Night Illumination for color clarity in the dark

• Smart Video Analytics: Motion, intrusion, line crossing, tamper alerts

• Rugged Housing: IP66 weatherproof, IK10 vandal-proof

• Micro SD Slot: Local storage support up to 32GB

• Power over Ethernet (PoE) for simplified cabling

CT-ARN-1610S 16CH 8MP AI NVR

• Supports up to 16 Channels at 8MP per channel

• Recording Bandwidth: Up to 80Mbps

• Compression: H.265, H.264, MJPEG

• 16 x PoE Ports for direct camera connectivity

• Dual HDD Support: Up to 6TB per drive

• Local Display: HDMI and VGA monitor outputs

• Remote Access: Wisenet Viewer & Wisenet Mobile via P2P

• Plug-and-Play Setup with auto camera detection

Technical Specifications

Cameras (CT-ANE-L7012L)

• Sensor: 1/2.8" CMOS

• Lens: 3.0mm Fixed, F1.2

• Min. Illumination: 0.05 Lux (Color)

• Frame Rate: Up to 30fps

• Compression: H.265, H.264, MJPEG

• Power: PoE (IEEE 802.3af)

• Operating Temp: -20°C to 55°C

• Housing: IP66 / IK10

Recorder (CT-ARN-1610S)

• Channels: 16

• Max Resolution: 8MP per channel

• Bandwidth: 80Mbps

• Storage: SATA

• Video Output: HDMI/VGA

• PoE: 16 Ports

• Remote Access: Wisenet Viewer / Mobile

• Setup: QR Code & P2P compatible

Warranty Information

Hanwha Vision backs this system with a 5-year manufacturer’s warranty covering both cameras and recorder. All warranty services are provided through authorized service channels, ensuring professional support and genuine components.

Brand Overview

Hanwha Vision, a division of the Hanwha Group, is a global surveillance technology leader recognized for innovation, reliability, and intelligent analytics. Their solutions are widely adopted in security-critical sectors around the world.

SKU: WISENET-KIT-16CAM-CT-ARN-1610S

Practical Use Scenarios

• Large Commercial Sites: Monitor multiple entrances, parking lots, and warehouse zones.

• Educational Institutions: Ensure safety across campuses, classrooms, and hallways.

• Corporate Offices: Oversee high-traffic areas and secure internal operations.

• Apartment Complexes: Provide continuous surveillance in lobbies, elevators, and perimeters.

• Industrial Sites: Protect critical infrastructure and valuable equipment.

Datasheets and Downloadable Resources

• CT-ANE-L7012L Camera Datasheet (PDF)

• CT-ARN-1610S NVR Datasheet (PDF)

Excellence for the Australian and New Zealand Market

This Wisenet Hanwha surveillance kit is RCM-certified and complies with Australian and New Zealand electrical and safety standards. It is locally sourced through authorized distributors to ensure optimal compatibility and authenticity. Warranty services and support are handled directly through Hanwha Vision-authorized channels, providing fast, reliable assistance to Australian and New Zealand customers.

Frequently Asked Questions (FAQs)

Q1: Can this system handle continuous recording for all 16 channels? (Product Code: WISENET-KIT-16CAM-CT-ARN-1610S)
A1: Yes, the CT-ARN-1610S supports up to 80Mbps of total bandwidth and dual HDDs, ideal for 24/7 recording across 16 channels in 4MP resolution.

Q2: Is remote monitoring available on mobile devices? (Product Code: WISENET-KIT-16CAM-CT-ARN-1610S)
A2: Absolutely. Use the Wisenet Mobile app with QR code setup to access live and recorded footage securely from anywhere.

Q3: How many days of footage can be stored? (Product Code: WISENET-KIT-16CAM-CT-ARN-1610S)
A3: With dual 6TB drives and H.265 compression, the system can store roughly 3–4 weeks of continuous footage depending on recording parameters.

Q4: Are the cameras suitable for outdoor use? (Product Code: WISENET-KIT-16CAM-CT-ARN-1610S)
A4: Yes, the CT-ANE-L7012L cameras feature IP66 weatherproofing and IK10 impact resistance for reliable outdoor performance.

Q5: Can I expand the system beyond 16 cameras? (Product Code: WISENET-KIT-16CAM-CT-ARN-1610S)
A5: The CT-ARN-1610S supports 16 cameras. To expand further, additional NVR units would be required or upgrade to a VMS platform for centralized management.
