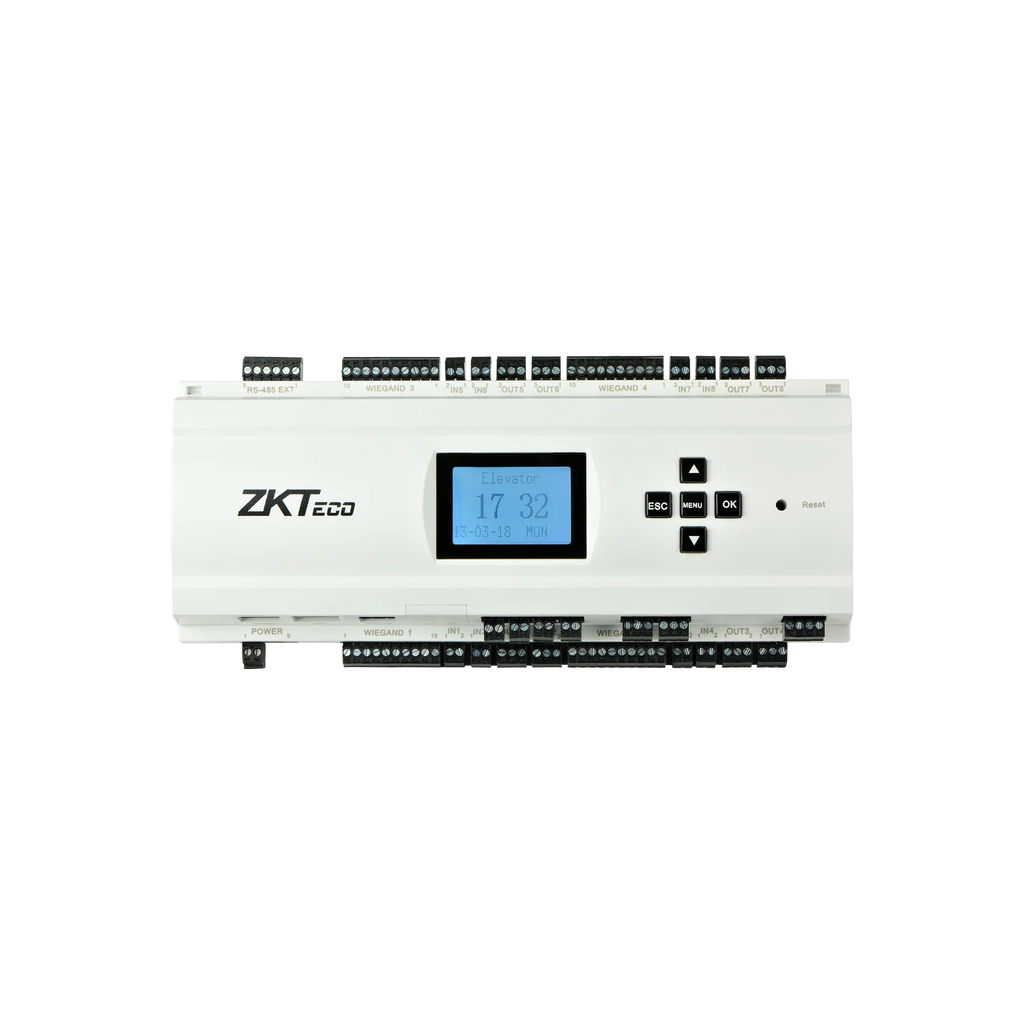

The ZKTeco EC10 Elevator Access Control System is a purpose-built solution for secure, scalable, and flexible elevator access management in commercial, residential, and industrial buildings. Designed for seamless integration with biometric, RFID, and keypad authentication methods, the EC10 restricts or permits access to specific floors based on user credentials, time schedules, or system configurations.
Each EC10 controller manages access to up to 10 floors, while optional EX16 floor extension boards expand that control by 16 additional floors per module. A single EC10 can support up to 3 EX16 units, enabling control of up to 58 floors per system. EC10 panels can be daisy-chained for unlimited floor control in large buildings or complex infrastructures.
The system supports real-time monitoring and user-defined schedules, with passage mode available for unrestricted access during set hours. This controller is the ideal access solution for high-traffic elevator environments requiring both security and flexibility.
What’s Included in the Box
-
1 × ZKTeco EC10 Elevator Controller
-
Optional: 1–3 × ZKTeco EX16 Floor Extension Boards (sold separately)
-
RS485 Communication Interface
-
Configuration Guide
-
Mounting Hardware
Main Features
-
10-Floor Base Control: One EC10 controller supports 10 floors directly via relay outputs.
-
Expandable Architecture: Supports up to 3 EX16 modules, controlling up to 58 floors in total.
-
Multi-Credential Authentication: Compatible with fingerprint, RFID proximity cards, and passwords.
-
Time-Based Access: Restrict or allow floor access based on programmable schedules.
-
Passage Mode: Allows unrestricted access during set business or visiting hours.
-
Flexible Communication: Connects to PC via TCP/IP or RS485; communicates with EX16 via RS485.
-
Daisy-Chaining Supported: Multiple EC10 panels can be chained for multi-elevator systems.
-
Secure and Scalable: Ideal for residential towers, commercial buildings, and mixed-use complexes.
-
SDK Available: Allows integration with third-party software platforms.
-
Easy Setup and Management: Intuitive software interface simplifies system configuration.
Detailed Specifications
EC10 Elevator Control Panel
| Specification |
Details |
| Floor Control Relays |
10 |
| Fingerprint Capacity |
3,000 |
| RFID Card Capacity |
30,000 |
| Event Storage Capacity |
100,000 |
| Power Supply |
12V DC 1A |
| Communication to PC |
TCP/IP, RS485 |
| Communication to EX16 |
RS485 |
| Max EX16 Units Supported |
3 |
| Dimensions (L×D×H) |
242 × 95 × 60 mm |
| Net Weight |
0.8 kg |
EX16 Floor Extension Board
| Specification |
Details |
| Floor Control Relays |
16 |
| Communication to EC10 |
RS485 |
| Address Configuration |
DIP Switch |
| Power Supply |
12V DC 1A |
| Dimensions (L×D×H) |
160 × 106 mm |
| Net Weight |
0.2 kg |
Warranty Information
manufactures warranty applied.
Brand Description
ZKTeco is a globally recognized provider of innovative biometric and access control technologies. Its solutions are widely deployed in security-conscious sectors, including real estate, government, education, and commercial enterprise. With systems designed for reliability, flexibility, and scalability, ZKTeco continues to lead in secure access infrastructure.
SKU
EC10 (Base Panel)
EX16 (Extension Module – Optional)
Practical Use Scenarios
-
Multi-Tenant Commercial Buildings: Assign floor access based on tenant access rights.
-
Luxury Residential Complexes: Secure floor access for residents and restrict unauthorized visitors.
-
Hotels & Hospitality: Grant guests access only to their assigned floor and common areas.
-
Hospitals & Research Facilities: Secure sensitive departments such as labs or data centers.
-
Corporate Headquarters: Integrate elevator control with existing access systems for multi-level security.
Datasheets & Downloadable Resources
datasheets
Excellence for the Australian and New Zealand Market
The ZKTeco EC10 Elevator Control System meets the expectations of high-standard deployments across the ANZ region:
-
Compliant with Regional Security Standards: Designed for professional environments requiring secured access infrastructure.
-
NDSS & Regulatory Alignment: Integrates easily with building automation and disability access guidelines.
-
Genuine Supply Assurance: Sourced directly through authorized partners, ensuring authenticity and full feature support.
-
Warranty & Support Locally Handled: After-sales support is managed via local representatives to minimize downtime and simplify service.
-
Scalable for ANZ Projects: Designed for both single-lift and complex elevator banks found in Australia and New Zealand high-rises.
FAQs (Product Code: EC10 / EX16)
-
How many floors can the EC10 control?
The EC10 alone controls 10 floors, and with 3 EX16 extensions, it supports up to 58 floors.
-
Can the EC10 work with biometric readers?
Yes, the EC10 supports fingerprint, RFID cards, and password-based authentication methods.
-
Does the EC10 allow unrestricted access during certain hours?
Yes, Passage Mode allows full access during predefined business or visiting hours.
-
What type of communication is used between EC10 and EX16?
EC10 and EX16 communicate via RS485, allowing stable and long-distance signal transmission.
-
Is the EC10 suitable for high-rise buildings?
Absolutely. With daisy-chaining and multiple EX16 modules, the EC10 system is scalable to fit multi-elevator, high-rise environments.
