Experience advanced surveillance technology with the TP-Link InSight S485 VIGI 8MP CCTV Camera Kit, a complete 4-camera system paired with a powerful TP-Link VIGI NVR1004H-4P and a pre-installed 4TB HDD. Designed for comprehensive property protection, this high-performance bundle delivers 4K Ultra HD clarity, 24/7 full-color night vision, and AI-powered analytics for precise detection and deterrence.
The S485 turret cameras feature IP67 waterproofing, H.265+ compression, and two-way audio, ideal for both residential and commercial surveillance. Integrated People & Vehicle Analytics, smart intrusion detection, and Active Defense make this kit ideal for preventing incidents before they occur.
Paired with the NVR1004H-4P, this system enables up to 4 simultaneous camera feeds, remote monitoring via the VIGI app, and 4-channel PoE+ power delivery—streamlining installation with just one cable per camera. With a 4TB HDD included, you get weeks of reliable storage right out of the box.
Optimized for Australian and New Zealand environments, this CCTV solution is certified, rugged, and supported locally for peace of mind.

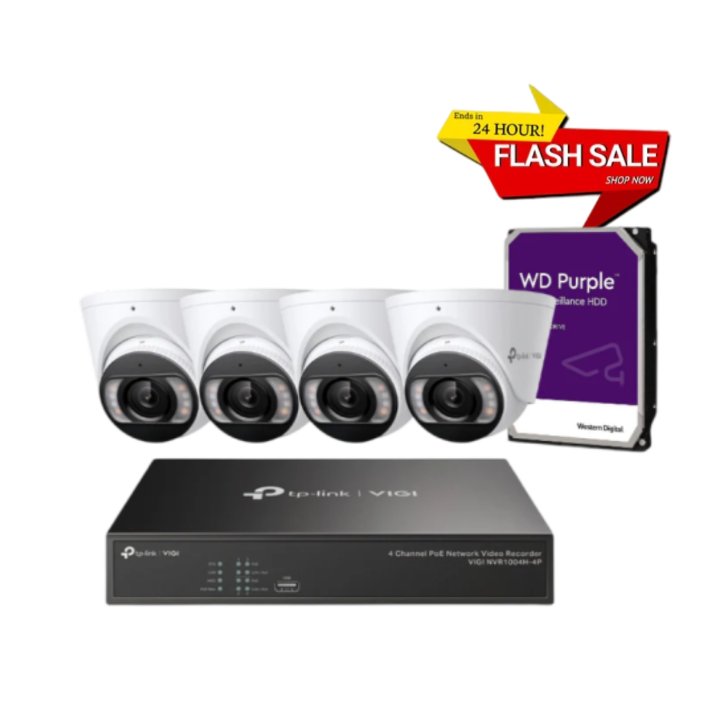

What's Included in the Box
-
4 × TP-Link VIGI InSight S485 8MP Full-Color Turret Network Cameras
-
1 × TP-Link VIGI NVR1004H-4P 4-Channel PoE+ Network Video Recorder
-
1 × 4TB Surveillance-Grade Hard Drive
Main Features
-
4K (8MP) Ultra HD Resolution: High-clarity 3840 × 2160 video for clear details.
-
24/7 Full-Color Night Vision: White LED illumination allows color imaging even in total darkness.
-
People & Vehicle Analytics: AI-based detection to minimize false alerts.
-
Smart Motion Detection: Detect intrusion, line-crossing, loitering, and abnormal behavior.
-
Two-Way Audio: Built-in mic and speaker allow real-time communication.
-
IP67 Waterproof Cameras: Built tough for harsh outdoor conditions.
-
Active Defense Technology: White light flashing and sound alarms deter intruders.
-
H.265+ Video Compression: Save up to 70% bandwidth and storage.
-
PoE+ Installation: Simplified power and data over a single Ethernet cable.
-
Remote Access: Monitor via VIGI app or Security Manager software.
Detailed Specifications
Cameras (VIGI InSight S485)
-
Sensor: 1/2.7” Progressive Scan CMOS
-
Lens: 2.8mm or 4mm, F1.6 aperture
-
Video Resolution: 3840 × 2160 @ 25fps
-
Illumination: 0 Lux with IR/White LED
-
Audio: Two-way, Built-in mic/speaker
-
Compression: H.265+, H.265, H.264+, H.264
-
Smart Detection: Intrusion, Line Crossing, Loitering, Scene Change
-
Ingress Protection: IP67
-
Power: 12V DC or PoE (802.3af/at)
-
Storage: Supports MicroSD up to 512GB
NVR (VIGI NVR1004H-4P)
-
Channels: 4 IP video inputs
-
Video Output: HDMI (4K), VGA (1080p)
-
Decoding: Up to 8MP/channel, 16MP total
-
Compression: H.265+, H.265, H.264+, H.264
-
Playback: 4-channel simultaneous
-
Storage: 1 × SATA HDD (up to 10TB) – 4TB included
-
PoE Ports: 4 × 802.3af/at PoE+, 53W total power
-
Remote Access: VIGI app & PC software
-
Operating Temp: -10°C to 55°C
-
Dimensions: 246.2 × 148.2 × 45 mm
Warranty Information
Brand Description
TP-Link is a global leader in networking and surveillance solutions, known for its reliable, innovative, and user-friendly technologies. Trusted across homes, businesses, and public sectors, TP-Link combines affordability with cutting-edge features to ensure safety, connectivity, and control.
SKU
SKU: INSIGHT-S485-KIT
Practical Use Scenarios
-
Retail & Hospitality: Deter shoplifting and monitor entry points with full-color analytics.
-
Home Security: Get instant alerts, remote access, and night vision for family protection.
-
Construction & Industrial Sites: Rugged weatherproofing ensures 24/7 operation in harsh environments.
-
Schools & Community Centers: Smart detection features help ensure student and visitor safety.
-
Small Offices & Warehouses: Easy PoE installation with powerful storage for reliable video backup.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The TP-Link InSight S485 VIGI 8MP CCTV Kit is tailored to the specific needs of Australian and New Zealand customers. Engineered with IP67-rated weatherproof cameras, it performs flawlessly across the region’s diverse climates. Fully compliant with NDSS and local quality standards, the kit is sourced through authorized Australian/NZ distributors, ensuring genuine hardware and prompt warranty support. All warranty claims and service requests are processed locally for fast and reliable assistance.
FAQs
Q1: Does the TP-Link CCTV kit support Power over Ethernet (PoE+)? (Product Code: INSIGHT-S485-KIT)
A1: Yes, the included NVR1004H-4P features 4 PoE+ ports that supply both power and data to the cameras, simplifying installation.
Q2: How much video footage can the 4TB HDD store? (Product Code: INSIGHT-S485-KIT)
A2: With H.265+ compression, the 4TB hard drive can store several weeks of 24/7 recording from 4 cameras, depending on resolution and recording mode.
Q3: Can I access the camera feed remotely from my phone? (Product Code: INSIGHT-S485-KIT)
A3: Yes, the system supports remote access via the TP-Link VIGI app for both iOS and Android devices.
Q4: Are the cameras weatherproof for outdoor use? (Product Code: INSIGHT-S485-KIT)
A4: Absolutely. The S485 cameras have an IP67 rating, making them fully waterproof and dust-tight for reliable outdoor performance.
Q5: What happens if I lose internet connectivity? (Product Code: INSIGHT-S485-KIT)
A5: The NVR will continue to record locally to the 4TB HDD even without an internet connection. You can access playback once connectivity is restored.
Q6: Can I expand the system with more cameras later? (Product Code: INSIGHT-S485-KIT)
A6: The NVR supports up to 4 channels, so it can handle four cameras. To add more, you'd need to upgrade to an 8- or 16-channel NVR.
Q7: Does the system work with third-party IP cameras? (Product Code: INSIGHT-S485-KIT)
A7: Yes, the NVR is ONVIF-compatible and works with many third-party IP cameras that support ONVIF profiles S/T/G.
