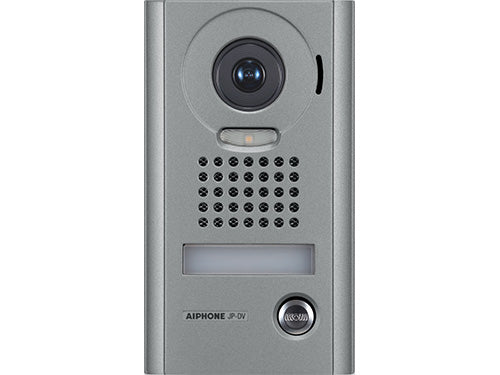

The AIPHONE JP-DV is a high-performance 1-button audio/video door station designed for residential and commercial applications. Engineered as part of the JP Series, this unit operates over a simple 2-wire system and delivers advanced security features, including a 170° wide-angle camera with digital pan, tilt, and zoom control from the master monitor. Housed in a robust aluminum die-cast enclosure, this weather-resistant device ensures reliable performance in various outdoor conditions. It mounts easily to a wall or a standard 1-gang box, and is powered directly through the monitor bus, reducing wiring complexity. Ideal for high-end intercom solutions requiring both aesthetics and functionality.
What’s Included in the Box
AIPHONE JP-DV Audio/Video Door Station (Silver)
Mounting hardware
Installation manual
Main Features
Ultra-Wide Camera View: Captures up to 170° field of view to minimize blind spots at the entry.
Digital PTZ: Allows pan, tilt, and zoom control from the master station for detailed monitoring.
Enhanced Night Visibility: LED illumination activates in low-light conditions for clear imaging.
Weather-Resistant Build: Built with durable aluminum die-cast housing for long-lasting use outdoors.
Streamlined Installation: 2-conductor wiring system simplifies setup; compatible with Aiphone #871802 cable.

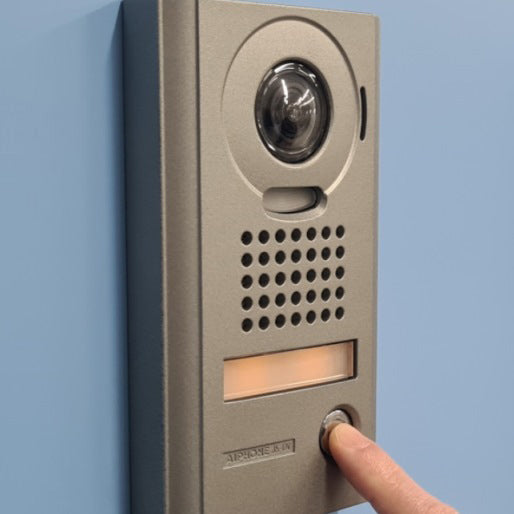

Surface Mount Design: Mounts directly to wall or 1-gang box with optional MKW-P mounting plate.
Hands-Free Operation: Open voice communication via hands-free auto-voice actuation.
Detailed Specifications
Communication Type: Hands-free open voice with auto-voice actuation
Camera Type: 1/4" CMOS
Viewing Angle: Approx. 100° vertical x 170° horizontal with Digital Pan, Tilt, and Zoom
Mounting Options: Wall or 1-gang box (with MKW-P plate)
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Dimensions: 173mm H × 98mm W × 25mm D (6-13/16" × 3-7/8" × 1")
Warranty Information
This product comes with a 36-month manufacturer warranty provided by AIPHONE Pty Ltd. Warranty claims can be handled through authorized resellers or directly via the AIPHONE service process.
Brand Overview – AIPHONE
AIPHONE is a globally recognized leader in intercom and access control systems, known for its uncompromising standards in quality and innovation. Trusted in residential, commercial, and institutional applications, AIPHONE products offer unmatched reliability and security for entry management.
SKU: JP-DV
Practical Use Scenarios
Residential Security: Ideal for gated homes, apartments, and villas, offering secure front-door communication and visibility.
Commercial Buildings: Enhance entry-point monitoring for offices, clinics, and multi-tenant buildings.
Educational & Institutional Facilities: Secure access control for schools, universities, and healthcare institutions.
Retirement and Aged-Care Facilities: Simplifies visitor screening and entry approval from nurse stations or main offices.
Excellence for the Australian and New Zealand Market
The AIPHONE JP-DV is fully optimized for the Australian and New Zealand markets, sourced exclusively through AIPHONE PTY LTD, the official regional distributor. It is engineered to comply with regional performance expectations and environmental standards. This product ensures local warranty handling, reducing delays with international claims. NDSS (National Disability Insurance Scheme) compatibility and weatherproof design make it a dependable choice for varied climate conditions. Support, service, and replacements are streamlined through authorized Australian channels.
FAQs – AIPHONE JP-DV
Q1: Can the AIPHONE JP-DV be used in areas with low lighting conditions? (Product Code: JP-DV) Yes, the JP-DV features built-in LED illumination that activates automatically in low-light settings, ensuring clear visuals at all times.
Q2: What type of cable should I use for installing the JP-DV door station? (Product Code: JP-DV) AIPHONE recommends using its proprietary #871802 2-conductor, low-capacitance, non-shielded cable for best performance.
Q3: Is the JP-DV compatible with all JP Series master stations? (Product Code: JP-DV) Yes, the JP-DV is designed for seamless integration with all monitors in the JP Series lineup.
Q4: What is the maximum cable run distance for the JP-DV? (Product Code: JP-DV) Maximum distance is 165 feet using 22AWG wire, or 300 feet with 18AWG wire.
Q5: How do I mount the JP-DV to a standard electrical box? (Product Code: JP-DV) You can mount it directly using the optional MKW-P mounting plate, designed for standard 1-gang electrical boxes.
