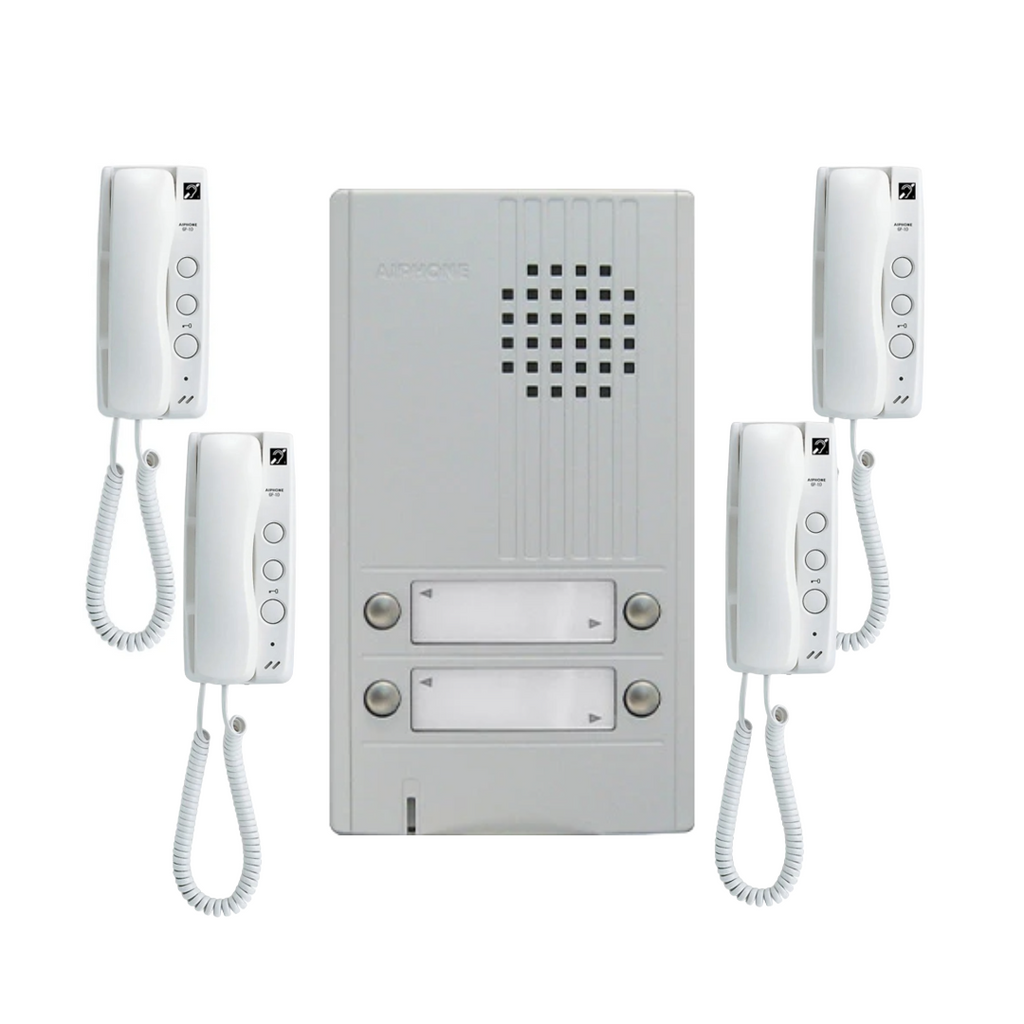

The Aiphone DA-4DS + 4× GT-1D Intercom Kit is a professional multi-tenant audio entry system designed for apartments and commercial buildings. Featuring a 4-button silver metal door station and four GT Series handset tenant stations, this 2-wire solution provides secure visitor communication and remote door release functionality.
Product Description
The Aiphone Intercom Kit combines the durable Aiphone DA-4DS 4-button audio door station with 4 × Aiphone GT-1D audio tenant handsets, delivering a complete multi-tenant entry communication solution for residential and commercial properties.
Designed for apartment complexes, condominiums, and professional suites, this system enables secure visitor screening and remote door release functionality. Visitors call individual tenants directly from the mechanical button panel, and residents answer using the telephone-style handset for private, clear audio communication.
The DA-4DS provides vandal-resistant silver metal construction and dry contact lock output, while the GT-1D tenant stations offer intuitive pickup-to-answer operation, door release control, and security/concierge call functionality. The GT-1D units are powered via the GT-BC bus controller (24V DC), supporting scalable deployment in multi-unit buildings.
This kit is ideal for buildings requiring reliable, audio-only communication with straightforward installation and long-term durability.
What’s Included in the Box
Door Station
1 × Aiphone DA-4DS 4-Button Audio Door Station
Mounting plate (DAW-P compatible)
Mounting hardware
Installation manual
Tenant Stations
4 × Aiphone GT-1D Audio Handset Tenant Stations
Wall mounting hardware
User instruction manuals
Main Features

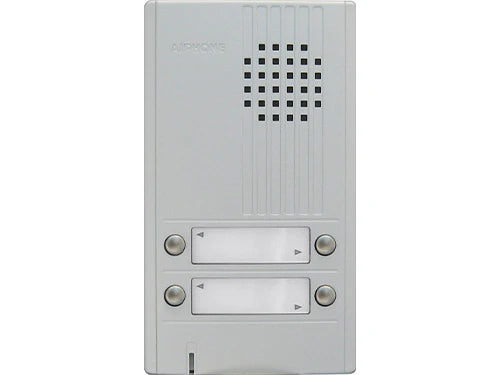

DA-4DS Door Station
4 mechanical call buttons (multi-tenant use)
2-wire connection to master system
Durable silver metal construction
Dry contact lock output
Compatible with EL-12S electric strike
Surface mount installation
Push-and-hold communication

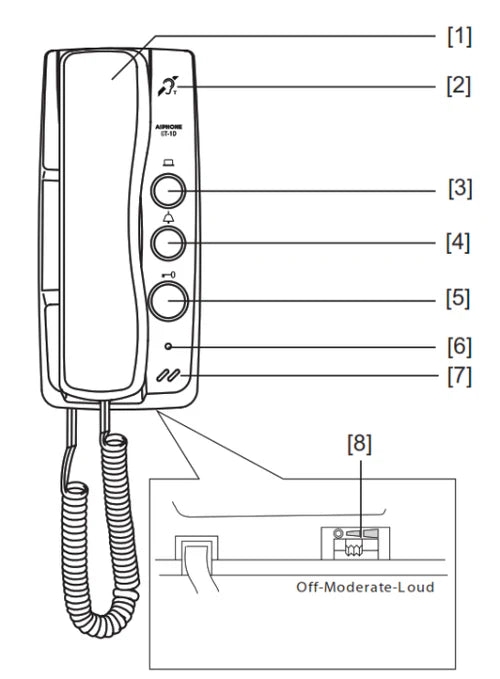

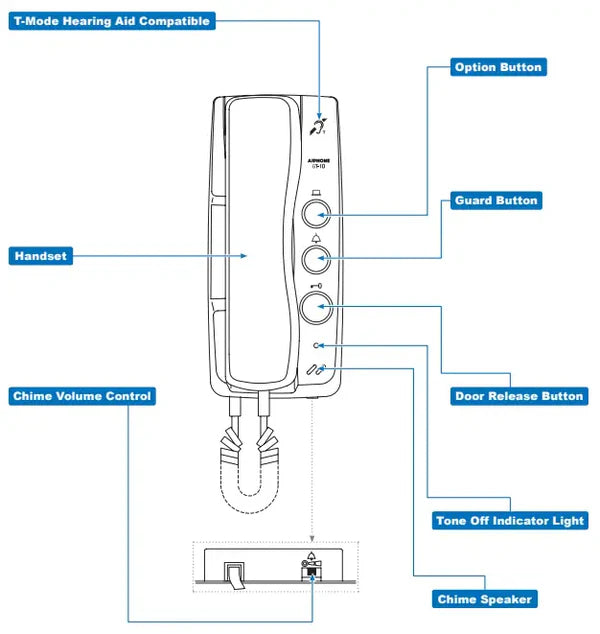

GT-1D Tenant Stations
Two-wire GT Series compatibility
Telephone-style mechanical handset
Dedicated door release button
Security guard/concierge call button
Adjustable tone volume (Off / Moderate / Loud)
Supports emergency pull cord/panic alert
Surface wall mount design
Supports up to 4 handsets per tenant unit

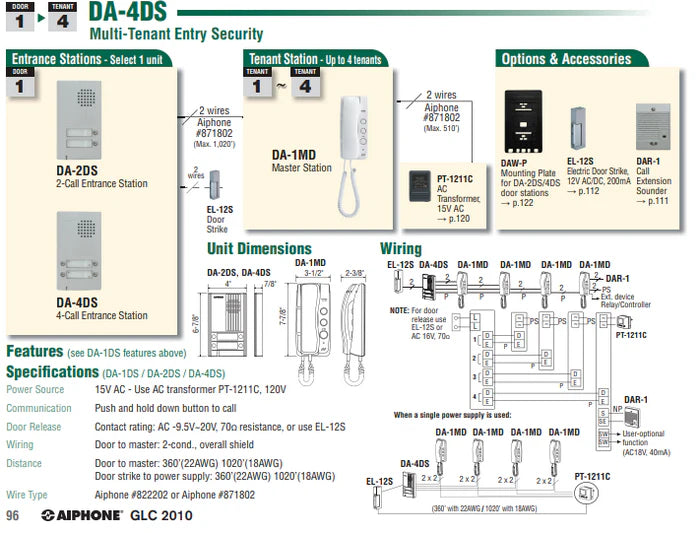

Detailed Technical Specifications
DA-4DS Door Station
Power Source: 15V AC (via PT-1211C transformer)
Communication: Push-and-hold
Door Release Rating: AC 9.5V–20V, 70Ω resistance
Wiring: 2-conductor overall shield (#822202 or #871802)
Senior living facilities requiring panic call integration
Secure residential complexes with concierge
Professional offices with shared entry
Warranty Information
This kit includes:
5-Year Manufacturer Warranty on the DA-4DS
Aiphone standard product warranty on GT-1D handsets
Warranty service in Australia and New Zealand is handled through authorized Aiphone representatives and distributors.
Brand Overview
Aiphone is a globally respected Japanese manufacturer of intercom and entry security systems. Known for engineering reliability and long service life, Aiphone products are widely used in residential, commercial, healthcare, and institutional applications worldwide.
Excellence for the Australian and New Zealand Market
This Aiphone Intercom Kit is well suited for Australian and New Zealand residential and commercial entry installations.
Designed for professional low-voltage installation standards
Suitable for apartment and strata-managed buildings
Reliable 2-wire and bus-based system configuration
Authorized sourcing for genuine product supply
5-year warranty coverage on DA-4DS
Ideal for secure multi-tenant entry control in AU/NZ properties
FAQs
1. What components are included in the Aiphone Intercom Kit (KIT-DA4DS-4GT1D)?
The Aiphone Intercom Kit (KIT-DA4DS-4GT1D) includes 1× DA-4DS 4-button door station and 4× GT-1D tenant handset stations.
2. How is the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) powered?
In the Aiphone Intercom Kit (KIT-DA4DS-4GT1D), the DA-4DS operates on 15VAC via PT-1211C, while the GT-1D handsets are powered by 24V DC through the GT-BC bus controller.
3. Can the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) control an electric door strike?
Yes, the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) supports door release via the DA-4DS dry contact output and is compatible with electric strikes such as EL-12S.
4. Is the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) suitable for apartment buildings?
Yes, the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) is designed specifically for multi-tenant apartment and commercial entry applications.
5. How many handsets can be connected per tenant in the Aiphone Intercom Kit (KIT-DA4DS-4GT1D)?
The Aiphone Intercom Kit (KIT-DA4DS-4GT1D) supports up to four GT-1D handsets per tenant unit.
6. Does the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) support emergency alerts?
Yes, the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) allows GT-1D units to integrate with pull cord or panic alert accessories.
7. What type of installation is required for the Aiphone Intercom Kit (KIT-DA4DS-4GT1D)?
The Aiphone Intercom Kit (KIT-DA4DS-4GT1D) is a surface-mounted system requiring professional low-voltage installation.
