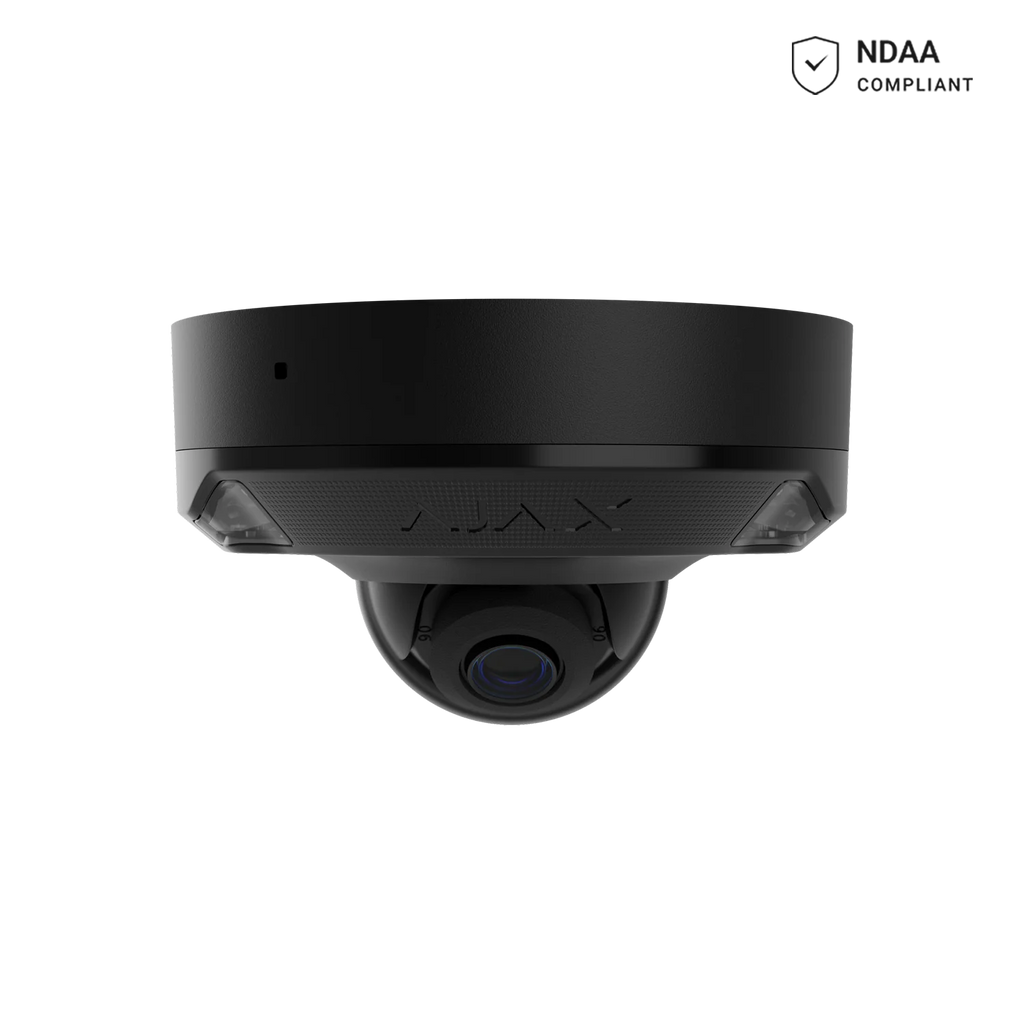

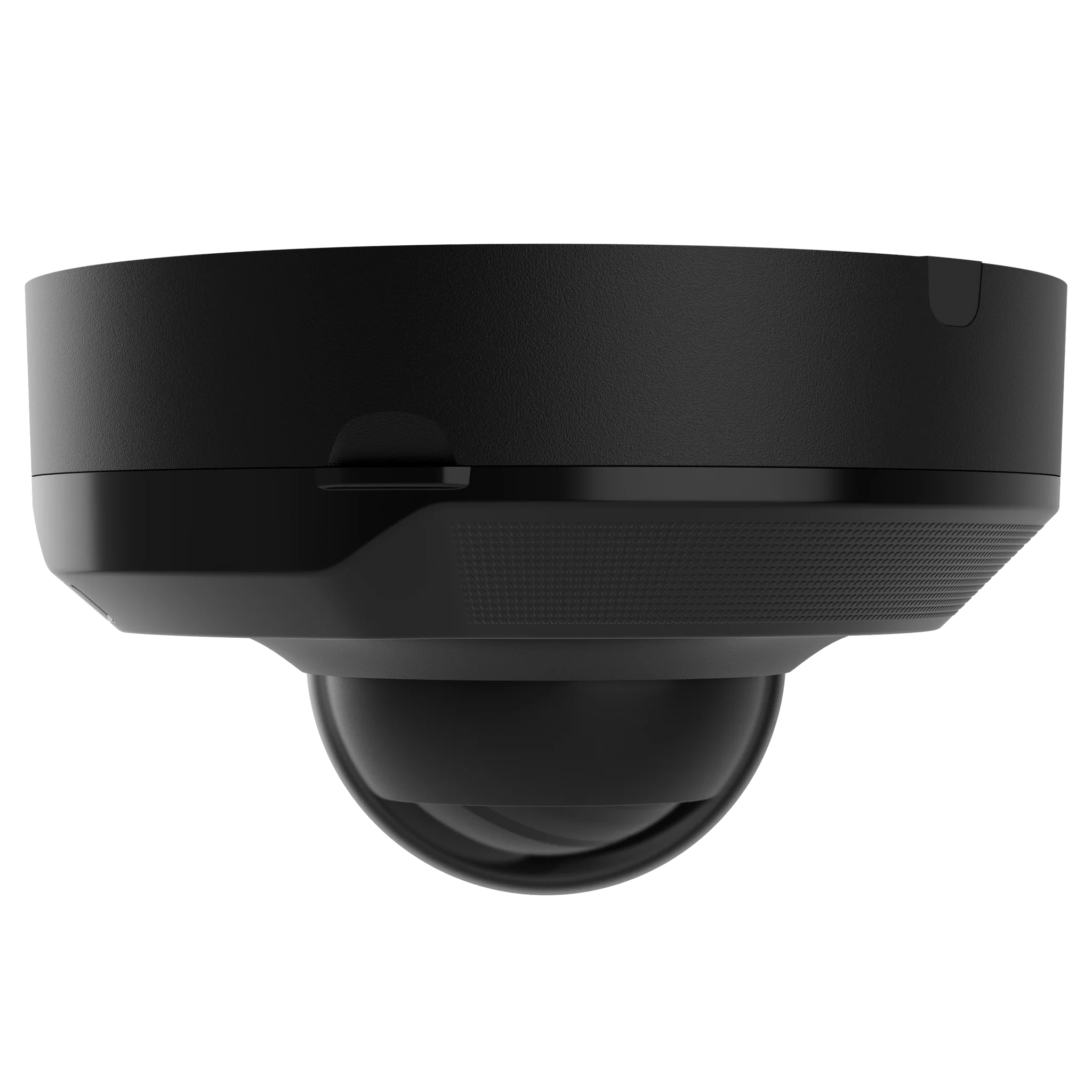

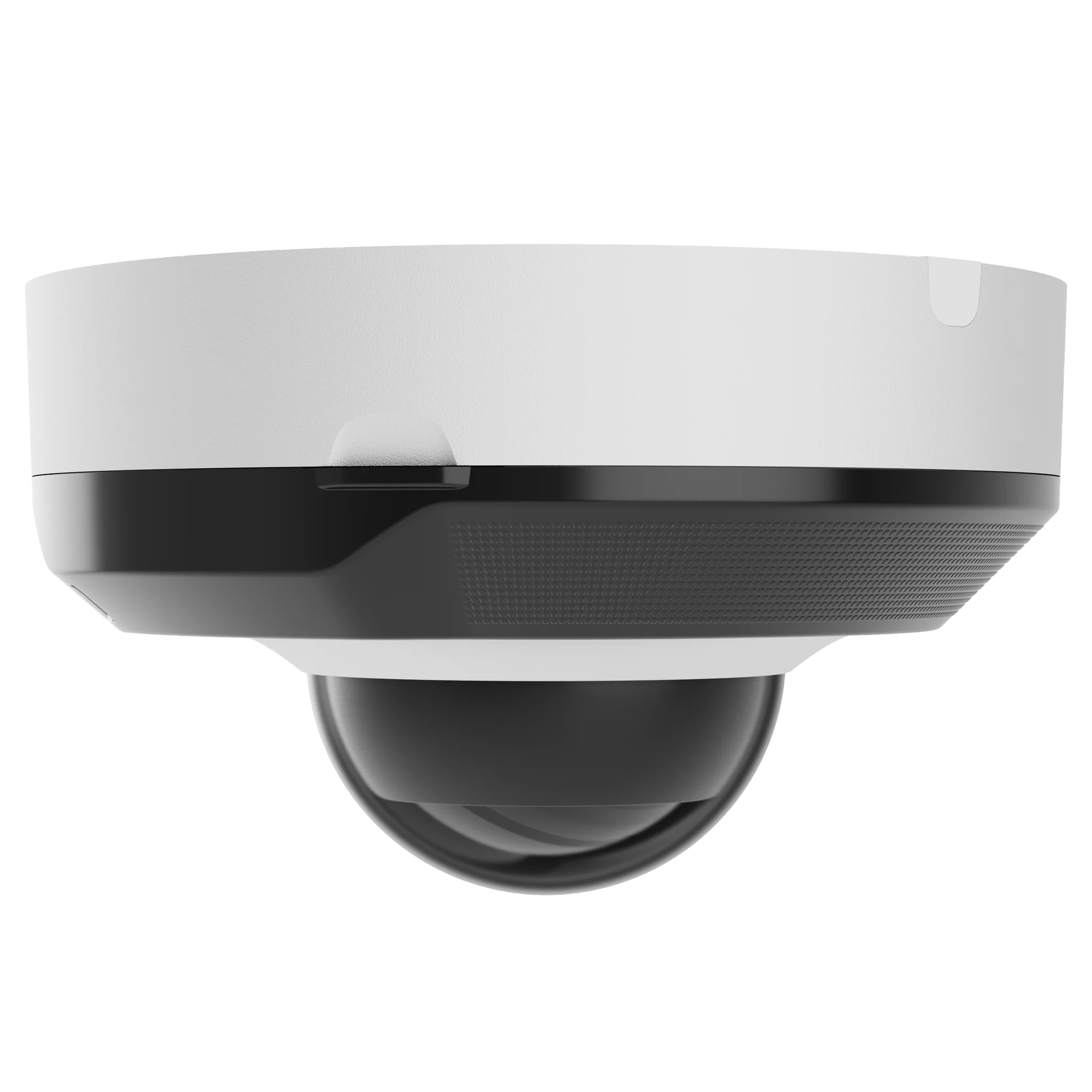

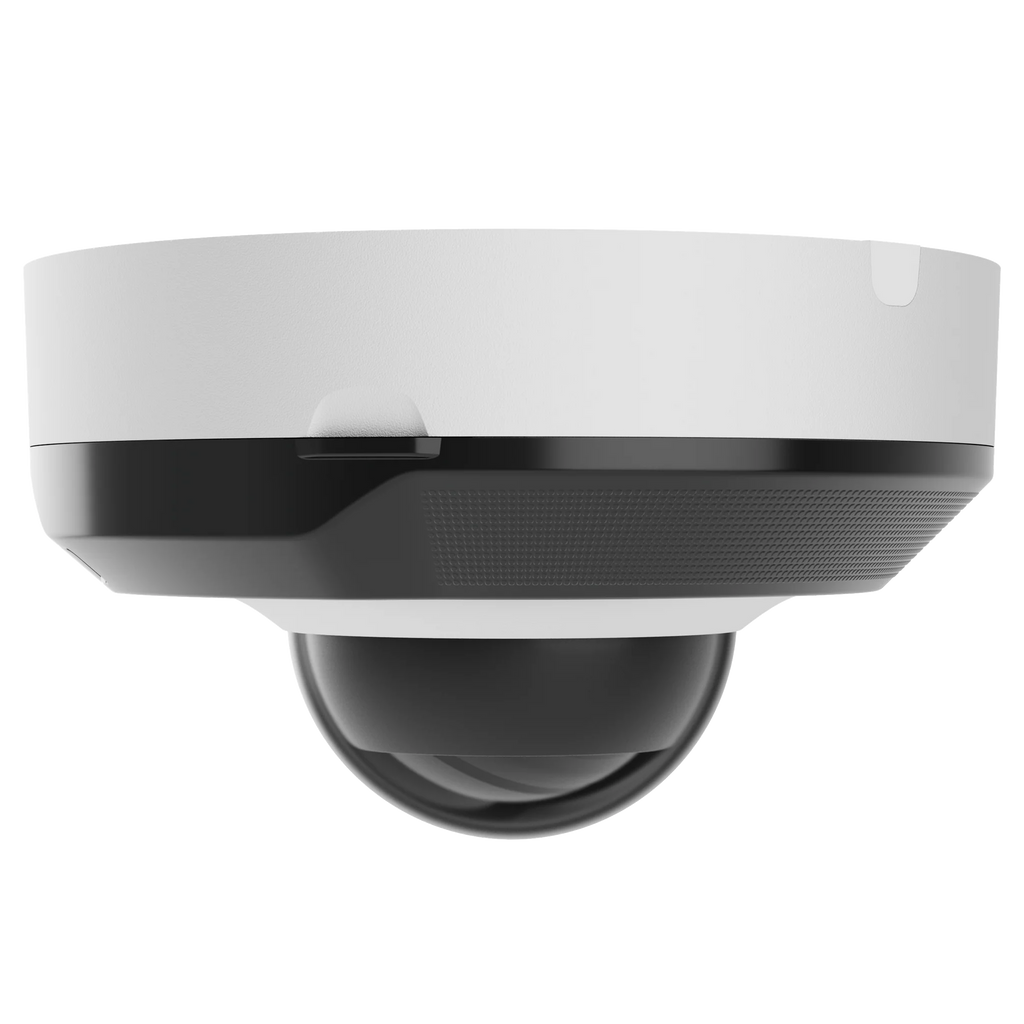

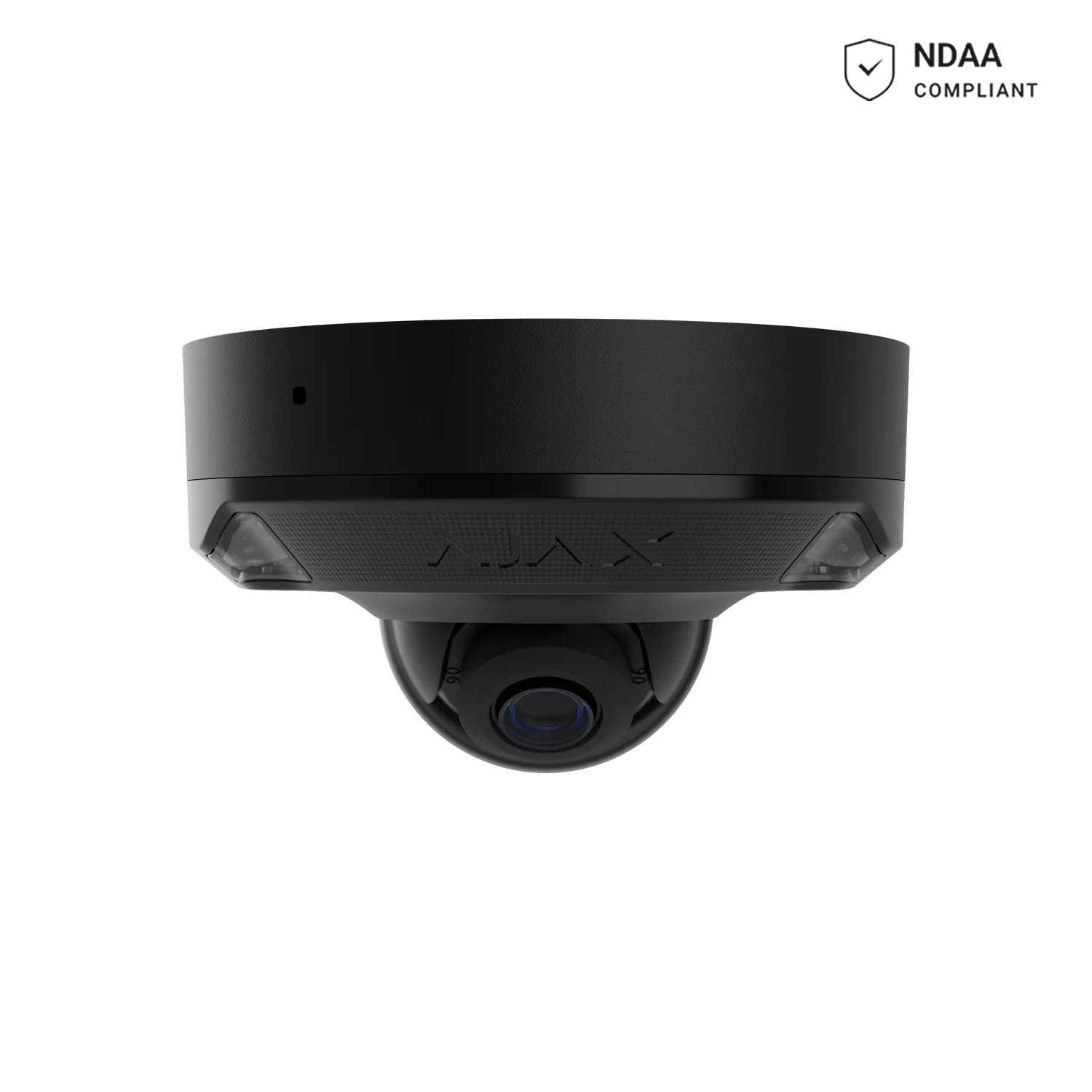

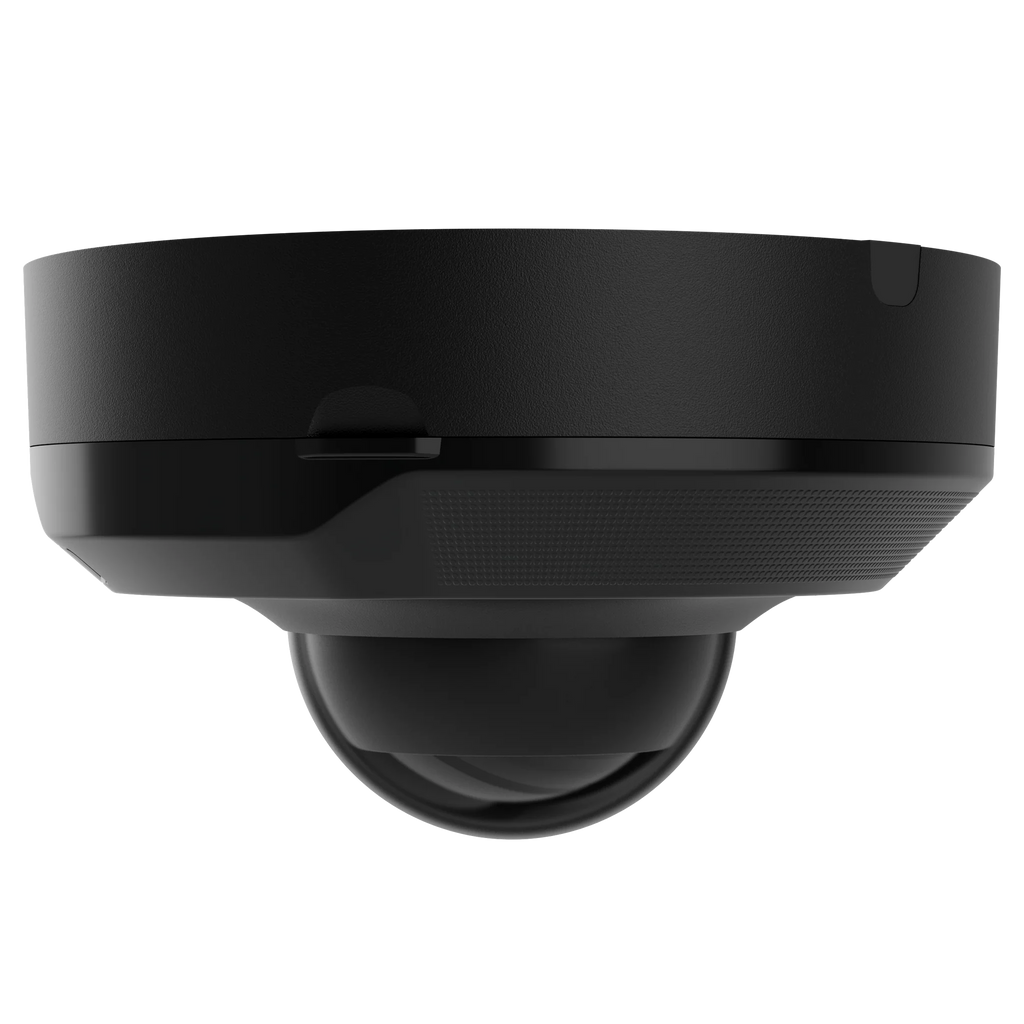

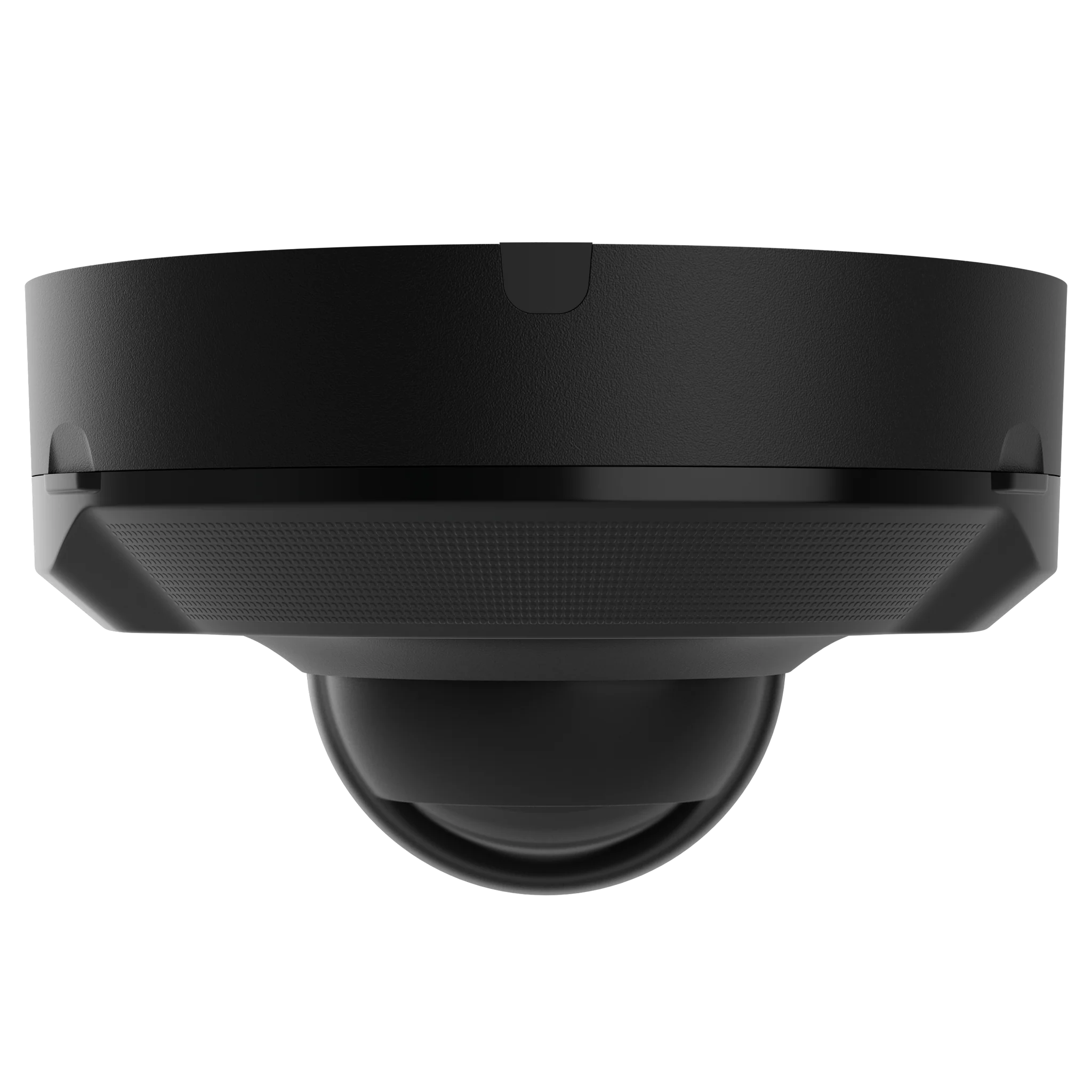

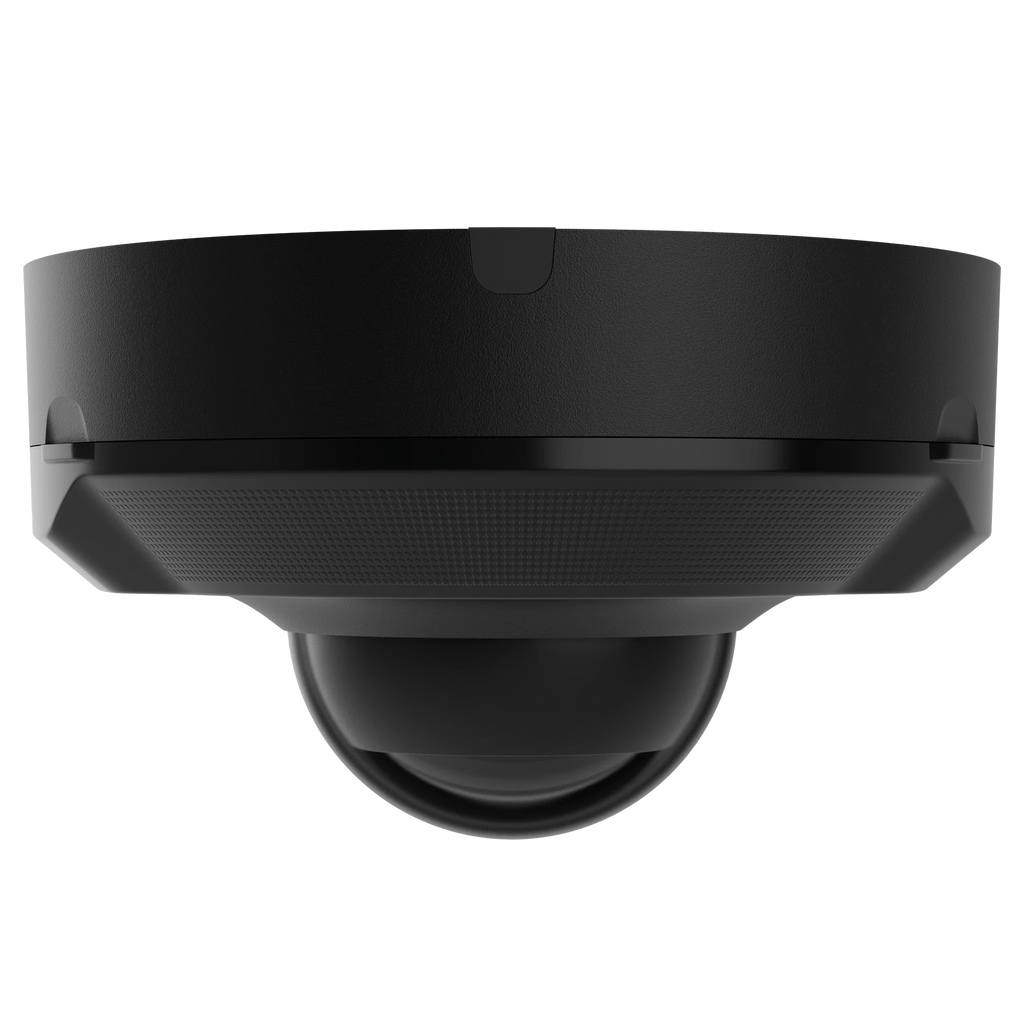

The AJAX#126269 Ajax 5MP 2.8mm Mini Dome HL Camera – White / Black is a professional AI-powered hybrid illumination security camera designed to deliver exceptional video surveillance performance in both indoor and outdoor environments. Featuring a high-resolution 5MP CMOS sensor, ultra-wide 110° viewing angle, Hybrid Light (HL) technology, built-in microphone, AI-powered object recognition, True WDR imaging, and Ajax's secure JetSparrow video protocol, this compact mini dome camera provides outstanding image clarity day and night.
Designed for residential, commercial, retail, industrial, and perimeter security applications, the AJAX#126269 combines intelligent video analytics, hybrid white LED and infrared illumination, ONVIF compatibility, microSD recording, Ajax NVR integration, and enterprise-grade cybersecurity protections. The Hybrid Light technology automatically switches between IR and white light illumination, providing enhanced colour night vision and superior image detail in low-light environments.
What's Included in the Box
-
DomeCam Mini HL (5 MP / 2.8 mm)
-
Installation Template
-
Installation Kit
-
Quick Start Guide
Main Features
High-Definition 5MP Surveillance
-
Up to 2880 × 1620 resolution
-
Detailed video recording and playback
-
Up to 25 FPS frame rate
Ultra-Wide Viewing Angle
-
Fixed 2.8mm lens
-
Horizontal field of view up to 110°
-
Ideal for wide-area coverage
Hybrid Illumination Technology
-
White LED illumination up to 15 metres
-
IR illumination up to 15 metres
-
Intelligent light adjustment
-
Enhanced colour night vision
AI-Powered Object Detection
-
Human detection
-
Vehicle detection
-
Pet detection
-
Intelligent event filtering
Smart Motion Detection
-
Advanced image-based analytics
-
Reduced false alarms
-
Faster event verification
True WDR Imaging
-
120 dB Wide Dynamic Range
-
Superior performance in challenging lighting conditions
Secure JetSparrow Video Streaming
-
Encrypted peer-to-peer transmission
-
Fast live viewing
-
Optimised bandwidth usage
Built-In Audio Recording
-
Integrated microphone
-
Professional audio codec support
Flexible Storage Options
-
Ajax NVR compatibility
-
microSD storage up to 256GB
Third-Party Integration Support
-
ONVIF Profile S support
-
ONVIF Profile T support (basic functions)
-
VMS compatibility
Professional Outdoor Protection
-
IP65 weatherproof enclosure
-
IK08 vandal-resistant housing
-
Suitable for harsh environments
Detailed Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#126269 |
| Product Name | Ajax DomeCam Mini HL 5MP 2.8mm |
| Camera Type | Wired AI-Powered Hybrid Illumination IP Camera |
| Image Sensor | 5 MP CMOS, 1/2.8" |
| Maximum Resolution | 2880 × 1620 px |
| Lens | 2.8 mm Fixed |
| Lens Aperture | f/1.6 |
| Viewing Angle | Horizontal 100°–110° |
| Viewing Angle Vertical | 50°–60° |
| Viewing Angle Diagonal | 125°–135° |
| Frame Rate | Up to 25 FPS |
| DORI Detection Distance | 65 m |
| DORI Observation Distance | 26 m |
| DORI Recognition Distance | 13 m |
| DORI Identification Distance | 6.5 m |
| White LED Illumination | Up to 15 m |
| IR Illumination | Up to 15 m |
| Minimum Illumination | 0.005 lux Colour |
| Video Compression | H.265 / H.264 |
| Dynamic Range | 120 dB True WDR |
| Image Rotation | 0°, 180° |
| Motion Detection | Intelligent Analytics |
| AI Detection | Humans, Pets, Vehicles |
| Audio | Built-In Microphone |
| Audio Codecs | G711-ULAW, G711-ALAW, G726, G722 |
| Storage Options | Ajax NVR, microSD |
| microSD Capacity | Up to 256 GB |
| Network Port | RJ45 10/100 Mbps |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF Support | Profile S / Profile T |
| Video Protocol | JetSparrow |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Consumption | Max 7.2 W |
| DC Power Supply | 12V DC ±20%, 1A |
| DC Power Consumption | Max 6.1 W |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | Up to 90% |
| Protection Rating | IP65, IK08 |
| Dimensions | 114 × 114 × 67 mm |
| Weight | 430 g |
| Colour Options | White / Black |
Warranty Information
24-Month Manufacturer Warranty
The Ajax DomeCam Mini HL is covered by a comprehensive 24-month manufacturer warranty against defects in materials and workmanship under normal operating conditions.
About Ajax Systems
Ajax Systems is a globally recognised leader in advanced security technology, offering professional intrusion protection, intelligent surveillance, automation, and life safety solutions. Ajax combines AI-powered analytics, encrypted communication technologies, and user-friendly management platforms to deliver complete protection for homes and businesses.
Practical Use Scenarios
-
Residential security systems
-
Retail stores
-
Commercial buildings
-
Office environments
-
Warehouse monitoring
-
Building entrances
-
Apartment complexes
-
Educational facilities
-
Reception and lobby surveillance
-
Indoor and outdoor perimeter monitoring
Datasheets & Resources
Available Resources
-
These resources provide detailed information on camera installation, network setup, video storage configuration, AI analytics, cybersecurity features, and advanced deployment scenarios.
SKU
AJAX#126269
Excellence for the Australian and New Zealand Market
The AJAX#126269 Ajax 5MP 2.8mm Mini Dome HL Camera has been selected for Australian and New Zealand security installations requiring reliable video surveillance, hybrid illumination technology, and intelligent analytics.
Key advantages include:
-
Genuine Ajax Systems product
-
5MP high-definition video recording
-
Hybrid LED and IR illumination
-
AI-powered human, vehicle and pet detection
-
True WDR image enhancement
-
Built-in microphone
-
Secure JetSparrow video transmission
-
ONVIF integration compatibility
-
IP65 weatherproof construction
-
IK08 vandal resistance
-
Ajax ecosystem integration
-
Authorised Australian and New Zealand distribution
-
Full manufacturer warranty support
This combination delivers professional-grade surveillance performance, advanced night-time visibility, and dependable operation across a wide range of residential and commercial applications.
FAQs
What is AJAX#126269 used for?
The AJAX#126269 is a professional AI-powered security camera designed for indoor and outdoor surveillance applications.
What resolution does AJAX#126269 support?
The AJAX#126269 supports video recording up to 2880 × 1620 (5MP) resolution.
Does AJAX#126269 feature Hybrid Light technology?
Yes. The AJAX#126269 includes Hybrid Light technology combining white LED and infrared illumination for enhanced night-time performance.
What viewing angle does AJAX#126269 provide?
The AJAX#126269 offers a wide horizontal viewing angle of up to 110°.
Does AJAX#126269 support AI object detection?
Yes. The AJAX#126269 can identify people, pets, and vehicles using intelligent AI analytics.
Can AJAX#126269 record audio?
Yes. The AJAX#126269 includes a built-in microphone for audio recording.
Does AJAX#126269 support local storage?
Yes. The AJAX#126269 supports microSD cards up to 256GB and Ajax NVR recording.
Is AJAX#126269 compatible with ONVIF systems?
Yes. The AJAX#126269 supports ONVIF Profile S and Profile T compatibility.
Is AJAX#126269 suitable for outdoor installations?
Yes. The AJAX#126269 is IP65 weatherproof and IK08 vandal resistant.
Does AJAX#126269 support Power over Ethernet?
Yes. The AJAX#126269 supports PoE via IEEE 802.3af/at standards and can also operate using a 12V DC power supply.
