Description
Product Description

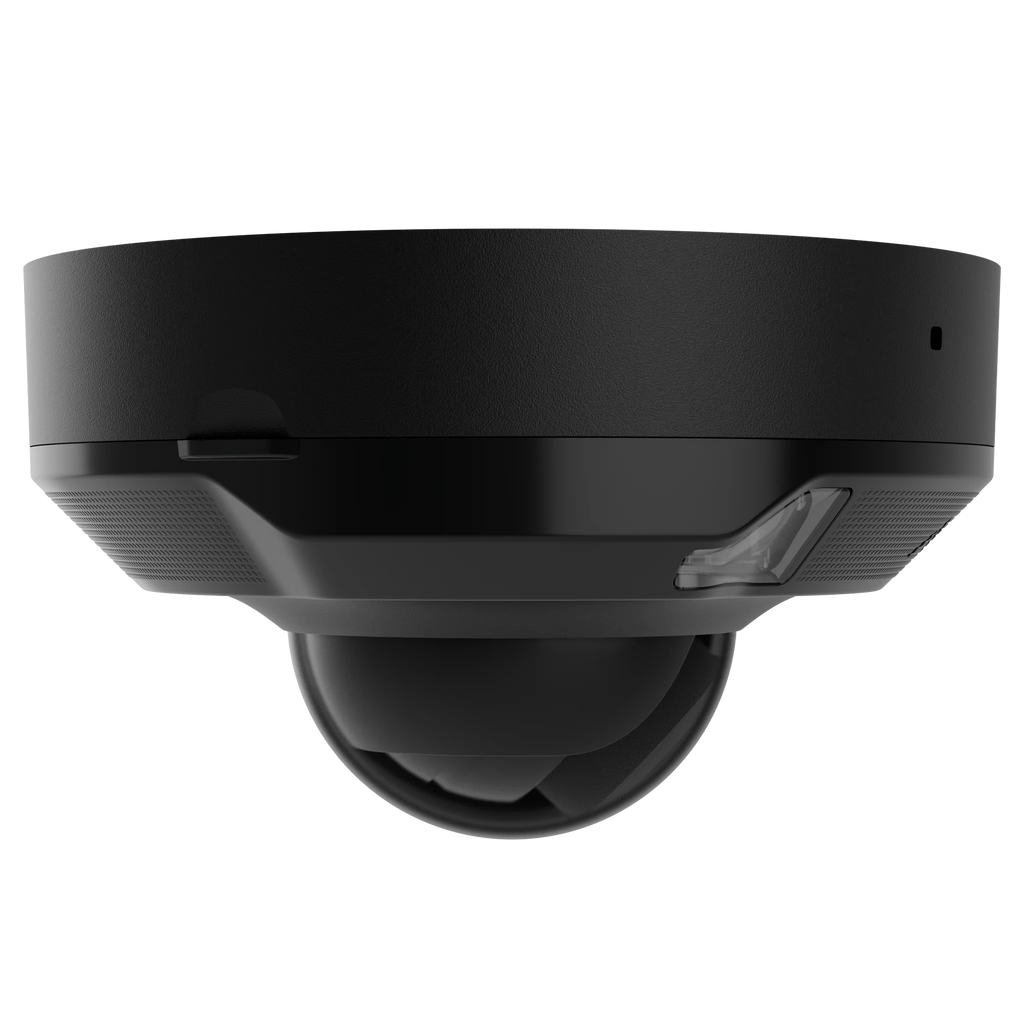

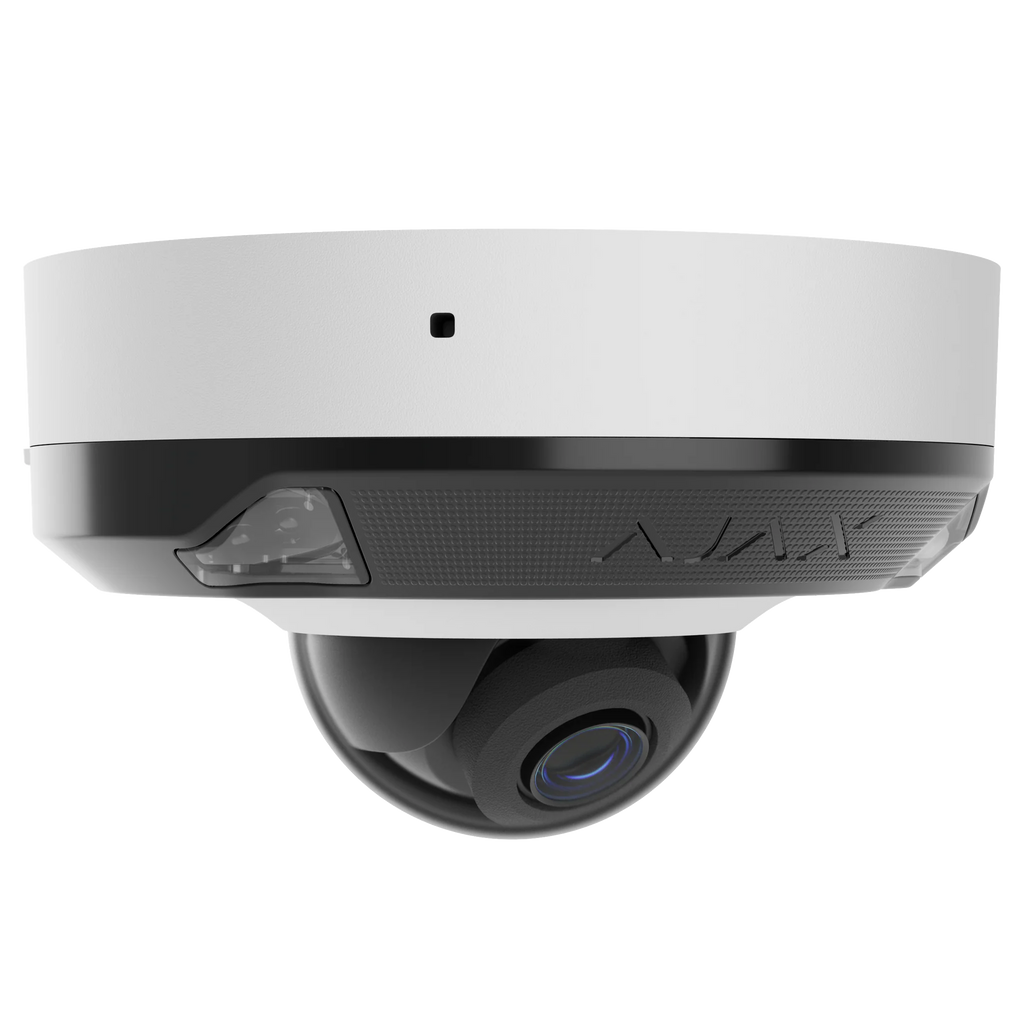

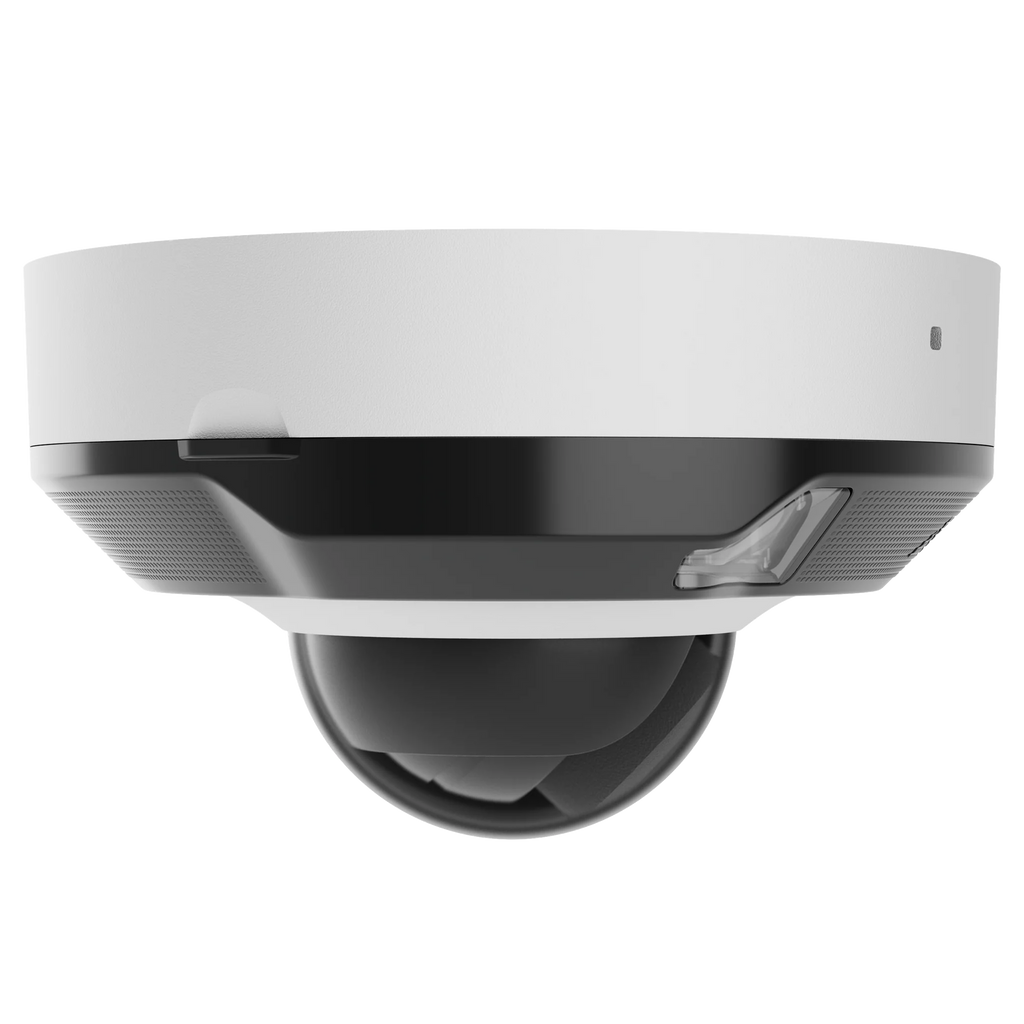

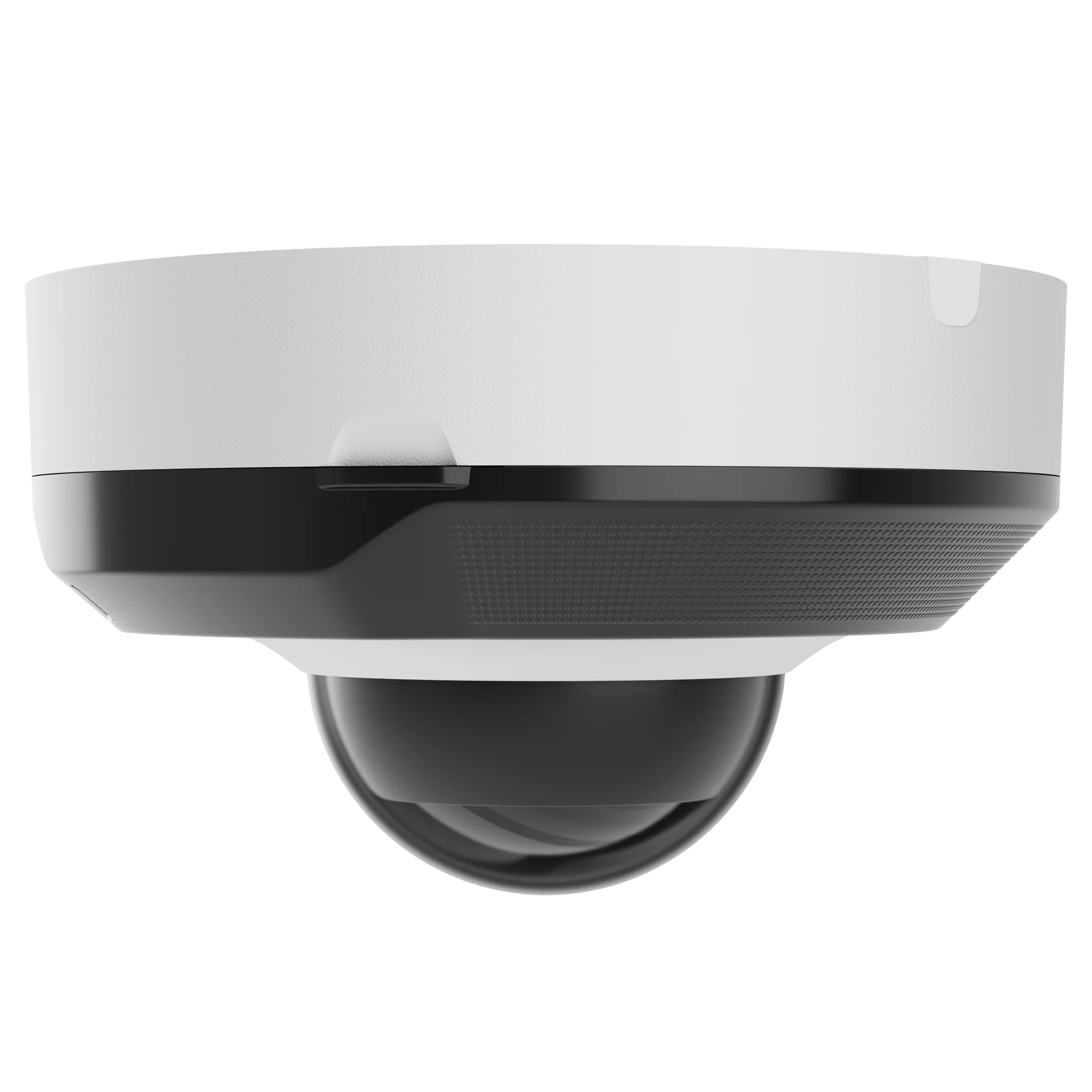

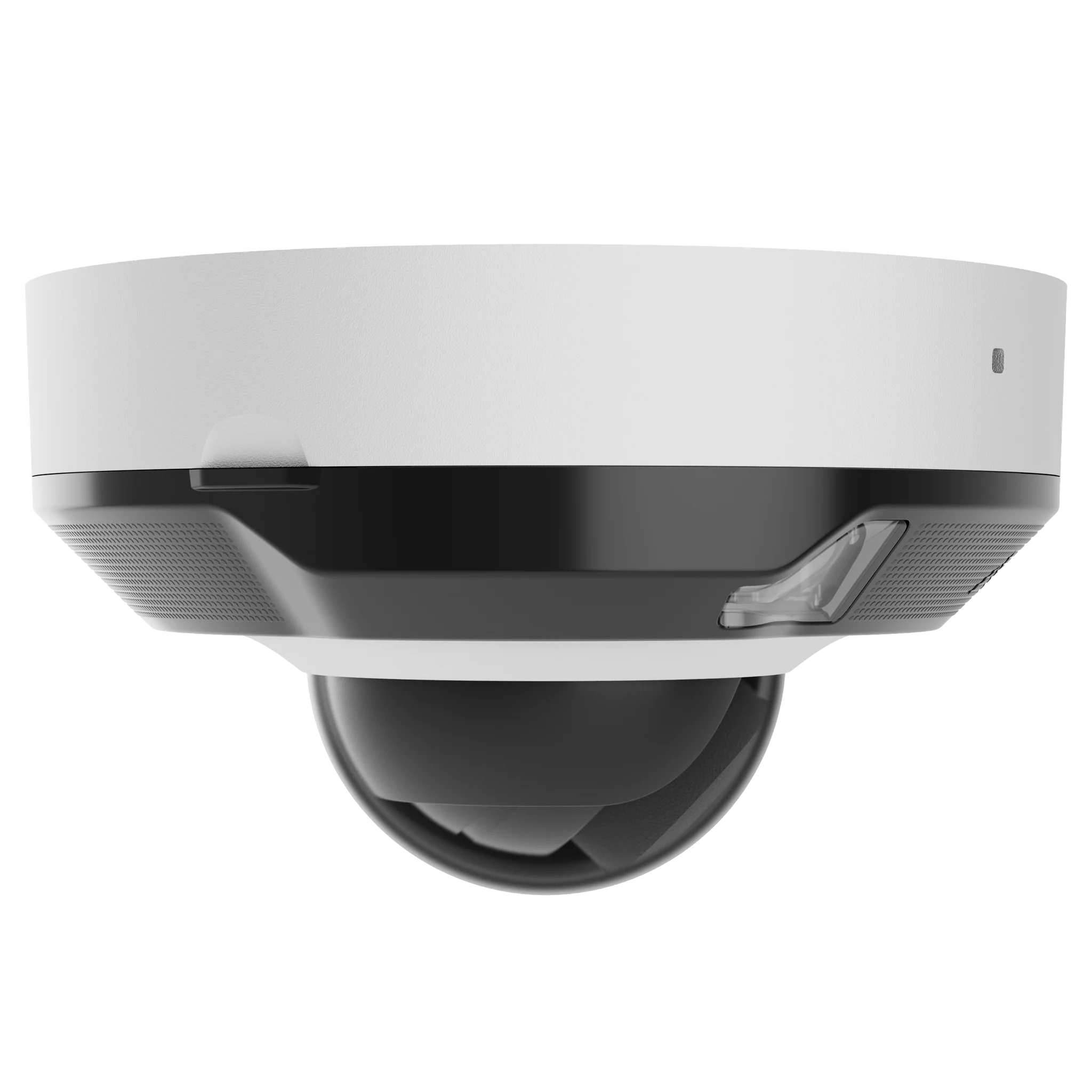

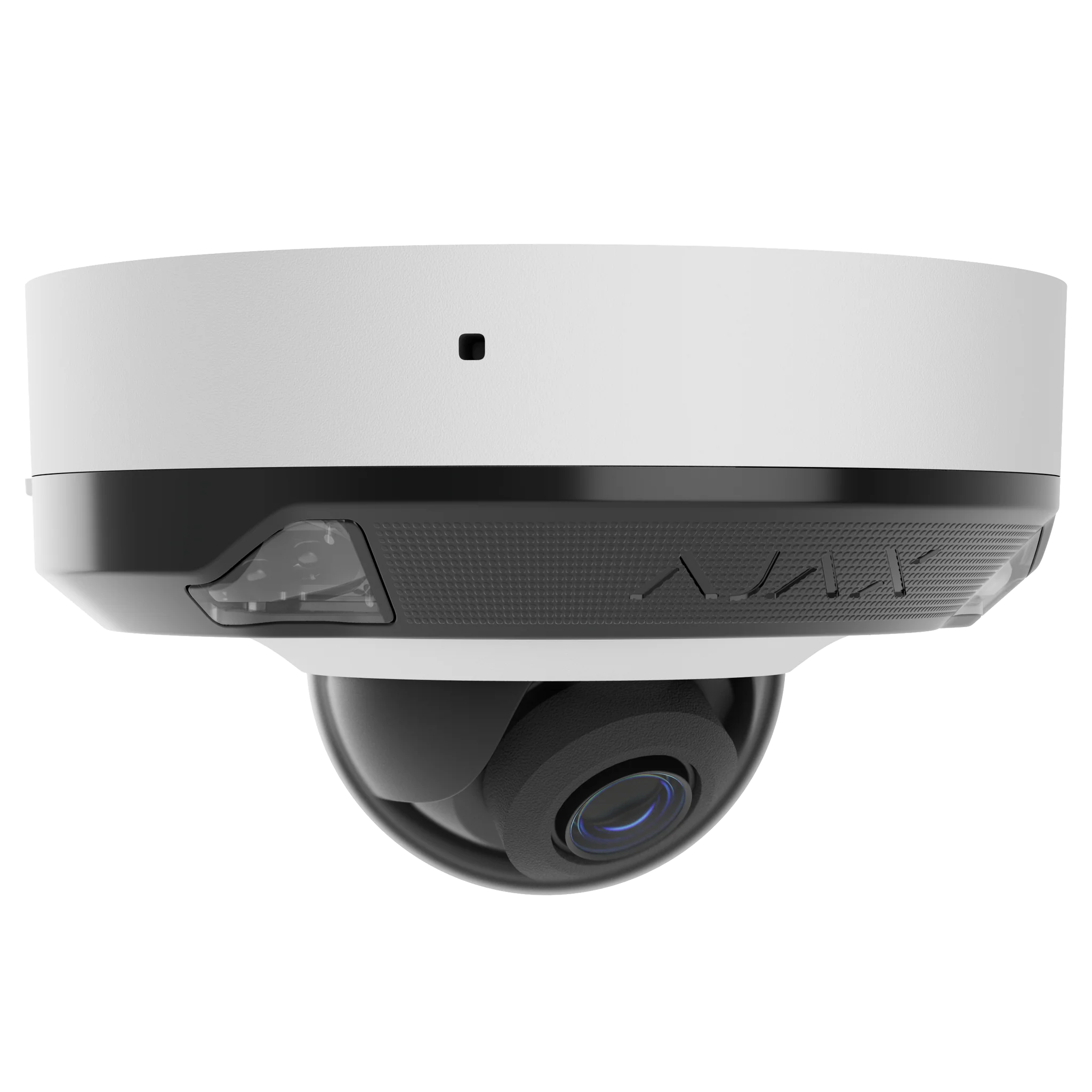

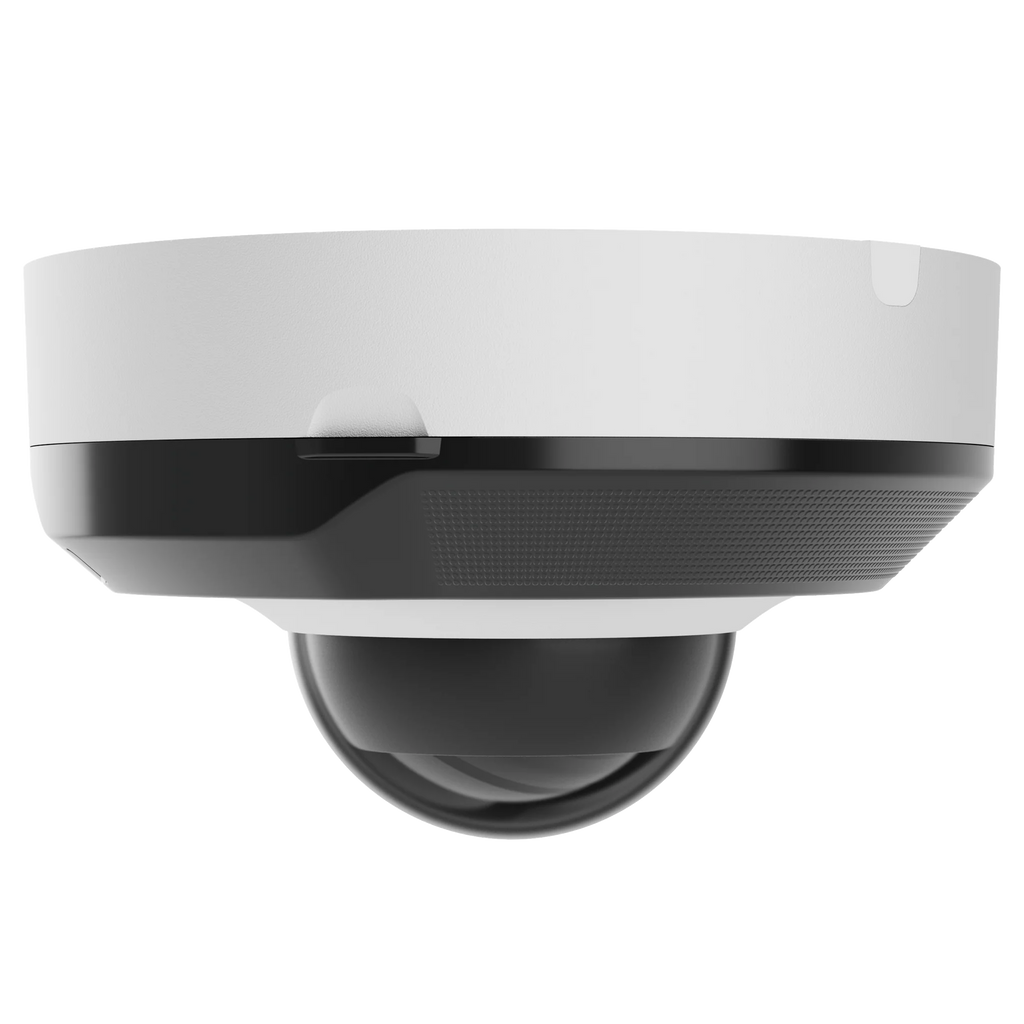

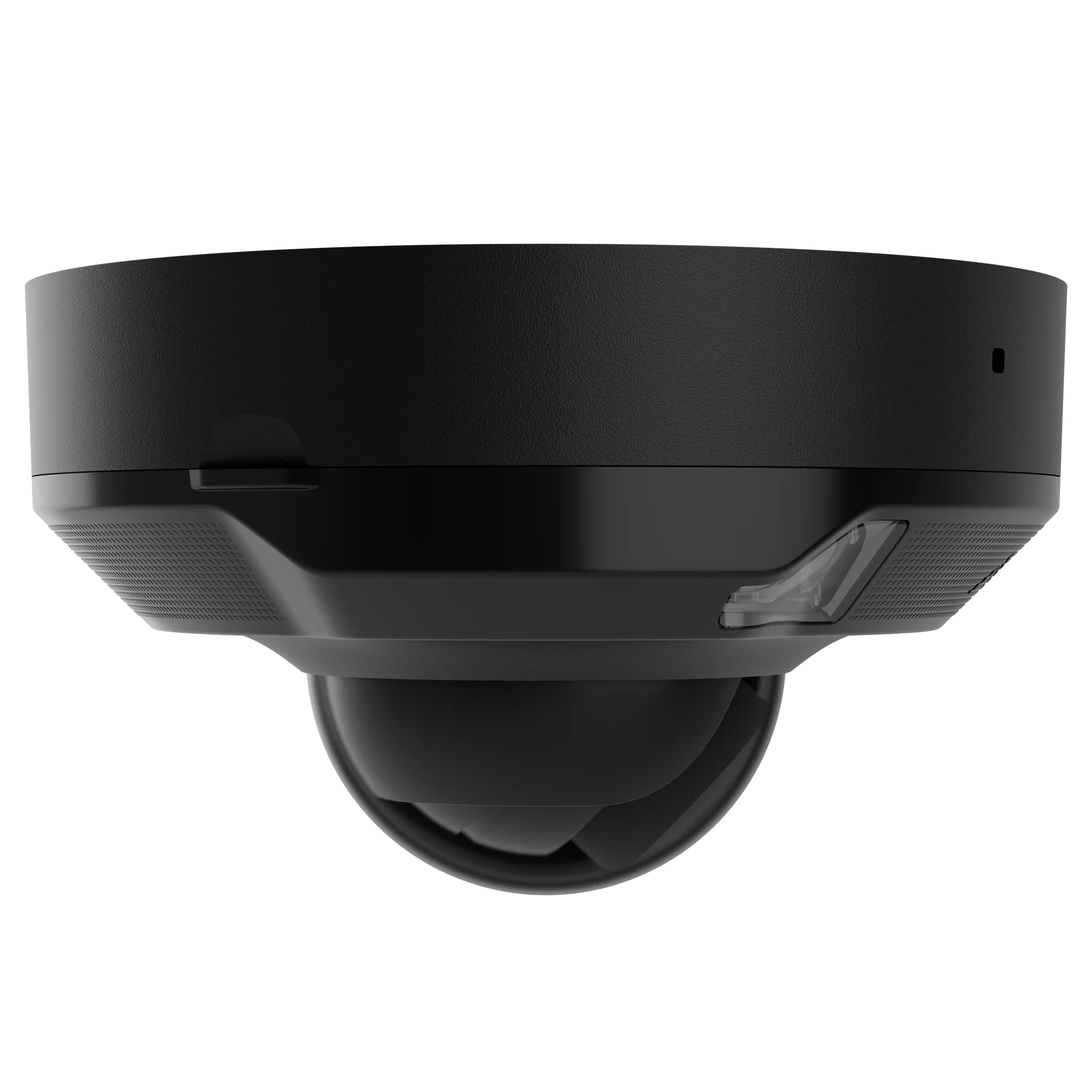

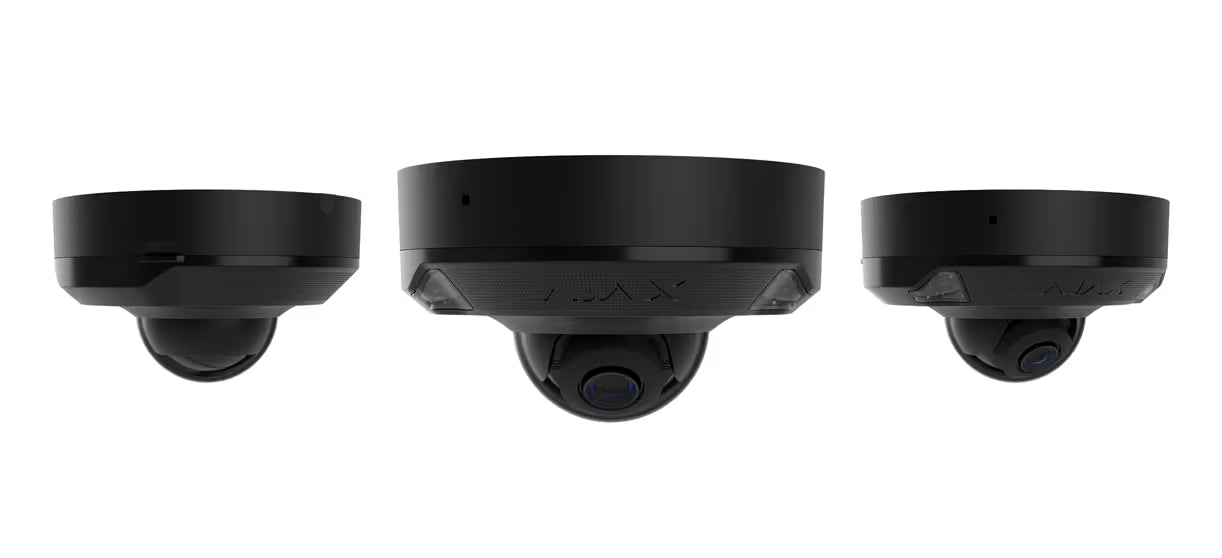

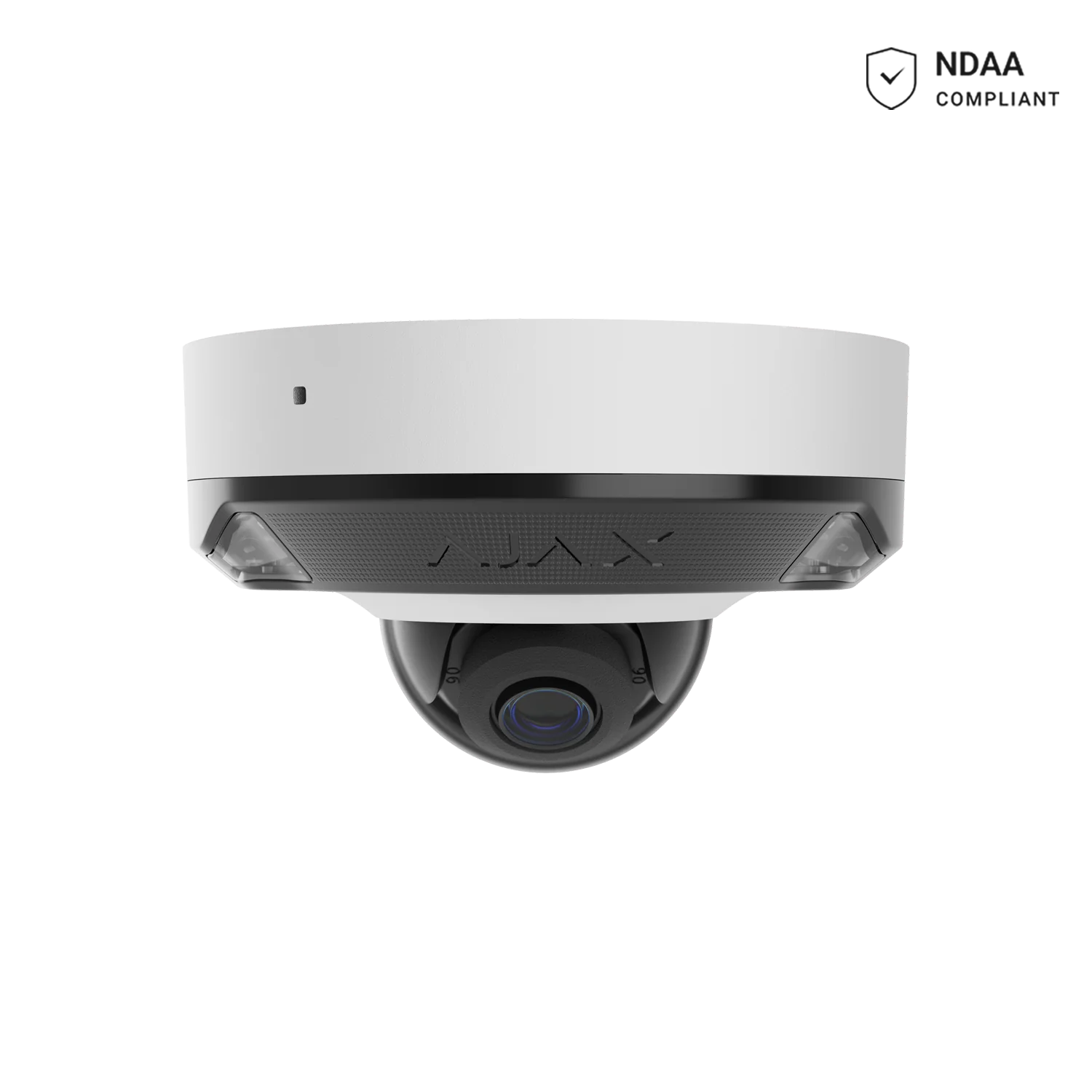

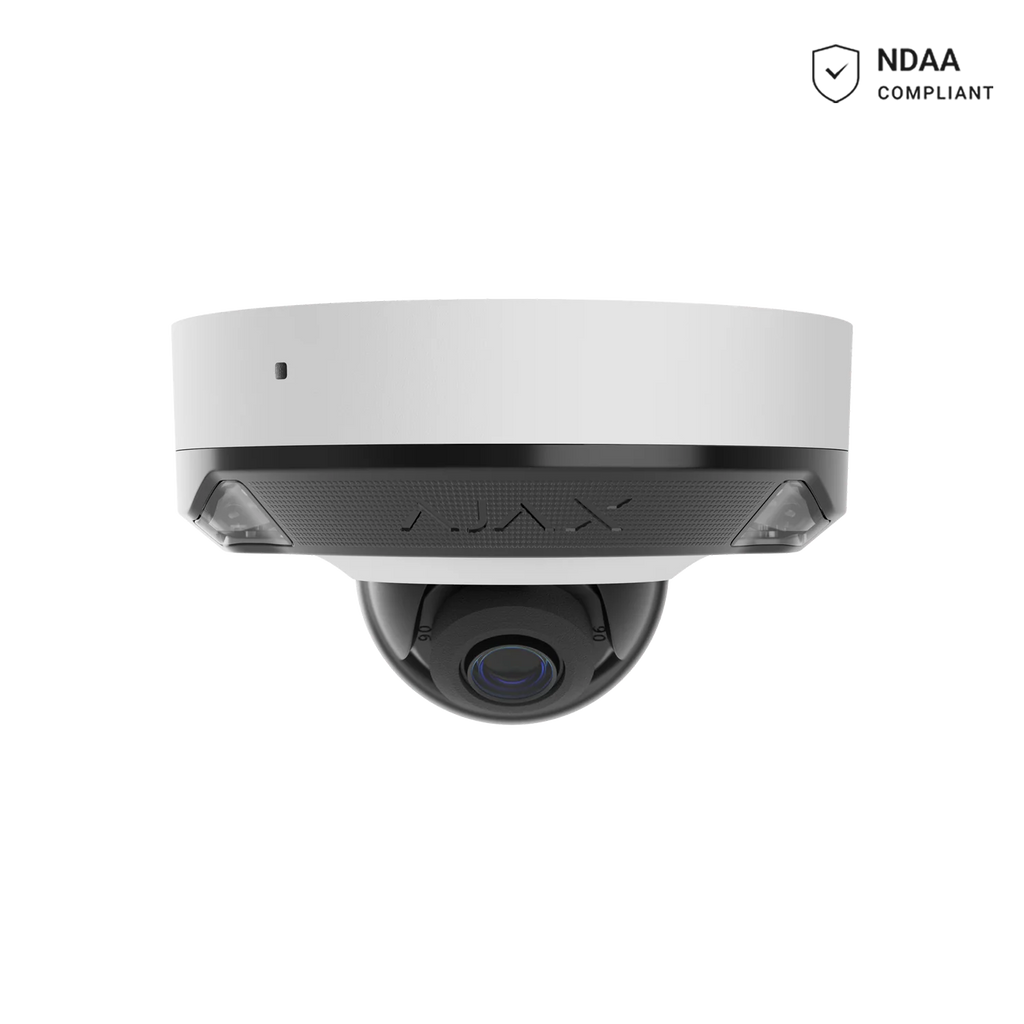

The AJAX#126271 Ajax 8MP 2.8mm Mini Dome HL Camera – White / Black is a premium AI-powered security camera engineered for high-performance video surveillance in residential, commercial, and industrial environments. Featuring ultra-high-definition 8MP 4K resolution, a wide 110° viewing angle, advanced Hybrid Light (HL) illumination, built-in microphone, True WDR imaging, AI-powered object recognition, and Ajax’s secure JetSparrow video protocol, this camera delivers exceptional image quality and reliable security monitoring day and night.
Designed for seamless integration into the Ajax ecosystem, the DomeCam Mini HL combines intelligent video analytics, hybrid infrared and white LED illumination, microSD and Ajax NVR recording options, ONVIF compatibility, and enterprise-grade cybersecurity protections. The compact vandal-resistant dome design makes it ideal for entrances, retail stores, offices, warehouses, schools, apartment buildings, and perimeter surveillance applications.
What's Included in the Box
-
DomeCam Mini HL (8 MP / 2.8 mm)
-
Installation Template
-
Installation Kit
-
Quick Start Guide
Main Features
Ultra HD 8MP Video Surveillance
-
Resolution up to 3840 × 2160 (4K Ultra HD)
-
Exceptional image clarity and detail
-
Up to 20 FPS video recording
Wide-Angle Coverage
-
Fixed 2.8mm lens
-
Horizontal viewing angle up to 110°
-
Excellent area coverage with fewer cameras required
Hybrid Light Technology
-
White LED illumination up to 15 metres
-
IR illumination up to 15 metres
-
Intelligent lighting control
-
Enhanced colour night vision performance
AI-Powered Object Detection
-
Human recognition
-
Vehicle detection
-
Pet detection
-
Reduced false alarms
Smart Motion Analytics
-
Advanced software-based motion detection
-
Intelligent event filtering
-
Faster incident verification
True WDR Imaging
-
120 dB True Wide Dynamic Range
-
Excellent performance in backlit and high-contrast environments
Secure JetSparrow Video Protocol
-
Fast encrypted video transmission
-
Low-latency live streaming
-
Enhanced cybersecurity
Built-In Audio Recording
-
Integrated microphone
-
High-quality audio capture
-
Multiple professional audio codec options
Flexible Storage Options
-
Supports Ajax NVR recording
-
Supports microSD cards up to 256GB
-
Local and centralised recording options
Professional Integration Support
-
ONVIF Profile S support
-
ONVIF Profile T support
-
Compatible with third-party VMS platforms
Built for Harsh Conditions
-
IP65 weatherproof housing
-
IK08 vandal-resistant protection
-
Suitable for indoor and outdoor installation
Detailed Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#126271 |
| Product Name | Ajax DomeCam Mini HL 8MP 2.8mm |
| Camera Type | Wired AI-Powered Hybrid Illumination IP Camera |
| Image Sensor | 8 MP CMOS, 1/2.7" |
| Maximum Resolution | 3840 × 2160 (4K UHD) |
| Lens | 2.8 mm Fixed |
| Aperture | f/1.6 |
| Viewing Angle | Horizontal 100°–110° |
| Vertical Viewing Angle | 50°–60° |
| Diagonal Viewing Angle | 125°–135° |
| Frame Rate | Up to 20 FPS |
| DORI Detection Distance | 90 m |
| DORI Observation Distance | 36 m |
| DORI Recognition Distance | 18 m |
| DORI Identification Distance | 9 m |
| White LED Illumination | Up to 15 m |
| IR Illumination | Up to 15 m |
| Minimum Illumination | 0.005 lux Colour |
| Video Compression | H.265 / H.264 |
| Dynamic Range | 120 dB True WDR |
| Image Rotation | 0°, 180° |
| Motion Detection | Intelligent Analytics |
| AI Detection | Humans, Pets, Vehicles |
| Audio | Built-In Microphone |
| Audio Codecs | G711-ULAW, G711-ALAW, G726, G722 |
| Storage Options | Ajax NVR, microSD |
| microSD Capacity | Up to 256 GB |
| Network Port | RJ45 10/100 Mbps |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF Compatibility | Profile S / Profile T |
| Video Protocol | JetSparrow |
| PoE Standard | IEEE 802.3af/at |
| PoE Consumption | Max 8.2 W |
| External Power Supply | 12V DC ±20%, 1A |
| DC Consumption | Max 7.1 W |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | Up to 90% |
| Protection Rating | IP65, IK08 |
| Dimensions | 114 × 114 × 67 mm |
| Weight | 430 g |
| Colour Options | White / Black |
Warranty Information
24-Month Manufacturer Warranty
The Ajax DomeCam Mini HL is backed by a 24-month manufacturer warranty, providing peace of mind and long-term reliability for professional security installations.
About Ajax Systems
Ajax Systems is an internationally recognised manufacturer of advanced security and surveillance solutions. Known for combining intelligent software, AI-powered analytics, encrypted communications, and modern design, Ajax delivers professional-grade protection for residential, commercial, and industrial environments worldwide.
Practical Use Scenarios
-
Residential security systems
-
Office buildings
-
Retail stores
-
Shopping centres
-
Warehouses
-
Educational facilities
-
Apartment complexes
-
Reception and lobby monitoring
-
Entry and exit point surveillance
-
Indoor and outdoor perimeter protection
Datasheets & Resources
Available Resources
These resources assist installers, integrators, and security professionals with deployment, configuration, integration, troubleshooting, and system optimisation.
SKU
AJAX#126271
Excellence for the Australian and New Zealand Market
The AJAX#126271 Ajax 8MP 2.8mm Mini Dome HL Camera has been selected to meet the demanding requirements of Australian and New Zealand residential and commercial security installations.
Key advantages include:
-
Genuine Ajax Systems product
-
Ultra HD 8MP 4K video recording
-
Hybrid Light technology with IR and white LED illumination
-
AI-powered human, vehicle, and pet detection
-
True WDR image enhancement
-
Built-in microphone
-
Secure JetSparrow encrypted video protocol
-
Ajax NVR integration
-
ONVIF compatibility for VMS integration
-
IP65 weatherproof construction
-
IK08 vandal-resistant housing
-
Professional-grade cybersecurity protections
-
Supplied through authorised Australian and New Zealand channels
-
Full manufacturer warranty support
This combination delivers exceptional image quality, intelligent detection, reliable operation, and professional-grade surveillance performance for modern security installations.
SEO FAQs
What is AJAX#126271 used for?
The AJAX#126271 is a professional 8MP AI-powered security camera designed for indoor and outdoor surveillance applications.
What resolution does AJAX#126271 support?
The AJAX#126271 supports ultra-high-definition video recording up to 3840 × 2160 (4K UHD).
Does AJAX#126271 include Hybrid Light technology?
Yes. The AJAX#126271 combines white LED and infrared illumination to improve image quality in low-light conditions.
What viewing angle does AJAX#126271 provide?
The AJAX#126271 features a wide horizontal viewing angle of up to 110°.
Does AJAX#126271 support AI analytics?
Yes. The AJAX#126271 includes AI-powered detection of people, pets, and vehicles.
Can AJAX#126271 record audio?
Yes. The AJAX#126271 includes a built-in microphone and supports multiple professional audio codecs.
Does AJAX#126271 support local storage?
Yes. The AJAX#126271 supports microSD cards up to 256GB and Ajax NVR recording.
Is AJAX#126271 compatible with ONVIF systems?
Yes. The AJAX#126271 supports ONVIF Profile S and Profile T integration.
Is AJAX#126271 suitable for outdoor installations?
Yes. The AJAX#126271 is IP65 weatherproof and IK08 vandal resistant.
Does AJAX#126271 support PoE?
Yes. The AJAX#126271 supports Power over Ethernet via IEEE 802.3af/at standards and can also operate using a 12V DC power supply.
