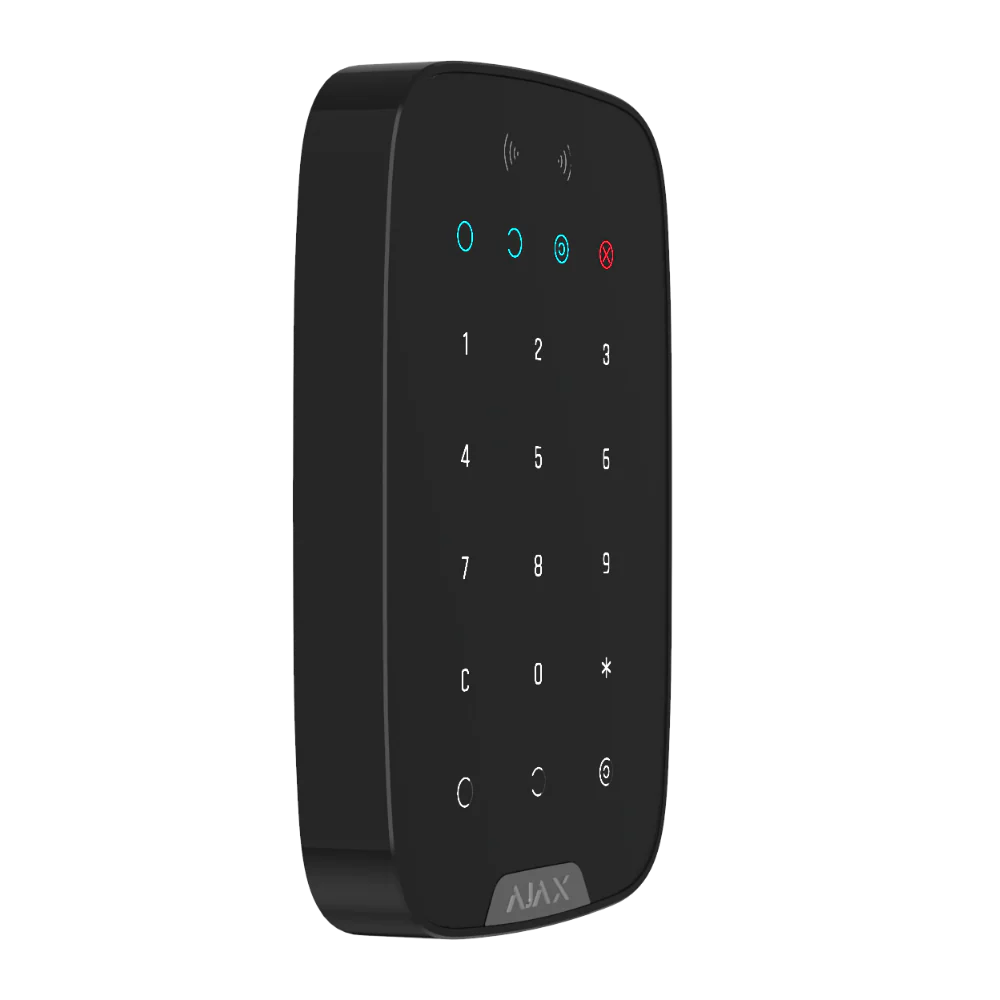

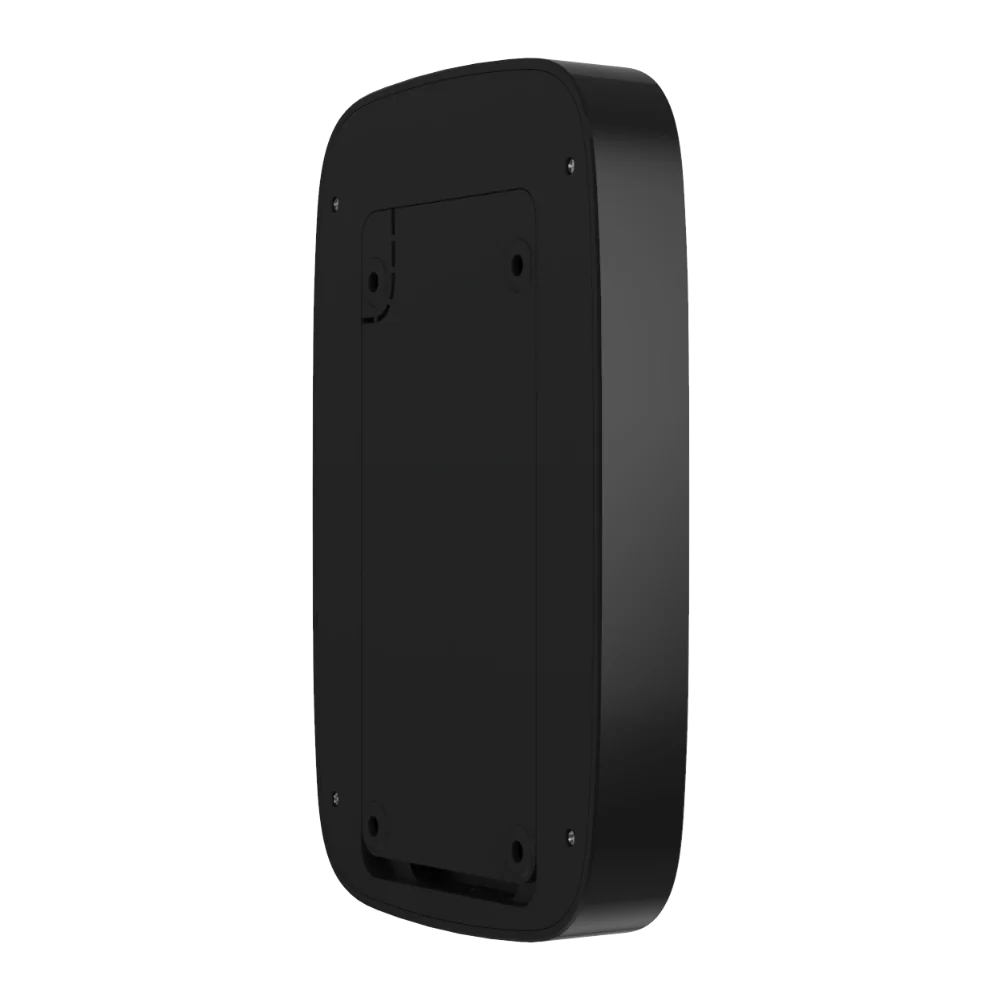

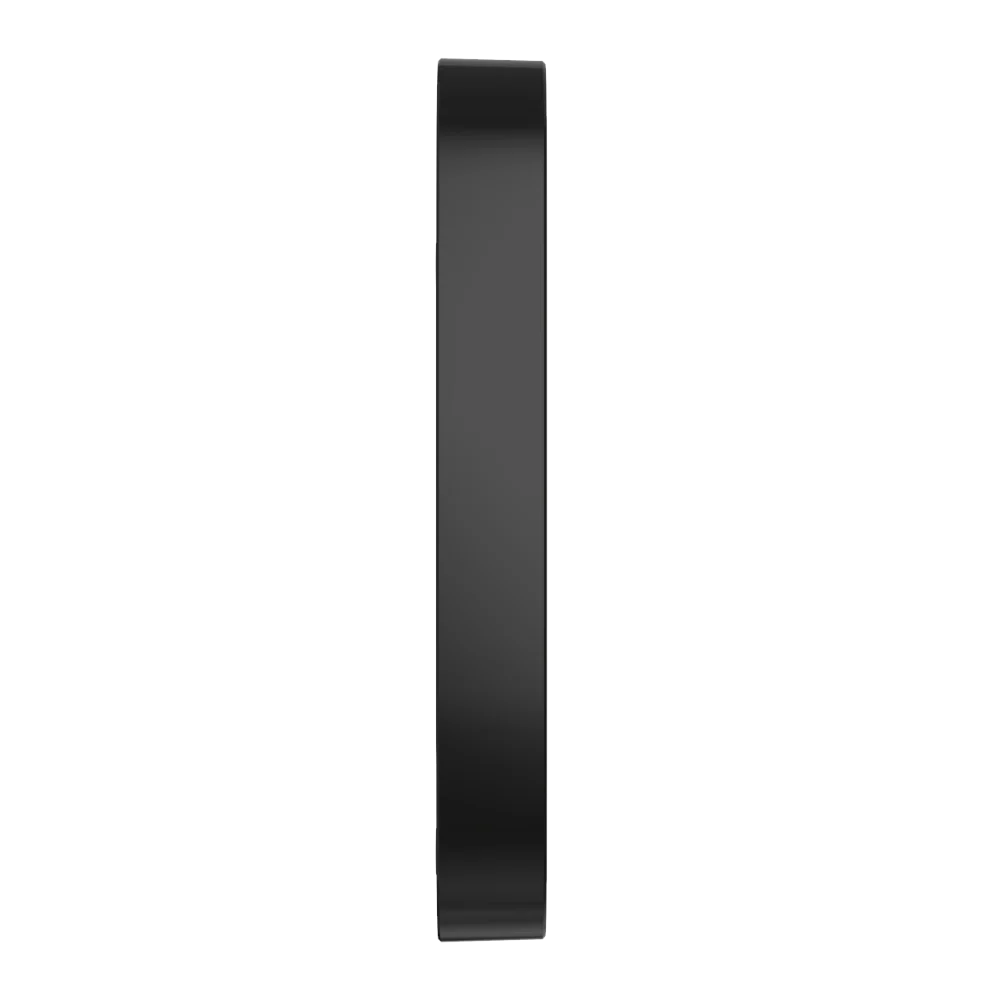

The Ajax KeyPad Jeweller (Black) is a compact and secure wireless touch keypad designed to provide convenient control of Ajax security systems. Built with Ajax’s proprietary Jeweller two-way wireless communication technology, the keypad enables users to arm, disarm, and manage security groups using personal access codes while maintaining encrypted communication with the Ajax hub. With capacitive touch controls, LED system status indicators, anti-sabotage protection, and up to 2 years of battery life, the AJAX#30643 KeyPad Jeweller is a reliable and stylish control interface for modern residential and commercial alarm installations.
What’s Included in the Box
-
Ajax KeyPad Jeweller (Black)
-
SmartBracket mounting panel
-
4 × AAA batteries (pre-installed)
-
Installation kit
-
Quick start guide
Main Features
-
Wireless capacitive touch keypad for Ajax alarm system control
-
Jeweller wireless communication technology with encrypted two-way communication
-
Wireless range up to 1,700 m in open space
-
LED indicators for security mode, faults, and hub communication
-
Functional button with configurable alarm or fire mute options
-
Supports up to 200 personal access codes
-
Supports up to 200 duress codes
-
Supports up to 99 codes for unregistered users
-
Automatic keypad lock after repeated incorrect code attempts
-
Tamper protection for unauthorized device removal
-
Battery life up to 2 years
-
Designed for indoor installation
Detailed Specifications
Communication Technology
Jeweller communication technology
-
Proprietary Ajax wireless protocol for commands, alarms, and events
-
Two-way communication between keypad and hub
-
Advanced anti-sabotage protection
-
Block encryption with dynamic key
-
Instant notifications in Ajax apps
-
Remote configuration via Ajax mobile and desktop applications
Frequency Bands
-
866.0 – 866.5 MHz
-
868.0 – 868.6 MHz
-
868.7 – 869.2 MHz
-
905.0 – 926.5 MHz
-
915.85 – 926.5 MHz
-
921.0 – 922.0 MHz
(Depends on the sales region)
Radio Performance
-
Maximum effective radiated power: up to 20 mW ERP
-
Radio signal modulation: GFSK
-
Radio signal range: up to 1,700 m in open space
-
Frequency hopping technology to prevent interference and jamming
-
Encrypted wireless communication with dynamic key protection
Control and User Interface
Sensor Type
-
Capacitive touch keypad
LED Status Indication
When active, the keypad uses LED indicators to display:
-
Current security mode
-
Detector malfunctions
-
Communication loss with the hub
Functional Button Modes
The functional button can operate in one of three modes:
-
Alarm – sends an alarm signal to monitoring stations and activates connected sirens
-
Mute fire alarm – silences interconnected fire detector alarms
-
Off – disables the functional button
Access Control
Supported Access Codes
-
Up to 200 personal access codes
-
1 keypad code per device
-
Up to 200 personal duress codes
-
Up to 99 codes for unregistered users
Group Security Management
Users can manage specific security groups by entering the general keypad code and group ID.
ACE Type
-
Type B
Sabotage Protection
-
Code guessing protection – keypad locks for 3–180 minutes after three incorrect code attempts within one minute
-
Tamper alarm when the keypad is detached from the mounting surface
-
Device authentication to prevent spoofing attempts
-
Communication loss detection after 36 seconds
(Depending on Jeweller or Jeweller/Fibra configuration)
Power Supply
-
Batteries: 4 × AAA (pre-installed)
-
Battery type: Type C
-
Estimated battery life: up to 2 years
Electrical Characteristics
-
Operating voltage range: 1.9–3.3 V⎓
-
Nominal operating voltage: 3 V⎓
-
Quiescent current consumption: 86.5 µA
-
Maximum current consumption: 225 mA
-
Full battery capacity: 2,000 mAh
Battery Status Levels
-
Low battery voltage: 2.15 V
-
Recovery voltage: 2.6 V
-
End-of-life voltage: 1.9 V
-
End-of-life battery capacity: 150 mAh
Battery manufacturer: Huiderui
Physical Specifications
-
Dimensions: 150 × 103 × 14 mm
-
Weight: 197 g
-
Operating temperature: −10°C to +40°C
-
Operating humidity: up to 75%
-
Colour: Black
-
Installation: Indoor use only
Warranty
The Ajax KeyPad Jeweller (AJAX#30643) includes a 24-month manufacturer warranty, ensuring reliable performance and manufacturer-backed support.
Brand – Ajax Systems
Ajax Systems is a globally recognised manufacturer of advanced wireless security systems. Combining modern design, encrypted wireless protocols, and reliable automation technologies, Ajax products are widely used in homes, commercial properties, and professional security installations worldwide.
SKU
AJAX#30643
Practical Use Scenarios
-
Residential alarm systems requiring convenient keypad access
-
Office security systems with multiple authorised users
-
Retail businesses managing daily opening and closing procedures
-
Small commercial facilities with group-based alarm control
-
Professional security installations requiring wireless keypad control
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The AJAX#30643 KeyPad Jeweller (Black) is suitable for professional security installations throughout Australia and New Zealand, supporting regional wireless frequency requirements and modern alarm system standards. Devices supplied through authorised distribution channels ensure genuine Ajax hardware, manufacturer-backed warranty support, and reliable service for installers and end users across the ANZ security market.
FAQs
What is the AJAX#30643 KeyPad Jeweller used for?
The AJAX#30643 keypad allows users to arm, disarm, and control Ajax security systems using access codes.
What wireless technology does AJAX#30643 use?
AJAX#30643 uses Ajax Jeweller wireless communication technology with encrypted two-way communication.
What is the wireless range of AJAX#30643?
The AJAX#30643 keypad can communicate with the Ajax hub at distances of up to 1,700 metres in open space.
How many access codes can AJAX#30643 support?
AJAX#30643 supports up to 200 personal user codes, 200 duress codes, and 99 codes for unregistered users depending on the hub model.
Does AJAX#30643 have an emergency alarm function?
Yes, AJAX#30643 includes a functional button that can trigger an alarm or mute fire alarms depending on configuration.
Is AJAX#30643 suitable for outdoor installation?
No, AJAX#30643 is designed strictly for indoor installation.
What batteries does AJAX#30643 use?
AJAX#30643 uses 4 AAA batteries, which are included pre-installed.
How long does the battery last in AJAX#30643?
The AJAX#30643 KeyPad Jeweller provides an estimated battery life of up to 2 years under normal usage.
What colour is AJAX#30643?
AJAX#30643 is the black version of the Ajax KeyPad Jeweller.
Does AJAX#30643 include mounting hardware?
Yes, AJAX#30643 includes the SmartBracket mounting panel and installation kit for easy installation.
