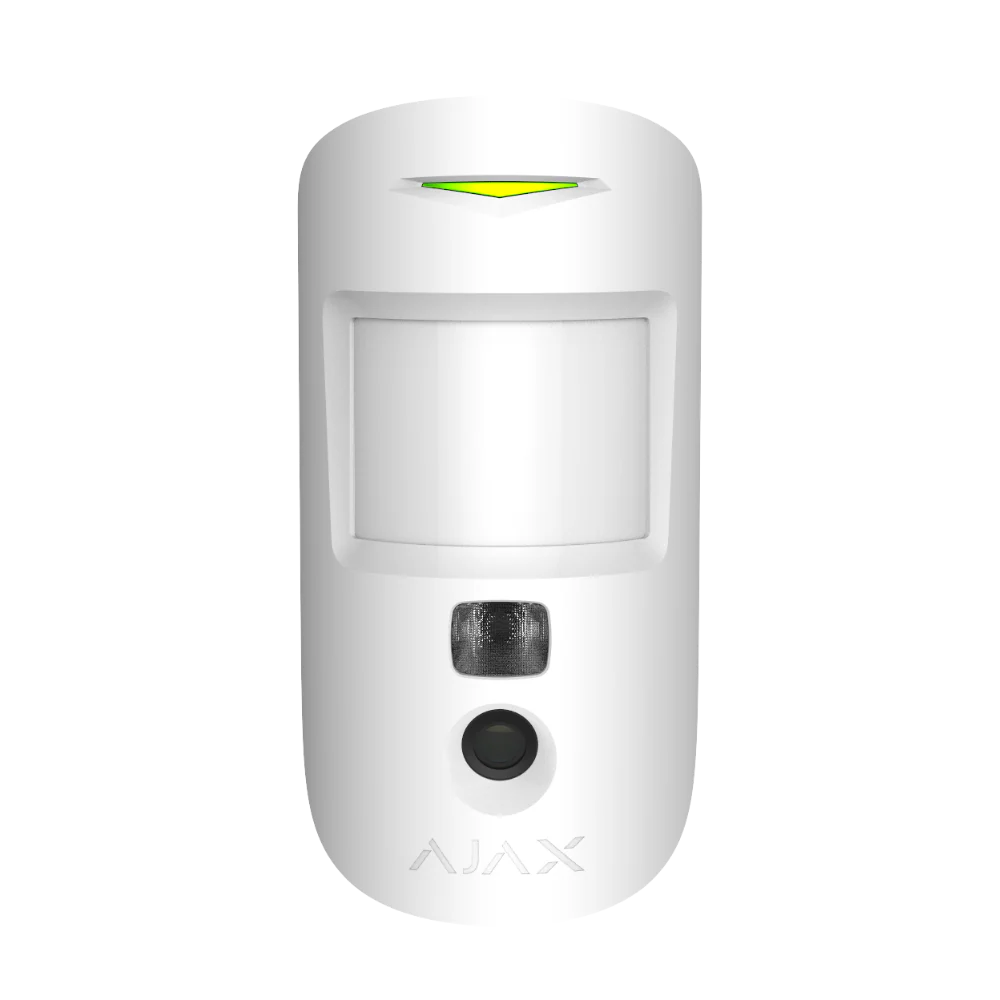

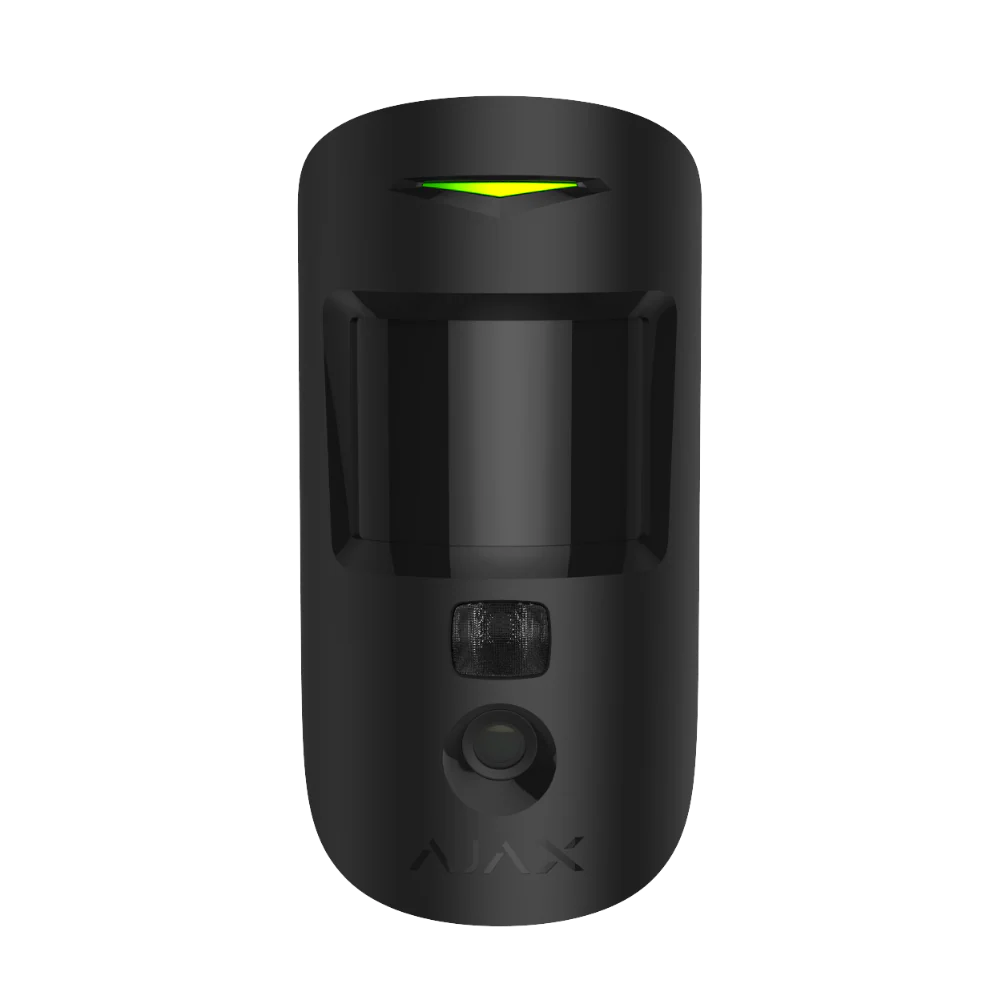

The AJAX#30652 Ajax MotionCam Jeweller Wireless PIR Motion Detector – White / Black is an advanced indoor motion sensor featuring integrated photo verification technology for visual alarm confirmation during intrusion events. Combining accurate PIR motion detection with Ajax’s encrypted Jeweller and Wings wireless communication technologies, the MotionCam instantly notifies users and transmits a series of images when motion is detected, helping verify real threats while reducing unnecessary security responses.
Designed for residential and commercial security applications, the MotionCam Jeweller offers motion detection up to 12 metres, intelligent SmartDetect false alarm prevention, pet immunity support, and secure encrypted image transmission with photo delivery in as little as 7 seconds. With built-in IR backlighting for low-light visibility and up to 4 years battery life, this detector provides professional-grade indoor protection across Australia and New Zealand.
What’s Included in the Box
- Ajax MotionCam Jeweller Detector

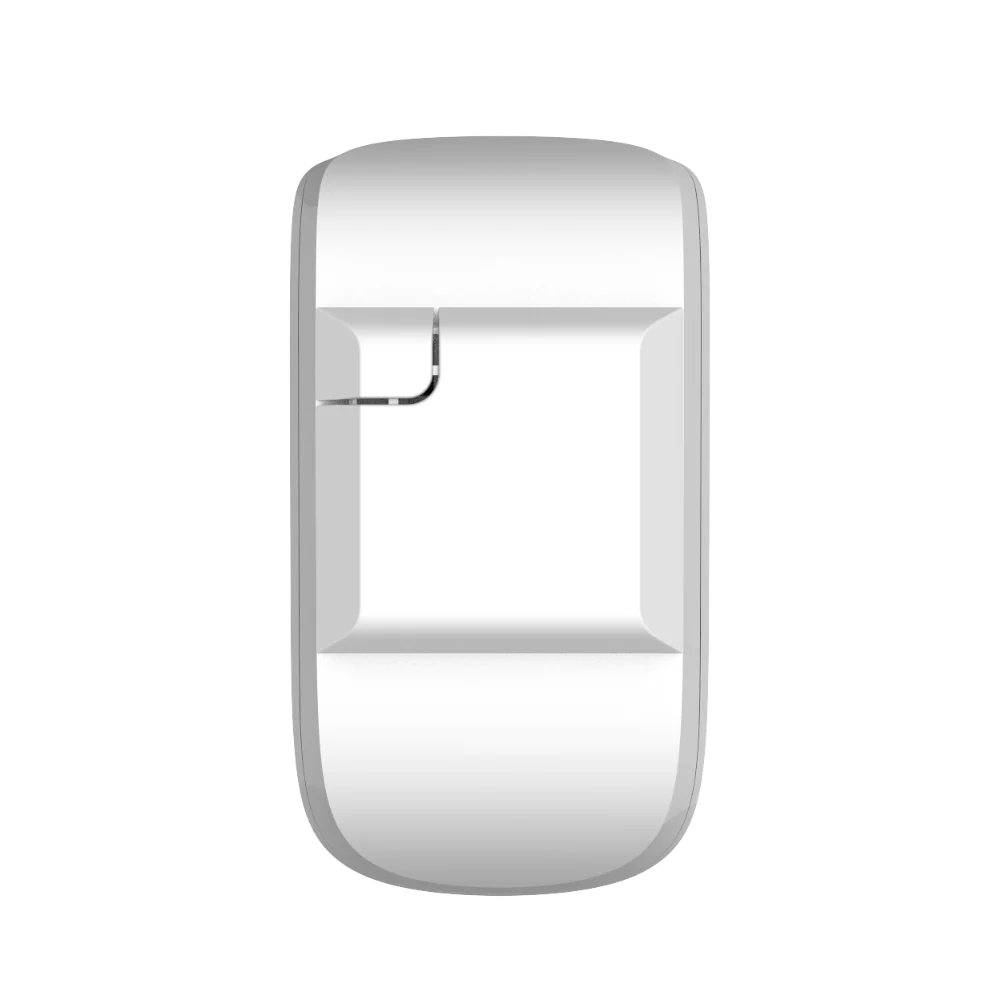

- SmartBracket Mounting Panel
- 2 × CR123A Batteries (Pre-installed)
- Installation Kit
- Quick Start Guide
Main Features
Motion Detection with Photo Verification
- Built-in camera captures images during alarm events
- Visual verification reduces false alarm uncertainty
Advanced Wireless Communication
- Ajax Jeweller technology for alarms and events
- Ajax Wings technology for encrypted photo transmission
- Up to 1700 m wireless communication range
Fast Photo Delivery
- Image delivery from:
- 7 seconds (160 × 120 px)
- 9 seconds (320 × 240 px)
- 20 seconds (640 × 480 px)
High-Quality Image Capture
- Adjustable resolutions:
- 160 × 120 px
- 320 × 240 px
- 640 × 480 px
- HDR image support on compatible firmware
- IR backlight for night vision
Reliable Motion Detection
- Detects movement up to 12 metres
- Wide 88.5° horizontal detection angle
Pet Immunity
- Ignores pets up to:
- 20 kg weight
- 50 cm height
False Alarm Prevention
- SmartDetect software algorithms
- Temperature compensation for stable performance
Long Battery Life
- Up to 4 years battery life
- Powered by 2 × CR123A batteries
Technical Specifications
| Specification |
Details |
| Product Code |
AJAX#30652 |
| Product Name |
Ajax MotionCam Jeweller |
| Detection Type |
PIR Motion Detector with Camera |
| Motion Detection Distance |
Up to 12 m |
| Detection Angle |
88.5° horizontal |
| Motion Detection Speed |
0.3–2.0 m/s |
| Wireless Technologies |
Jeweller + Wings |
| Wireless Range |
Up to 1700 m |
| Frequency Bands |
866–926 MHz (region dependent) |
| Image Resolutions |
160×120 / 320×240 / 640×480 px |
| Photo Series |
1–5 images depending on resolution |
| Photo Delivery Time |
7–20 seconds |
| IR Backlight |
Yes |
| HDR Support |
Yes (firmware dependent) |
| Sensitivity Levels |
3 adjustable levels |
| Pet Immunity |
Up to 20 kg / 50 cm |
| Battery Type |
2 × CR123A |
| Battery Life |
Up to 4 years |
| Operating Temperature |
−10°C to +40°C |
| Humidity Range |
Up to 75% |
| Protection Rating |
IP50 |
| Dimensions |
135 × 70 × 60 mm |
| Weight |
170 g |
| Installation Type |
Indoor |
| Colour Options |
White / Black |
Practical Use Scenarios
Residential Security Systems
Provides visual alarm verification for homes, apartments, and entry points.
Commercial & Retail Security
Allows staff and monitoring centres to confirm alarm events quickly.
Smart AJAX Alarm Installations
Integrates seamlessly with Ajax hubs, sirens, and monitoring systems.
Night-Time Security Monitoring
IR backlighting ensures image visibility in low-light conditions.
Warranty Information
Manufacturer Warranty: 24 Months
About Ajax Systems
Ajax Systems is a globally recognized leader in professional wireless security technology, delivering intelligent intrusion detection, encrypted communication, and advanced smart alarm systems trusted worldwide.
Excellence for the Australian and New Zealand Market
This product is supplied through authorized distribution channels to ensure compatibility with Australian and New Zealand security standards and wireless regulations.
Key advantages include:
- Genuine Ajax Systems product
- AU/NZ compatible wireless frequencies
- Secure encrypted photo transmission
- Professional installer-friendly integration
- Warranty support through authorized suppliers
This ensures customers receive a secure, compliant, and highly reliable visual verification security solution suitable for residential and commercial installations across Australia and New Zealand.
Datasheets & Resources
FAQs – AJAX#30652
1. What is the AJAX#30652 MotionCam Jeweller used for?
The AJAX#30652 MotionCam Jeweller is a wireless indoor motion detector with built-in photo verification technology.
2. Does the AJAX#30652 MotionCam take pictures all the time?
No, the AJAX#30652 MotionCam only captures images when motion is detected while the system is armed.
3. What is the detection range of the AJAX#30652 MotionCam?
The AJAX#30652 MotionCam detects motion up to 12 metres away.
4. How quickly does the AJAX#30652 send photos after an alarm?
The AJAX#30652 MotionCam can deliver images in as little as 7 seconds depending on image resolution and network conditions.
5. Does the AJAX#30652 support night vision?
Yes, the AJAX#30652 MotionCam includes an IR backlight for low-light and night-time image capture.
6. Is the AJAX#30652 suitable for outdoor use?
No, the AJAX#30652 MotionCam Jeweller is designed for indoor use only.
