Product Description

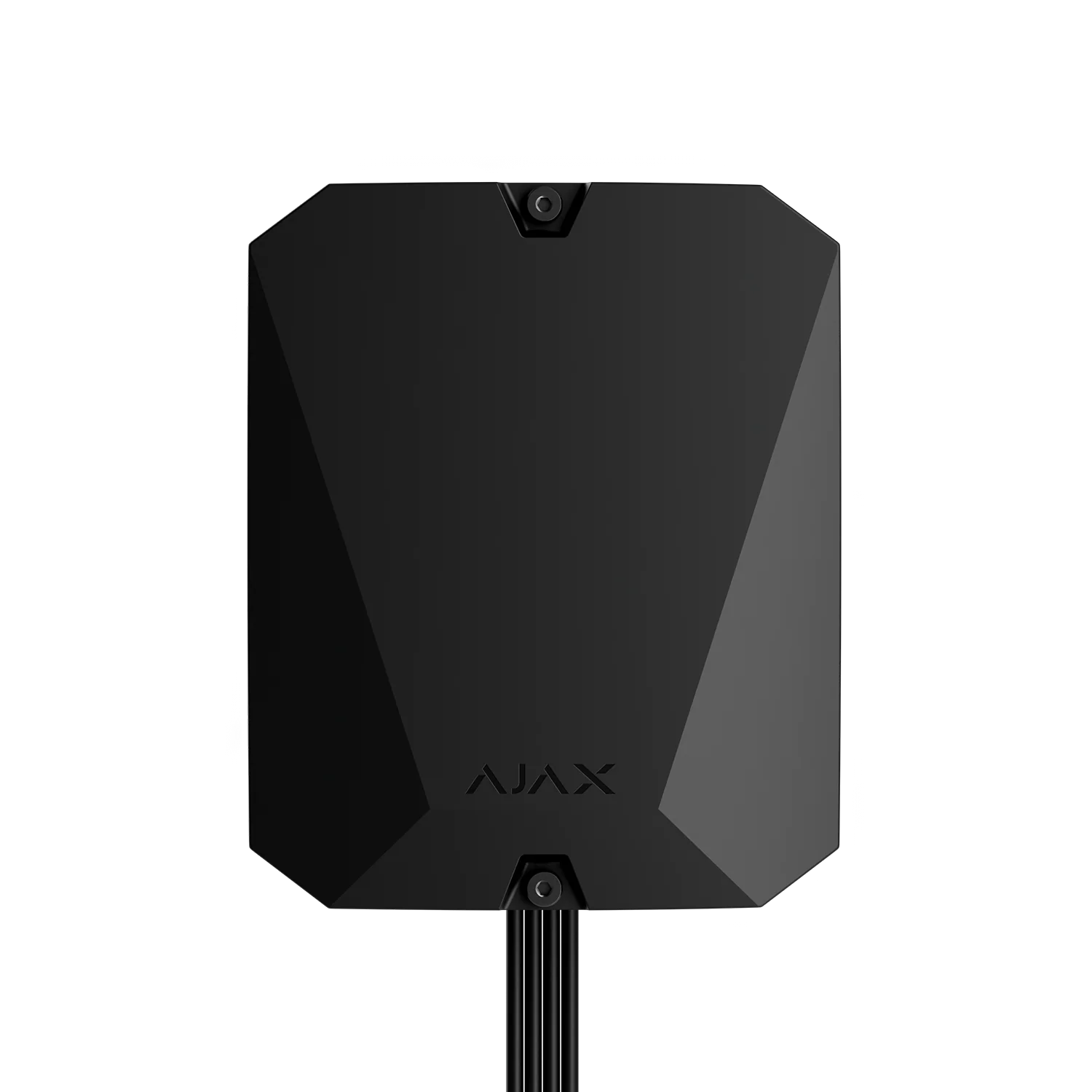

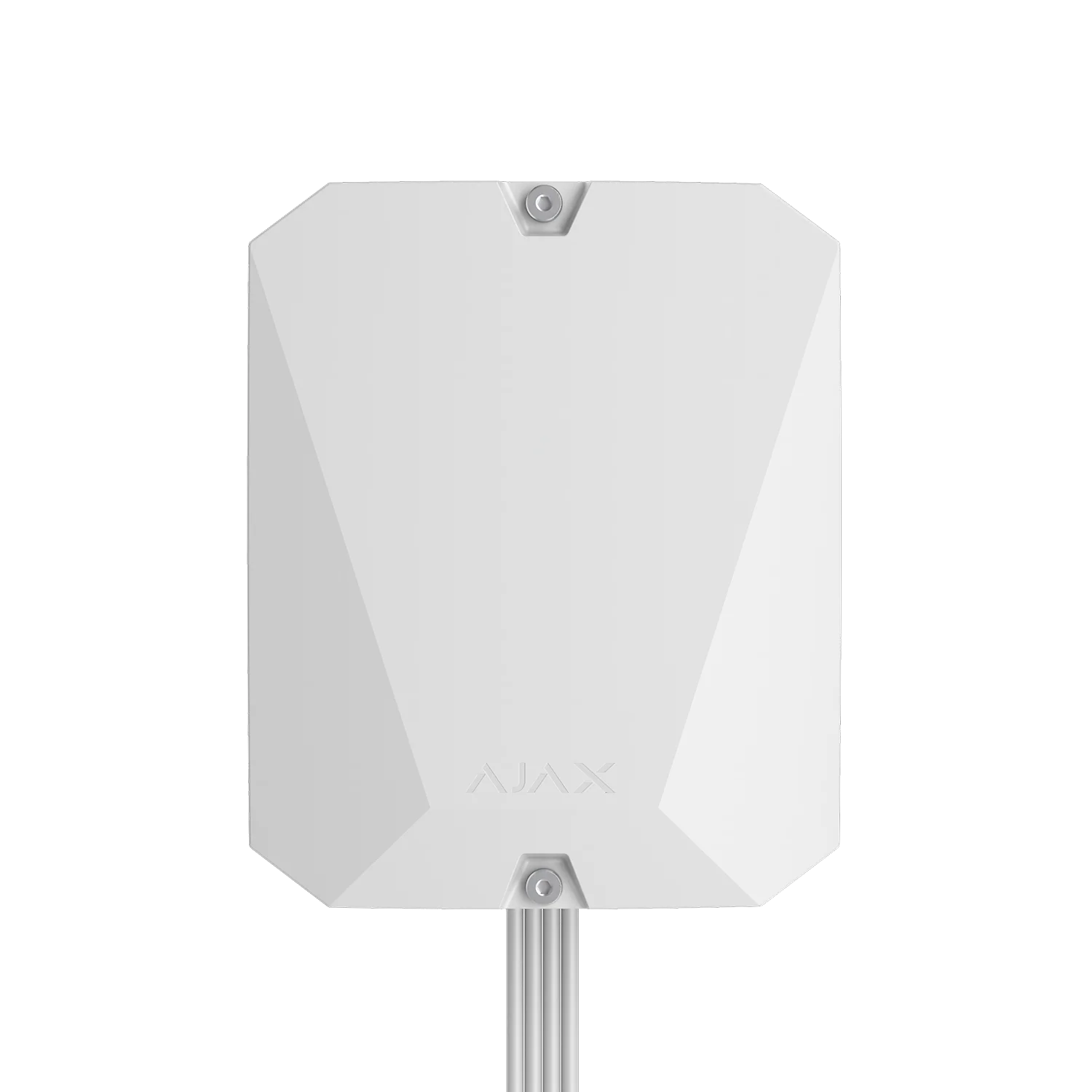

The AJAX#44409 Ajax Superior MultiTransmitter Fibra is a professional wired integration module designed to connect third-party wired detectors and security devices to an Ajax Fibra security system. Featuring support for up to 18 wired zones, the MultiTransmitter Fibra enables security installers to modernise existing alarm systems without replacing legacy sensors, reducing upgrade costs while gaining access to Ajax's advanced security ecosystem.

Using encrypted Fibra communication technology, the module delivers secure event transmission, remote configuration, real-time monitoring, and advanced anti-sabotage protection. It supports multiple connection types, EOL resistor scanning, configurable alarm event types, and versatile installation options, making it ideal for commercial, industrial, and residential security upgrades.

Available as a complete enclosure version or board-only version for installation inside compatible Ajax cases, Superior MultiTransmitter Fibra provides a powerful bridge between traditional wired detection systems and modern Ajax security platforms.

What's Included in the Box

Standard Version

• Superior MultiTransmitter Fibra

• Enclosure

• Power Cable

• 12V Battery Connection Cable

• Installation Kit

• Quick Start Guide

Board Version (Without Casing)

• Superior MultiTransmitter Fibra Board

• Power Cable

• 12V Battery Connection Cable

• Installation Kit

• Quick Start Guide

Main Features

• Supports up to 18 wired zones

• Integrates third-party wired detectors

• Fibra encrypted communication technology

• Communication range up to 2,000m

• EOL resistor scanning

• Multiple connection types

• Configurable alarm event types

• Pulse and bistable operating modes

• Remote configuration through Ajax apps

• Advanced anti-sabotage protection

• Compatible with Ajax hubs

• Supports backup battery connection

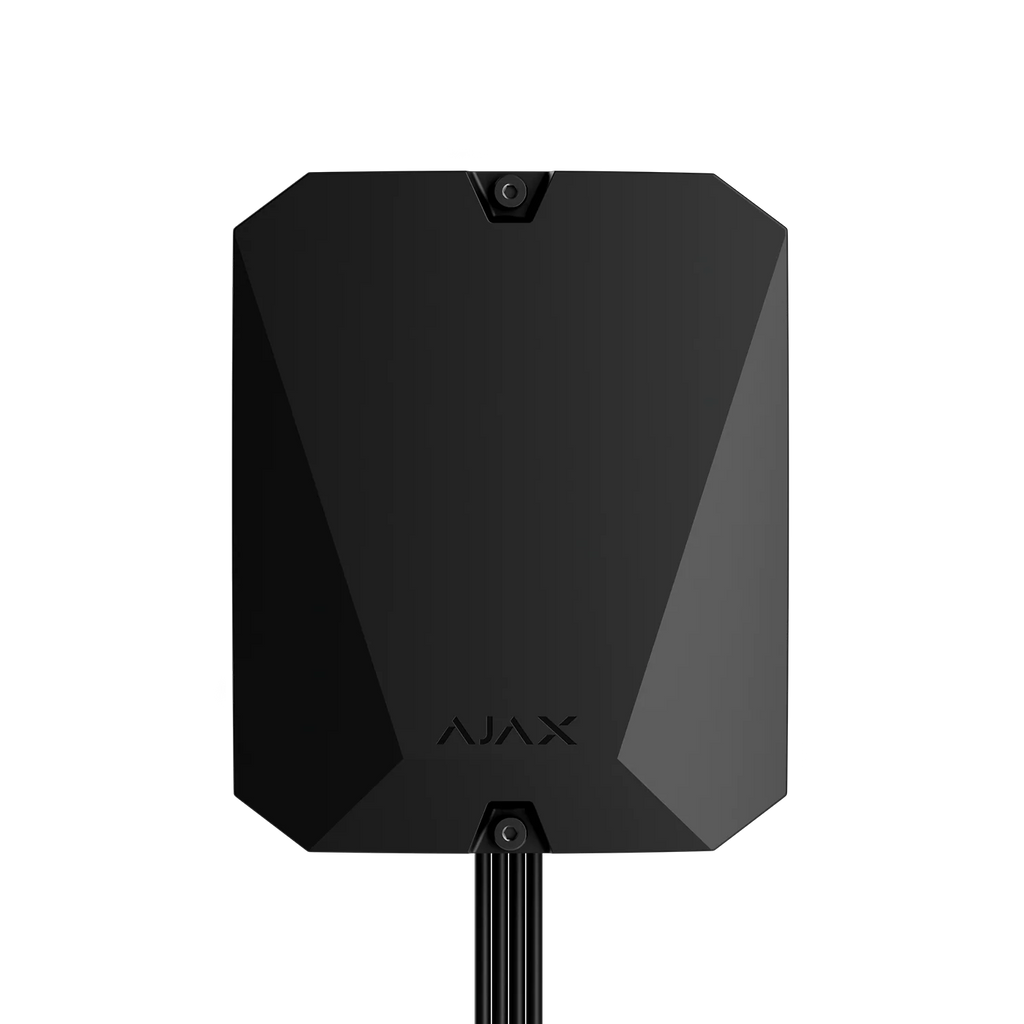

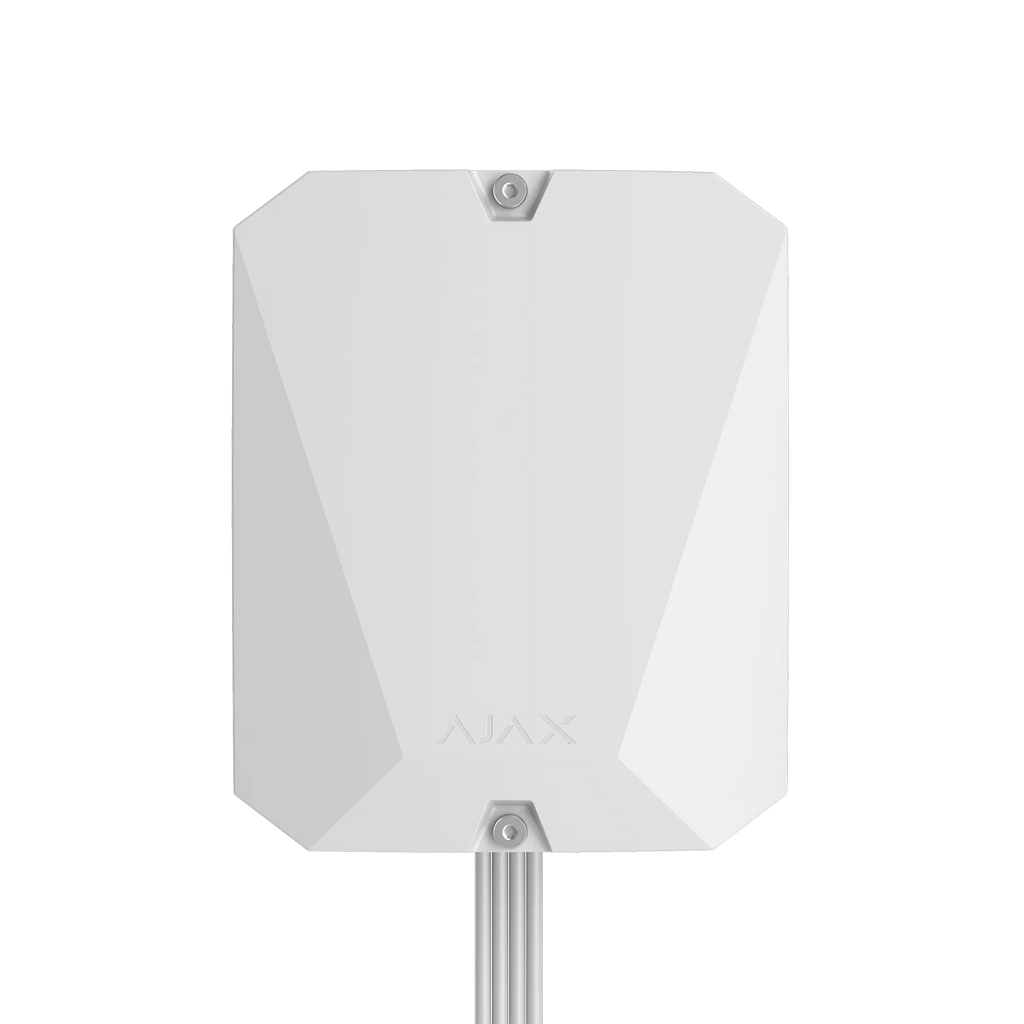

• Available in White and Black

• Available with enclosure or board-only version

Detailed Specifications

Detector Integration

Number of Zones

• 18 Wired Zones

Supported Detector Types

• One wired detector per zone

Connection Types

• NC

• NO

• EOL

• 2EOL

• 3EOL

Operating Modes

• Pulse

• Bistable

Event Types

• More than 10 configurable event types

EOL Resistor Scanning

• Automatic EOL resistor detection

• Simplifies installation and commissioning

Communication

Fibra Communication Technology

• Encrypted Wired Communication

• Two-Way Communication

• Instant Alarm Notifications

• Remote Configuration

• Advanced Anti-Sabotage Features

Communication Range

Using Copper Signal Cable:

• Up to 2,000m

Using U/UTP Cat5 Cable:

• Up to 6,560ft (2,000m)

Connection

• 4-Core Cable

• U/UTP Cat5 Supported

Power Supply

Main Power

• 100–240V AC

• 50/60Hz

Backup Battery

• 12V Lead Acid Battery

• Up to 7Ah Capacity

• Backup Duration Up To 30 Hours

• Battery Not Included

Auxiliary Outputs

• 4 Power Outputs

• 10.5–15V DC

• Up to 1A Total Output

Supports:

• Connected detectors

• External devices

• Auxiliary security equipment

Security & Anti-Sabotage Protection

Protection Features

• Encrypted Fibra Communication

• Device Authentication

• Advanced Anti-Sabotage Protection

• Instant Fault Notifications

Tamper Protection

• Dual Tamper Protection

• Ajax Case Tamper Support

• Enclosure Removal Detection

Installation Features

Installation Options

• Original Ajax Enclosure

• Board Installation Inside Ajax Case

Installer Benefits

• Remote Setup

• QR Code Pairing

• Automatic Device Discovery

• EOL Resistor Scanning

• Remote Diagnostics

Physical Specifications

Standard Enclosure Version

• Dimensions: 197 × 240 × 100 mm

• White Weight: 867g

• Black Weight: 795g

Board Version (Without Casing)

• Dimensions: 185 × 99 × 38 mm

• Weight: 221g

Colours

• White

• Black

Environmental Specifications

• Indoor Installation

• Operating Temperature: -10°C to +40°C

• Operating Humidity: Up to 75%

• Protection Rating: IP40

Compliance & Certifications

Complies with:

• EN 50131 (Grade 3)

• PD 6662:2017

• INCERT

• SSF

• NFA2P

• VSÖ

Warranty Information

• Manufacturer Warranty: 24 Months

• Genuine Ajax Systems Product

• Supported Through Authorised Ajax Distribution Channels

About Ajax Systems

Ajax Systems is one of the world's leading manufacturers of professional intrusion detection, life safety, automation, and video surveillance solutions. Ajax products are trusted globally for their reliability, encrypted communication, innovative technology, and professional-grade performance.

Practical Use Scenarios

Alarm System Upgrades

Upgrade legacy alarm systems without replacing existing wired detectors.

Commercial Security Retrofits

Modernise offices, warehouses, schools, and retail facilities while preserving existing infrastructure.

Industrial Security Installations

Integrate large numbers of wired sensors into a central Ajax monitoring platform.

Cost-Effective System Migration

Transition from older alarm panels to Ajax systems while retaining existing detection devices.

Multi-Zone Security Management

Manage up to 18 wired detection zones through one Ajax integration module.

Datasheets & Resources

• User manual

  Technical data sheet



Excellence for the Australian and New Zealand Market

The AJAX#44409 Superior MultiTransmitter Fibra is ideal for Australian and New Zealand security professionals seeking a cost-effective way to modernise existing alarm systems. Its support for third-party wired detectors allows installers to retain existing infrastructure while gaining the advantages of Ajax's advanced monitoring and management platform.

Benefits include:

• Genuine Ajax Systems product

• Suitable for retrofit and upgrade projects

• Supports up to 18 wired zones

• Long-distance Fibra communication up to 2,000m

• Professional commercial-grade solution

• Distributed through authorised Ajax partners

• 24-month manufacturer warranty

• Ideal for residential, commercial, industrial, and government facilities

FAQs

What is AJAX#44409 Superior MultiTransmitter Fibra?

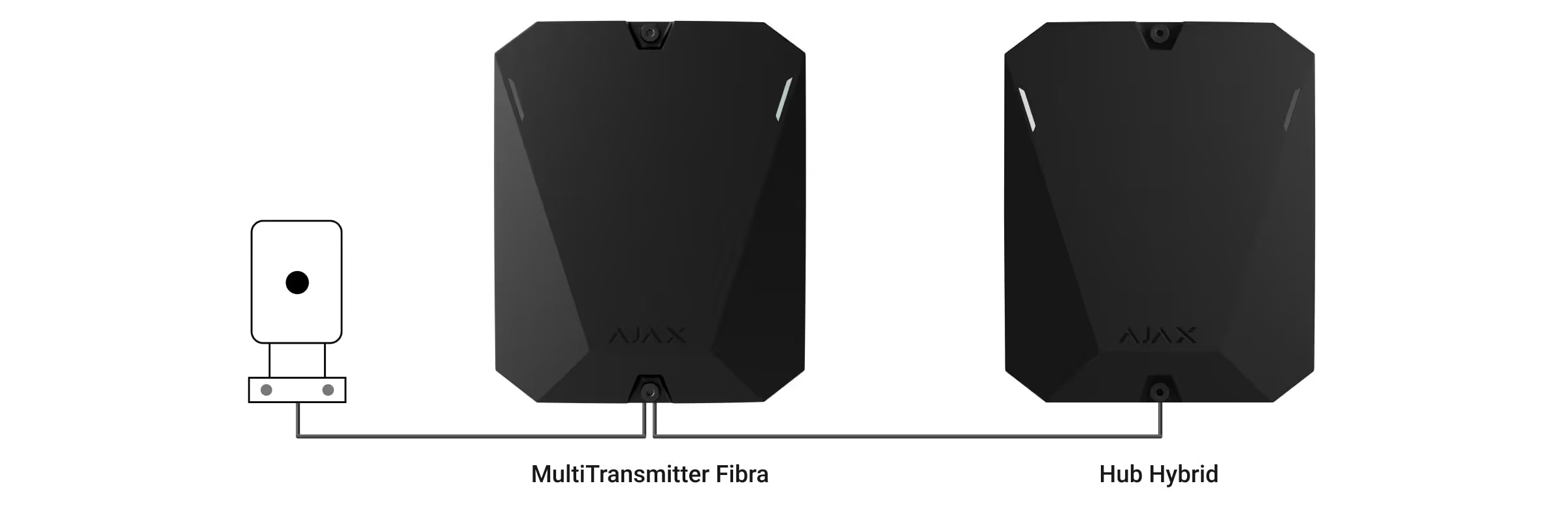

AJAX#44409 is an integration module that allows third-party wired detectors to connect to an Ajax Fibra security system.

How many wired zones does AJAX#44409 support?

AJAX#44409 supports up to 18 wired detector zones.

Can AJAX#44409 be used to upgrade existing alarm systems?

Yes. AJAX#44409 is specifically designed to modernise existing wired alarm installations while retaining legacy detectors.

What detector connection types are supported by AJAX#44409?

AJAX#44409 supports NC, NO, EOL, 2EOL, and 3EOL detector connections.

What is the communication range of AJAX#44409?

AJAX#44409 supports Fibra communication distances up to 2,000 metres.

Does AJAX#44409 support backup batteries?

Yes. AJAX#44409 supports a 12V lead-acid backup battery up to 7Ah capacity.

Can AJAX#44409 be installed without its enclosure?

Yes. AJAX#44409 is available as a board-only version suitable for installation inside compatible Ajax Cases.

Is AJAX#44409 suitable for commercial installations?

Yes. AJAX#44409 is ideal for commercial, industrial, retail, educational, and residential security projects.

What warranty is included with AJAX#44409?

AJAX#44409 includes a 24-month manufacturer warranty.

Why choose AJAX#44409 Superior MultiTransmitter Fibra?

AJAX#44409 offers a professional way to integrate existing wired detectors into the Ajax ecosystem, reducing upgrade costs while providing advanced monitoring, encrypted communication, and modern security management.
