Product Description
The AJAX#61384 Ajax Superior LineProtect Fibra is a specialised protection module designed to safeguard Ajax Fibra devices and communication lines against sabotage attempts, electrical faults, overvoltage incidents, and malicious attacks. Built specifically for professional wired Ajax security systems, LineProtect acts as a protective barrier between the hub and connected Fibra devices, helping maintain system integrity in demanding commercial and high-security environments.
The module protects against short circuits, overvoltage on Fibra signal lines, stun gun attacks, and accidental application of 110V/230V AC voltage to the Fibra line. When abnormal conditions are detected, the system immediately notifies users and monitoring stations, allowing rapid response to security or electrical threats.
Ideal for commercial properties, government facilities, industrial sites, warehouses, educational institutions, and critical infrastructure installations, Superior LineProtect Fibra enhances the resilience and reliability of professional Ajax Fibra deployments.
What's Included in the Box
Main Features
-
Protects Fibra lines from electrical sabotage
-
Protection against short circuits
-
Protection against overvoltage events
-
Protection against stun gun attacks
-
Detects abnormal voltage on Fibra signal lines
-
Sends immediate notifications to users and monitoring stations
-
Supports siren activation upon line alarm events
-
Encrypted Fibra communication technology
-
Device authentication and anti-spoofing protection
-
Remote monitoring and configuration via Ajax apps
-
Compact PCB design for installation in Ajax Case enclosures
-
Designed for professional security installations
Detailed Specifications
Communication Technology
Fibra Communication
-
Proprietary Ajax Fibra Protocol
-
Two-Way Communication
-
Encrypted Data Transmission
-
Instant Event Notifications
-
Remote Configuration and Monitoring
Connection
Communication Distance
Line Protection Functions
Protection Against
-
Short Circuit Events
-
Stun Gun Attacks
-
Overvoltage on Signal Lines
-
Accidental 110V AC Supply
-
Accidental 230V AC Supply
-
Electrical Sabotage Attempts
Voltage Protection
The integrated protection circuitry safeguards Fibra devices and hubs when abnormal voltage is applied to A and B signal terminals.
Event Identification
The system distinguishes between different types of electrical interference and sabotage attempts, providing detailed notifications to users and monitoring stations.
Line Configuration
Input Lines
Output Lines
Installation Position
-
Can be installed behind:
-
Ajax Hub
-
Fibra Detector
-
Fibra Keypad
-
Fibra Siren
Protection Coverage
LineProtect protects:
Devices located beyond the LineProtect module toward the end of the line are not protected by the module.
Security & Anti-Sabotage Features
Device Authentication
Tamper Protection
Ajax Case enclosure sold separately.
Communication Monitoring
-
Lost Connection Detection
-
Detection Time: Approximately 36 Seconds
-
Adjustable in Hub Settings
Alarm Notification Features
System Notifications
Siren Activation
When an output line alarm condition is detected, connected Ajax sirens can provide:
-
Audible Alarm Indication
-
LED Frame Indication
Power Specifications
Operating Voltage
Nominal Voltage
Power Consumption
-
Maximum Power Consumption: 281mW
-
Quiescent Current Consumption: 1.6mA
-
Maximum Current Consumption: 11.7mA
Power Source
Physical Specifications

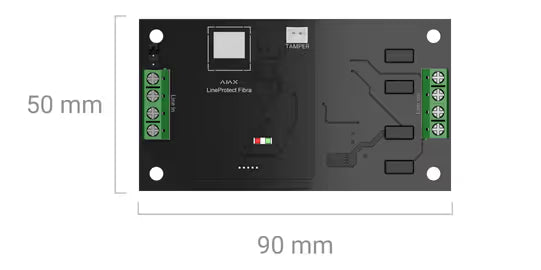

Board Dimensions
Weight
Installation
Environmental Specifications
Operating Temperature
Humidity
Installation Environment
Warranty Information
-
Manufacturer Warranty: 24 Months
-
Genuine Ajax Systems Product
-
Supported Through Authorised Ajax Distribution Channels
About Ajax Systems
Ajax Systems is a global leader in advanced security technologies, delivering professional-grade intrusion detection, video surveillance, life safety, and automation solutions. Ajax Fibra technology combines the reliability of wired infrastructure with modern encryption, intelligent monitoring, and remote management capabilities.
Practical Use Scenarios
Commercial Security Installations
Protect critical Fibra communication infrastructure in office buildings, retail centres, and business premises.
Industrial Facilities
Safeguard long-distance Fibra lines in warehouses, factories, and manufacturing plants from electrical interference and sabotage.
Government & Critical Infrastructure
Provide enhanced protection against intentional tampering and electrical attacks.
High-Risk Security Applications
Deploy LineProtect Fibra in environments where protection against sabotage and deliberate system disruption is essential.
Education & Healthcare Facilities
Improve security system resilience across large campuses and distributed facilities.
Monitoring Stations & Professional Security Projects
Reduce service interruptions caused by wiring faults, electrical damage, or sabotage attempts.
Datasheets & Resources
Excellence for the Australian and New Zealand Market
The AJAX#61384 Superior LineProtect Fibra provides an additional layer of security and reliability for professional Ajax Fibra installations throughout Australia and New Zealand. Designed to protect against electrical sabotage, accidental overvoltage, and line faults, it helps ensure uninterrupted system operation in commercial, industrial, and critical infrastructure environments.
Benefits include:
-
Genuine Ajax Systems product
-
Protection against sabotage and electrical attacks
-
Overvoltage and short-circuit protection
-
Supports large-scale Fibra installations
-
Ideal for professional monitored security systems
-
Suitable for Australian and New Zealand commercial projects
-
Available through authorised Ajax distribution channels
-
Backed by a 24-month manufacturer warranty
FAQs
What is AJAX#61384 Superior LineProtect Fibra?
AJAX#61384 is a protection module designed to safeguard Ajax Fibra communication lines and connected devices from electrical sabotage, short circuits, and overvoltage events.
What does AJAX#61384 protect against?
AJAX#61384 protects against short circuits, overvoltage, stun gun attacks, and accidental application of 110V or 230V AC voltage to Fibra lines.
How does AJAX#61384 improve system security?
AJAX#61384 identifies electrical sabotage attempts, protects connected devices, and immediately reports incidents to users and monitoring stations.
Can AJAX#61384 detect line sabotage?
Yes. AJAX#61384 can distinguish different types of line interference and sabotage events and generate corresponding alerts.
Does AJAX#61384 support siren activation?
Yes. AJAX#61384 can trigger connected Ajax sirens to provide audible and visual warnings when a line alarm condition occurs.
How far can AJAX#61384 operate on a Fibra line?
AJAX#61384 supports Fibra communication distances of up to 2,000 metres when using U/UTP Cat5 cable.
Is AJAX#61384 powered separately?
No. AJAX#61384 is powered directly from the Ajax Fibra line supplied by the hub.
Is AJAX#61384 suitable for outdoor installation?
No. AJAX#61384 is designed for indoor installation only and should ideally be installed inside an Ajax Case enclosure.
What warranty is included with AJAX#61384?
AJAX#61384 includes a 24-month manufacturer warranty.
Why choose AJAX#61384 Superior LineProtect Fibra?
AJAX#61384 provides advanced protection against sabotage, overvoltage, and wiring faults, helping ensure reliable operation of professional Ajax Fibra security systems.
