Product Description

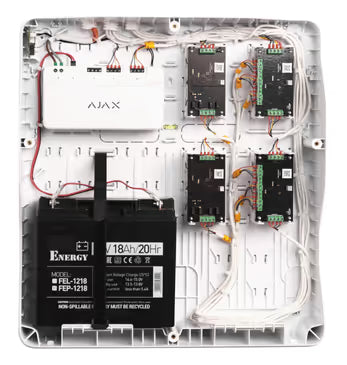

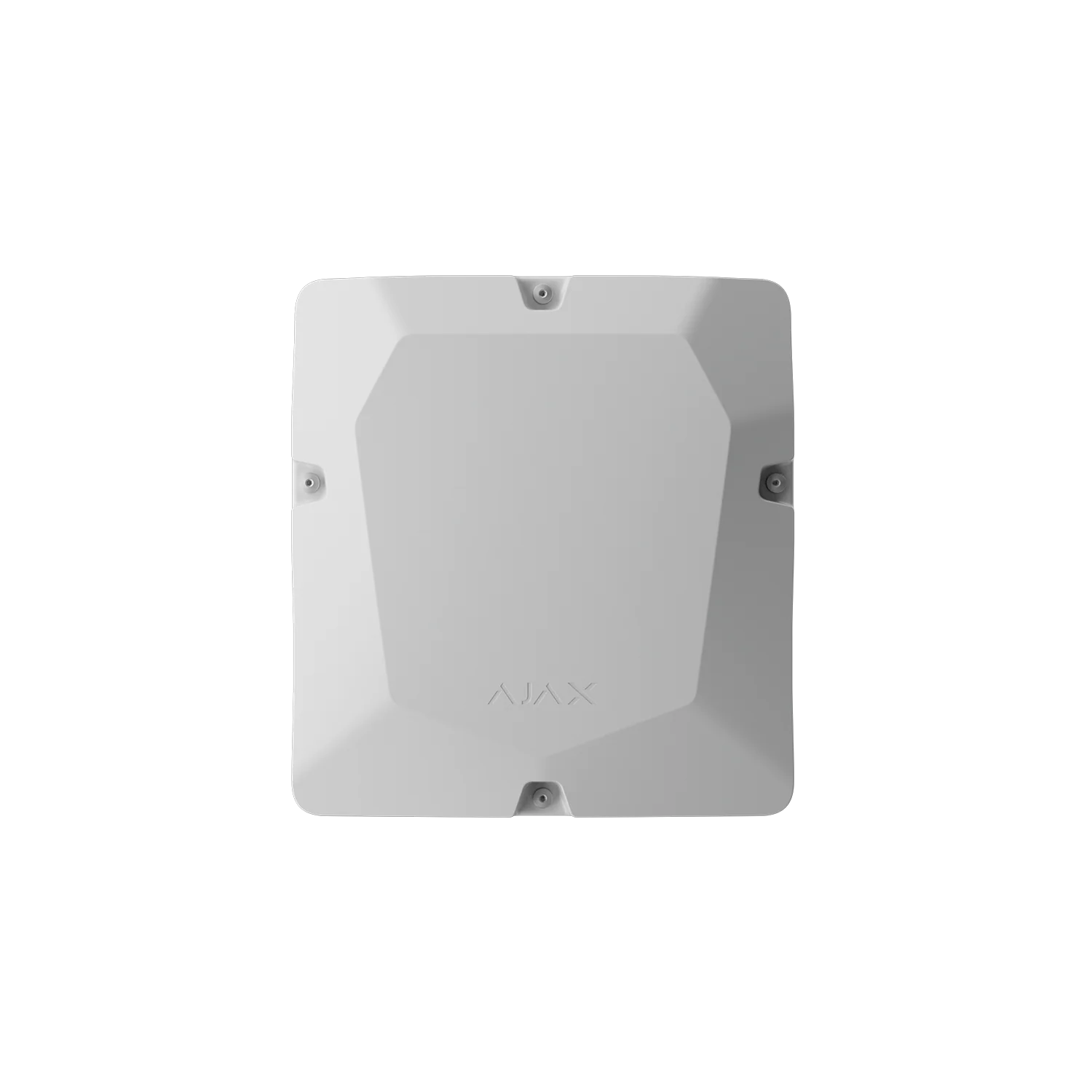

The AJAX#65976 Ajax Superior Fibra Case D (430) White / Black is the largest and most versatile enclosure in the Ajax Fibra range, specifically engineered to house up to eight Ajax Fibra modules and up to two 18Ah backup batteries within a single professional-grade enclosure. Designed for large-scale commercial, industrial, and enterprise security installations, the Case D (430) provides exceptional module protection, integrated tamper security, advanced cable management, dedicated battery mounting, and flexible installation options. Compatible with multiple Ajax Fibra modules including Superior MultiTransmitter Fibra, LineSplit Fibra, LineProtect Fibra, MultiRelay Fibra, and LineSupply Fibra, this enclosure is the ideal solution for complex security projects throughout Australia and New Zealand.
What's Included in the Box
Main Features
Supports Up to 8 Ajax Fibra Modules
The AJAX#65976 is designed to accommodate:
Compatible devices include:
-
Superior MultiTransmitter Fibra (without casing)
-
Superior LineSplit Fibra
-
Superior LineProtect Fibra
-
Superior MultiRelay Fibra
-
Superior LineSupply Fibra
Ideal for large-scale security infrastructure projects.
Dual Backup Battery Support
The enclosure includes dedicated battery mounting positions for:
Features include:
Perfect for high-availability security installations.

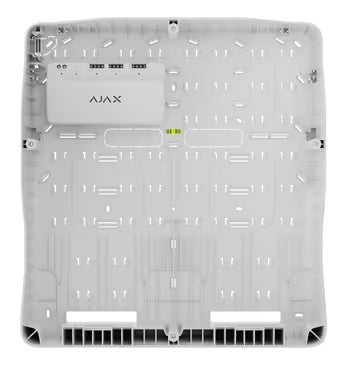

Modular Installation Flexibility
The Case D supports multiple mounting methods:

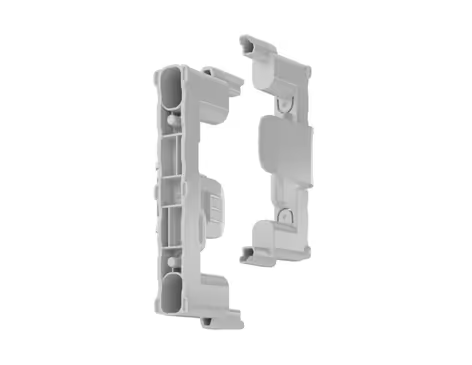

Module Holder Type A
Used for:
Includes:
Additional holders available separately.
Module Holder Type B (Optional)
Supports:
Available separately.
Dedicated LineSupply Rails
Integrated rails allow direct mounting of:
No additional holder required.
Integrated Tamper Protection
The included tamper board connects directly to a compatible Ajax module and provides:
Ideal for monitored security systems.
Professional Cable Management
Built-in cable fasteners help create organised and professional installations.
Benefits include:
Installer-Friendly Design
The AJAX#65976 incorporates multiple installation-enhancing features:
-
Integrated bubble level
-
Oversized mounting holes
-
Pre-marked drilling recesses
-
Protective installation guides
-
Dedicated battery holders
These features reduce installation time while improving mounting precision.
Flexible Device Orientation
Installed modules can be rotated:
Providing additional flexibility for cable routing and system design.
Heavy-Duty Enterprise Enclosure
The Case D (430) is designed for:
-
Large commercial facilities
-
Enterprise security systems
-
Industrial sites
-
Critical infrastructure installations
-
Multi-building security projects
Offering maximum capacity and protection within the Ajax Fibra ecosystem.
SKU
AJAX#65976
Detailed Specifications
| Specification |
Details |
| Product Code |
AJAX#65976 |
| Product Name |
Ajax Superior Fibra Case D (430) |
| Device Type |
High-Capacity Fibra Module Enclosure |
| Maximum Module Capacity |
Up to 8 Devices |
| Compatible Devices |
Superior MultiTransmitter Fibra, LineSplit Fibra, LineProtect Fibra, MultiRelay Fibra, LineSupply Fibra |
| Backup Battery Support |
Up to 2 × 18Ah Batteries |
| Battery Holders |
Yes |
| Battery Holding Strap |
Included |
| Module Holder Type A Included |
4 Pieces |
| Module Holder Type B |
Optional |
| Tamper Board Included |
Yes |
| Device Rotation |
180° |
| Cable Fasteners |
Yes |
| Bubble Level |
Yes |

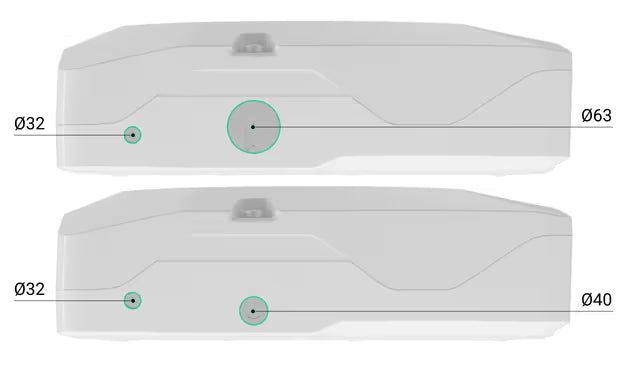

| Drilling Recess Sizes |
Ø32 mm, Ø40 mm, Ø63 mm |
| Oversized Mounting Holes |
Yes |
| Indoor Installation |
Yes |

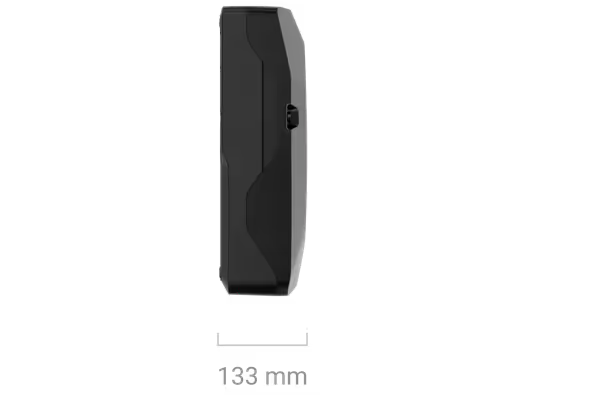

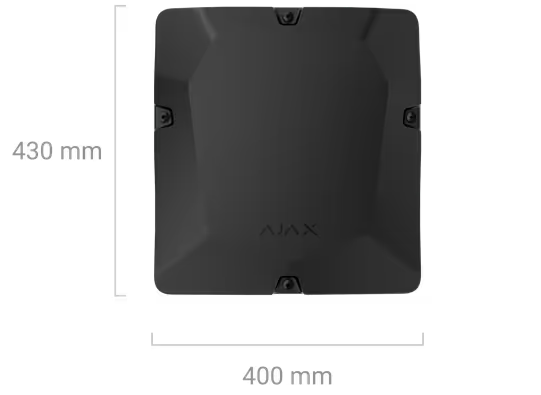

| Dimensions |
430 × 400 × 133 mm |
| Weight (White) |
3,381 g |
| Weight (Black) |
3,343 g |
| Operating Temperature |
-10°C to +40°C |
| Operating Humidity |
Up to 75% |
| Available Colours |
White, Black |
| Warranty |
24 Months |
Warranty Information
24-Month Manufacturer Warranty
The Ajax Superior Fibra Case D (430) is covered by a comprehensive 24-month manufacturer warranty for long-term reliability and peace of mind.
About Ajax Systems
Ajax Systems is a globally recognised leader in professional security and smart building technologies. Trusted by installers and security professionals worldwide, Ajax products combine advanced engineering, secure communication protocols, and exceptional reliability for residential, commercial, and industrial applications.
Practical Use Scenarios
Large-Scale Security Installations
Perfect for complex Ajax Fibra deployments requiring multiple modules and centralised equipment management.
Commercial Buildings
Suitable for:
-
Shopping centres
-
Office complexes
-
Hospitals
-
Schools
-
Government facilities
Industrial Facilities
Ideal for:
Enterprise Security Systems
Supports advanced security architectures requiring:
-
Multiple Fibra modules
-
Backup power systems
-
Centralised installation
Datasheets & Resources
Available resources include:
Excellence for the Australian and New Zealand Market
The AJAX#65976 Ajax Superior Fibra Case D (430) has been developed to support large-scale Ajax Fibra deployments throughout Australia and New Zealand. Combining support for up to eight modules, dual 18Ah battery capacity, integrated tamper protection, professional cable management, and flexible installation options, it provides a robust enclosure solution for demanding commercial and industrial security environments.
Key benefits include:
-
Genuine Ajax Systems product
-
Supports up to 8 Fibra modules
-
Supports up to 2 × 18Ah backup batteries
-
Integrated tamper protection
-
Professional cable management
-
Multiple module mounting options
-
Dedicated LineSupply Fibra rails
-
Flexible 180° device positioning
-
Suitable for enterprise security installations
-
Available in White and Black
-
24-month manufacturer warranty
FAQs
What is AJAX#65976 used for?
The AJAX#65976 is a high-capacity enclosure designed to house up to eight Ajax Fibra modules and two backup batteries.
Which devices are compatible with AJAX#65976?
The AJAX#65976 supports Superior MultiTransmitter Fibra, LineSplit Fibra, LineProtect Fibra, MultiRelay Fibra, and LineSupply Fibra modules.
How many modules can AJAX#65976 accommodate?
The AJAX#65976 can accommodate up to eight compatible Ajax Fibra modules.
Does AJAX#65976 support backup batteries?
Yes. The AJAX#65976 supports up to two backup batteries with capacities up to 18Ah each.
Does AJAX#65976 include tamper protection?
Yes. The AJAX#65976 includes a tamper board that provides sabotage and enclosure opening detection.
Is AJAX#65976 suitable for outdoor installation?
No. The AJAX#65976 is designed for indoor installations only.
Does AJAX#65976 include module holders?
Yes. The AJAX#65976 includes four Module Holder Type A units.
What colours are available for AJAX#65976?
The AJAX#65976 is available in White and Black.
What are the dimensions of AJAX#65976?
The AJAX#65976 measures 430 × 400 × 133 mm.
Does AJAX#65976 include a warranty?
Yes. The AJAX#65976 is covered by a 24-month manufacturer warranty.
