The Ajax AJAX#80003 StarterKitPlus Cam is a professional wireless security alarm kit with photo verification, designed for homes, offices, retail stores, apartments, and commercial premises requiring reliable intrusion detection, visual alarm confirmation, app-based control, and expandable smart security protection.
This advanced Ajax starter kit includes the Hub 2 Plus AJAX#30639, MotionProtect AJAX#30655, MotionCam AJAX#30652, SpaceControl AJAX#30670, and HomeSiren AJAX#30630. The addition of MotionCam gives the system photo verification capability, allowing visual confirmation of motion alarm events when used with a compatible Ajax hub and configured system.
The included Hub 2 Plus supports Wi-Fi, Ethernet, and two SIM cards, making it suitable for installations where multiple communication channels are required. The supplied Hub 2 Plus information lists support for up to 200 wireless Ajax devices, up to 100 IP cameras or DVRs, up to 200 users, up to 64 automation scenarios, and up to 25 security groups.

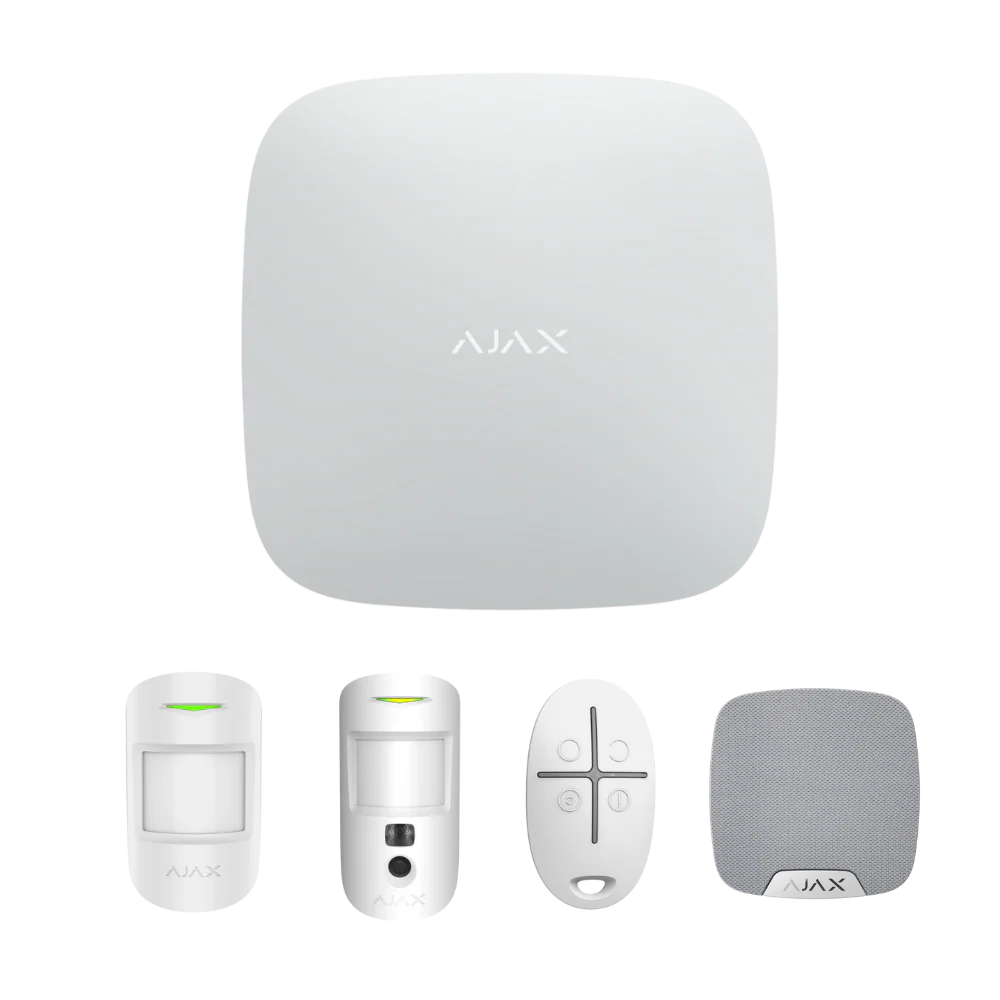

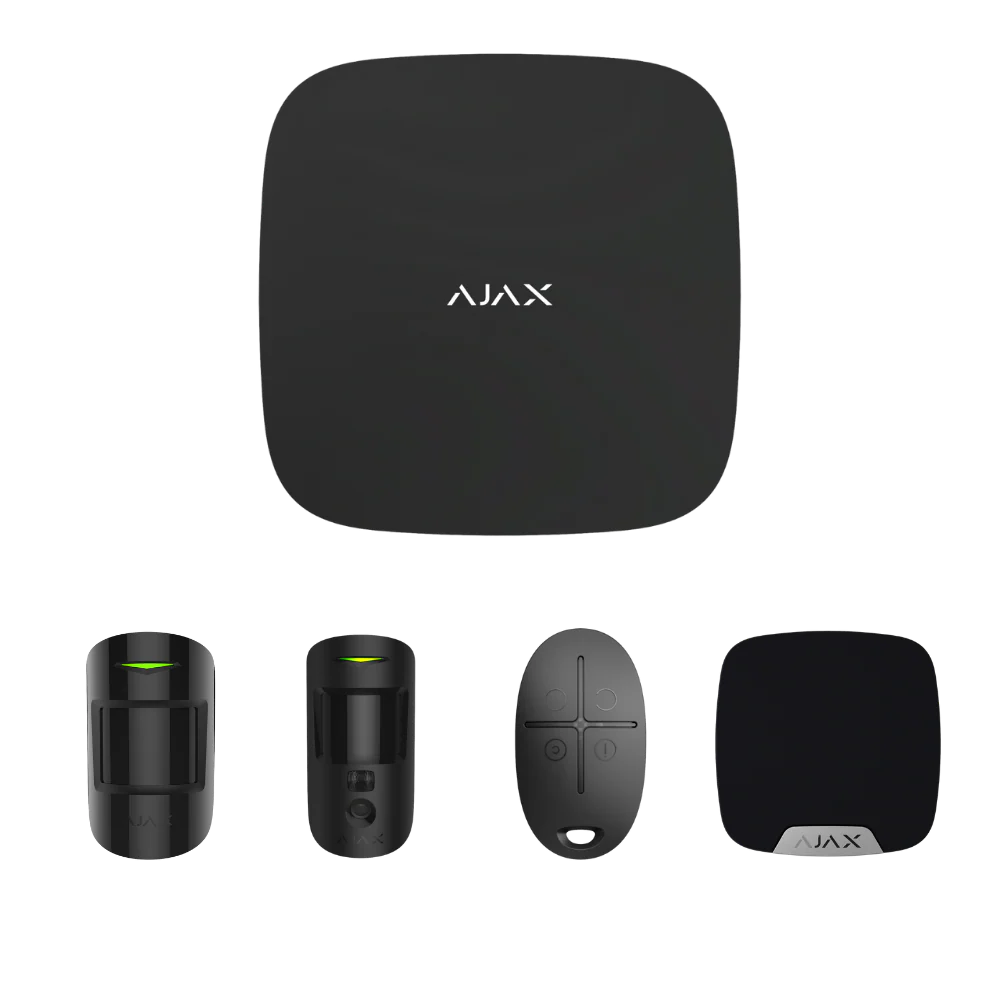

What’s Included in the Box
- 1 × Hub 2 Plus — AJAX#30639
- 1 × MotionProtect — AJAX#30655
- 1 × MotionCam — AJAX#30652
- 1 × SpaceControl — AJAX#30670
- 1 × HomeSiren — AJAX#30630
Main Features
- Complete Ajax wireless security starter kit with photo verification
- Includes Hub 2 Plus, MotionProtect, MotionCam, SpaceControl, and HomeSiren
- MotionCam provides photo by alarm functionality
- Hub 2 Plus supports Wi-Fi, Ethernet, and two SIM cards
- Suitable for residential and commercial security installations
- Jeweller wireless communication for alarms, commands, and events
- Wings wireless communication for photo transmission
- Encrypted two-way wireless communication
- Frequency hopping to help prevent interference and jamming
- Motion detection with PIR sensor technology
- MotionCam detection range up to 12m
- Pet immunity up to 20kg and 50cm for MotionCam
- SpaceControl remote for convenient system operation
- HomeSiren for indoor audible alarm notification

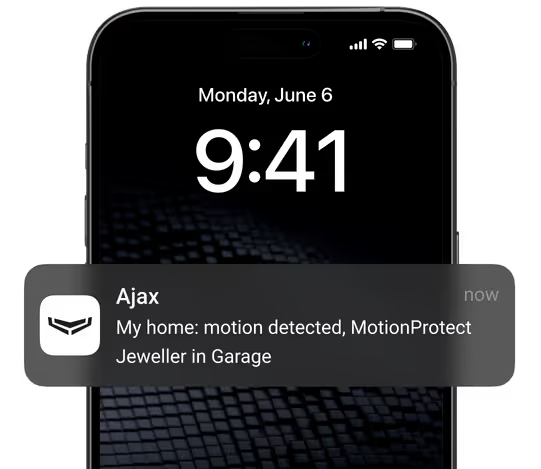

- App-based remote control and configuration
- Expandable Ajax ecosystem for future upgrades
- 24-month warranty listed for MotionCam and Hub 2 Plus
Detailed Specifications
Brand: Ajax
Product Code / SKU: AJAX#80003
Product Name: StarterKitPlus Cam
Product Type: Wireless Security Alarm Starter Kit with Motion Camera
Included Devices
Control Panel: 1 × Hub 2 Plus — AJAX#30639
Motion Detector: 1 × MotionProtect — AJAX#30655
Motion Camera Detector: 1 × MotionCam — AJAX#30652
Remote Control: 1 × SpaceControl — AJAX#30670
Indoor Siren: 1 × HomeSiren — AJAX#30630

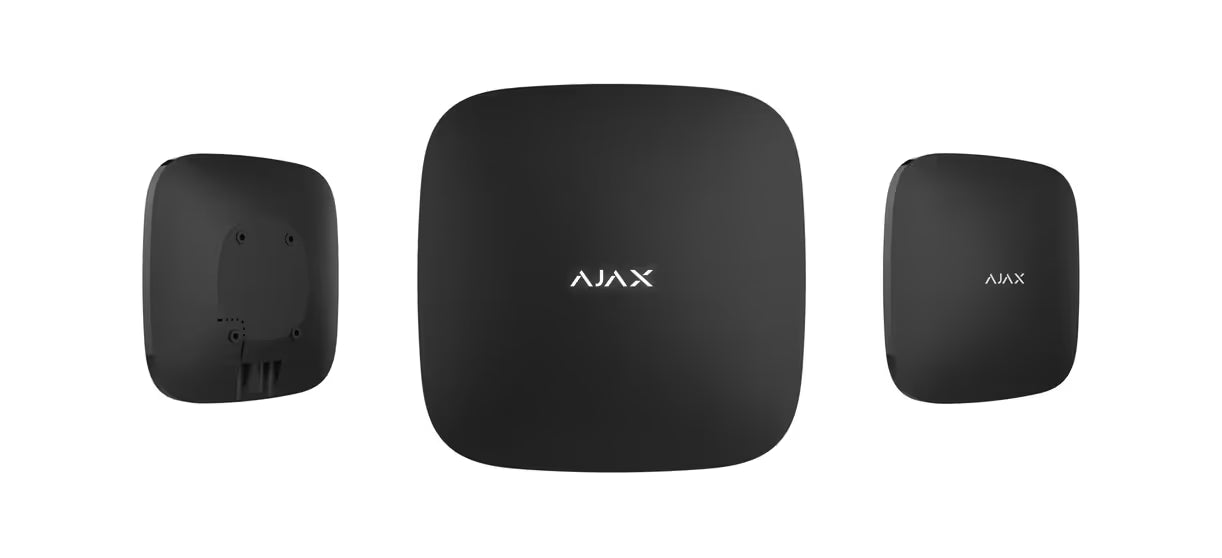

Hub 2 Plus Overview
Device Type: Wireless control panel with support for photo verification
Communication Channels: Wi-Fi, Ethernet, and two SIM cards
Wireless Ajax Devices Supported: Up to 200
IP Cameras or DVRs Supported: Up to 100
Users Supported: Up to 200
Automation Scenarios: Up to 64
Security Groups: Up to 25
Rooms: Up to 50
Installation: Indoor installation only
Power Supply: 110–240V AC, 50/60Hz
Backup Battery: Built-in rechargeable Li-ion 3Ah battery
Backup Operation: Up to 15 hours when Ethernet is disconnected
Dimensions: 163 × 163 × 36mm
Weight: 367g
Protection Class: IP20
Warranty: 24 months

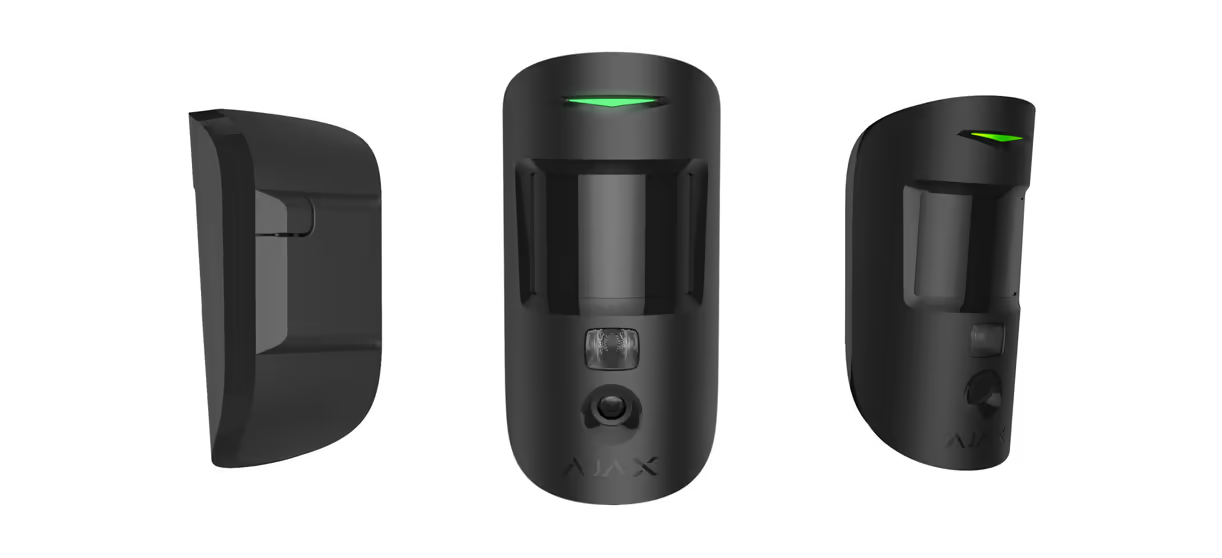

MotionCam Specifications
Product Code: AJAX#30652
Device Type: Wireless IR motion detector supporting photo by alarm
Sensitive Element: PIR sensor

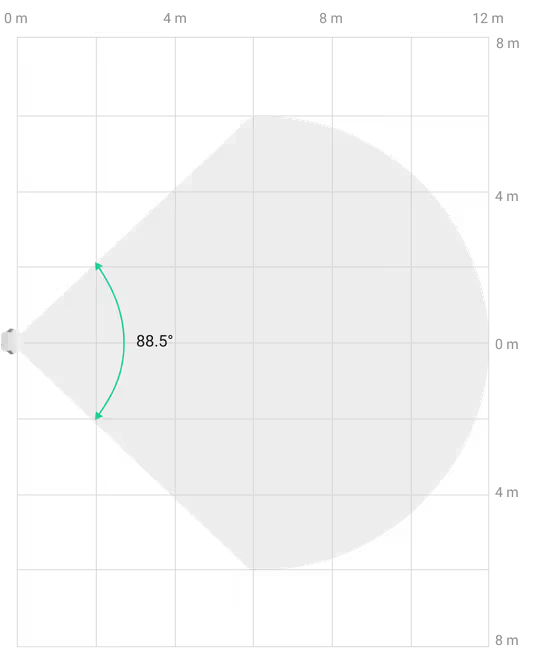

Motion Detection Distance: Up to 12m when installed at 2.4m height
Motion Detection Angle: 88.5° horizontal
Motion Detection Speed: 0.3 to 2.0m/s
Sensitivity: 3 adjustable levels
Pet Immunity: Up to 20kg and up to 50cm height
False Alarm Prevention: SmartDetect software algorithm
Temperature Compensation: Effective motion detection from -10°C to +40°C
Recommended Installation Height: 2.4m
Installation: Indoor use only
MotionCam Photo Verification
Photo by Alarm: Yes
Photo Resolution Options:
- 640 × 480px
- 320 × 240px, default
- 160 × 120px
HDR Image: Supported on compatible firmware versions
IR Backlight: Yes, for night photography and low-light conditions
Pictures in Series:
- 1 to 5 images at 320 × 240px or 160 × 120px
- 1 to 3 images at 640 × 480px
Photo Delivery Time:
- Up to 7 seconds at 160 × 120px
- Up to 9 seconds at 320 × 240px
- Up to 20 seconds at 640 × 480px
MotionCam Wireless Communication
Jeweller Communication Technology: Yes
Jeweller Purpose: Transmits commands, alarms, and events
Jeweller Radio Signal Range: Up to 1,700m in open space
Wings Communication Technology: Yes
Wings Purpose: Transmits photos
Wings Radio Signal Range: Up to 1,700m in open space
Encryption: Block encryption with dynamic key
Frequency Hopping: Yes
Radio Signal Modulation: GFSK
Maximum Effective Radiated Power: Up to 20mW
MotionCam Sabotage Protection
Tamper Alarm: Yes
Protection Against Spoofing: Device authentication
Communication Loss Detection: Within 36 seconds, depending on Jeweller or Jeweller/Fibra settings
MotionCam Power and Enclosure
Battery: 2 × CR123A, pre-installed
Calculated Battery Life: Up to 4 years
Battery Manufacturers Listed: Huiderui, Panasonic, or Duracell
Dimensions: 135 × 70 × 60mm
Weight: 170g
Operating Temperature: -10°C to +40°C
Operating Humidity: Up to 75%
Protection Class: IP50
Colours: Black, White
Warranty: 24 months
MotionProtect
Quantity Included: 1
Product Code: AJAX#30655
Function: Indoor wireless motion detection
Use: Detects movement in protected indoor areas and sends alarm events to the Ajax hub.
SpaceControl
Quantity Included: 1
Product Code: AJAX#30670
Function: Wireless key fob remote control
Use: Provides convenient system control for arming, disarming, night mode, and panic alarm activation depending on configuration.
HomeSiren
Quantity Included: 1
Product Code: AJAX#30630
Function: Indoor wireless siren
Use: Provides audible indoor alarm notification when the Ajax security system is triggered.
Warranty Information
Manufacturer warranty applies. The supplied Ajax information lists a 24-month warranty for Hub 2 Plus and MotionCam. Warranty coverage for the complete Ajax AJAX#80003 StarterKitPlus Cam should be confirmed at the time of purchase or through the authorised Ajax representative. Warranty handling should be managed through direct communication with the brand or authorised brand channel.
Brand Description
Ajax develops professional wireless security and automation systems for residential, commercial, and monitored security applications. The Ajax ecosystem includes hubs, motion detectors, motion cameras, sirens, remotes, keypads, automation devices, fire and life safety products, video integrations, and app-managed solutions for scalable protection.
SKU Field
SKU: AJAX#80003
Product Code: AJAX#80003
Brand: Ajax
Product Name: StarterKitPlus Cam
Practical Use Scenarios
The Ajax AJAX#80003 StarterKitPlus Cam is suitable for users who need a wireless alarm system with visual alarm verification and flexible app-based control.
Ideal use scenarios include:
- Residential homes and apartments
- Larger homes requiring expandable security
- Offices and professional suites
- Retail stores and boutiques
- Stockrooms and back-of-house areas
- Clinics and consulting rooms
- Rental properties
- Holiday homes
- Small warehouses
- Commercial premises requiring motion detection with photo verification
- Sites where visual confirmation of alarm events is important
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Ajax AJAX#80003 StarterKitPlus Cam is well suited to Australian and New Zealand residential and commercial security installations where wireless deployment, visual alarm verification, encrypted communication, and app-managed security are important.
The included Hub 2 Plus provides multiple communication options, including Wi-Fi, Ethernet, and two SIM cards, while MotionCam adds photo verification to help users and monitoring teams confirm motion alarm events. This makes the kit a strong choice for homes, offices, shops, clinics, and commercial spaces that require a scalable wireless alarm solution.
The supplied information is from the Ajax Australia context and lists both Hub 2 Plus and MotionCam as indoor devices with a 24-month warranty. NDSS approval was not specified in the supplied information and should not be claimed unless confirmed by an authorised Ajax representative. Warranty support should be handled through direct communication with the brand or authorised representative channel for accurate Australian and New Zealand after-sales service.
FAQs
Q1: What is included in the Ajax AJAX#80003 StarterKitPlus Cam?
The Ajax AJAX#80003 StarterKitPlus Cam includes 1 × Hub 2 Plus AJAX#30639, 1 × MotionProtect AJAX#30655, 1 × MotionCam AJAX#30652, 1 × SpaceControl AJAX#30670, and 1 × HomeSiren AJAX#30630.
Q2: What is the Ajax AJAX#80003 StarterKitPlus Cam used for?
The Ajax AJAX#80003 StarterKitPlus Cam is used to create a wireless security alarm system with motion detection, photo verification, remote control, and indoor siren alerting.
Q3: Does the Ajax AJAX#80003 StarterKitPlus Cam include MotionCam?
Yes. The Ajax AJAX#80003 StarterKitPlus Cam includes 1 × MotionCam AJAX#30652 for motion detection with photo by alarm functionality.
Q4: Does the Ajax AJAX#80003 StarterKitPlus Cam support photo verification?
Yes. The Ajax AJAX#80003 StarterKitPlus Cam includes Hub 2 Plus and MotionCam, allowing photo verification when the system is armed and motion is detected.
Q5: What hub is included with the Ajax AJAX#80003 StarterKitPlus Cam?
The Ajax AJAX#80003 StarterKitPlus Cam includes 1 × Hub 2 Plus AJAX#30639.
Q6: How many motion detectors are included in the Ajax AJAX#80003 StarterKitPlus Cam?
The Ajax AJAX#80003 StarterKitPlus Cam includes 1 × MotionProtect AJAX#30655 and 1 × MotionCam AJAX#30652.
Q7: Does the Ajax AJAX#80003 StarterKitPlus Cam include a siren?
Yes. The Ajax AJAX#80003 StarterKitPlus Cam includes 1 × HomeSiren AJAX#30630 for indoor audible alarm notification.
Q8: Does the Ajax AJAX#80003 StarterKitPlus Cam include a remote control?
Yes. The Ajax AJAX#80003 StarterKitPlus Cam includes 1 × SpaceControl AJAX#30670 for convenient alarm system control.
Q9: What communication channels does the Ajax AJAX#80003 StarterKitPlus Cam support?
The Ajax AJAX#80003 StarterKitPlus Cam includes Hub 2 Plus, which supports Ethernet, Wi-Fi, and two micro-SIM slots for cellular communication.
Q10: Is the Ajax AJAX#80003 StarterKitPlus Cam expandable?
Yes. The Ajax AJAX#80003 StarterKitPlus Cam can be expanded with compatible Ajax wireless devices, with Hub 2 Plus supporting up to 200 wireless Ajax devices.
Q11: Is the Ajax AJAX#80003 StarterKitPlus Cam suitable for businesses?
Yes. The Ajax AJAX#80003 StarterKitPlus Cam is suitable for offices, retail shops, clinics, stockrooms, professional suites, and other small to medium commercial premises.
Q12: Is the Ajax AJAX#80003 StarterKitPlus Cam suitable for outdoor installation?
The Ajax AJAX#80003 StarterKitPlus Cam includes indoor devices. Hub 2 Plus and MotionCam are listed as indoor-use devices, so outdoor protection should use compatible Ajax outdoor-rated products if required.
Q13: What is the MotionCam detection range in the Ajax AJAX#80003 StarterKitPlus Cam?
The MotionCam AJAX#30652 included in the Ajax AJAX#80003 StarterKitPlus Cam detects motion up to 12m when installed at the recommended height of 2.4m.
Q14: What warranty applies to the Ajax AJAX#80003 StarterKitPlus Cam?
The Ajax AJAX#80003 StarterKitPlus Cam includes Ajax devices, and the supplied Hub 2 Plus and MotionCam information lists a 24-month warranty. Full kit warranty coverage should be confirmed with the authorised Ajax representative.
