The Ajax Hub 2 (4G) Jeweller White with Optus 4G SIM Included – 12 Months Plan (AJAX#80011) is an advanced wireless security control panel built for reliable alarm communication, photo verification, and professional-grade intrusion protection. Designed for the Australian market, this powerful Ajax hub supports Ethernet and dual SIM 4G connectivity, helping maintain secure communication during network interruptions. With capacity for up to 100 Ajax wireless devices, support for 25 IP cameras or DVRs, and encrypted Jeweller and Wings communication technologies, the Hub 2 (4G) is ideal for homes, offices, retail stores, and commercial security installations requiring dependable monitoring and fast visual alarm verification.
What’s Included in the Box
-
Ajax Hub 2 (4G) Jeweller – White
-
SmartBracket mounting panel
-
Power cable
-
Ethernet cable
-
Installation kit
-
SIM card (depends on sales region)
-
User manual
Special package note:
-
Includes Optus 4G SIM
-
Includes 12/24/36 months plan
Main Features
Reliable Multi-Channel Communication
-

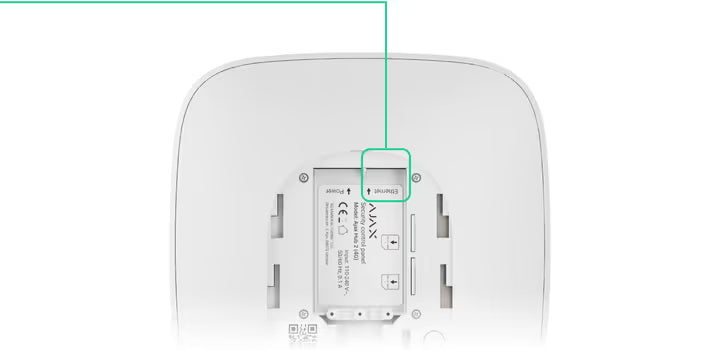

Ethernet connection up to 100 Mbps
-
Dual micro-SIM slots
-
Supports 2G, 3G, and 4G LTE
-
Instant switching between Ethernet and SIM
-
Instant switching between 4G, 3G, and 2G on one SIM
-
SIM-to-SIM switching in up to 4 minutes
Photo Verification Support
-
Photo by alarm
-
Photo by scenario
-
Photo on demand
-
Photo by schedule
-
Photo delivery in up to 9 seconds
-
Resolution up to 640 × 480 pixels
-
From 1 to 5 photos in a series
Strong Wireless Performance
-
Supports up to 100 Ajax wireless devices
-
Supports up to 25 IP cameras or DVRs
-
Up to 50 users
-
Up to 50 rooms
-
Up to 9 security groups
-
Up to 32 automation scenarios
Jeweller Wireless Technology
-
Two-way communication
-
Advanced anti-sabotage protection
-
Dynamic key block encryption
-
Instant notifications
-
Remote configuration via Ajax apps
-
Wireless range up to 2,000 m
Wings Photo Transmission Technology
-
Secure photo verification transmission
-
Frequency hopping protection
-
Package re-uploading during transmission errors
-
Photo delivery verification
-
Transmission range up to 1,700 m
Smart Automation Capabilities
-
Alarm-triggered actions
-
Scheduled automation
-
Security mode reactions
-
Temperature-based reactions
-
Humidity-based reactions
-
CO₂-based reactions
-
Button-triggered actions
Monitoring Compatibility
Supports leading alarm monitoring protocols:
-
SIA (DC-09)
-
SurGard (Contact ID)
-
ADEMCO 685
-
Other proprietary protocols
Detailed Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#80011 |
| Product Name | Hub 2 (4G) Jeweller |
| Colour | White |
| Package Variant | Optus 4G SIM Included (12 Months Plan) |
| Device Capacity | Up to 100 wireless Ajax devices |
| IP Cameras / DVRs | Up to 25 |
| Users | Up to 50 |
| Security Groups | Up to 9 |
| Rooms | Up to 50 |
| Automation Scenarios | Up to 32 |
| Wireless Technologies | Jeweller, Wings |
| Jeweller Range | Up to 2,000 m |
| Wings Range | Up to 1,700 m |
| Radio Power | Up to 20 mW |
| Radio Modulation | GFSK |
| Polling Interval | 12 to 300 s |
| Communication Channels | Ethernet, dual SIM cellular |
| Cellular Bands | 2G / 3G / 4G LTE |
| Ethernet Speed | Up to 100 Mbps |
| Notification Types | Push, SMS, Calls |
| Photo Resolution | Up to 640 × 480 |
| Photos per Series | 1 to 5 |
| Main Power Supply | 110–240 V~, 50/60 Hz |
| Power Consumption | Up to 10 W |
| Backup Battery | Built-in Li-ion 3 Ah |
| Backup Operation | Up to 15 hours |
| Alternative Power | 6 V PSU or 12–24 V PSU (sold separately) |
| Operating Temperature | −10°C to +40°C |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |
| Dimensions | 163 × 163 × 36 mm |
| Weight | 362 g |
Warranty
24 Months Manufacturer Warranty
The Ajax Hub 2 (4G) Jeweller White (AJAX#80011) includes a 2-year manufacturer warranty covering defects in materials and workmanship.
Brand – Ajax Systems
Ajax Systems is a globally trusted brand in professional electronic security, known for advanced wireless alarm systems, encrypted communication, photo verification technology, and reliable integration for homes and commercial properties. Ajax products are widely used by installers, monitoring companies, and security professionals worldwide.
SKU
AJAX#80011
Practical Use Scenarios
The Ajax Hub 2 (4G) Jeweller White (AJAX#80011) is ideal for:
-
Residential alarm systems
-
Small to medium commercial properties
-
Retail stores
-
Offices and consulting rooms
-
Warehouses and storage areas
-
Installations requiring 4G backup communication
-
Security systems needing visual alarm verification
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Ajax Hub 2 (4G) Jeweller White (AJAX#80011) is well suited to the needs of the Australian and New Zealand security market, where reliable mobile communication and professional alarm transmission are essential.
Key advantages include:
-
Optimised for Australian security installations
-
Includes Optus 4G SIM with 12 months plan
-
Supports communication channels commonly required for AU/NZ monitored alarm systems
-
Sourced through authorised brand representatives
-
Built for professional deployment in residential and commercial environments
-
Warranty and support handled in line with official brand channels
-
Suitable for high-quality security projects across Australia and New Zealand
FAQs – AJAX#80011
What is the AJAX#80011 Hub 2 (4G) Jeweller used for?
The AJAX#80011 is a wireless security control panel used to connect Ajax detectors, sirens, cameras, and automation devices while managing alarms, notifications, and photo verification.
Does the AJAX#80011 include a SIM card?
Yes, the AJAX#80011 package includes an Optus 4G SIM with a 12 months plan.
How many devices can the AJAX#80011 support?
The AJAX#80011 supports up to 100 Ajax wireless devices.
Does the AJAX#80011 support security cameras?
Yes, the AJAX#80011 supports up to 25 IP cameras or DVRs and offers RTSP support.
Does the AJAX#80011 support photo verification?
Yes, the AJAX#80011 supports photo verification with compatible Ajax detectors, including photo by alarm, scenario, on demand, and schedule.
What communication channels does the AJAX#80011 use?
The AJAX#80011 supports Ethernet and dual SIM cellular communication across 2G, 3G, and 4G LTE networks.
What is the wireless range of the AJAX#80011?
The AJAX#80011 supports wireless device communication up to 2,000 m in open space via Jeweller technology.
How long does the backup battery last in the AJAX#80011?
The AJAX#80011 includes a built-in Li-ion 3 Ah battery that provides up to 15 hours of backup operation when Ethernet is disconnected.
Is the AJAX#80011 suitable for indoor installation?
Yes, the AJAX#80011 is designed for indoor installation only.
Which monitoring protocols are supported by the AJAX#80011?
The AJAX#80011 supports SIA (DC-09), SurGard (Contact ID), ADEMCO 685, and other proprietary monitoring protocols.
