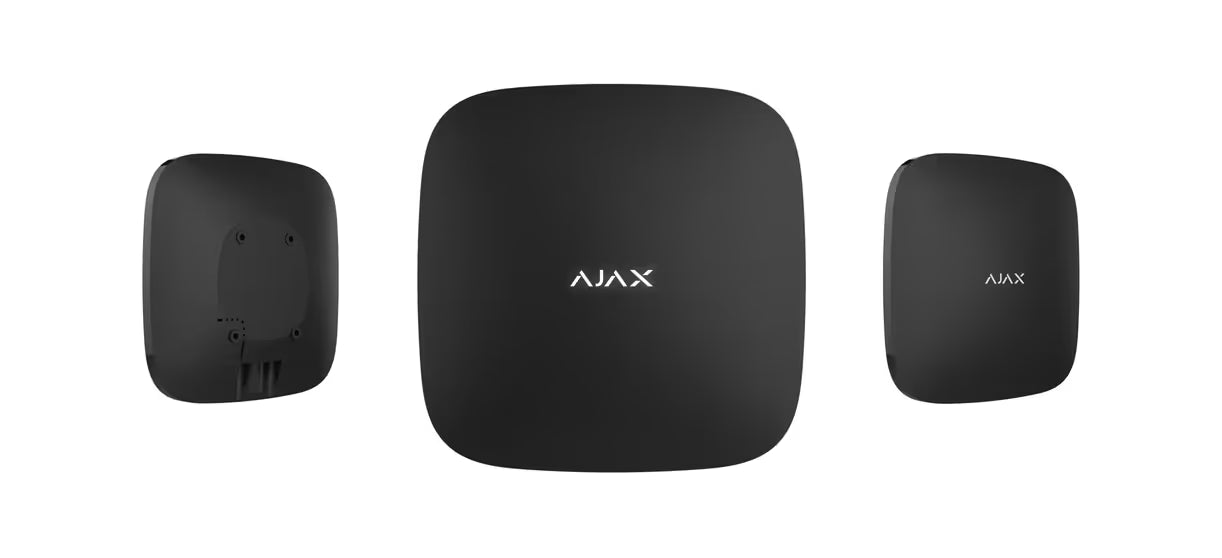

The Ajax Hub 2 Plus Jeweller White with Optus 4G SIM Included – 12 Months Plan (AJAX#80013) is a premium wireless security control panel designed for advanced intrusion protection, photo verification, and highly reliable multi-channel communication. Built for demanding residential and commercial security installations, this powerful Ajax hub supports Wi-Fi, Ethernet, and dual SIM 4G connectivity, helping ensure constant alarm transmission even during network disruptions. With support for up to 200 Ajax wireless devices, 100 IP cameras or DVRs, and advanced Jeweller and Wings encrypted radio technologies, the Hub 2 Plus delivers scalable, professional-grade performance for modern security systems across Australia.
What’s Included in the Box
-
Ajax Hub 2 Plus Jeweller – White
-
SmartBracket mounting panel
-
Power cable
-
Ethernet cable
-
Installation kit
-
SIM card (depends on sales region)
-
Quick start guide
Special package note:
-
Includes Optus 4G SIM
-
Includes 12/24/36 months plan
Main Features
Advanced Multi-Channel Communication
-

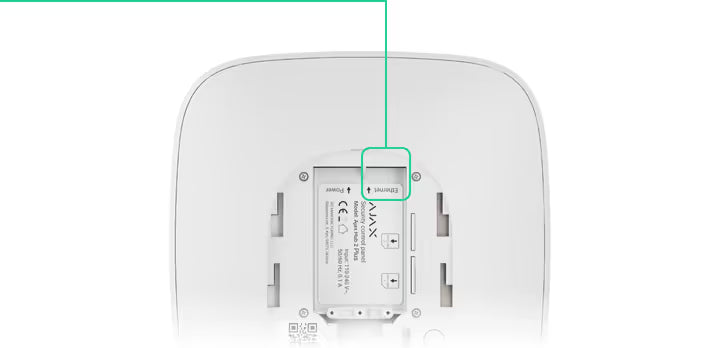

Ethernet connection up to 100 Mbps
-
Wi-Fi 802.11 b/g/n connectivity up to 600 Mbps
-
Dual micro-SIM support
-
Works with 2G, 3G, and 4G LTE networks
-
Instant switching between Ethernet, Wi-Fi, and SIM
-
SIM switching in up to 4 minutes
Large System Capacity
-
Supports up to 200 Ajax wireless devices
-
Supports up to 100 IP cameras or DVRs
-
Up to 200 users
-
Up to 25 security groups
-
Up to 50 rooms
-
Up to 64 automation scenarios
Photo Verification Support
-
Photo by alarm
-
Photo by scenario
-
Photo on demand
-
Photo by schedule
-
Photo delivery in up to 9 seconds
-
Resolution up to 640 × 480 pixels
-
From 1 to 5 photos in a series
Jeweller Wireless Technology
-
Two-way communication
-
Advanced anti-sabotage protection
-
Dynamic key block encryption
-

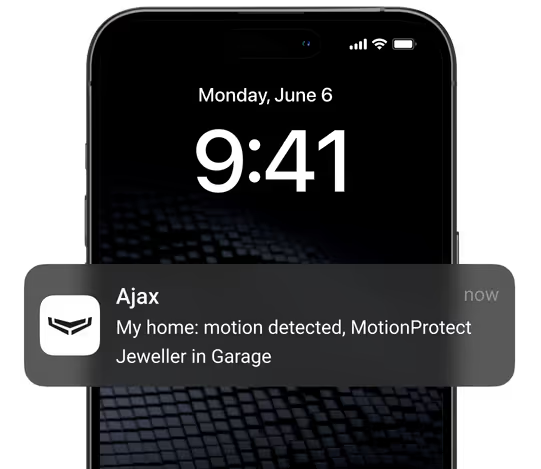

Instant notifications
-
Remote configuration via Ajax apps
-
Communication range up to 2,000 m
Wings Photo Transmission Technology
-
Secure photo verification transmission
-
Advanced anti-sabotage features
-
Package re-uploading during errors
-
Photo delivery check
-
Transmission range up to 1,700 m
Powerful Automation
-
Alarm-triggered scenarios
-
Scheduled actions
-
Security mode change reactions
-
Temperature-based automation
-
Humidity-based automation
-
CO₂-based reactions
-
Button-triggered automation
Professional Monitoring Compatibility
Supports major alarm monitoring protocols:
-
SIA (DC-09)
-
SurGard (Contact ID)
-
ADEMCO 685
-
Other proprietary protocols
Detailed Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#80013 |
| Product Name | Hub 2 Plus Jeweller |
| Colour | White |
| Package Variant | Optus 4G SIM Included (12 Months Plan) |
| Device Capacity | Up to 200 Ajax wireless devices |
| IP Cameras / DVRs | Up to 100 |
| Users | Up to 200 |
| Security Groups | Up to 25 |
| Rooms | Up to 50 |
| Automation Scenarios | Up to 64 |
| Wireless Technologies | Jeweller, Wings |
| Jeweller Range | Up to 2,000 m |
| Wings Range | Up to 1,700 m |
| Radio Power | Up to 20 mW |
| Radio Modulation | GFSK |
| Polling Interval | 12 to 300 s |
| Communication Channels | Ethernet, Wi-Fi, dual SIM cellular |
| Cellular Bands | 2G / 3G / 4G LTE |
| Wi-Fi Standard | 802.11 b/g/n |
| Wi-Fi Speed | Up to 600 Mbps |
| Ethernet Speed | Up to 100 Mbps |
| Notification Types | Push, SMS, Calls |
| Photo Resolution | Up to 640 × 480 |
| Photos per Series | 1 to 5 |
| Main Power Supply | 110–240 V~, 50/60 Hz |
| Power Consumption | Up to 10 W |
| Backup Battery | Built-in Li-ion 3 Ah |
| Backup Operation | Up to 15 hours |
| Alternative Power | 6 V PSU or 12–24 V PSU (sold separately) |
| Operating Temperature | −10°C to +40°C |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |

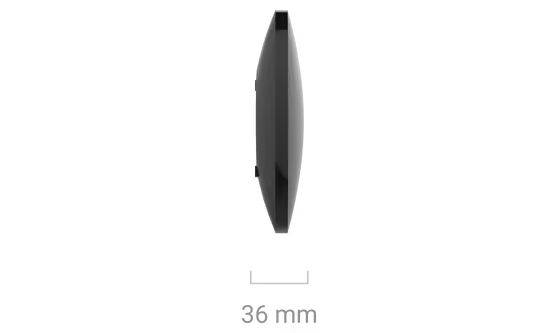

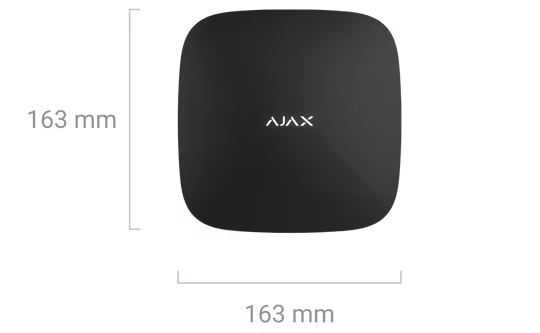

| Dimensions | 163 × 163 × 36 mm |
| Weight | 367 g |
Warranty
24 Months Manufacturer Warranty
The Ajax Hub 2 Plus Jeweller White (AJAX#80013) includes a 2-year manufacturer warranty covering defects in materials and workmanship.
Brand – Ajax Systems
Ajax Systems is a globally trusted manufacturer of professional electronic security products, known for advanced wireless alarm technology, encrypted communication, photo verification, and dependable monitoring integration. Ajax systems are widely used by professional installers, monitoring centres, businesses, and homeowners seeking premium security performance.
SKU
AJAX#80013
Practical Use Scenarios
The Ajax Hub 2 Plus Jeweller White (AJAX#80013) is ideal for:
-
Large residential alarm systems
-
Premium smart home security
-
Retail stores and showrooms
-
Offices and commercial premises
-
Warehouses and logistics facilities
-
Multi-user or multi-zone installations
-
Sites requiring Wi-Fi, Ethernet, and 4G communication redundancy
-
Security systems with photo verification and camera integration
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Ajax Hub 2 Plus Jeweller White (AJAX#80013) is well suited to the requirements of the Australian and New Zealand security market, where dependable communication redundancy and professional alarm transmission are essential.
Key advantages include:
-
Optimised for Australian security installations
-
Includes Optus 4G SIM with 12 months plan
-
Supports communication paths commonly required for AU/NZ monitored alarm systems
-
Sourced through authorised brand representatives
-
Designed for professional deployment in residential and commercial environments
-
Warranty and support handled through official brand channels
-
Suitable for advanced security projects across Australia and New Zealand
FAQs – AJAX#80013
What is the AJAX#80013 Hub 2 Plus Jeweller used for?
The AJAX#80013 is a wireless security control panel used to connect Ajax detectors, sirens, cameras, and automation devices while managing alarms, notifications, and photo verification.
Does the AJAX#80013 include a SIM card?
Yes, the AJAX#80013 package includes an Optus 4G SIM with a 12 months plan.
How many devices can the AJAX#80013 support?
The AJAX#80013 supports up to 200 Ajax wireless devices.
Does the AJAX#80013 support IP cameras and DVRs?
Yes, the AJAX#80013 supports up to 100 IP cameras or DVRs and includes RTSP support.
Does the AJAX#80013 support Wi-Fi as well as Ethernet and SIM?
Yes, the AJAX#80013 supports Wi-Fi, Ethernet, and dual SIM cellular communication, giving it strong communication redundancy.
Does the AJAX#80013 support photo verification?
Yes, the AJAX#80013 supports photo verification with compatible Ajax detectors, including photo by alarm, scenario, on demand, and schedule.
What communication channels does the AJAX#80013 use?
The AJAX#80013 uses Ethernet, Wi-Fi, and dual SIM cellular communication across 2G, 3G, and 4G LTE networks.
What is the wireless range of the AJAX#80013?
The AJAX#80013 supports wireless communication up to 2,000 m in open space via Jeweller technology.
How long does the backup battery last in the AJAX#80013?
The AJAX#80013 includes a built-in Li-ion 3 Ah battery that provides up to 15 hours of backup operation when Ethernet is disconnected.
Is the AJAX#80013 suitable for indoor installation?
Yes, the AJAX#80013 is designed for indoor installation only.
Which monitoring protocols are supported by the AJAX#80013?
The AJAX#80013 supports SIA (DC-09), SurGard (Contact ID), ADEMCO 685, and other proprietary monitoring protocols.
