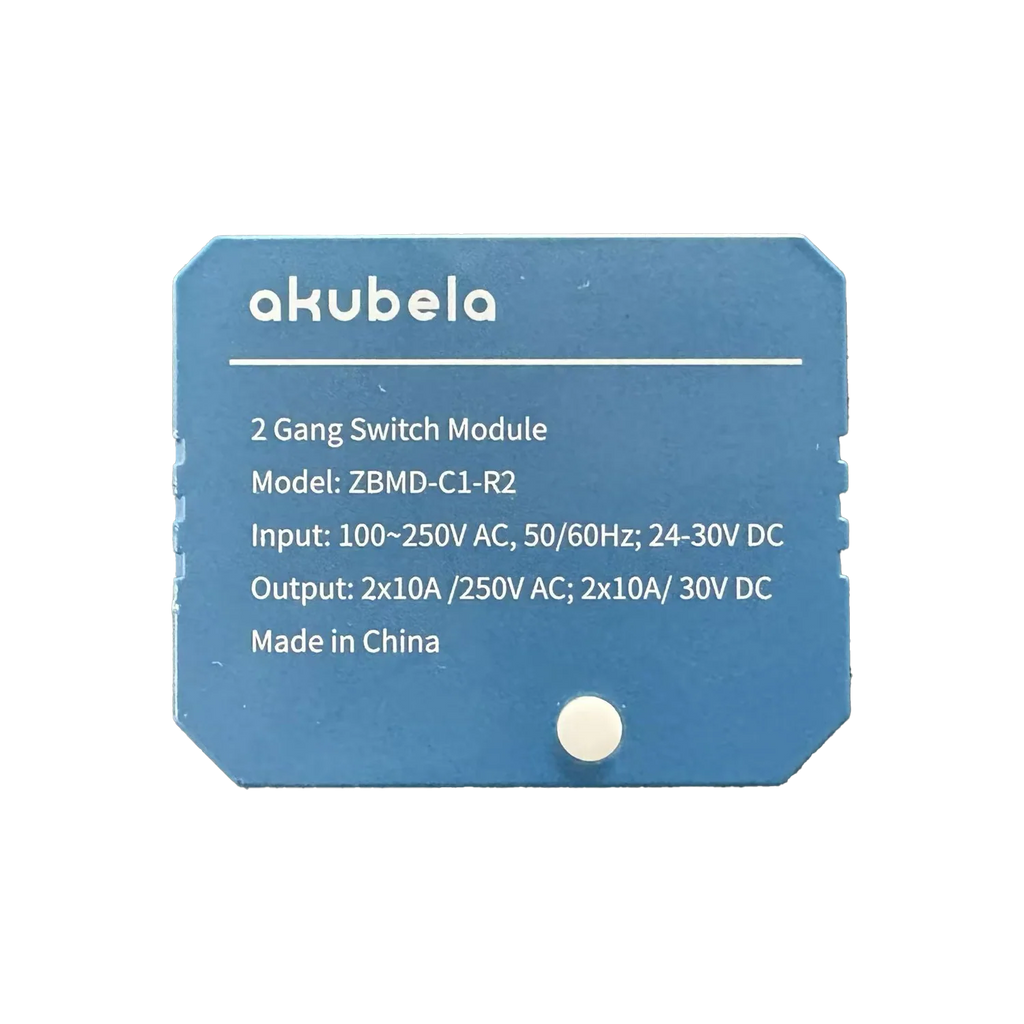

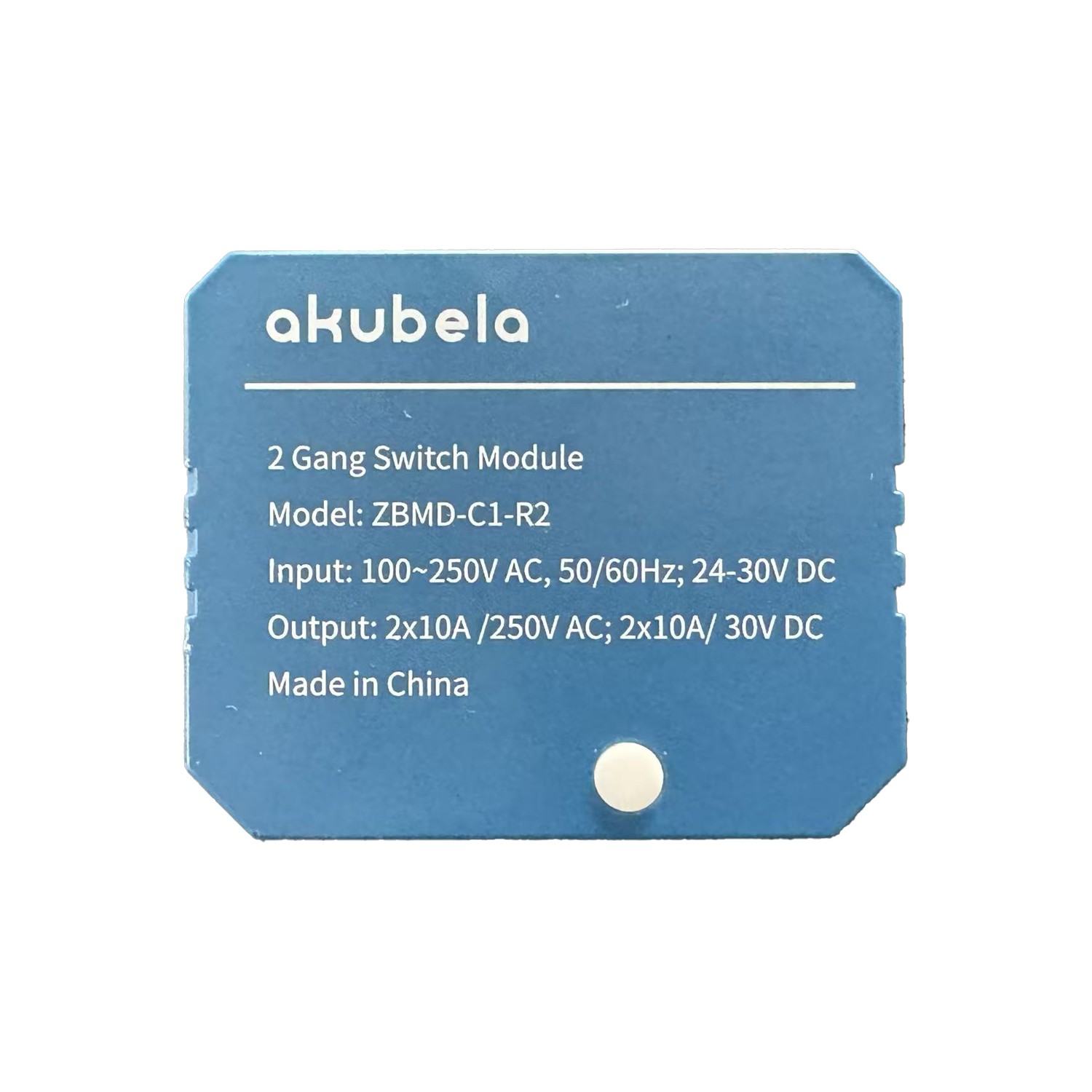

The Akubela ZBMD-C1-R2 2-Gang ZigBee 3.0 Smart Switch Module is a compact, dual-channel smart relay controller designed to upgrade conventional wall switches with intelligent home automation. Featuring two independently controlled 10A outputs, ZigBee 3.0 wireless connectivity, remote app and smart panel control, and a space-saving in-wall design, this module provides a practical solution for smart lighting control, electrical switching and home automation retrofits in residential and commercial environments.
Designed to fit inside compatible wall switch boxes, the ZBMD-C1-R2 enables users to modernise existing electrical switches without necessarily replacing their visible switch plates. By connecting to a compatible ZigBee gateway, the module allows connected circuits to be operated remotely through supported mobile applications or smart home control panels.
The device supports a wide power input range of 100–250V AC (50/60Hz) or 24–30V DC, providing installation flexibility for compatible electrical systems. Its small dimensions of just 50 × 41 × 15.7 mm make it suitable for space-conscious retrofit installations, subject to available enclosure space and electrical safety requirements.
Equipped with power-off memory, real-time switching and a maximum rated load of 10A per channel, the Akubela ZBMD-C1-R2 delivers reliable switching functionality within a compatible smart home ecosystem.
What's Included in the Box
Main Features and Benefits
1. ZigBee 3.0 Smart Home Connectivity
Uses the ZigBee 3.0 wireless communication protocol for integration with compatible ZigBee gateways and supported smart home ecosystems.
2. Dual-Channel Switching Control
Features two independently controlled switching outputs, allowing two compatible electrical circuits or loads to be operated through one compact module.
3. Up to 10A Switching Capacity per Channel
Each output supports a rated load of up to 10A at 250V AC or 30V DC, subject to the manufacturer's installation and load requirements.
4. Compact In-Wall Installation
Measuring only 50 × 41 × 15.7 mm, the module is designed for installation inside suitable wall switch boxes, making it particularly useful for smart home retrofitting.
5. Flexible AC and DC Power Input
Supports 100–250V AC at 50/60Hz and 24–30V DC power supplies, providing flexibility across compatible applications.
6. Convenient App and Smart Panel Control
Control connected switching circuits remotely through supported smart home applications or compatible control panels after successful ZigBee gateway pairing.
7. Power-Off Memory Function
Includes power-off memory functionality to support the module's operation following power interruptions.
8. Compatibility with External Wall Switches
Supports connection to compatible external switches, providing a practical way to retain physical switching functionality while introducing smart control.
9. Real-Time Switching
Enables responsive control of connected circuits through the associated gateway and supported control interface.
Detailed Technical Specifications
| Specification |
Details |
| Brand |
Akubela |
| Product Name |
2-Gang ZigBee Smart Switch Module |
| Product Model |
ZBMD-C1-R2 |
| Device Type |
In-Wall Smart Relay / Switch Module |
| Number of Channels |
2 |
| Communication Protocol |
ZigBee 3.0 |
| AC Input Voltage |
100–250V AC |
| AC Frequency |
50/60Hz |
| DC Input Voltage |
24–30V DC |
| Maximum AC Load |
2 × 10A at 250V AC |
| Maximum DC Load |
2 × 10A at 30V DC |
| Control Methods |
Compatible app, smart panel and external switches |
| Power-Off Memory |
Supported |
| Working Temperature |
-10°C to +40°C |
| Storage Temperature |
-20°C to +70°C |
| Working Humidity |
10–90% RH, non-condensing |
| Dimensions |
50 × 41 × 15.7 mm |
| Installation Location |
Compatible in-wall switch enclosure |
| Gateway Requirement |
Compatible ZigBee gateway required for network control |
Installation and ZigBee Network Pairing
The Akubela ZBMD-C1-R2 is intended for installation within a suitable electrical switch enclosure.
ZigBee pairing procedure:
-
Have the module installed and connected according to the manufacturer's wiring diagram, then apply power. The blue indicator should flash slowly, approximately once per second.
-
Press and hold the reset button for approximately 5 seconds until the blue indicator flashes rapidly, indicating pairing mode.
-
Use the compatible ZigBee gateway's device-addition function to discover and pair the switch module.
-
Once successfully connected, the blue indicator remains illuminated.
Important: Installation involving mains electrical wiring must be carried out by an appropriately licensed or authorised electrical professional in accordance with applicable local regulations. Always consult the manufacturer's wiring documentation. Confirm gateway compatibility and the available installation space before purchasing.
Practical Applications and Use Scenarios
Smart Lighting Retrofitting
Upgrade compatible existing lighting switch circuits with smart control functionality while retaining suitable conventional wall switches.
Dual-Circuit Control
Manage two independent electrical switching circuits using a single ZigBee module, reducing the need for separate switching controllers.
Residential Smart Home Integration
Incorporate existing electrical switches into a compatible ZigBee smart home system controlled through mobile apps or smart panels.
Apartments and Renovation Projects
Introduce smart switching to suitable existing installations where a compact in-wall controller is preferred over replacing visible wall switch hardware.
Small Office and Commercial Automation
Provide remote control of compatible switching loads within office or commercial environments, subject to electrical design, device load ratings and local installation requirements.
Warranty Information
The Akubela ZBMD-C1-R2 is offered with applicable manufacturer or supplier warranty support.
-
Warranty period: 1 year
-
Warranty coordination: Globlelink's brand-support process includes direct communication with authorised brand representatives.
-
Warranty coverage: Subject to the confirmed warranty terms and conditions.
-
Consumer rights: Applicable Australian and New Zealand statutory consumer protections remain unaffected.
About Akubela
Akubela is a smart home technology brand offering connected home automation solutions, including HyPanel smart control panels, ZigBee devices, wireless accessories and integrated smart home control products.
Its product portfolio focuses on convenient, connected residential environments, combining intelligent control interfaces with compatible automation accessories. Akubela's smart switching modules provide practical options for upgrading conventional electrical installations within supported smart home systems.
Product Code / SKU
-
Brand: Akubela
-
Manufacturer Model: ZBMD-C1-R2
-
SKU: ZBMD-C1-R2
-
Product Category: Smart Home Automation / ZigBee Switch Modules
-
Suggested URL Slug: akubela-zbmd-c1-r2-2-gang-zigbee-smart-switch-module
Datasheets and Downloadable Resources
Download Datasheet
Excellence for the Australian and New Zealand Market
The Akubela ZBMD-C1-R2 2-Gang ZigBee Smart Switch Module offers practical features for smart home retrofit projects across Australia and New Zealand, including compact in-wall dimensions, support for a broad AC input voltage range and compatibility with supported ZigBee smart control ecosystems.
Electrical Standards and Installation Considerations
Its 100–250V AC, 50/60Hz input specification encompasses the nominal mains voltage used in Australia and New Zealand. However, voltage compatibility alone does not establish regulatory approval. Product-specific Australian and New Zealand electrical safety compliance, applicable certifications and Regulatory Compliance Mark (RCM) requirements must be verified before local supply or installation.
Authentic Brand Sourcing
Globlelink's sourcing approach emphasises genuine products procured through authorised brand representatives, helping customers obtain authentic smart home automation equipment.
Direct Brand Warranty Coordination
Warranty enquiries are coordinated through direct communication with the brand or its authorised representatives, subject to the confirmed warranty conditions.
Supporting Smart Home Modernisation
The ZBMD-C1-R2 is suited to professionally designed smart home upgrades where compatible control systems, proper electrical installation and reliable integration are important.
Frequently Asked Questions (FAQs)
1. What is the Akubela ZBMD-C1-R2 2-Gang ZigBee Smart Switch Module?
The Akubela ZBMD-C1-R2 is a compact two-channel ZigBee 3.0 switch module that enables compatible conventional electrical switches and connected circuits to be integrated into a smart home system. It supports remote switching through a compatible gateway, app or smart control panel.
2. Does the Akubela ZBMD-C1-R2 support ZigBee 3.0 connectivity?
Yes. The ZBMD-C1-R2 uses the ZigBee 3.0 communication protocol. It connects to a compatible gateway for smart network control. Compatibility with a particular third-party ZigBee gateway should be verified before purchase.
3. Can the Akubela ZBMD-C1-R2 control two electrical circuits independently?
Yes. The ZBMD-C1-R2 has two switching channels, allowing independent control of two compatible connected circuits. Each channel has a maximum specified load rating of 10A.
4. What power supply does the Akubela ZBMD-C1-R2 require?
The ZBMD-C1-R2 supports 100–250V AC at 50/60Hz or 24–30V DC input power, according to the manufacturer's specifications.
5. What is the maximum load capacity of the Akubela ZBMD-C1-R2?
The Akubela ZBMD-C1-R2 is rated for up to 10A per channel at 250V AC or 30V DC. The module has two rated switching channels, with connected loads required to remain within the manufacturer's specified limits.
6. Can the Akubela ZBMD-C1-R2 be installed behind existing wall switches?
Yes. The compact ZBMD-C1-R2 is designed for installation inside compatible wall switch boxes. Actual suitability depends on the enclosure's available space, wiring arrangements, load compatibility and applicable electrical installation requirements.
7. Does the Akubela ZBMD-C1-R2 need a ZigBee gateway?
Yes. A compatible ZigBee gateway is required for the ZBMD-C1-R2's documented network pairing and remote smart home control features. The module is not specified as a standalone Wi-Fi switch.
8. How do I pair the Akubela ZBMD-C1-R2 with a ZigBee gateway?
Once professionally installed and powered, hold the ZBMD-C1-R2 reset button for approximately five seconds until the blue indicator flashes rapidly. Then add the device using the compatible gateway's pairing interface. The indicator remains illuminated after successful network connection.
9. Does the Akubela ZBMD-C1-R2 support power-off memory?
Yes. Power-off memory is listed as a feature of the ZBMD-C1-R2. The exact recovery behaviour should be checked against the installed firmware and compatible gateway configuration.
10. Can the Akubela ZBMD-C1-R2 be controlled using a mobile app or smart panel?
Yes. The ZBMD-C1-R2 supports remote control through compatible applications and smart home control panels when connected to a supported ZigBee gateway.
11. Is the Akubela ZBMD-C1-R2 a smart dimmer switch?
The ZBMD-C1-R2 is documented as a two-channel switch module rather than a dimmer. Variable brightness control is not specified and should not be assumed.
12. Is the Akubela ZBMD-C1-R2 suitable for Australian and New Zealand homes?
The ZBMD-C1-R2 supports a voltage range that includes typical Australian and New Zealand mains supplies. Suitability for a specific installation depends on verified local electrical compliance, appropriate regulatory approvals, compatible wiring and professional installation.
13. What are the dimensions of the Akubela ZBMD-C1-R2?
The ZBMD-C1-R2 measures 50 × 41 × 15.7 mm, making it a compact option for compatible in-wall smart switching installations.
14. Where can I find the Akubela ZBMD-C1-R2 datasheet and wiring diagram?
The ZBMD-C1-R2 product datasheet includes its electrical specifications, wiring diagrams, physical dimensions and network pairing instructions. A PDF link and official wiring reference are available in the downloadable resources section above.
