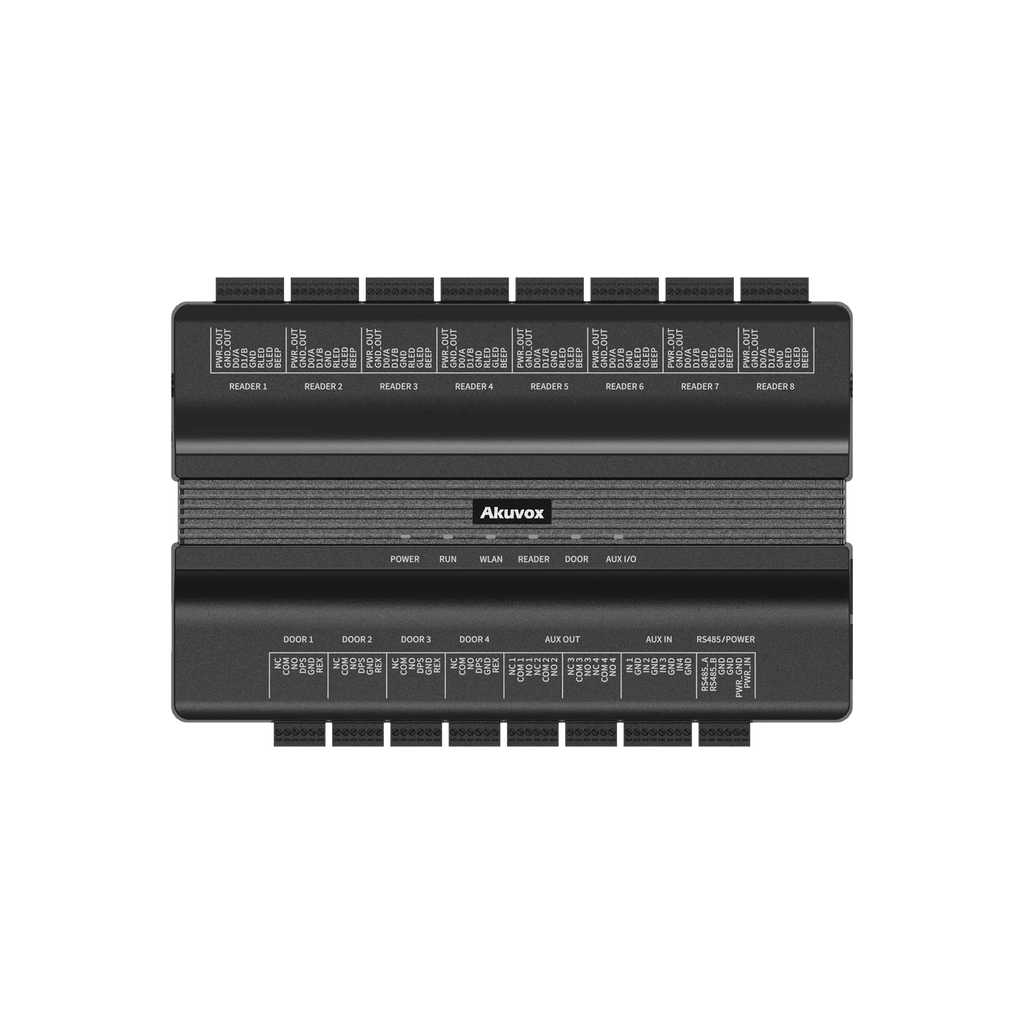

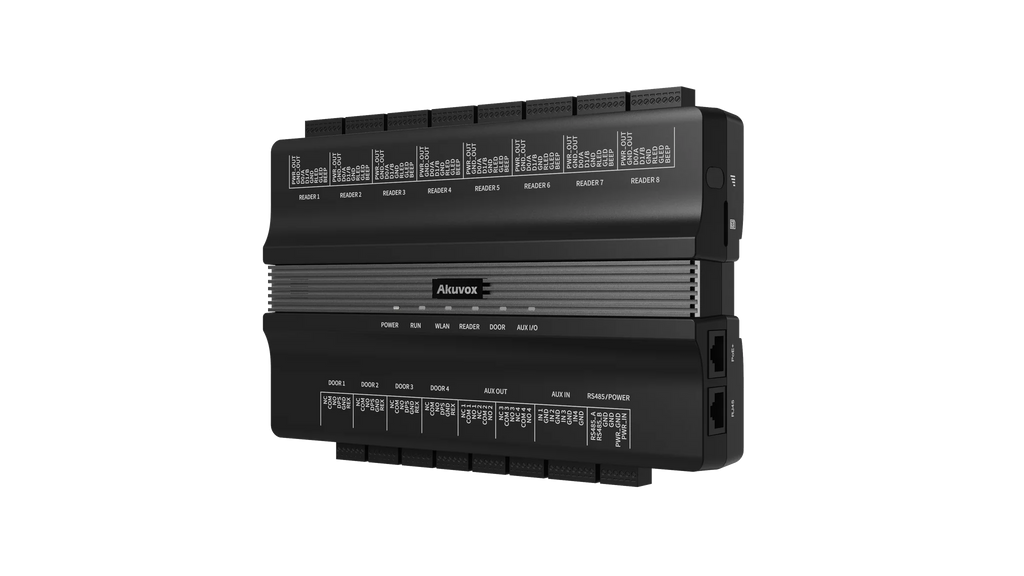

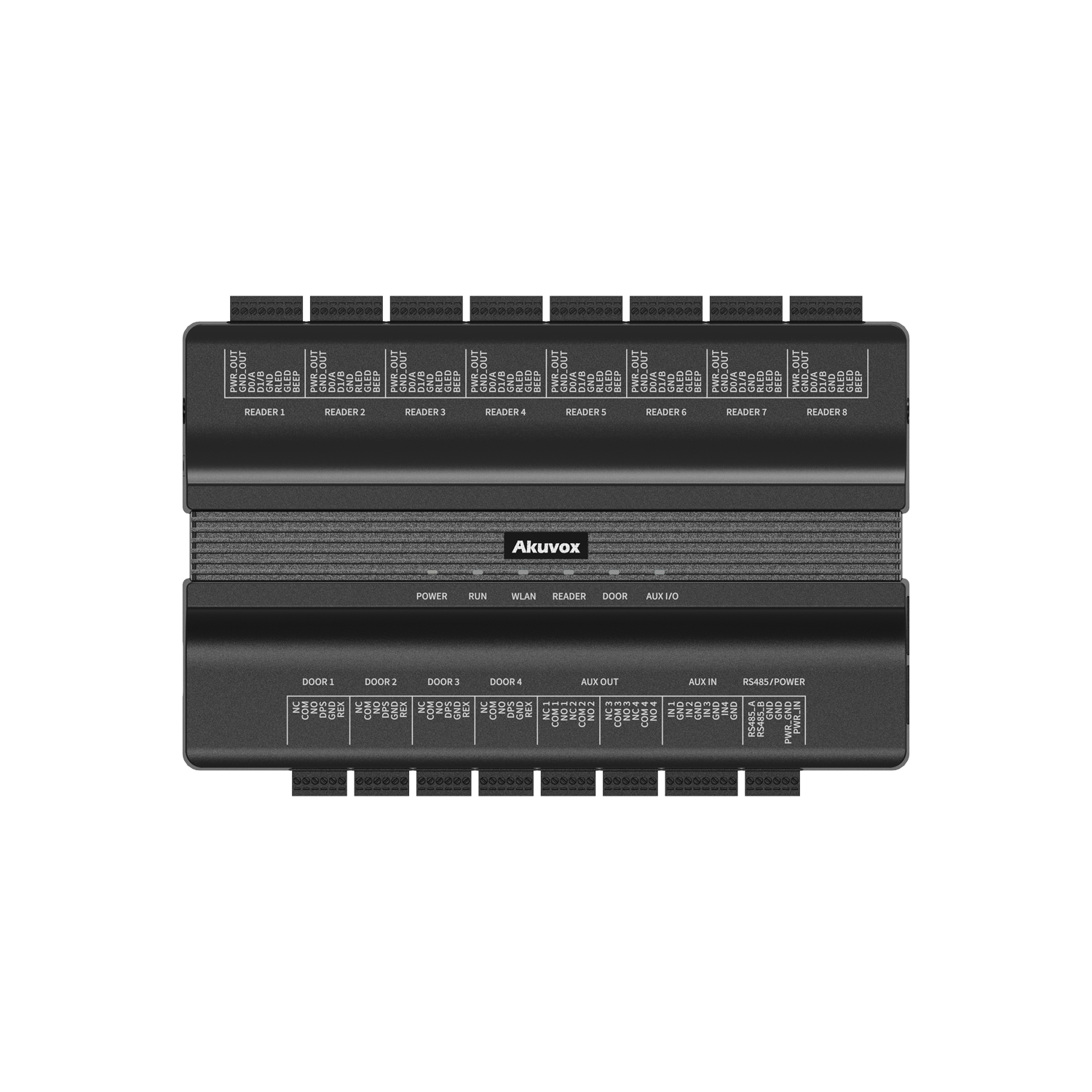

The Akuvox A095 is a high-performance, smart 4-door access control panel designed to deliver secure, scalable, and centralised access control management for commercial, institutional, and enterprise-grade facilities. Supporting both standalone and networked deployments, the A095 enables complete control over up to four doors and eight readers, while managing large-scale user databases and event records with robust data security.
Housed in a durable SGCC cabinet, the A095 is engineered with multiple communication protocols including RS485, Wiegand, and TCP/IP, making it fully integrable with Akuvox Cloud and ACMS platforms. Its Linux-based architecture ensures stability, rapid processing, and compliance with modern access control demands.
What’s Included in the Box
Main Features
-
Centralised Control of 4 Doors – Manage entry/exit through 4 doors via 8 readers (in/out)
-
Scalable User Database – Stores up to 50,000 users and 100,000 access records
-
Multi-Protocol Reader Support – Compatible with Wiegand and RS485 card readers
-
Dual Communication Channels – Supports TCP/IP and Web interface for remote configuration
-
Enhanced Security – Features anti-passback, door interlock, and tamper alarms
-
Flexible Deployment – Use standalone or networked in large-scale deployments
-
Akuvox Cloud & ACMS Compatible – Seamless remote access and user management
-
Emergency Features – Supports Emergency Door Release (EDR)
-
Real-Time Event Logging – Instant feedback on card usage, access attempts, and door status
Detailed Specifications
| Feature |
Specification |
| Door Control |
4 Doors (8 Reader Interfaces) |
| User Capacity |
50,000 users |
| Event Storage |
100,000 logs |
| Communication |
TCP/IP, RS485, Wiegand |
| Alarm Inputs |
Yes (multiple) |
| Relay Outputs |
8 (2 per door – lock and auxiliary) |
| Supported Readers |
Wiegand 26/34, RS485-based readers |
| Enclosure |
SGCC metal cabinet |
| Operating System |
Linux |
| Integration |
Akuvox ACMS, 3rd-party systems via API |
| Power Input |
12V DC or via external power supply |
| Installation Type |
Wall-mounted |
| Operating Temp |
-10°C to +55°C |
| Dimensions |
As per datasheet |
Warranty Information
Manufactures warranty applied.
Practical Use Scenarios
-
Corporate Offices – Multi-entry access control for secured staff movement
-
Healthcare Facilities – Real-time control of sensitive area access for compliance
-
Educational Institutions – Restrict access to labs, admin areas, or dormitories
-
Government Buildings – Secure access to multiple rooms and track entry attempts
-
Warehousing & Logistics – Centralised management of secured storage access points
Excellence for the Australian and New Zealand Market
The Akuvox A095 4-door controller delivers uncompromising reliability and functionality tailored to the diverse regulatory and environmental needs of Australia and New Zealand. Supplied by authorised local distributors, the A095 ensures full compliance, ongoing product support, and seamless compatibility with leading access infrastructure in the region.
FAQs (Product Code: A095)
Q1: How many doors and readers can the A095 control?
A1: The A095 supports 4 doors and up to 8 reader interfaces for both entry and exit control. (Product Code: A095)
Q2: What card reader types are compatible with the A095?
A2: The controller works with Wiegand 26/34 and RS485-based card readers. (Product Code: A095)
Q3: Can I manage the system remotely?
A3: Yes, it supports web interface access, TCP/IP, and integrates with Akuvox ACMS and Cloud. (Product Code: A095)
Q4: Is the A095 suitable for large-scale installations?
A4: Absolutely. It’s designed to scale and can be used in multi-controller networked systems. (Product Code: A095)
Q5: Does it support anti-passback functionality?
A5: Yes, the A095 includes anti-passback, EDR, and tamper alarm features for added security. (Product Code: A095)
