Product Description

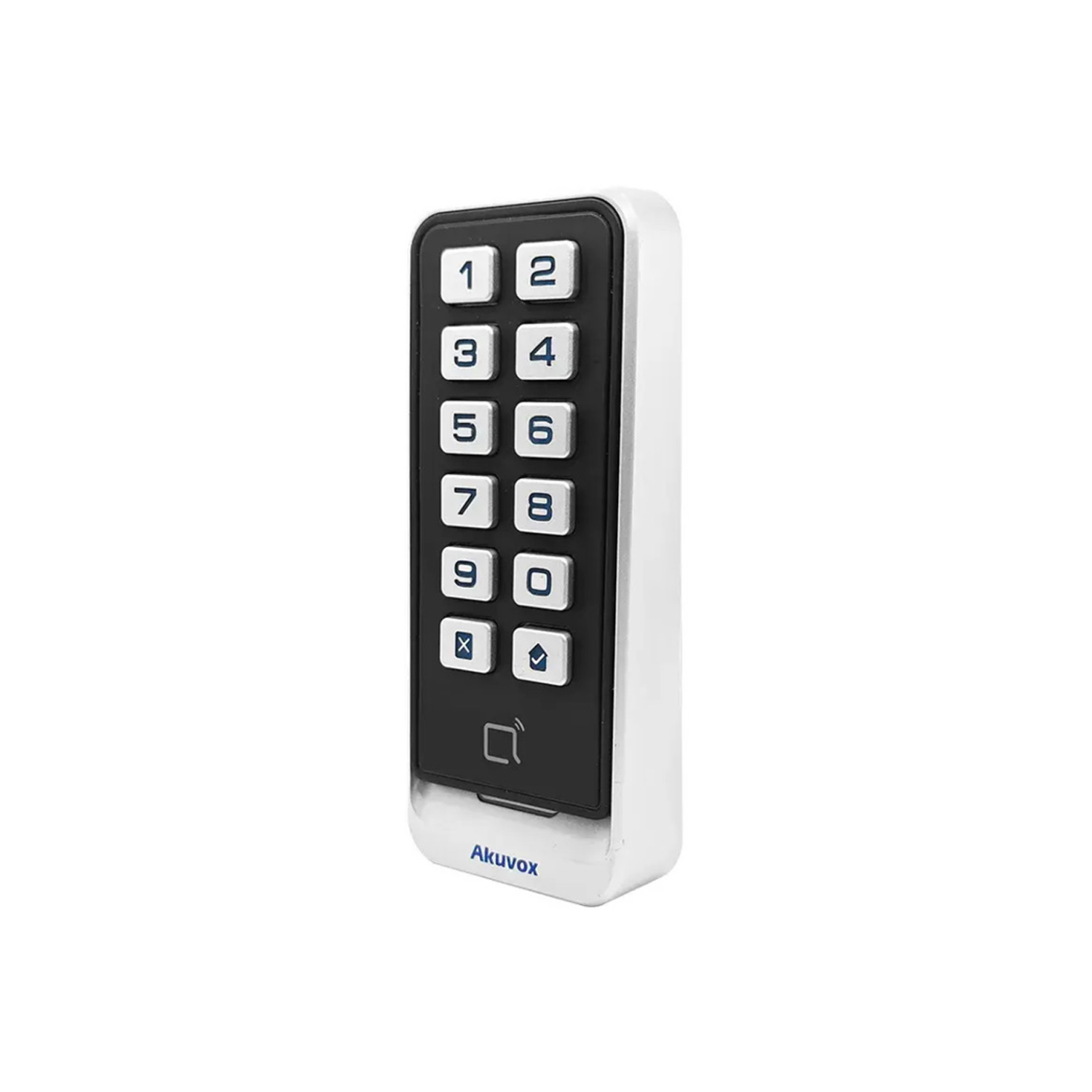

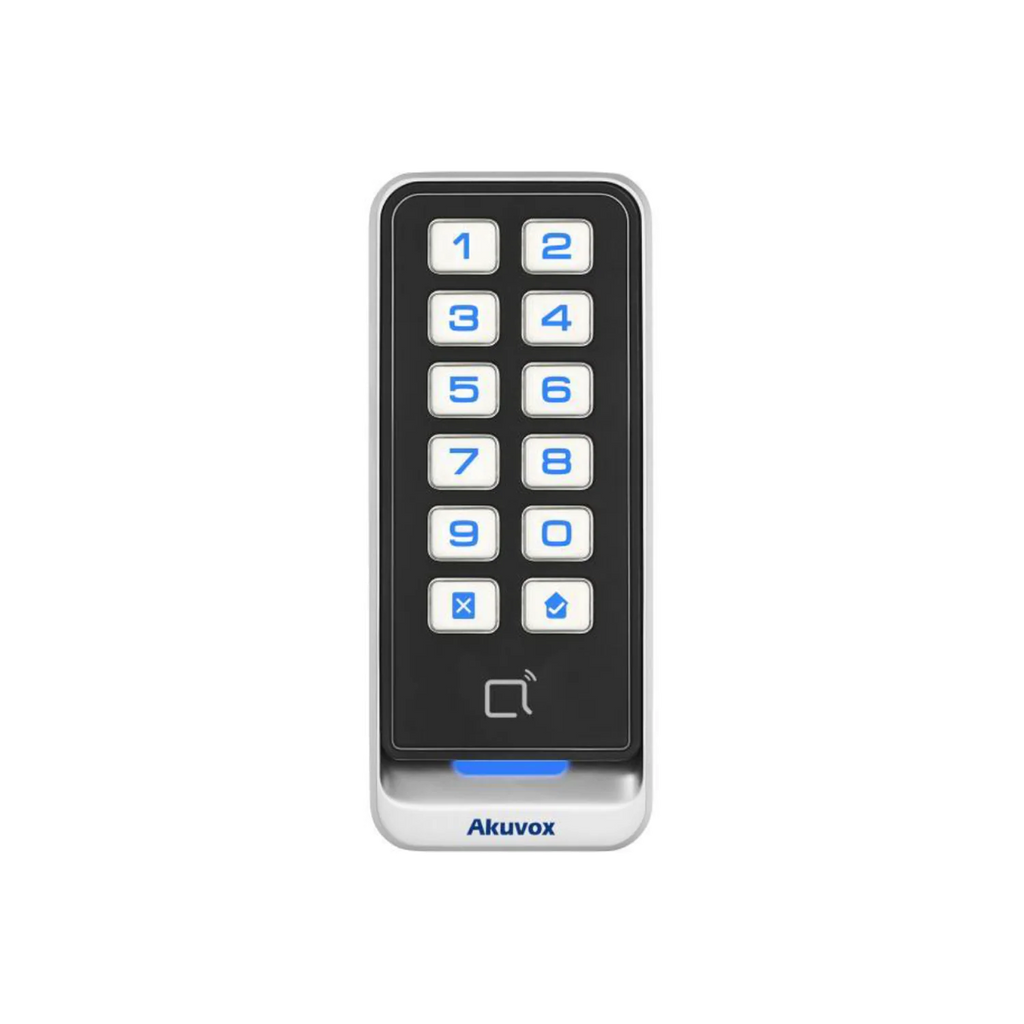

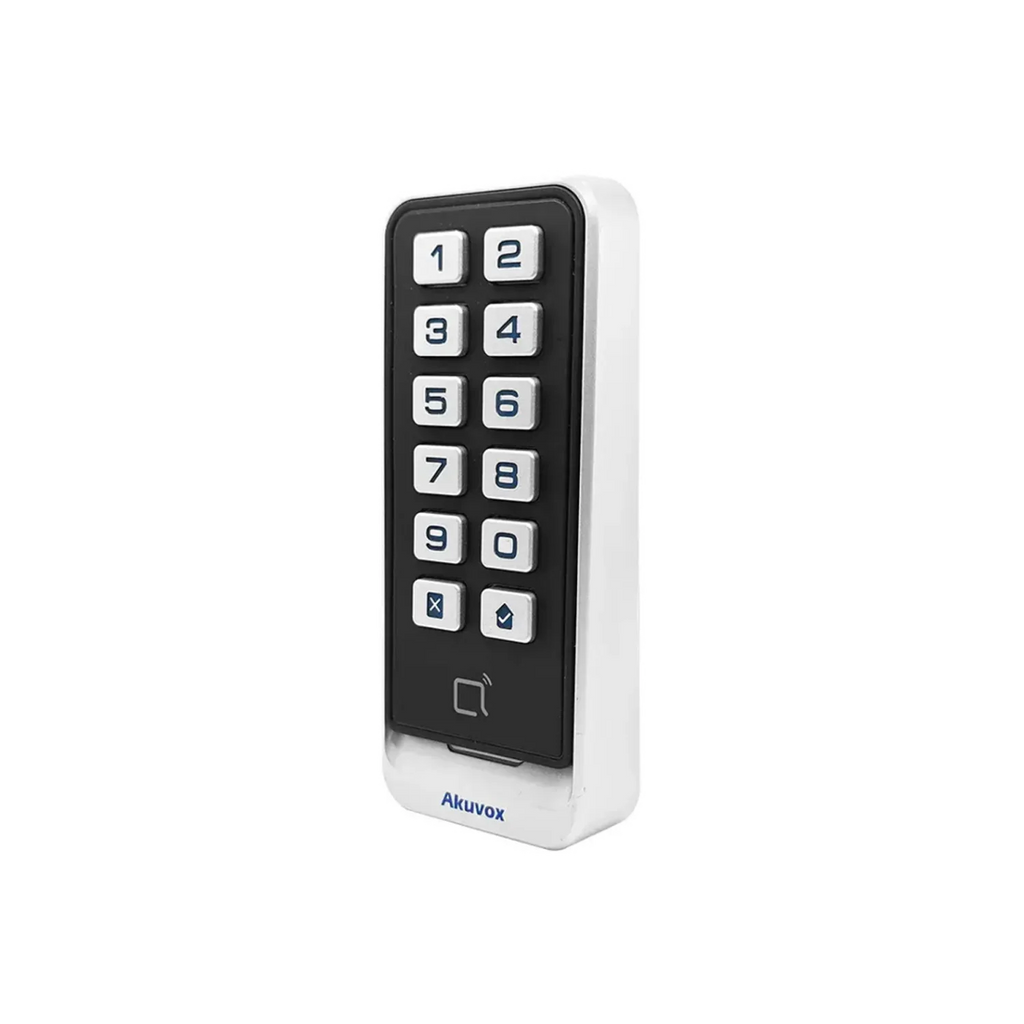

The Akuvox ACR-CRM11 is a robust, metal access control reader combining a dual-frequency RFID card reader and numeric keypad in a compact, vandal-resistant design. Built for both indoor and outdoor installations, it operates at 13.56MHz and 125KHz, supporting multiple card types including IC/ID credentials. Designed with a durable aluminum front panel and IP65-rated weather protection, the ACR-CRM11 is an ideal solution for secure and flexible access control in commercial, industrial, and residential environments.
The device communicates via Wiegand protocol, allowing seamless integration with third-party access control systems or as part of a complete Akuvox access infrastructure.
What’s Included in the Box
Main Features
-
Dual-Frequency Reader – Supports both 13.56MHz (IC cards) and 125KHz (ID cards)
-
Integrated Keypad – Enables PIN-code based access alongside card credentials
-
Wiegand Output – Compatible with standard access control panels
-
Metal Construction – Sturdy aluminum alloy front panel resists vandalism
-
IP65 Rating – Waterproof and dustproof for reliable outdoor use
-
LED & Buzzer Feedback – Provides intuitive status alerts for users
-
Compact Footprint – Fits neatly into various building or gate control applications
Detailed Specifications
| Feature |
Specification |
| Operating Frequency |
13.56MHz (MIFARE, DESFire) & 125KHz (EM, ID) |
| Keypad |
12-key numeric keypad |
| Interface |
Wiegand 26/34 |
| Reading Distance |
Up to 5cm (13.56MHz), Up to 10cm (125KHz) |
| Material |
Aluminum alloy front panel |
| IP Rating |
IP65 – Water and Dust Resistant |
| Operating Temperature |
-20°C to +65°C |
| Power Supply |
9–15V DC |
| Installation Type |
Surface-mounted |
| Dimensions |
As per datasheet |
Warranty Information
Manufactures warranty applied.
Practical Use Scenarios
-
Office Entrances – Secure, keypad + card-based entry for staff or visitors
-
Warehouse & Industrial Sites – Rugged exterior protection for harsh environments
-
Residential Complex Gates – Flexible access for tenants and service providers
-
Parking Access Control – Combined keypad and RFID for secure barrier operation
-
Educational Institutions – Supports ID-based and code-based access for staff or students
Excellence for the Australian and New Zealand Market
The ACR-CRM11 Wiegand Reader delivers rugged construction, dual-frequency flexibility, and weatherproof reliability, making it ideal for challenging outdoor environments in Australia and New Zealand. Distributed through official Akuvox partners, this device meets stringent local standards for commercial and residential access control systems.
Datasheet / Downloads
FAQs (Product Code: ACR-CRM11)
Q1: What card technologies are supported by the ACR-CRM11?
A1: It supports 13.56MHz MIFARE/DESFire and 125KHz EM/ID cards. (Product Code: ACR-CRM11)
Q2: Can this reader be installed outdoors?
A2: Yes, it features IP65 protection, making it ideal for outdoor use. (Product Code: ACR-CRM11)
Q3: Does it support PIN access?
A3: Yes, the integrated numeric keypad allows PIN-based authentication. (Product Code: ACR-CRM11)
Q4: What interface does it use for integration?
A4: The reader uses Wiegand 26/34 protocol, ensuring compatibility with most access systems. (Product Code: ACR-CRM11)
Q5: Is it compatible with Akuvox door controllers?
A5: Yes, it can be integrated with Akuvox access control terminals and third-party panels. (Product Code: ACR-CRM11)
