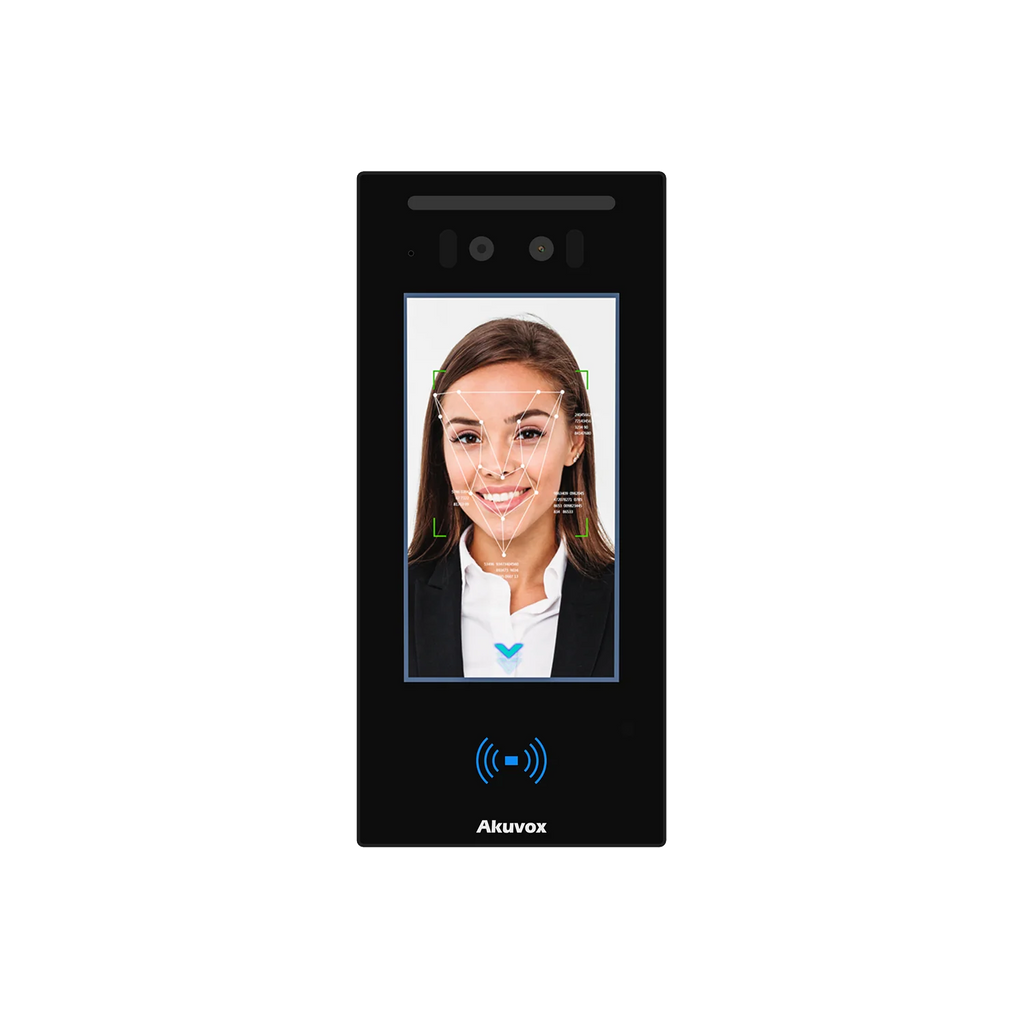

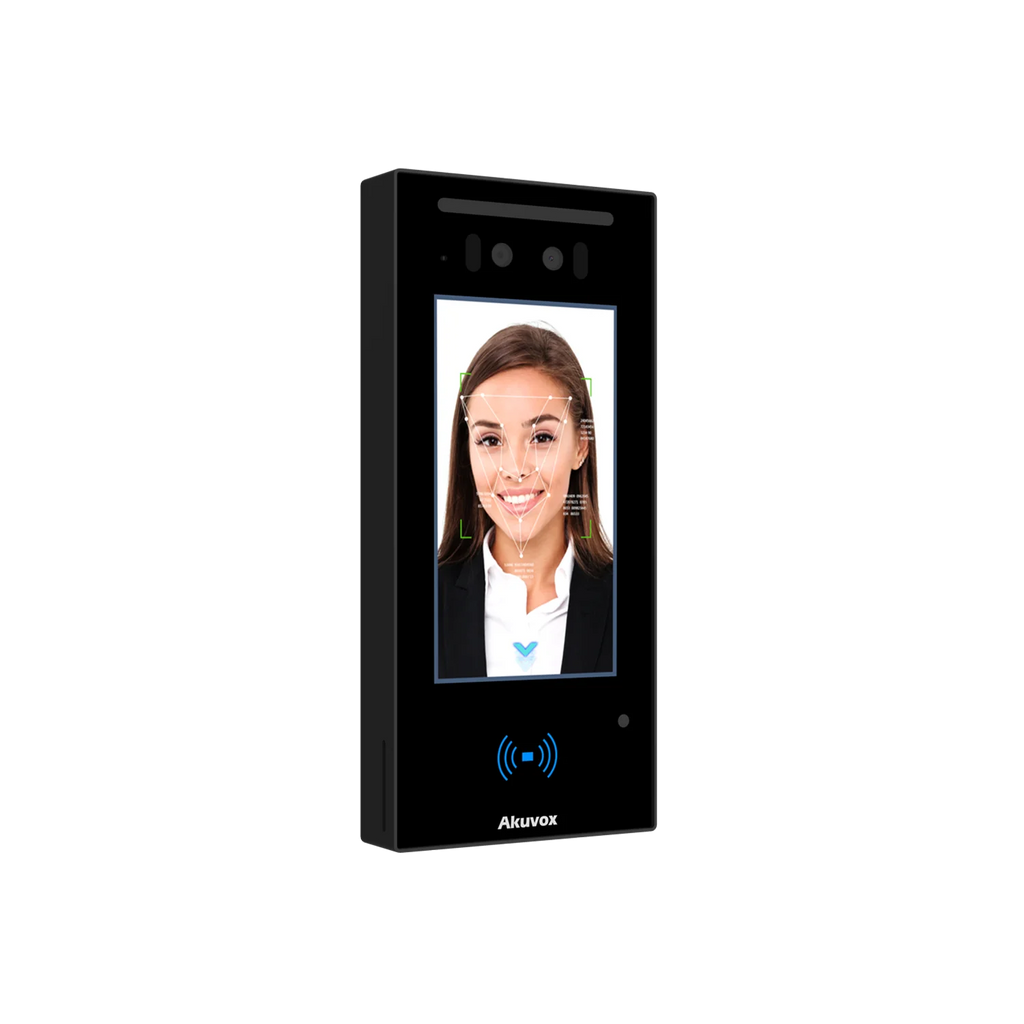

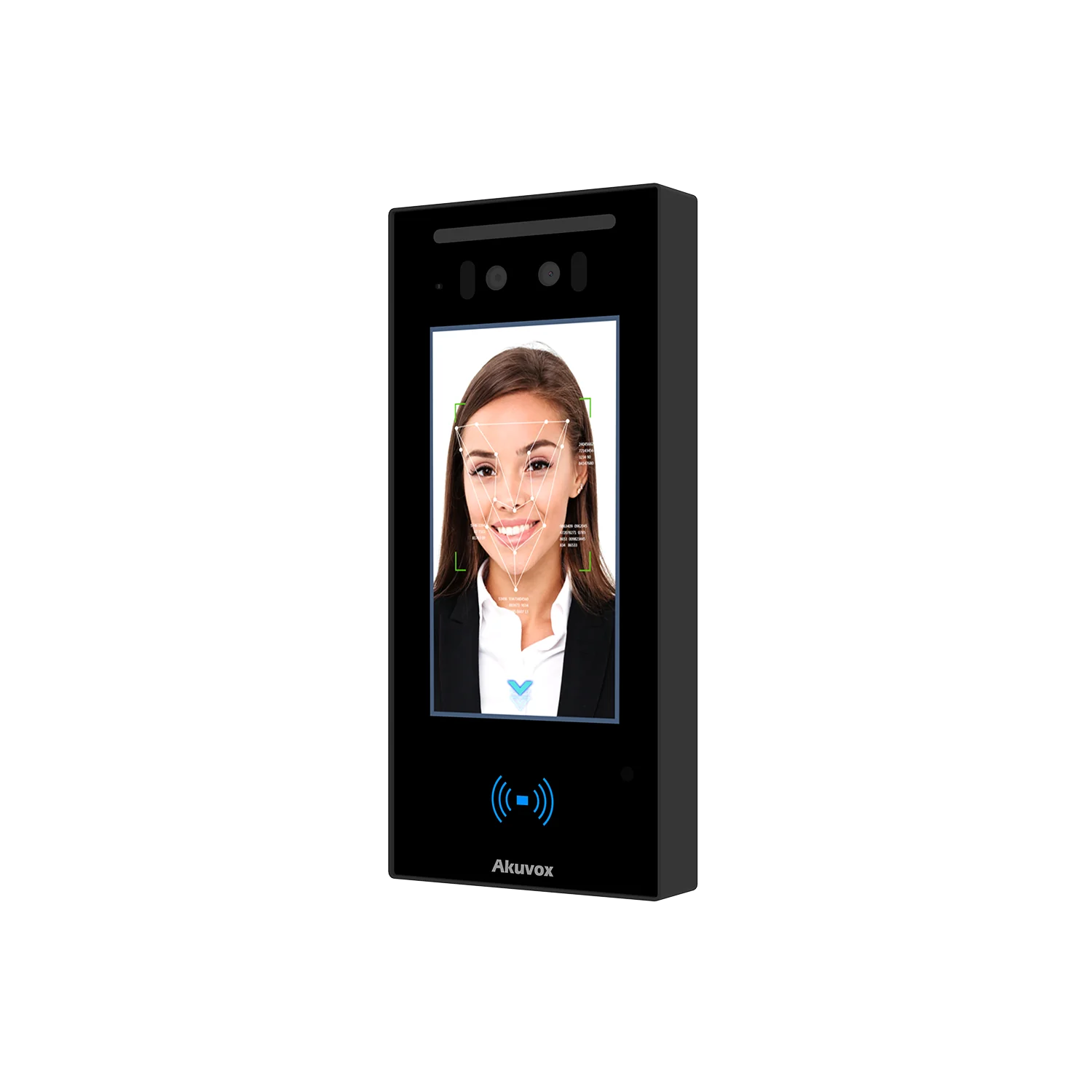

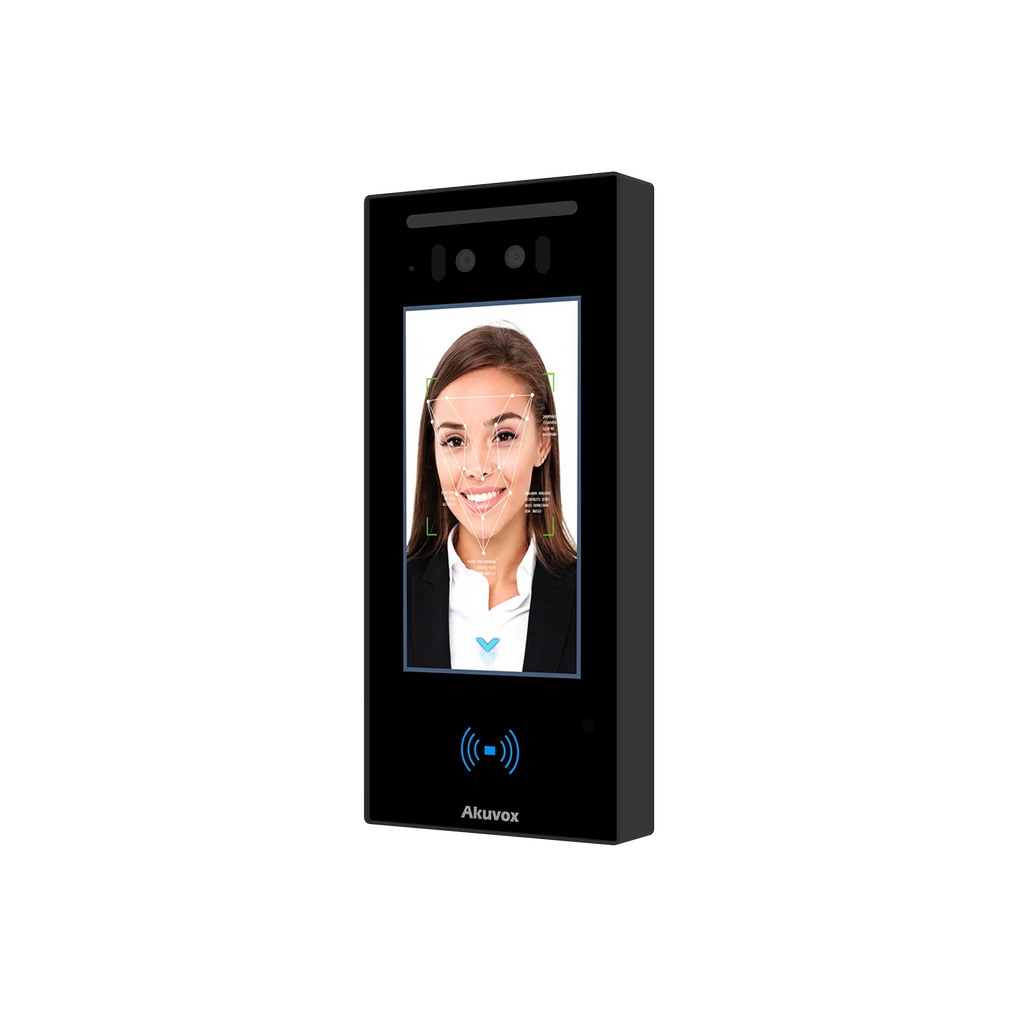

The Akuvox E16C is a robust and intelligent IP video door phone, designed to deliver secure, contactless access control in both residential and commercial settings. Featuring a 5-inch IPS LCD capacitive touchscreen and advanced AI-powered facial recognition, the E16C ensures seamless and hygienic entry management. Its integration with SIP and ONVIF standards allows for easy incorporation into existing IP networks, making it an ideal solution for modern access control systems.

What's in the Box

• Akuvox E16C Video Door Phone Unit

• Wall-Mounting Bracket

• Installation Accessories (Screws, Anchors)

• Quick Start Guide

Main Features

• High-Definition Display: 5-inch IPS LCD touchscreen with 1280x720 resolution

• Advanced Facial Recognition: AI-powered recognition with anti-spoofing technology, supporting up to 20,000 faces

• Multiple Access Methods: Facial recognition, RFID cards (13.56MHz), PIN codes, BLE, and QR codes

• Dual Camera System: 2MP wide-angle camera with WDR for optimal image quality

• Robust Build: IP65-rated plastic housing for outdoor installations

• Flexible Connectivity: Supports PoE (IEEE802.3af), RS485, Wiegand, and Bluetooth

• Linux Operating System: Ensures stability and security

• Two-Way Communication: Echo-cancelled audio over IP networks

Detailed Specifications

• Display: 5-inch IPS LCD, 1280x720 resolution

• Camera: 2MP with Wide Dynamic Range (WDR)

• Field of View: Horizontal: 62°, Vertical: 36°

• Operating System: Linux

• Access Methods: Facial recognition, RFID card (13.56MHz), PIN, BLE, QR code

• Connectivity:

  • Ethernet: RJ45, 10/100Mbps

  • PoE: IEEE802.3af compliant

  • RS485 and Wiegand support

  • Bluetooth: Supported

• Power Supply: PoE or 12V DC

• Protection Rating: IP65

• Installation: Surface-mounted

• Housing Material: Plastic

• Dimensions: 88mm (W) x 192mm (H) x 27.5mm (D)

• Operating Temperature: -20°C to +60°C

• Humidity: 10% to 90% non-condensing

Warranty Information

The Akuvox E16C comes with a standard 1-year manufacturer's warranty, covering defects in materials and workmanship under normal use.

Brand Overview

Akuvox is a global leader in smart intercom and access control solutions, integrating advanced technologies such as AI, SIP, and cloud services to enhance security and communication. Their products are known for reliability, innovation, and ease of integration into various systems.

SKU

E16C

Practical Use Scenarios

• Residential Complexes: Secure entry for residents and visitors with facial recognition and mobile access

• Commercial Buildings: Manage employee and guest access efficiently with multiple authentication methods

• Healthcare Facilities: Ensure hygienic, contactless entry points for staff and patients

• Educational Institutions: Control campus access while maintaining a welcoming environment

• Industrial Sites: Monitor and control access to sensitive areas with robust security features

Datasheets and Downloadable Resources

Excellence for the Australian and New Zealand Market

• Compliance with Local Standards: Meets Australian and New Zealand quality and safety regulations

• NDSS Approval: Recognized under the National Disability Insurance Scheme for accessible solutions

• Optimized for Local Conditions: Designed to withstand diverse climates in Australia and New Zealand

• Authorized Distribution: Sourced exclusively through authorized Akuvox representatives in the region

• Direct Warranty Support: Warranty claims handled directly with Akuvox for efficient service

FAQs

Q1: What is the facial recognition capacity of the Akuvox E16C (SKU: E16C)?
A1: The E16C can store up to 20,000 facial profiles, ensuring efficient access management for large user bases.

Q2: Does the Akuvox E16C (SKU: E16C) support integration with existing SIP-based systems?
A2: Yes, the E16C complies with SIP standards, allowing seamless integration with existing SIP-based communication systems.

Q3: Can the Akuvox E16C (SKU: E16C) be used in outdoor environments?
A3: Absolutely. With its IP65-rated housing, the E16C is designed for outdoor installations, offering protection against dust and water.

Q4: What are the power options for the Akuvox E16C (SKU: E16C)?
A4: The device supports Power over Ethernet (PoE) compliant with IEEE802.3af standards and can also be powered using a 12V DC supply.

Q5: Is the Akuvox E16C (SKU: E16C) suitable for high-traffic areas?
A5: Yes, its fast facial recognition speed (<0.2s per user) and high storage capacity make it ideal for high-traffic environments.

Q6: Does the Akuvox E16C (SKU: E16C) offer contactless access methods?
A6: Yes, it supports multiple contactless access methods, including facial recognition, BLE, and QR code scanning, promoting hygiene and convenience.

Q7: Can the Akuvox E16C (SKU: E16C) be managed remotely?
A7: Yes, the device can be configured and managed remotely via a web browser, facilitating easy administration.

Q8: What is included in the Akuvox E16C (SKU: E16C) package?
A8: The package includes the E16C unit, wall-mounting bracket, installation accessories, and a quick start guide.

Q9: Is the Akuvox E16C (SKU: E16C) compatible with mobile applications?
A9: Yes, it integrates with the Akuvox SmartPlus mobile app, allowing users to manage access and receive notifications on their smartphones.

Q10: Does the Akuvox E16C (SKU: E16C) support temperature and mask detection?
A10: Optional modules can be added to enable temperature and mask detection features, enhancing health safety measures.
