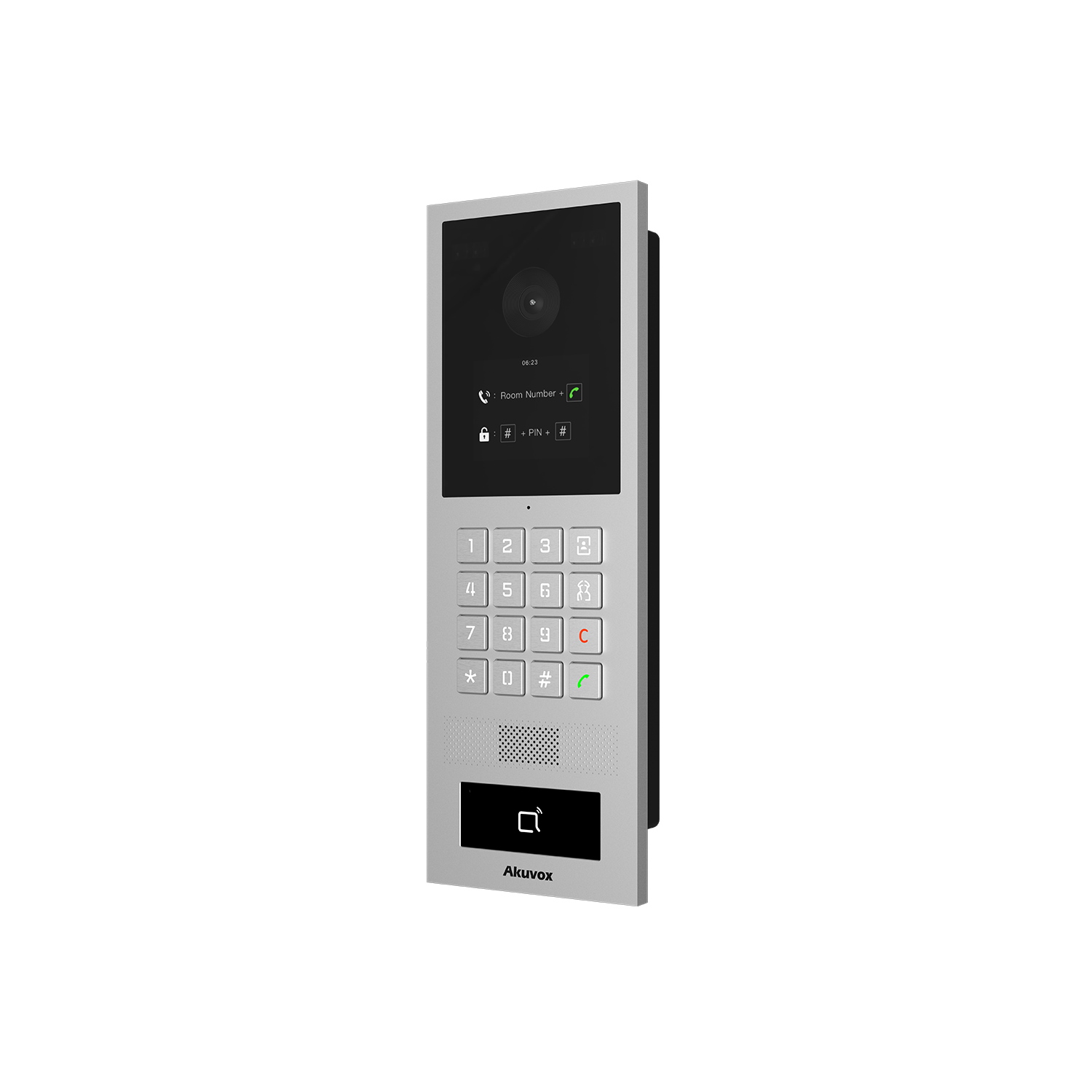

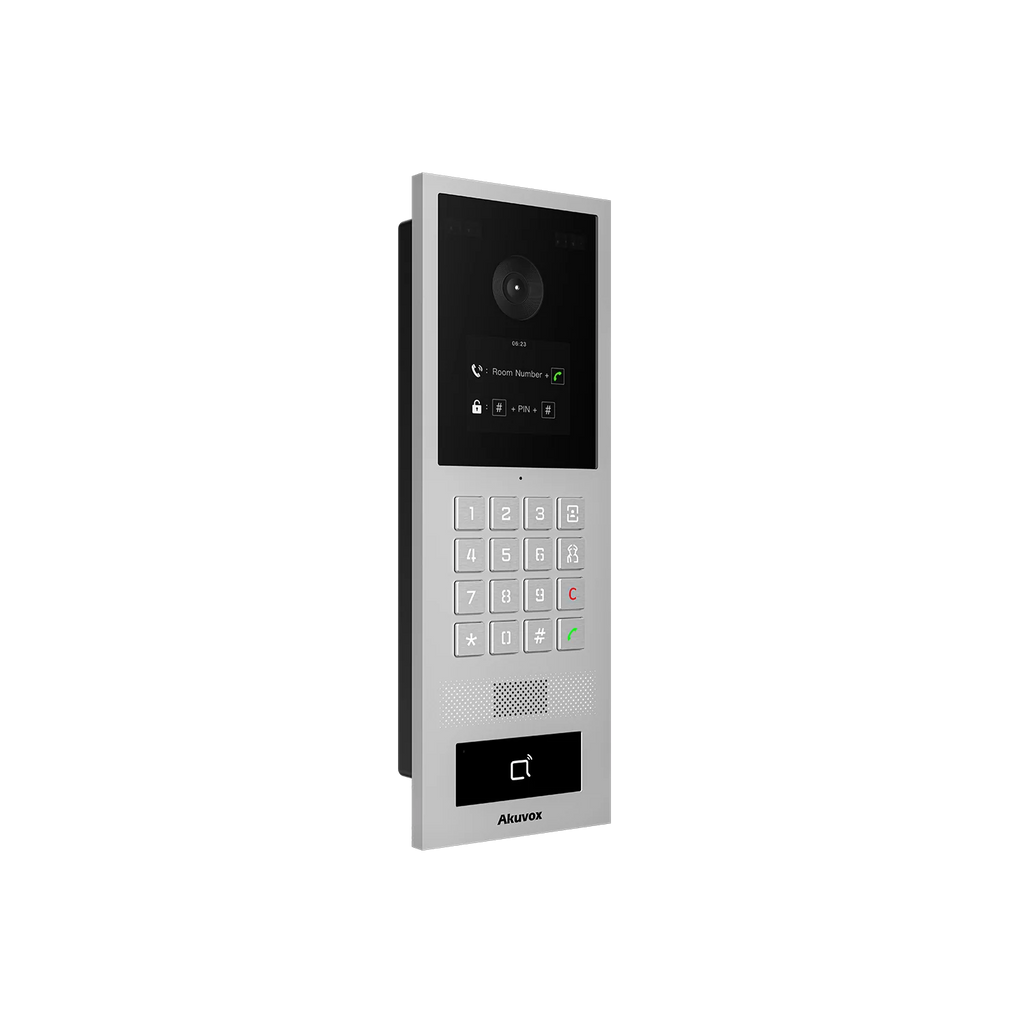

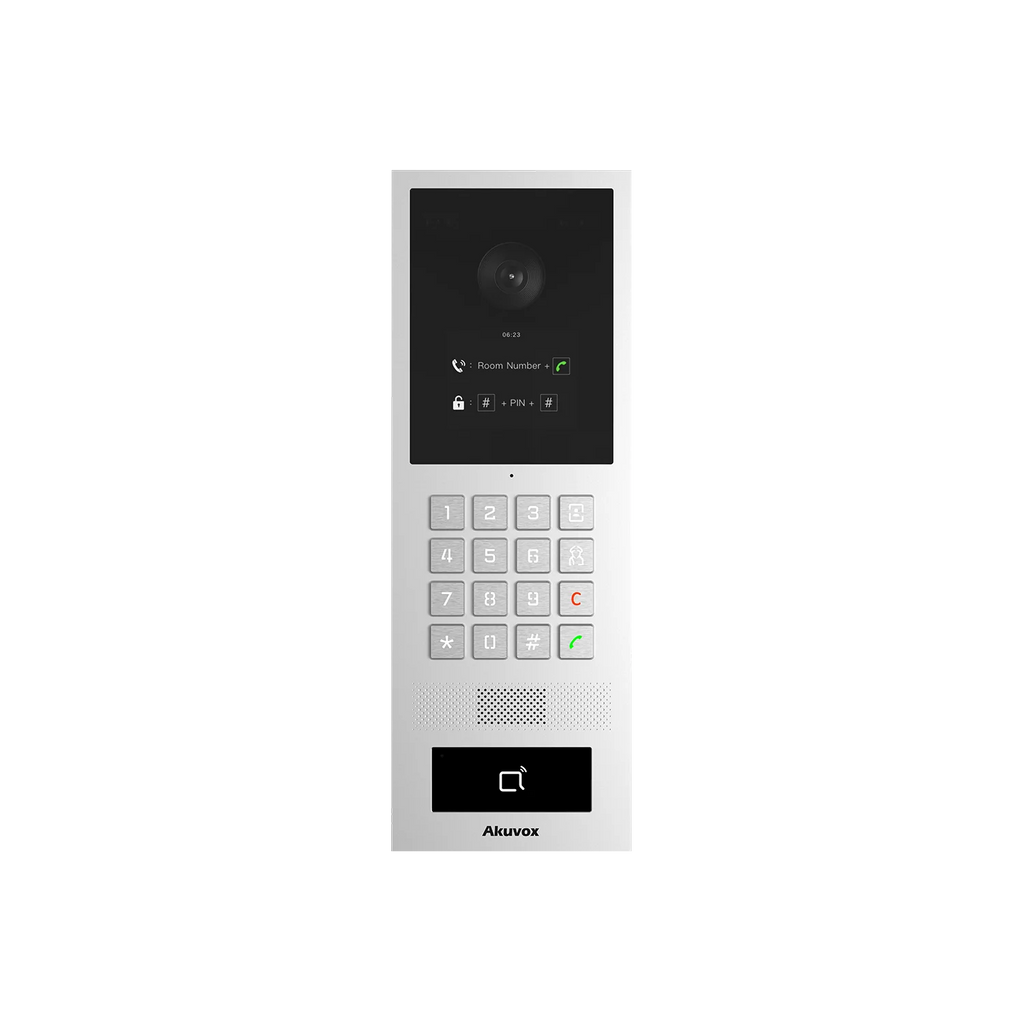

The Akuvox S532 (IP) is a compact yet powerful Linux-based SIP video door phone designed for high-security outdoor installations. Featuring a 2.8-inch color LCD display, 2MP wide-angle camera, and multi-method access control, this unit delivers reliable, advanced entry management for residential, commercial, and institutional environments.
Engineered with a durable aluminum diecast housing and IP66 / IK08 protection, the S532 offers PIN code entry, RF card reader compatibility, NFC, and Bluetooth access, making it ideal for locations requiring robust, flexible, and weather-resistant access solutions. The unit supports dual relays for controlling multiple doors or gates and offers power via PoE+ or 12V DC external supply. It is compatible with both surface and flush mount installations using optional accessories.
What’s Included in the Box
-
Akuvox S532 (IP) Video Door Phone Unit
-
Surface or Flush Mount Kit (selected separately)
-
Power Terminal and Network Connector
-
Screw and Mounting Kit
-
Quick Installation Guide
-
Warranty Information
Main Features
-
2.8″ Color LCD Display – Compact yet clear interface for visual status and interaction
-
2MP Camera with Wide-Angle View – Offers 130° horizontal / 90° vertical field of view with auto-light adjustment
-
Multi-Access Control – Supports PIN code, RF cards, NFC, and Bluetooth for secure and convenient entry
-
Dual Output Relays – Control up to two entry points from a single device
-
Durable Keypad – Tactile numeric keypad with LED backlighting for low-light operation
-
Robust Build Quality – Constructed with aluminum diecasting, rated IP66 for weatherproofing and IK08 for vandal resistance
-
Flexible Power Options – Supports PoE+ (IEEE802.3at) or 12V DC power input
-
Versatile Mounting – Easily integrates into both surface and flush installations via optional accessories
-
SIP Protocol Compliance – Seamlessly integrates with SIP-compatible PBX and video management systems
Detailed Specifications
| Specification | Description |
|---|---|
| Display | 2.8″ Color LCD |
| Camera | 2MP with auto-lighting |
| Viewing Angle | 130° (H) × 90° (V) |
| Audio Communication | Two-way with echo cancellation |
| Access Methods | PIN, IC/ID Card, NFC, Bluetooth |
| Keypad | Numeric backlit keypad |
| RFID Reader Frequency | 13.56 MHz & 125 kHz |
| Output Relays | 2 x Door/Gate control |
| Power Supply | PoE+ (IEEE802.3at), 12V DC |
| Protection Rating | IP66 (Waterproof), IK08 (Vandal Resistant) |
| Material | Aluminum Diecasting |
| Mounting Options | Surface or Flush (with accessory) |
| Operating System | Embedded Linux |
| Network Protocols | SIP, ONVIF |
Warranty Information-Manufactures warranty applied.
Brand Description
Akuvox is a global innovator in smart intercom and access control technology. Their solutions combine robust hardware, secure software, and modern design to provide intuitive access experiences across residential, commercial, and industrial sectors.
Practical Use Scenarios
-
Apartment and Office Entry Points – Multi-access and dual-relay support streamline entrance control
-
Public Sector Buildings – Tamper-resistant and weatherproof design ideal for exposed environments
-
Educational Institutions – Secures entry points with central SIP integration and mobile unlocking
-
Warehouse Facilities – Provides secure outdoor access with Bluetooth/NFC convenience
-
Multi-Tenant Properties – Supports PIN and card access for seamless user management
Excellence for the Australian and New Zealand Market
The Akuvox S532 (IP) is specially engineered for Australian and New Zealand outdoor environments, offering IP66-rated waterproofing, IK08 impact resistance, and support for PoE+ installations, ensuring safety, reliability, and compliance with local installation standards. Available through authorised ANZ distributors, the device offers full local warranty support, expert service access, and genuine integration with regionally certified access control ecosystems.
Datasheet / Downloads
FAQs (Product Code: S532-IP)
Q1: What access methods does the S532-IP support?
A1: The S532-IP supports PIN code entry, RF card reading, NFC, and Bluetooth unlocking. (Product Code: S532-IP)
Q2: Is the S532-IP suitable for outdoor installation?
A2: Yes, with its IP66 and IK08 ratings, it’s fully protected against weather and vandalism. (Product Code: S532-IP)
Q3: Can this intercom be powered by PoE?
A3: Yes, it supports PoE+ (IEEE 802.3at) and also accepts 12V DC power. (Product Code: S532-IP)
Q4: How many doors can the device control?
A4: The unit includes two output relays, allowing control of two separate doors or gates. (Product Code: S532-IP)
Q5: Can I mount it flush with the wall?
A5: Yes, the S532-IP supports flush mounting with the appropriate bracket or backbox. (Product Code: S532-IP)
