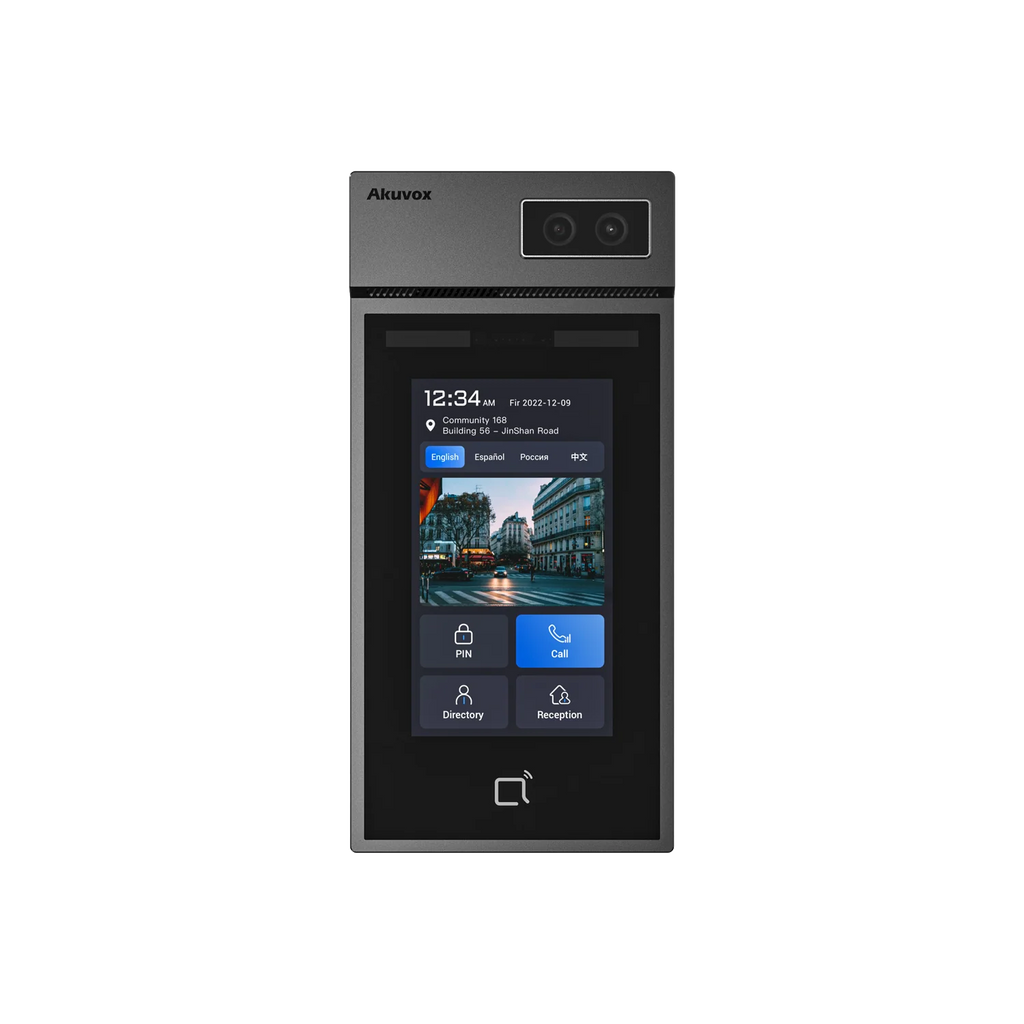

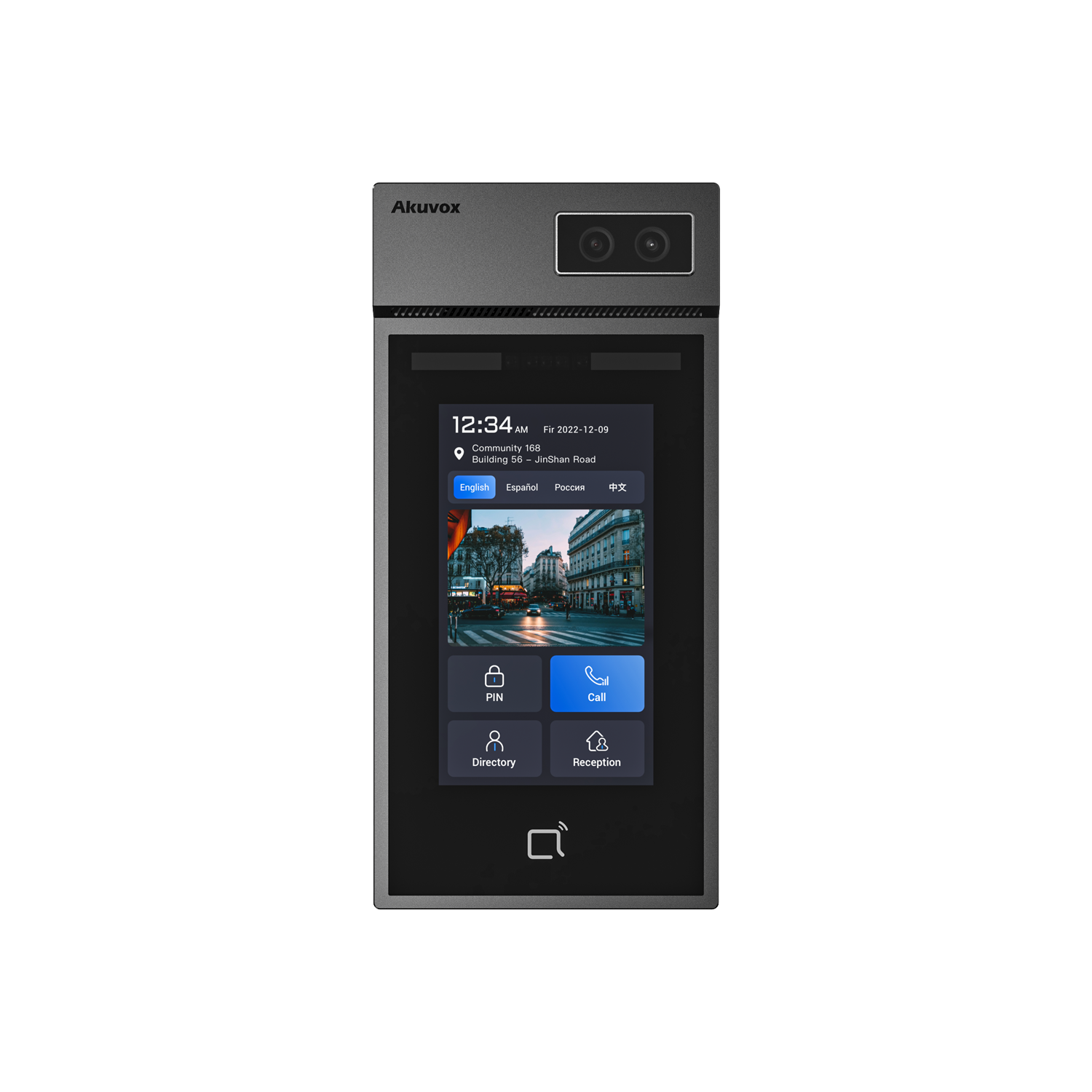

The Akuvox S535 is a highly adaptable facial recognition IP door station built with a modular architecture, enabling seamless customization and expansion for both residential and commercial access control systems. Featuring a 5-inch touchscreen, Full HD camera, and multi-credential support, the S535 delivers cutting-edge functionality with the flexibility to meet diverse security and integration requirements.
Designed to evolve with its environment, the S535 supports optional expansion modules such as LTE, Fingerprint Reader, or Induction Loop, making it an ideal solution for multi-dwelling units, gated estates, office buildings, and healthcare facilities. Its IP66 and IK08 protection ratings ensure it performs reliably in harsh outdoor conditions, while SIP and ONVIF compliance guarantees seamless integration with VoIP, PBX, and IP surveillance systems.
What’s Included in the Box
-
Akuvox S535 Modular IP Door Station
-
Surface or Flush Mount Frame
-
Power/Network Terminal Block
-
Mounting Hardware
-
Quick Installation Guide
-
Warranty & Compliance Information
Main Features
-
5″ Full-Color Touchscreen – Responsive user interface for secure credential entry and visual display
-
Facial Recognition Access – Fast, AI-driven access control with high accuracy in varying lighting conditions
-
Multiple Access Methods – Face, EM/Mifare Card, PIN, BLE (Bluetooth), and QR code
-
Modular Expansion Ready – Optional support for LTE, Fingerprint Scanner, or Induction Loop modules
-
Full HD Wide-Angle Camera – 1920 × 1080 resolution with 116° horizontal and 62° vertical field of view
-
IP66 & IK08 Rated – Built to withstand harsh environments and physical abuse
-
Two-Way Audio – Full-duplex communication with Echo Cancellation for crystal-clear conversations
-
Linux OS – Stable and secure system base for access control and intercom functionality
-
Flexible Installation – Supports both flush and surface mount for adaptable deployment
-
SIP & ONVIF Compliant – Compatible with standard VoIP systems and IP camera platforms
Detailed Specifications
| Specification |
Details |
| Display |
5″ Capacitive Touchscreen |
| Camera |
Full HD 1920 × 1080, Wide-Angle (116° H / 62° V) |
| Audio |
Two-way communication, Echo Cancellation |
| Operating System |
Linux |
| Access Methods |
Face, EM/Mifare Card, BLE, PIN, QR Code |
| Expansion Ports |
LTE / Fingerprint / Induction Loop (Optional) |
| Mounting Options |
Surface or Flush Mount |
| Protection Rating |
IP66 (Weatherproof), IK08 (Vandal-Resistant) |
| Power Supply |
PoE (IEEE802.3af), or DC 12V |
| Network Protocols |
SIP, ONVIF, RTP, RTSP |
| Operating Temperature |
-30°C to +60°C |
| Construction |
Durable Aluminum Panel |
Warranty Information
Manufactures warranty applied.
Brand Description
Akuvox is a globally recognised innovator in IP intercom and smart access control systems, offering scalable solutions built for next-gen residential, commercial, and industrial applications. Their products are known for reliable SIP architecture, intuitive user interfaces, and future-ready technology.
Practical Use Scenarios
-
Apartments & MDUs – Modular design supports evolving resident access needs
-
Healthcare & Aged Care Facilities – Optional induction loop support for accessibility compliance
-
Offices & Corporate Buildings – Secure staff entry with facial recognition and BLE
-
Government Buildings – Durable and tamper-resistant entry control with expansion support
-
Smart Estates & Villas – Seamlessly integrates with security networks and LTE connectivity
Excellence for the Australian and New Zealand Market
The Akuvox S535 is tailored for the ANZ market with IP66 and IK08-rated housing to endure local environmental challenges. The unit is fully compatible with SIP and ONVIF systems, ensuring integration with existing VoIP and security infrastructure. Supplied exclusively through authorised ANZ distributors, it guarantees full local warranty support and regulatory compliance for reliable operation in all climates.
Datasheet / Downloads
FAQs (Product Code: S535)
Q1: What access control methods are supported by the Akuvox S535?
A1: The S535 supports Face Recognition, RFID (EM/Mifare), PIN Code, BLE, and QR Code, covering a wide range of user needs. (Product Code: S535)
Q2: Is the S535 suitable for outdoor use?
A2: Yes, the unit is IP66-rated for weatherproofing and IK08-rated for impact resistance, making it suitable for all outdoor conditions. (Product Code: S535)
Q3: Can the S535 be expanded with additional modules?
A3: Yes, it supports modular expansion with LTE, Fingerprint Reader, or Induction Loop accessories, allowing customisation based on the project. (Product Code: S535)
Q4: Is the device compatible with VoIP or video systems?
A4: Absolutely. The S535 is SIP and ONVIF compliant, ensuring seamless integration with VoIP PBX and IP surveillance systems. (Product Code: S535)
Q5: What mounting options are available?
A5: The S535 supports flush-mounted and surface-mounted installations, making it versatile for new builds or retrofit projects. (Product Code: S535)
