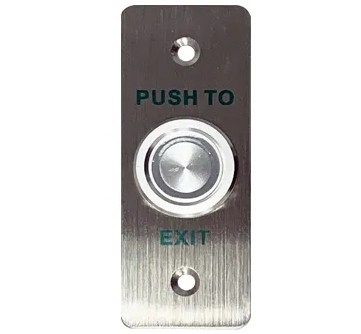

The AW100200 Architrave Touch to Exit Sensor Plate is a compact stainless steel access control exit sensor featuring an illuminated Piezo touch sensor, IP68 protection, Normally Open (N/O) contacts and 12V DC operation. With a slim 35mm x 90mm architrave plate and 20mm diameter sensor, the AW100200 provides a professional solution for compatible electronic access control, door release and security systems.
Designed for wall-mounted access control applications where installation space is limited, the AW100200 combines a durable stainless steel plate with an illuminated stainless steel Piezo sensor. Its narrow architrave format makes it particularly suitable for door frames and other restricted mounting locations where a conventional-sized exit plate may not be practical.
The IP68 rating provides a high level of protection against dust and water ingress when correctly installed, making the sensor suitable for demanding access control applications.
Main Features
-
Product Code: AW100200
-
Architrave-style Touch to Exit sensor plate
-
Stainless steel construction
-
Illuminated stainless steel Piezo sensor
-
20mm diameter sensor
-
Compact 35mm x 90mm plate
-
IP68 ingress protection
-
Normally Open (N/O) contacts
-
12V DC operation
-
Wall-mounted configuration
-
Designed for compatible access control and door release systems
-
Slim design for space-constrained installations
Detailed Specifications
| Specification |
Details |
| Product Code |
AW100200 |
| Product Type |
Touch to Exit Sensor Plate |
| Mounting Style |
Wall / Architrave |
| Plate Material |
Stainless Steel |
| Sensor Type |
Illuminated Piezo Touch Sensor |
| Sensor Material |
Stainless Steel |
| Plate Dimensions |
35mm x 90mm |
| Sensor Diameter |
20mm |
| Ingress Protection |
IP68 |
| Contact Type |
Normally Open (N/O) |
| Operating Voltage |
12V DC |
| Application |
Access Control / Door Exit Activation |
What's Included in the Box
Mounting hardware, power supplies, access controllers, cabling and other accessories not included
Practical Use Scenarios
The AW100200 Touch to Exit Sensor Plate is designed for compatible electronic access control installations requiring a compact and durable exit activation interface.
Typical applications include:
-
Commercial access-controlled doors
-
Office entry and exit systems
-
Apartment and multi-residential common areas
-
Controlled-access facilities
-
Electronic door release systems
-
Security-controlled doors
-
Narrow door frames and architraves
-
Installations requiring an IP68-rated exit sensor
Its compact 35mm width makes the AW100200 especially useful where there is insufficient mounting space for a conventional-sized exit plate.
Key Benefits
The AW100200 combines a compact footprint with stainless steel construction, illuminated Piezo touch activation and IP68 protection. Its 12V DC operation and N/O contact configuration allow integration with compatible access control and electronic door release equipment.
The narrow 35mm x 90mm architrave format provides a clean, professional installation on restricted mounting surfaces while retaining an accessible 20mm diameter illuminated sensor.
Warranty Information
1 year Warranty
SKU
AW100200
Datasheets & Downloadable Resources
Datasheet
Excellence for the Australian and New Zealand Market
The AW100200 Architrave Touch to Exit Sensor Plate provides a practical solution for Australian and New Zealand access control projects requiring a compact, durable and weather-resistant exit interface.
Its 12V DC operation, N/O contacts, IP68 protection and narrow architrave design make it suitable for integration into compatible professional security and door control installations.
For installations subject to Australian or New Zealand electrical, building, accessibility or security requirements, compliance should be assessed as part of the complete installed system. No specific Australian Standards, New Zealand Standards or other regulatory certification should be assumed unless supported by the applicable product documentation.
FAQs
What is the AW100200 Touch to Exit Sensor Plate used for?
The AW100200 is designed as an exit activation interface for compatible electronic access control and door release systems.
What are the dimensions of the AW100200 Touch to Exit Sensor Plate?
The AW100200 features a compact 35mm x 90mm architrave plate with a 20mm diameter sensor.
Is the AW100200 Touch to Exit Sensor Plate IP68 rated?
Yes. The AW100200 is specified with an IP68 ingress protection rating for protection against dust and water ingress when correctly installed.
What voltage does the AW100200 Touch to Exit Sensor Plate require?
The AW100200 is specified for 12V DC operation.
What contact type does the AW100200 Touch to Exit Sensor Plate use?
The AW100200 uses Normally Open (N/O) contacts for integration with compatible access control equipment.
Does the AW100200 Touch to Exit Sensor Plate have an illuminated sensor?
Yes. The AW100200 features an illuminated stainless steel Piezo sensor.
What size is the sensor on the AW100200 Touch to Exit Sensor Plate?
The AW100200 has a 20mm diameter sensor mounted on its compact stainless steel plate.
Is the AW100200 Touch to Exit Sensor Plate made from stainless steel?
Yes. The AW100200 is specified with a stainless steel plate and stainless steel illuminated Piezo sensor.
Can the AW100200 Touch to Exit Sensor Plate be installed on a narrow architrave?
Yes. The AW100200 has a narrow 35mm-wide architrave format, making it suitable for compatible installations where mounting space is restricted.
Is the AW100200 Touch to Exit Sensor Plate suitable for access control systems?
Yes. The AW100200 is designed for use as an exit activation device within compatible electronic access control and door release systems.
