The Bosch B444-G is a professional-grade plug-in cellular communication module designed for Solution 2000 and 3000 alarm panels. Offering global 4G LTE connectivity, the B444-G ensures robust, secure two-way IP communication for alarm reporting, remote programming, and mobile app integration. When used with the B450-M interface module (required), it forms a complete GPRS communication pathway that is fast, encrypted, and suitable for high-security environments.

The B444-G supports Bosch’s CONETTIX IP protocol, providing AES-encrypted communication, resistance to denial-of-service attacks, and flexible supervision. Designed for rapid installation and minimal setup, it features diagnostic LEDs, SMA antenna connections, and supports remote management via the RPS software or Bosch Security Manager (BSM) and Remote Security Control (RSC+) mobile apps. This compact module is ideal for use in locations without fixed-line internet access or as a cellular backup in dual-path systems.

Note: Requires firmware version 3.10.030 or higher and a B450-M communicator module. Also requires an active SIM card with data plan and an Installer Services Portal account.

What’s Included in the Box

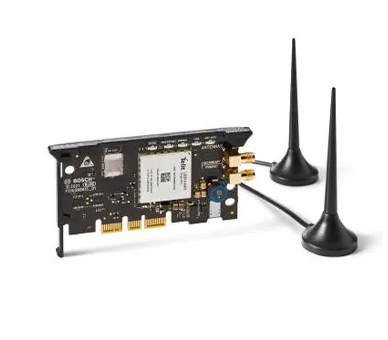

• 1 x B444-G Plug-in 4G LTE Cellular Communication Module

• 2 x SMA Magnetic Antennas (1 m cable each)

• 1 x Literature Pack (Documentation & Quick Start Guide)

Main Features

• Secure, encrypted two-way IP communication over 4G LTE

• Supports Bosch CONETTIX IP protocol with AES encryption (128/192/256-bit)

• Plug-and-play installation with advanced diagnostic LEDs

• Remote programming via RPS, plus app control via RSC+ and BSM

• Delivers alarm event reporting, personal SMS/email notifications, and mobile push alerts

• Compatible with Bosch Solution 2000 & 3000 panels via B450-M

• Dual SMA antenna ports for optimized signal strength

• Supports firmware upgrades and modular configurations

• Designed for secure commercial, residential, and institutional use

Detailed Specifications

Mechanical

• Dimensions: 50 mm x 93.5 mm x 15.25 mm

• Antenna Type: Magnetic base omni-directional

• Antenna Cable: 1.0 m SMA connector cables

Electrical

• Operating Voltage: 12 VDC nominal

• Current Consumption: 40 mA (standby), 150 mA (alarm transmission)

Environmental

• Operating Temperature: 0°C to 49°C

• Relative Humidity: 5% – 93% non-condensing

• Environmental Class: Class III (Indoor use only)

Wireless Compatibility

• 4G LTE Bands: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28

• 3G Bands: B1, B2, B4, B5, B6, B8, B19

• 2G Bands: B0, B1, B2, B3

Certifications

• Europe: CE

• Brazil: ANATEL

• Singapore: IMDA

• Australia/New Zealand: C-Tick Certified

Compatible Systems & Interfaces

• Control Panels: Bosch Solution 2000 / 3000 (via B450-M)

• Required Interface: Bosch B450-M communicator module (FW v3.10.030 or better)

• Optional Communication Devices:

  • B465 Universal Dual Path Communicator

  • B40-P, B40-MB25, B40-MB50 auxiliary antennas

Warranty Information

The Bosch B444-G is covered under a 3-year limited manufacturer's warranty, providing full protection against manufacturing defects. All warranty claims for Australia and New Zealand are managed directly through authorized Bosch support centers or brand partners.

Brand Description

Bosch Security Systems delivers cutting-edge intrusion, communication, and life-safety technologies trusted worldwide. Their German-engineered devices are known for uncompromising reliability, compliance, and innovation in both residential and commercial security sectors.

SKU

B444-G

Practical Use Scenarios

• Mobile Alarm Reporting: Transmit alarm events securely over the 4G LTE network

• App-Based Monitoring: Enable mobile push notifications and system control via the RSC+ app

• Network-Independent Installations: Ideal for remote or off-grid sites without Ethernet access

• Redundant Communication: Use as a failover communication path in dual-path systems

• Secure Alarm Sites: Suitable for locations needing encrypted, anti-substitution communication

Datasheets or Downloadable Resources

• Download Datasheet
• Download Quick Guide

Excellence for the Australian and New Zealand Market

• Compliant with C-Tick certification and relevant ANZ electrical standards

• Designed for optimal performance on local mobile carrier networks

• Sourced directly from authorized Bosch distributors in Australia & New Zealand

• Fully supports RSC+ mobile app integration with Cloud ID

• Backed by local warranty services and tech support for rapid issue resolution

Frequently Asked Questions (FAQs)

Q1: Is the Bosch B444-G (Product Code: B444-G) compatible with Solution 2000 and 3000 panels?
A1: Yes, the B444-G is fully compatible with Bosch Solution 2000 and 3000 panels, when used with the required B450-M interface module.

Q2: Does the Bosch B444-G (Product Code: B444-G) include a SIM card or require a data plan?
A2: The B444-G includes a SIM card, but an active data plan and Installer Services Portal account are required for operation.

Q3: What communication protocols does the Bosch B444-G (Product Code: B444-G) support?
A3: It supports Bosch's CONETTIX IP protocol over 4G LTE with advanced features like AES encryption and anti-replay protection.

Q4: Can the Bosch B444-G (Product Code: B444-G) send alarm alerts via mobile apps and SMS?
A4: Yes, it supports SMS alerts, email notifications, and push notifications via the Bosch RSC+ app.

Q5: Is the Bosch B444-G (Product Code: B444-G) certified for the Australian and New Zealand markets?
A5: Yes, the B444-G is C-Tick certified, making it fully compliant and optimized for use in ANZ networks.
