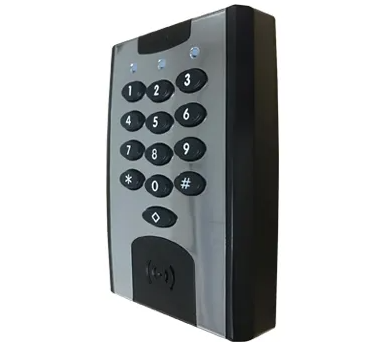

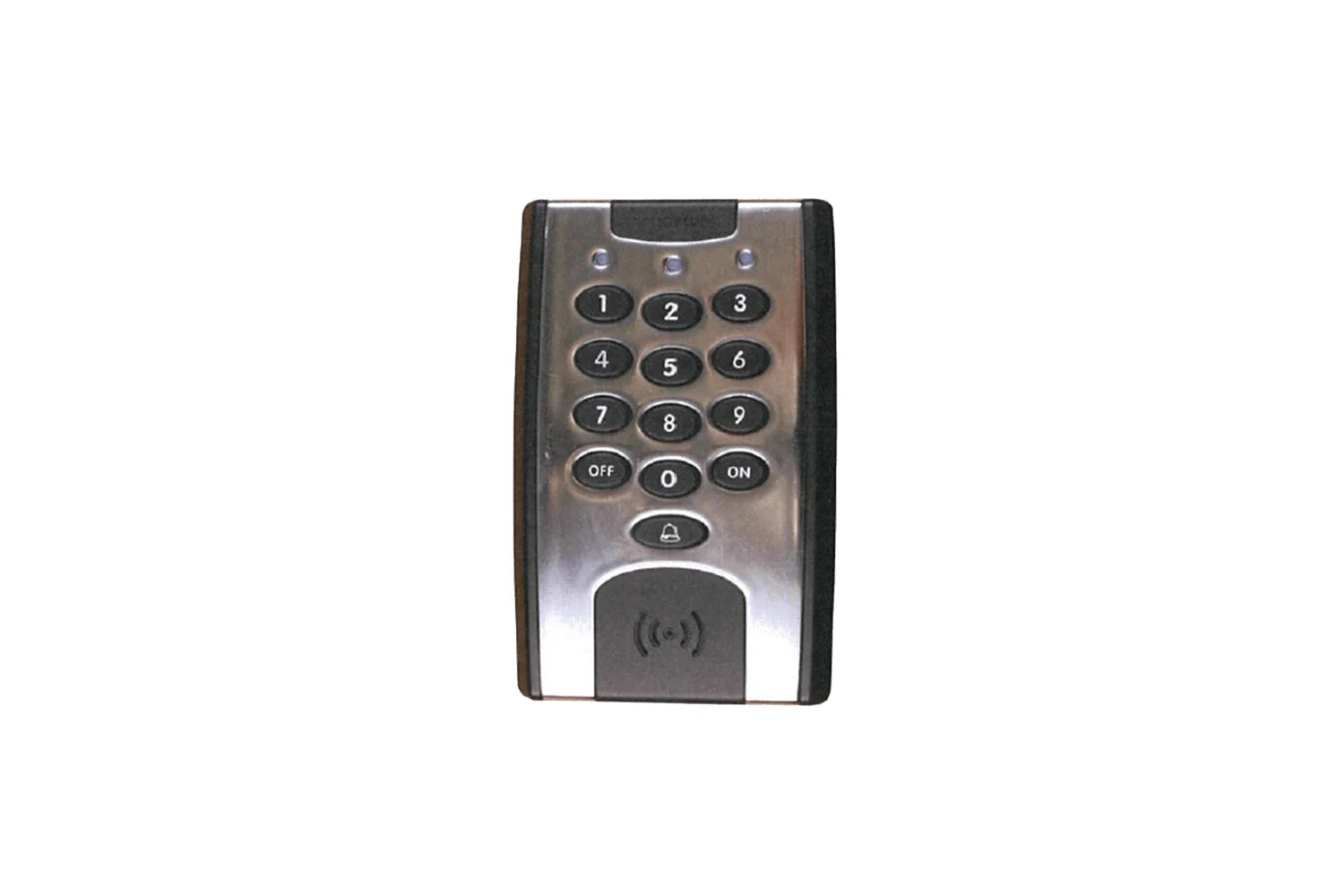

The BOSCH CP155B External Keypad is a premium-grade access control solution designed specifically for the Solution 6000 and Solution 144 alarm panels. Combining robust security features with a sleek brushed metal finish, this keypad is engineered for both indoor and outdoor installations, offering reliable performance in diverse environments.

Constructed from high-strength UV-resistant plastic and metal, the CP155B boasts an IP65 rating, ensuring protection against dust and water ingress. Its integrated smart-card reader enhances security by supporting encrypted LAN communication, effectively guarding against replay and substitution attacks. The touch-tone, backlit keys facilitate easy operation in low-light conditions, while the programmable egress input and lock output provide versatile access control options.

With clear indicators displaying alarm and door status, the CP155B not only enhances security but also offers intuitive user interaction. Whether managing an alarm system, controlling a door lock, or both, this keypad delivers seamless integration and dependable functionality.

What's Included in the Box

• BOSCH CP155B External Keypad

• Mounting Plate

• Plug-On Connection Cable and Grommet

• Instruction Sheet

• Address Switch Plug

• 1x Proximity Card

• 2 x (M3 x 6mm) Hex Screws

• 1 x 2mm Hex Key

Main Features

• Weather-Resistant Design: IP65 rated, suitable for both indoor and outdoor use

• Integrated Smart-Card Reader: Enhances security with encrypted LAN communication

• Touch-Tone Backlit Keys: Facilitates operation in low-light environments

• Programmable Inputs/Outputs: Egress input and lock output for versatile access control

• Status Indicators: LED indicators display alarm and door status

• Durable Construction: High-strength UV-resistant plastic and metal for longevity

• Seamless Integration: Compatible with BOSCH Solution 6000 and 144 panels

Detailed Specifications

• Model: CP155B

• Part Number: F.01U.344.559

• Dimensions: 83mm (W) x 30mm (D) x 129mm (H)

• Operating Voltage: 10V DC @ 100mA Max

• Lock Output: Relay form 1C, 24V DC at 2A

• Smart-Card Compatibility: PR301, PR350, PR365, PR370

• Operating Temperature: -10°C to 55°C

• Humidity: 5% to 93% non-condensing

• IP Rating: IP65

• Material: High-strength UV-resistant plastic and metal

• Communication Interface: RS485 encrypted LAN

Warranty Information

The BOSCH CP155B External Keypad comes with a 3-year manufacturer warranty, ensuring peace of mind and reliable performance.

Brand Description

BOSCH Security Systems is a globally recognized leader in security and safety solutions. With a commitment to innovation and quality, BOSCH delivers products that meet the highest standards of performance and reliability, catering to a wide range of security needs.

SKU

CP155B

Practical Use Scenarios

• Commercial Buildings: Secure access control for office entrances and restricted areas

• Industrial Facilities: Robust solution for controlling access in harsh environments

• Residential Complexes: Enhanced security for gated communities and apartment buildings

• Educational Institutions: Controlled access to laboratories, libraries, and administrative offices

• Healthcare Facilities: Secure entry points for staff and restricted zones

Datasheets and Downloadable Resources

• CP155B Installation Guide

Excellence for the Australian and New Zealand Market

The BOSCH CP155B External Keypad is tailored to meet the stringent quality and safety standards of the Australian and New Zealand markets. Its IP65 rating ensures suitability for the diverse climatic conditions prevalent in these regions. Sourced exclusively from authorized BOSCH representatives, this product guarantees authenticity and compliance with local regulations. Warranty claims and support are handled directly through BOSCH, ensuring prompt and efficient service.

Frequently Asked Questions (FAQs)

Q1: Is the BOSCH CP155B (CP155B) compatible with the Solution 6000 panel?
A1: Yes, the CP155B is specifically designed to integrate seamlessly with BOSCH Solution 6000 and Solution 144 alarm panels.

Q2: Can the CP155B (CP155B) be installed outdoors?
A2: Absolutely. With its IP65 rating and durable construction, the CP155B is ideal for both indoor and outdoor installations.

Q3: Does the CP155B (CP155B) support smart-card access?
A3: Yes, it features an integrated smart-card reader compatible with PR301, PR350, PR365, and PR370 cards.

Q4: What are the power requirements for the CP155B (CP155B)?
A4: The keypad operates at 10V DC with a maximum current draw of 100mA.

Q5: How does the CP155B (CP155B) enhance security against unauthorized access?
A5: It utilizes encrypted RS485 LAN communication and is monitored for anti-replay and anti-substitution, ensuring robust protection against unauthorized access attempts.
